$16.01The Story

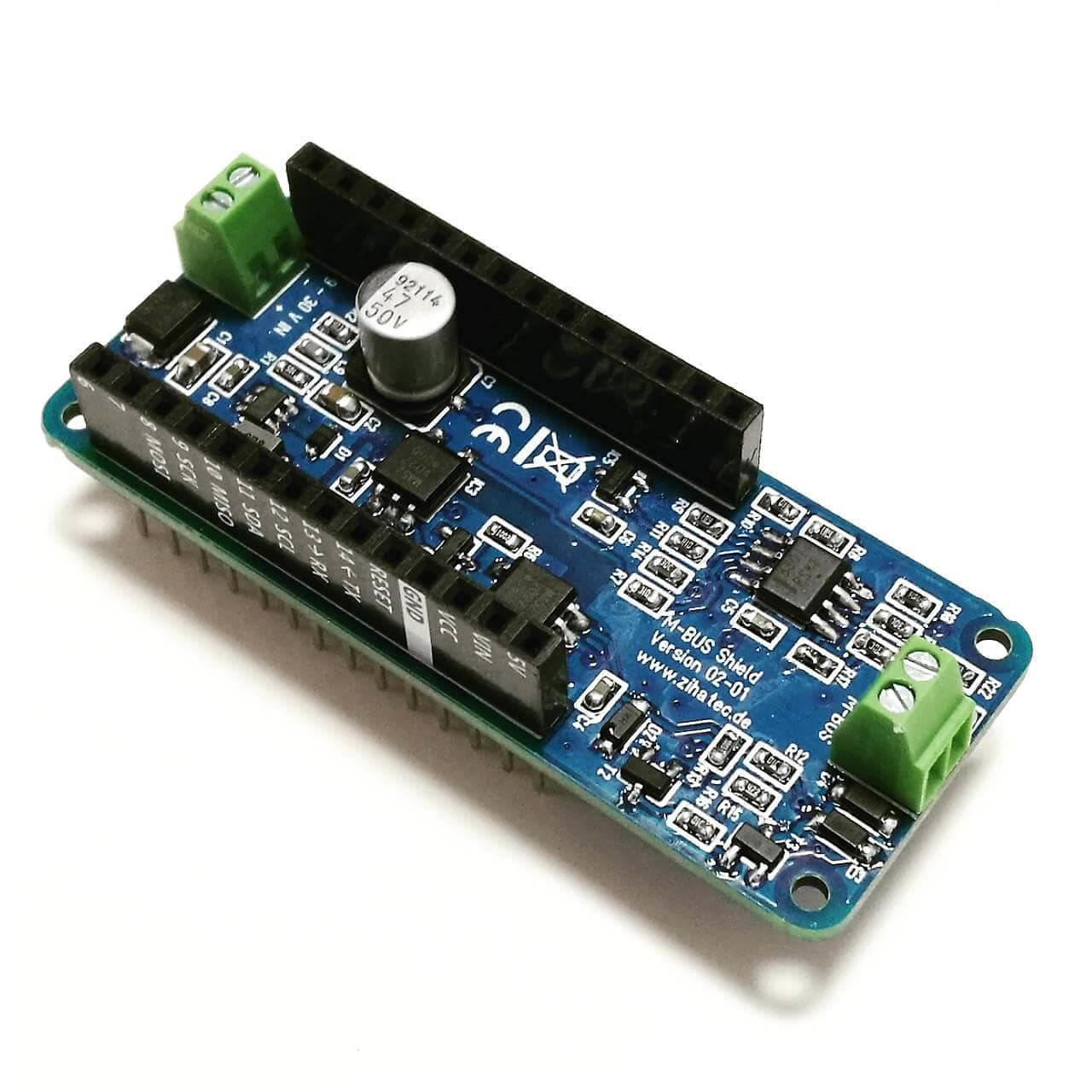

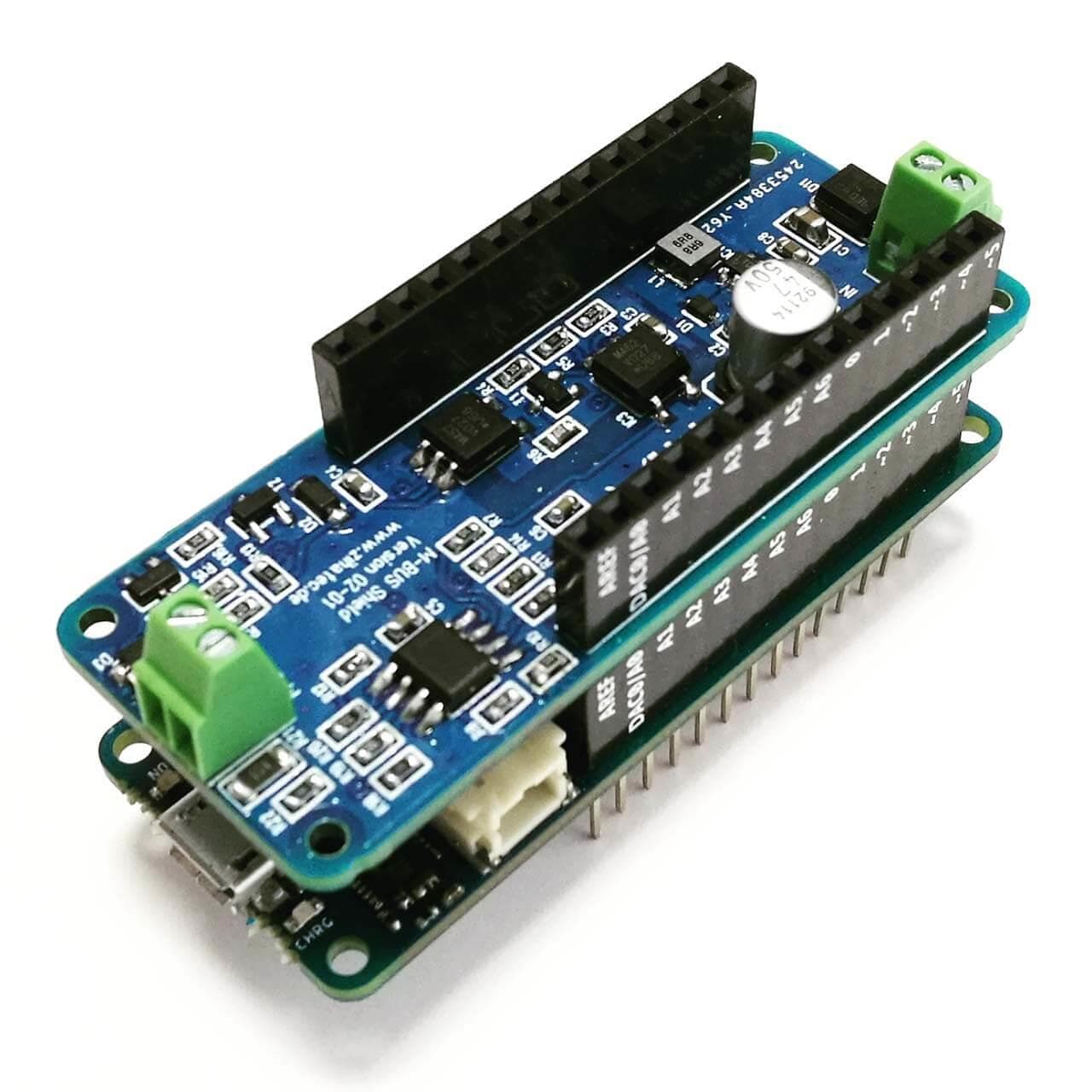

This shield for the Arduino MKR will extend your board with smart metering functions!
The M-BUS MKR Shield provides a small M-Bus Master interface to connect power meters or other M-Bus devices directly to the M-Bus terminals of the shield.
You can find the M-Bus Slave Shield here
Features
- M-Bus (Meter-Bus) Master
- Compatible to European standard EN 13757-2
- For the remote reading of consumption meters
- For up to 6 unit-loads (9mA)
- Powered by an external 9-30V DC voltage (36V for the MBUS will be generated internally from this voltage)
- Galvanically isolated interface
- Miniature screw terminals for bus and power supply connection
- Stacked headers
- For Arduino MKR series and Arduino Portenta H7
Software Examples
Zihatec provides a simple data repeater code example to analyse M-BUS data via a connected PC and also a basic M-BUS master to readout M-BUS slaves directly with the Arduino MKR.
Resources
- Datasheet
- M-Bus Website
