M-Bus Slave HAT for Raspberry Pi Pico
HomeStore

M-Bus Slave HAT for Raspberry Pi Pico

M-Bus Slave HAT for Raspberry Pi Pico

$8.78

Original: $29.27

-70%
M-Bus Slave HAT for Raspberry Pi Pico—

$29.27

$8.78

The Story

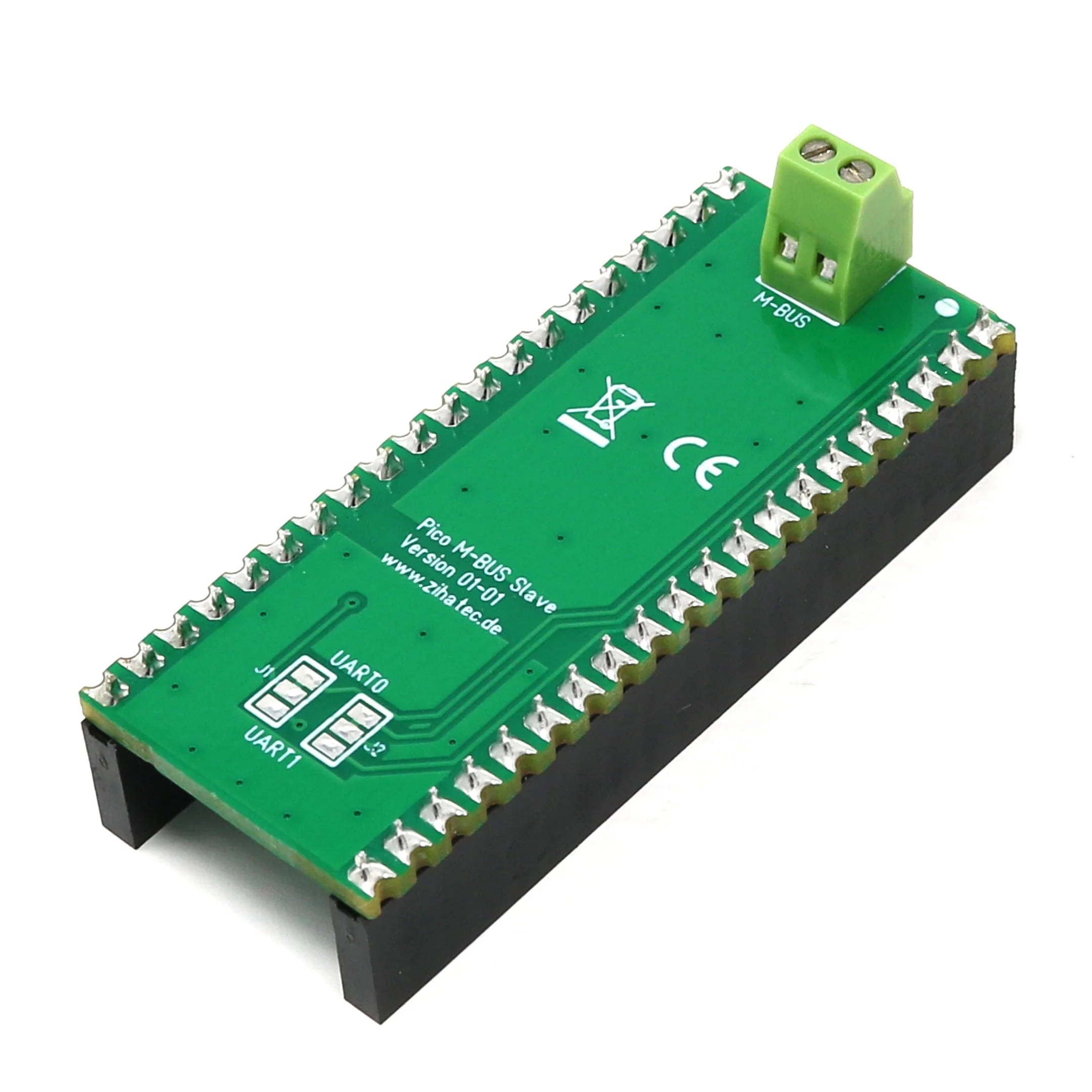

This M-Bus Slave HAT is an add-on board that allows the Raspberry Pi Pico to function as an M-Bus (meter bus) slave node. It is based on the TSS721 M-Bus Transceiver IC and provides communication via UART0 or UART1.

The HAT features an isolated interface and can be used to read consumption meters with a P1 customer interface or create custom meters for M-Bus systems. Software support includes example codes for Arduino IDE to read meters and implement simple meter functions.

We also have the M-Bus Master HAT here

Note: Raspberry Pi Pico is NOT included

Features

  • M-Bus (meter bus) slave node
  • Based on the TSS721 M-Bus Transceiver IC
  • Communication with Pico via UART0 or UART1
  • Isolated Interface

Connection Example - Electric Meter with P1 Port

Resources

  • Datasheet

Software

  • Arduino IDE
    • On our GitHub account we have provided example code for reading consumption meters with P1 customer interface and DLMS/COSAM protocol
    • The Arduino M-BUS meter example shows how you can program your own simple meters

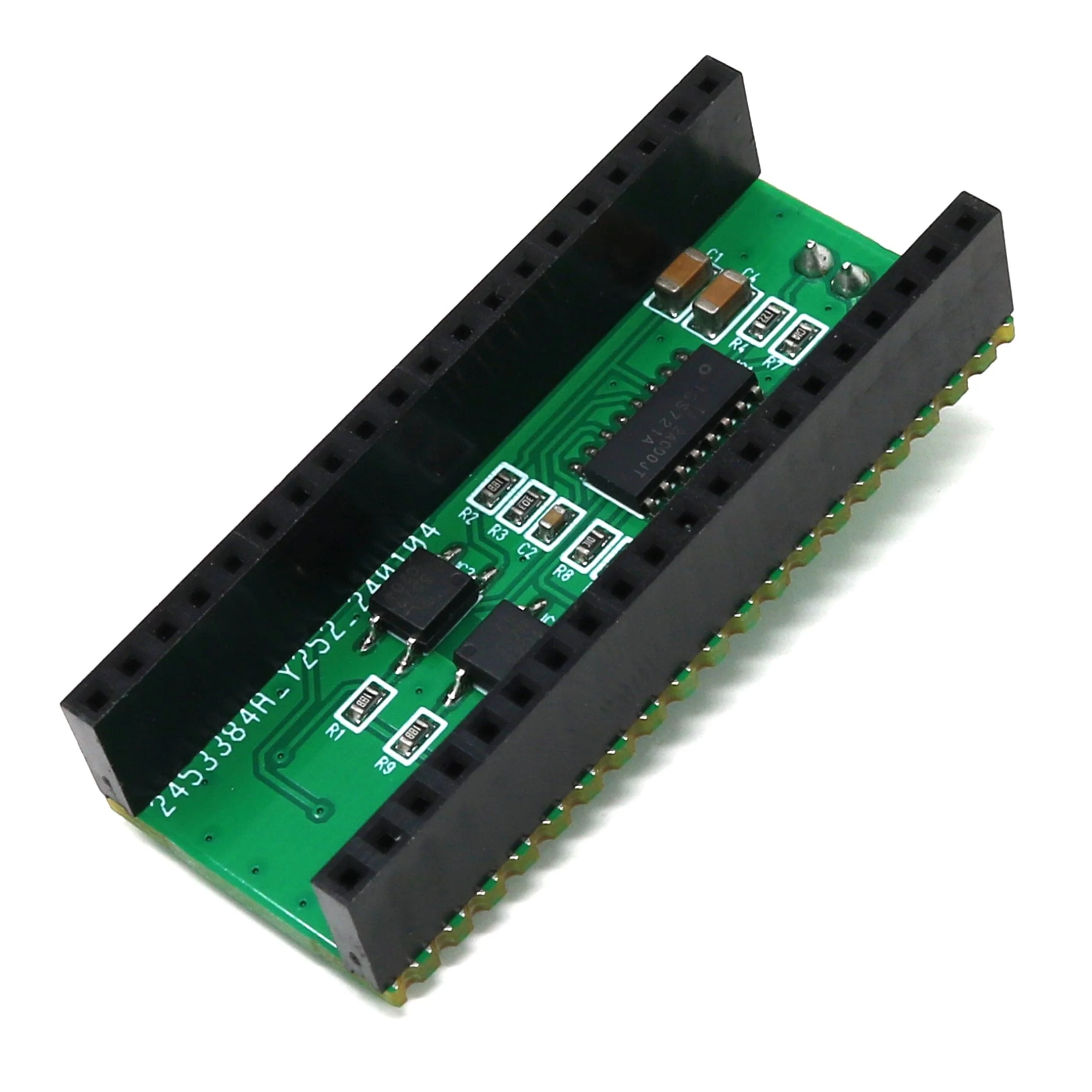

M-Bus Slave HAT for Raspberry Pi Pico - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This M-Bus Slave HAT is an add-on board that allows the Raspberry Pi Pico to function as an M-Bus (meter bus) slave node. It is based on the TSS721 M-Bus Transceiver IC and provides communication via UART0 or UART1.

The HAT features an isolated interface and can be used to read consumption meters with a P1 customer interface or create custom meters for M-Bus systems. Software support includes example codes for Arduino IDE to read meters and implement simple meter functions.

We also have the M-Bus Master HAT here

Note: Raspberry Pi Pico is NOT included

Features

  • M-Bus (meter bus) slave node
  • Based on the TSS721 M-Bus Transceiver IC
  • Communication with Pico via UART0 or UART1
  • Isolated Interface

Connection Example - Electric Meter with P1 Port

Resources

  • Datasheet

Software

  • Arduino IDE
    • On our GitHub account we have provided example code for reading consumption meters with P1 customer interface and DLMS/COSAM protocol
    • The Arduino M-BUS meter example shows how you can program your own simple meters
