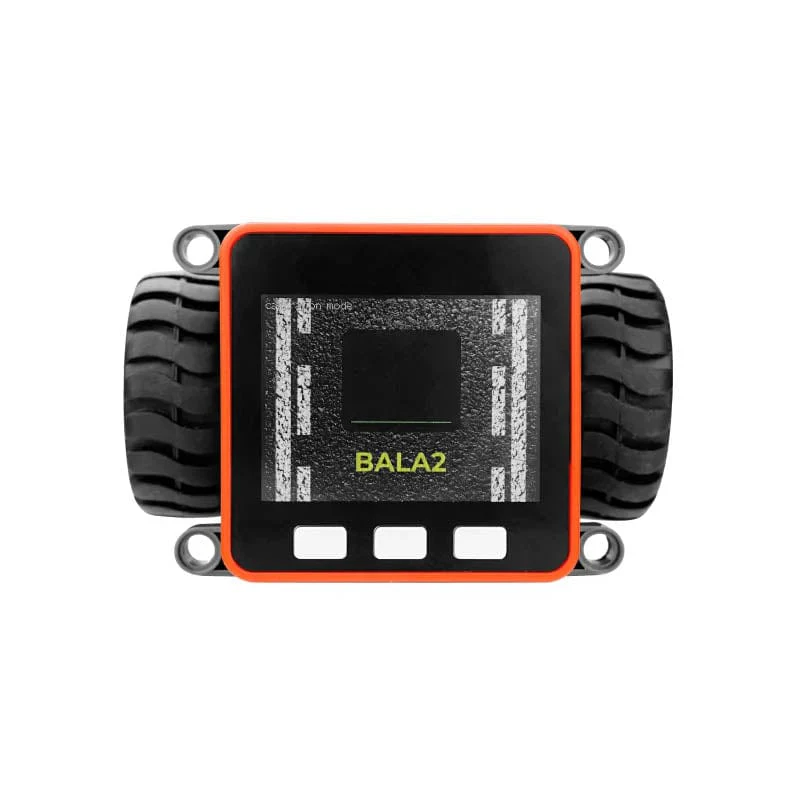

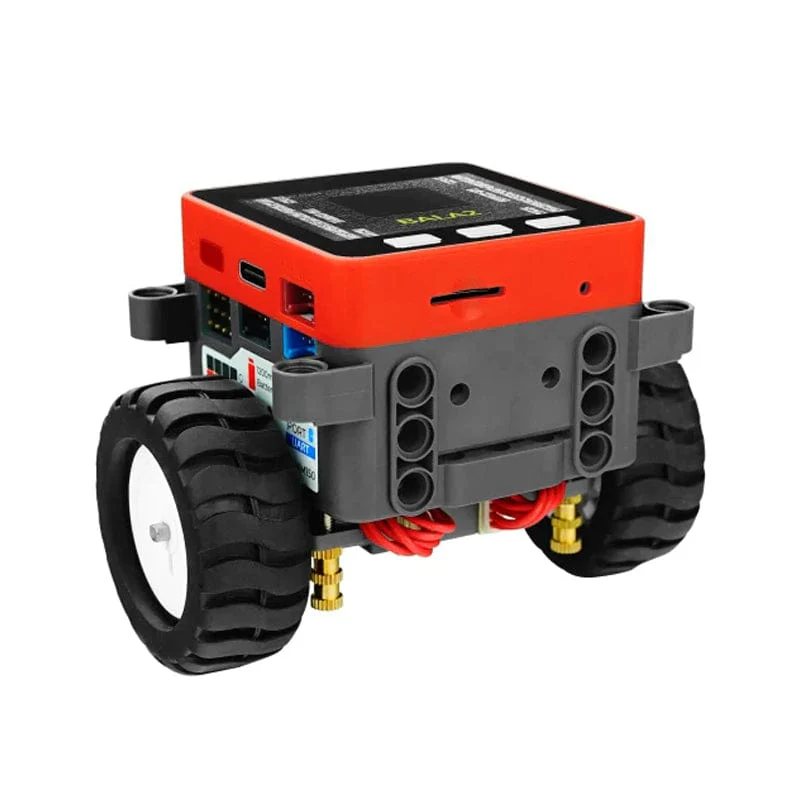

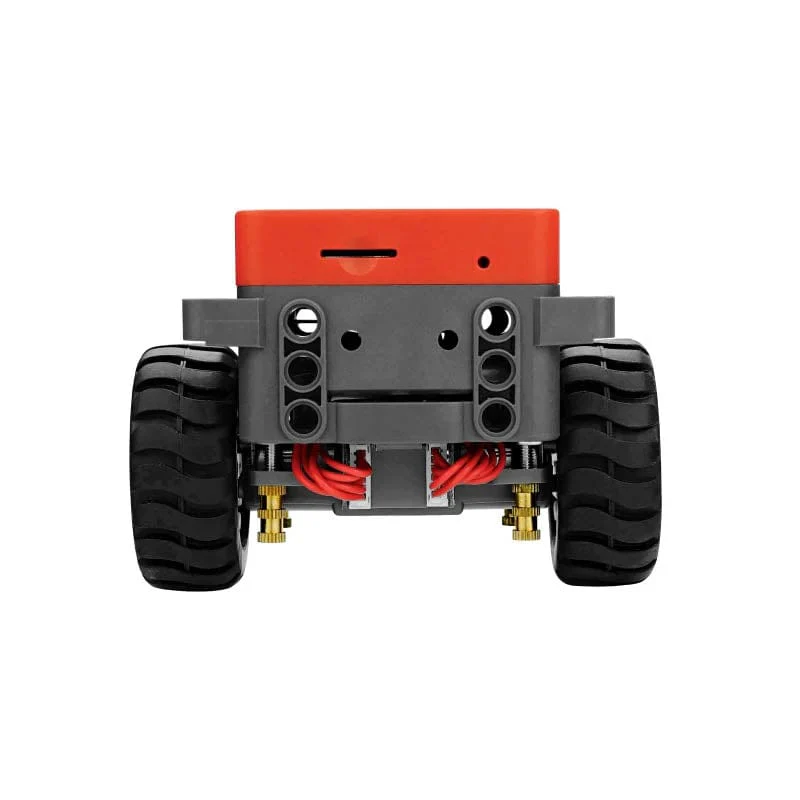

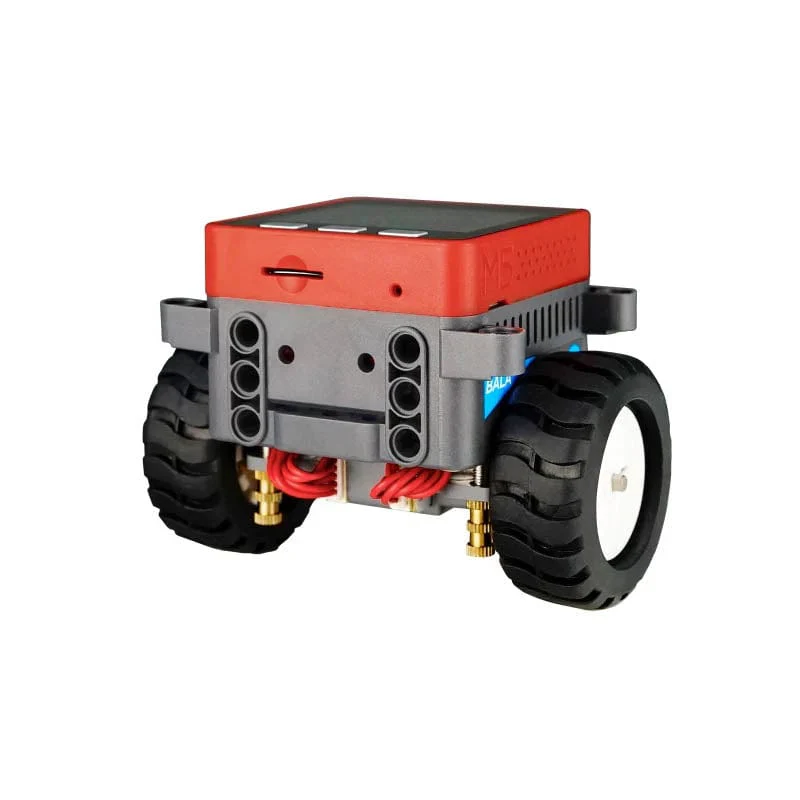

M5Stack BALA2 Fire Self-balancing Robot Kit [Discontinued]

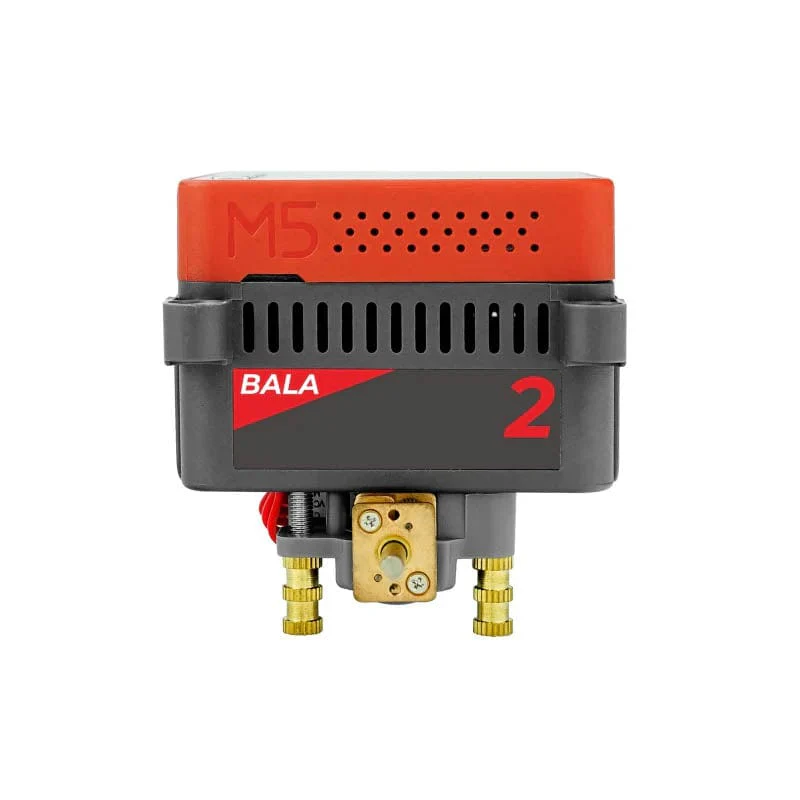

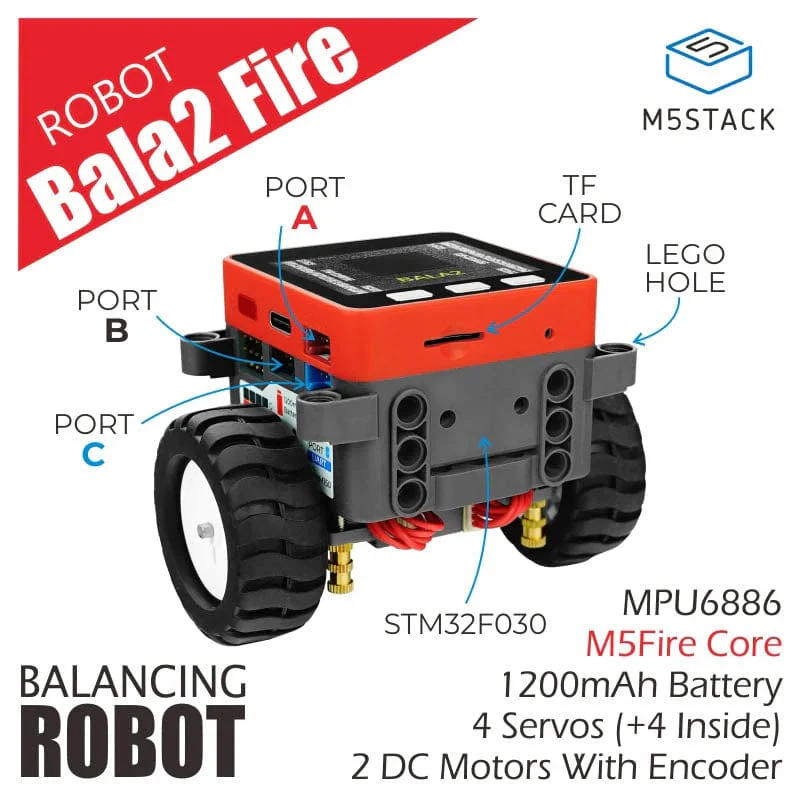

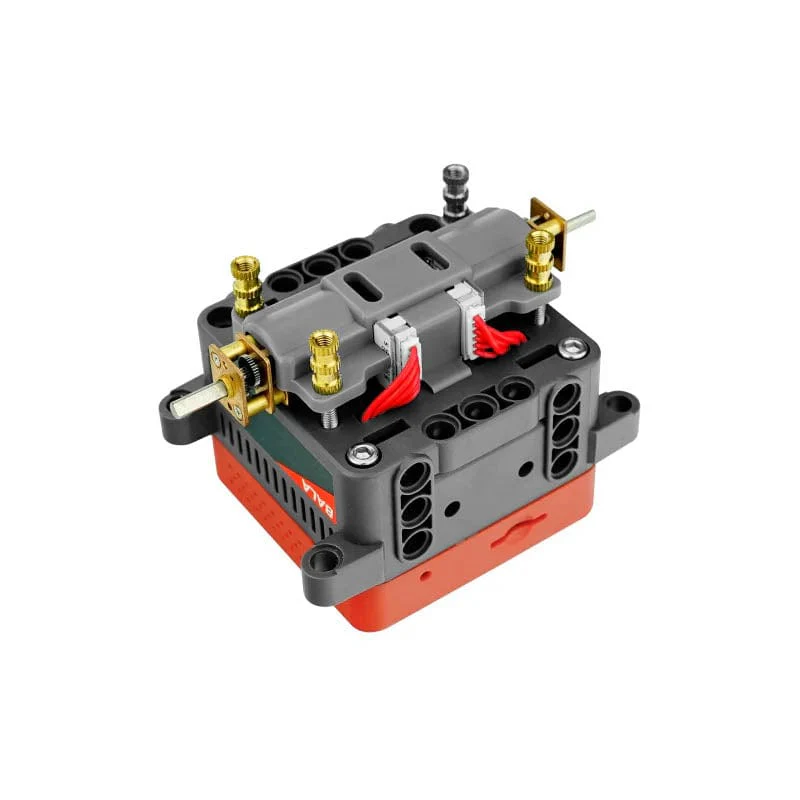

The BALA2 Fire (Bala is short for 'Balance') is the second generation of the M5Stack balancing robot series. The BALA2 Fire is a Self Balancing Robot consisting of an M5Stack Fire and two wheels with DC motors. The base uses an STM32F030C8T6 as the main control and has a two-way encoding motor driver and a built-in 1200mAh battery.

This robotics product comes with preloaded software including a self-balancing robot application which balances the robot vertically using a closed-loop algorithm. You can program it to automatically move around through programming, or you can combine Wi-Fi to develop remote control functions.

This Robot is controllable by a Smartphone device or a Transmitter. The BALA2 base contains a wealth of interfaces. In addition to the conventional PortB and PortC, it also supports 8-channel servos, of which 4 channels can be directly connected, and the remaining 4 channels need to be connected from the inside of the base.

Even if you have never attempted a balancing robot program, you can quickly get the hang of it and control it through UIFlow. The self-balancing robot uses data from the Accelerometer and Gyroscope to correct its orientation and position. The 2 DC driver module communicates with the M5Stack Fire through I2C(0x3A).

Be sure to check out the Tutorial & Quick Start and visit the product documentation site for more info.

Caution: While using PSRAM, you cannot use PortC.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL. Why?

---

Features

• 6-DOF IMU
• Two-wheel drive, PID control balance
• Grove extension ports
• 8-channel servo drive, 4-channel external connection, 4-channel built-in
• Support Wi-Fi programmable
• Built-in speaker
• MicroSD Card Support
• Building brick Compatible
• Programming Support
  • Python
  • UIFlow (Blockly)
  • Arduino

Package Contents

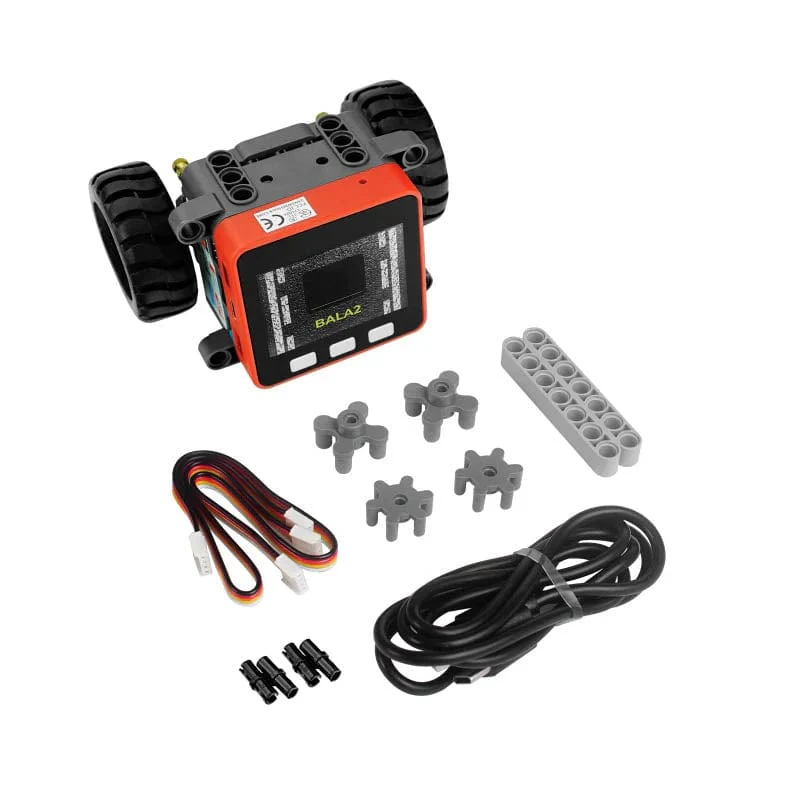

• 1x M5Stack Fire + BALA2
• 4x Wheel connector
• 2x HY2.0 4-pin Cables (20cm)
• 2x Bricks
• 1x HEX KEY
• 1x Type-C USB Cable (120cm)

Specifications

ESP32	240MHz Dual Core 600 DMIPS 520KB SRAM Wi-Fi
Flash	16MB Flash
PSRAM	8MB PSRAM
LCD	2.0 inch, 320x240 Color TFT LCD, ILI9342C
Speaker	1W-0928
MEMS	MPU6886
Motor Driver	HR8833
Base Controller	STM32F030C8T6
Ports	GROVE I2C*1 UART*1 GPIO*1 SERVO*4 (+4 Extendable Channel)
Battery Capacity	1200mAh
Net Weight	153.9g
Gross Weight	260.0g
Product Size	54*54*65*mm
Package dimensions	170*110*66mm
Case Material	Plastic

Resources

• Product Documentation
• Tutorial, Quick Start and calibration
• GitHub Arduino Example
• Schematic

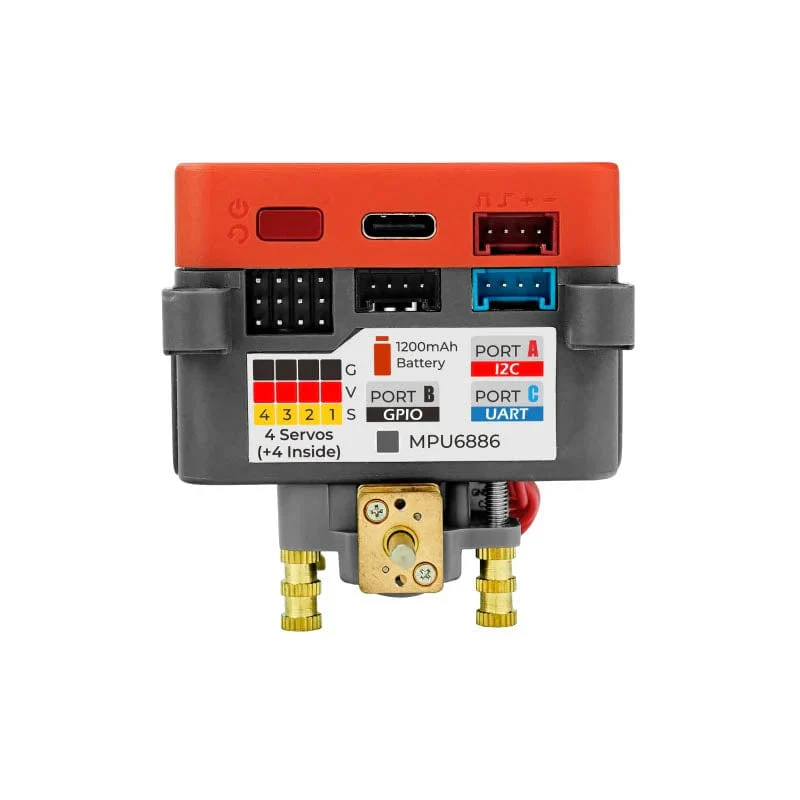

Pinout

ESP32 Chip	GPIO22	GPIO21	GPIO26	GPIO36	GPIO16	GPIO17
PORT A	SCL	SDA
PORT B			DAC	ADC
PORT C					RX	TX
