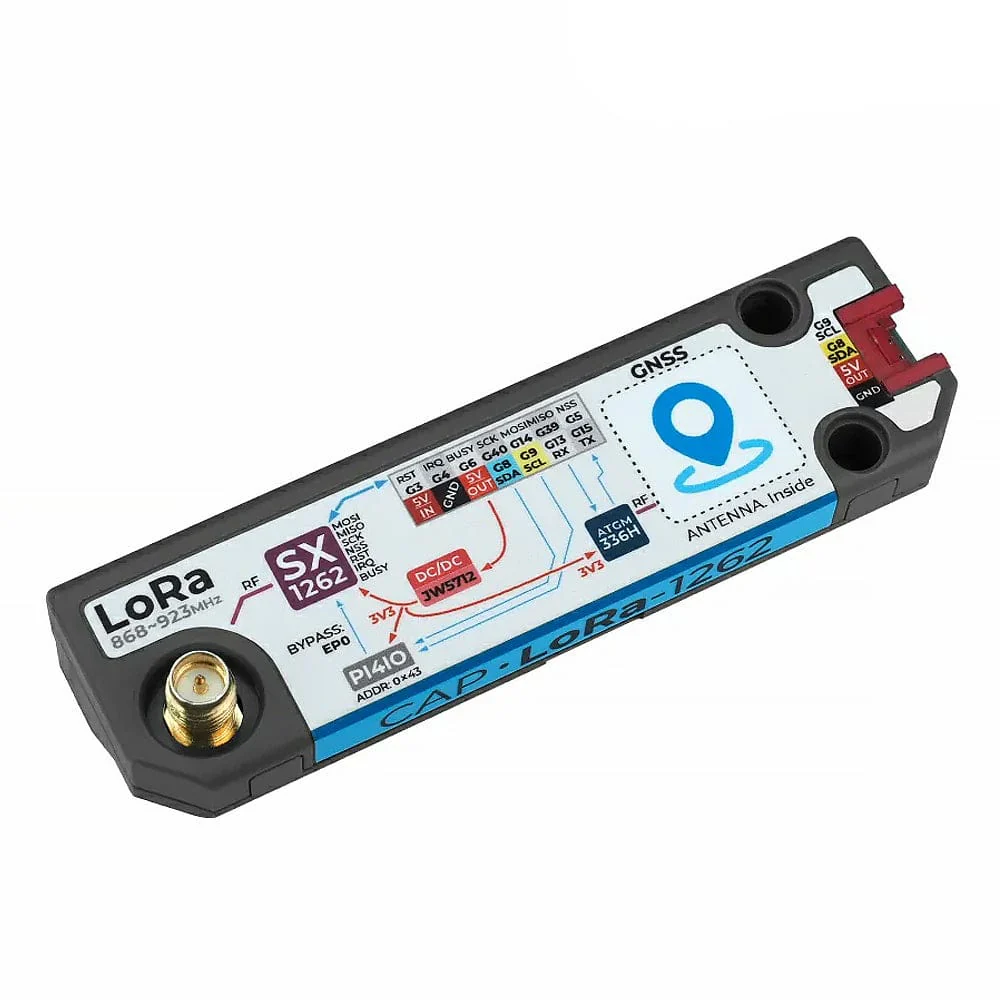

M5Stack Cap LoRa 1262 for Cardputer Adv (LoRa + GNSS)

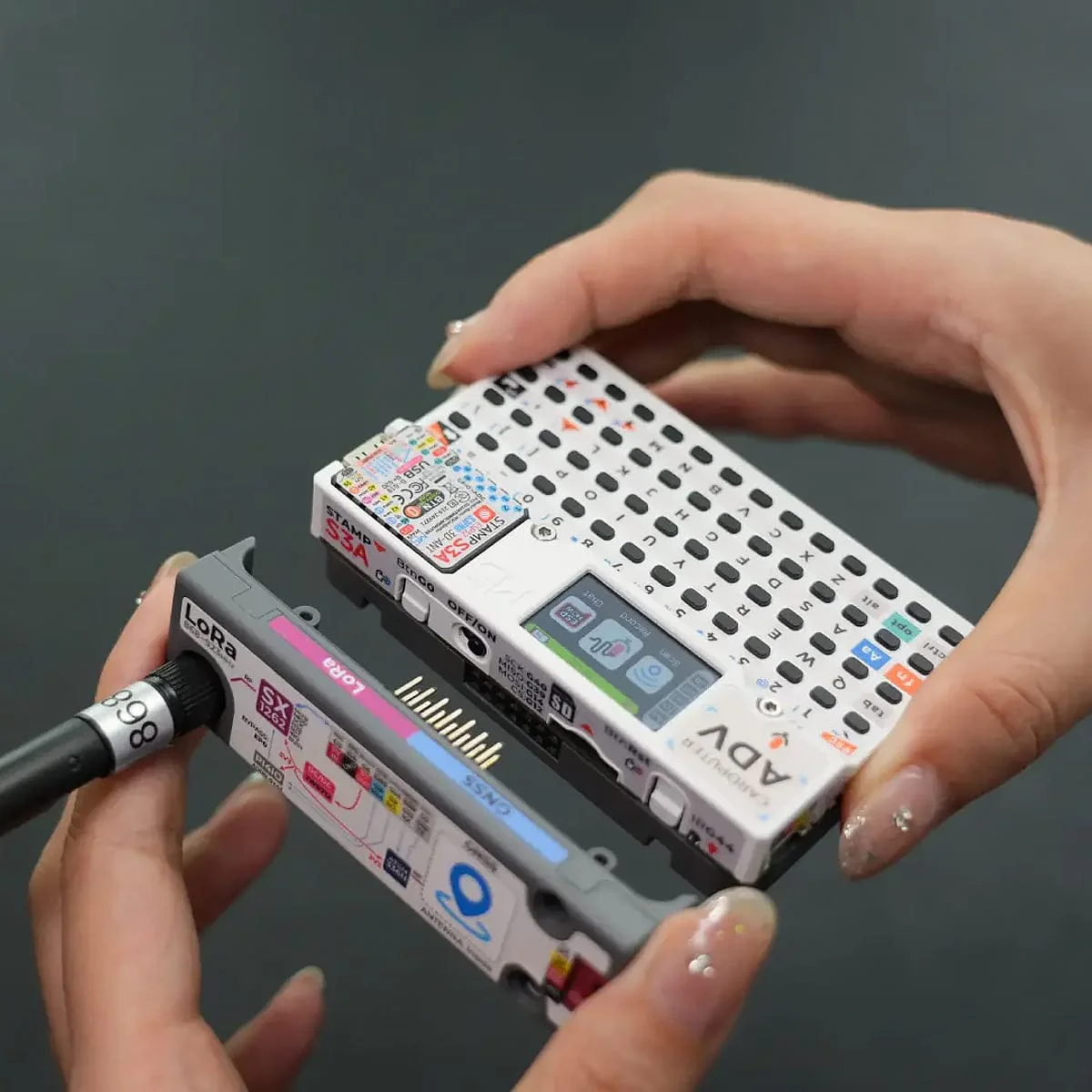

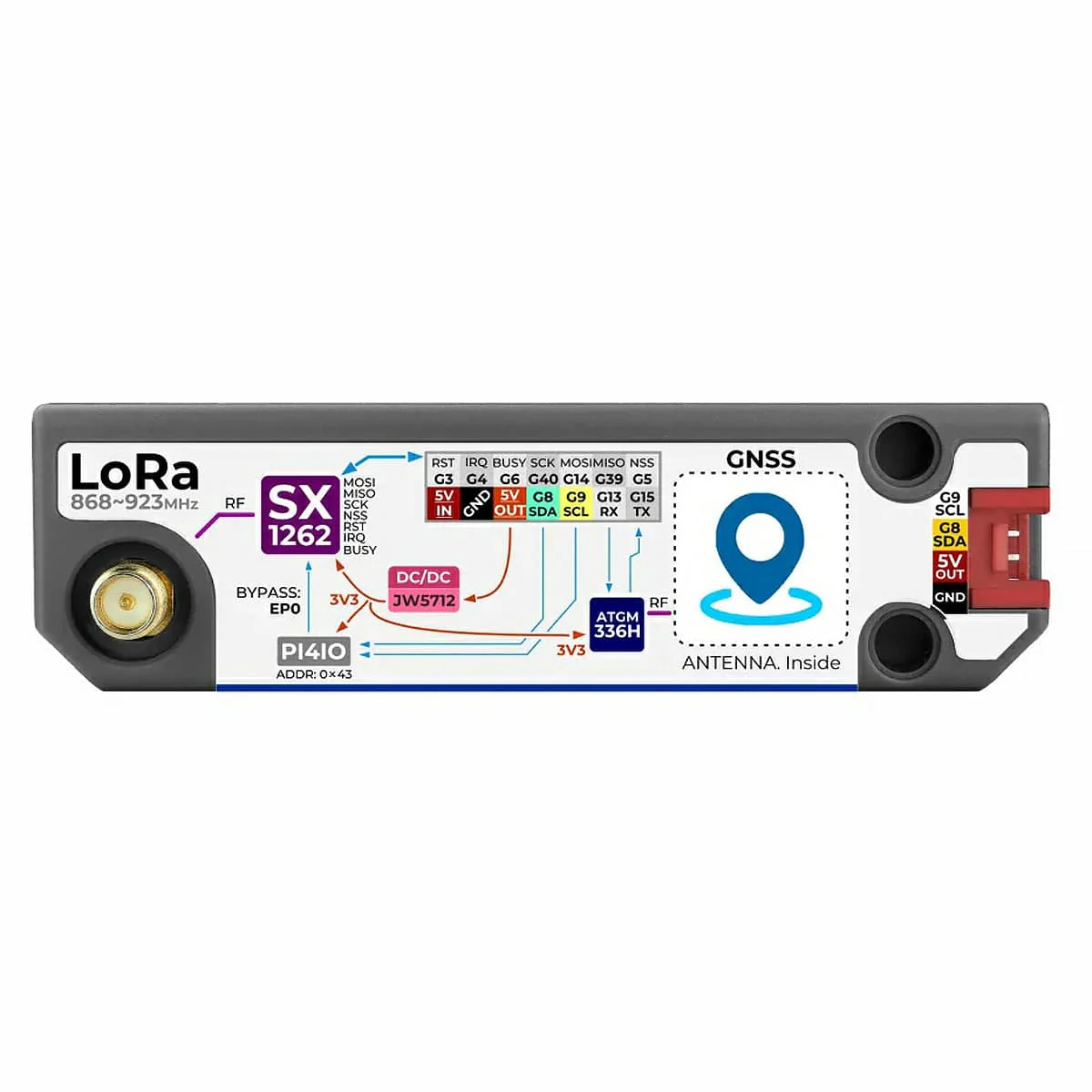

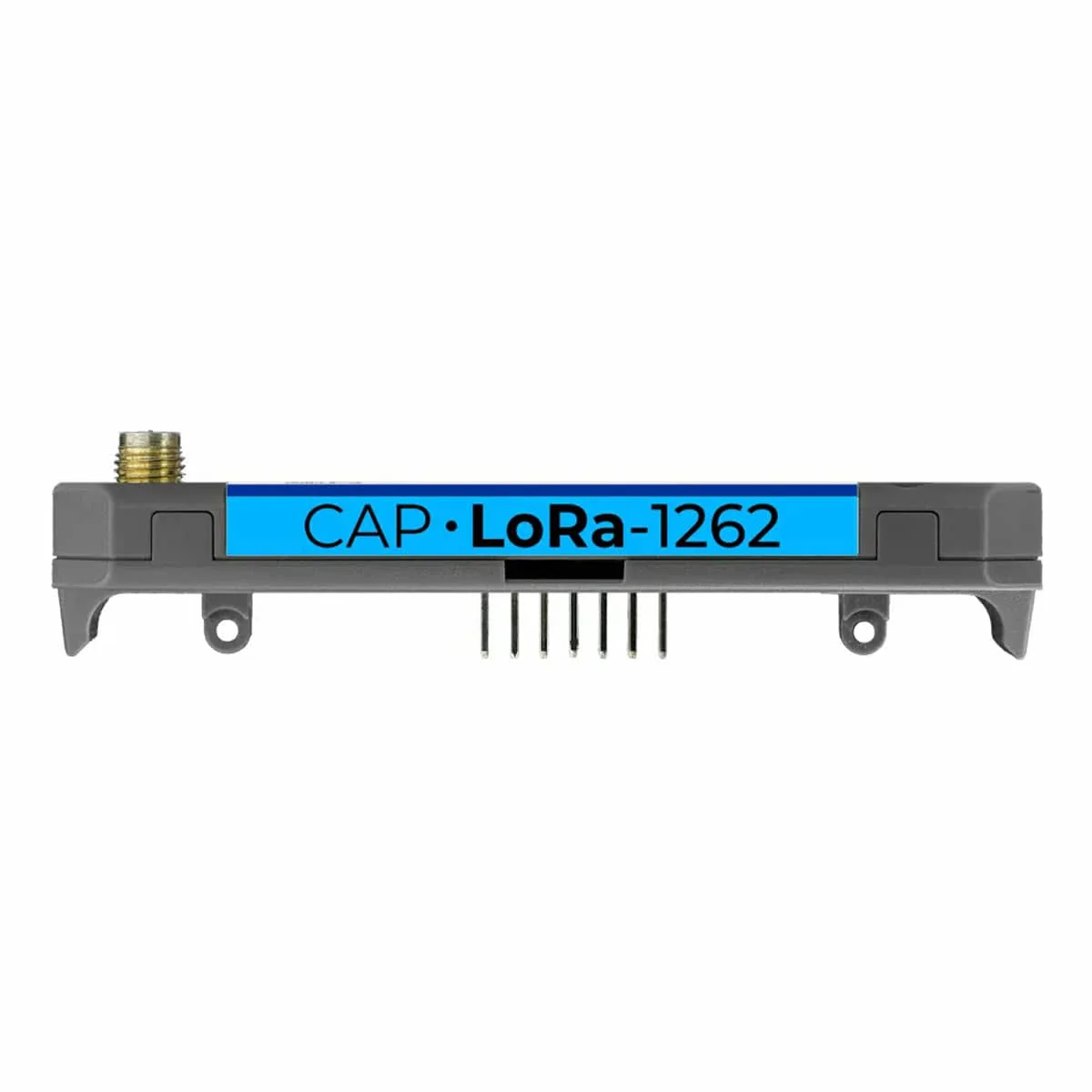

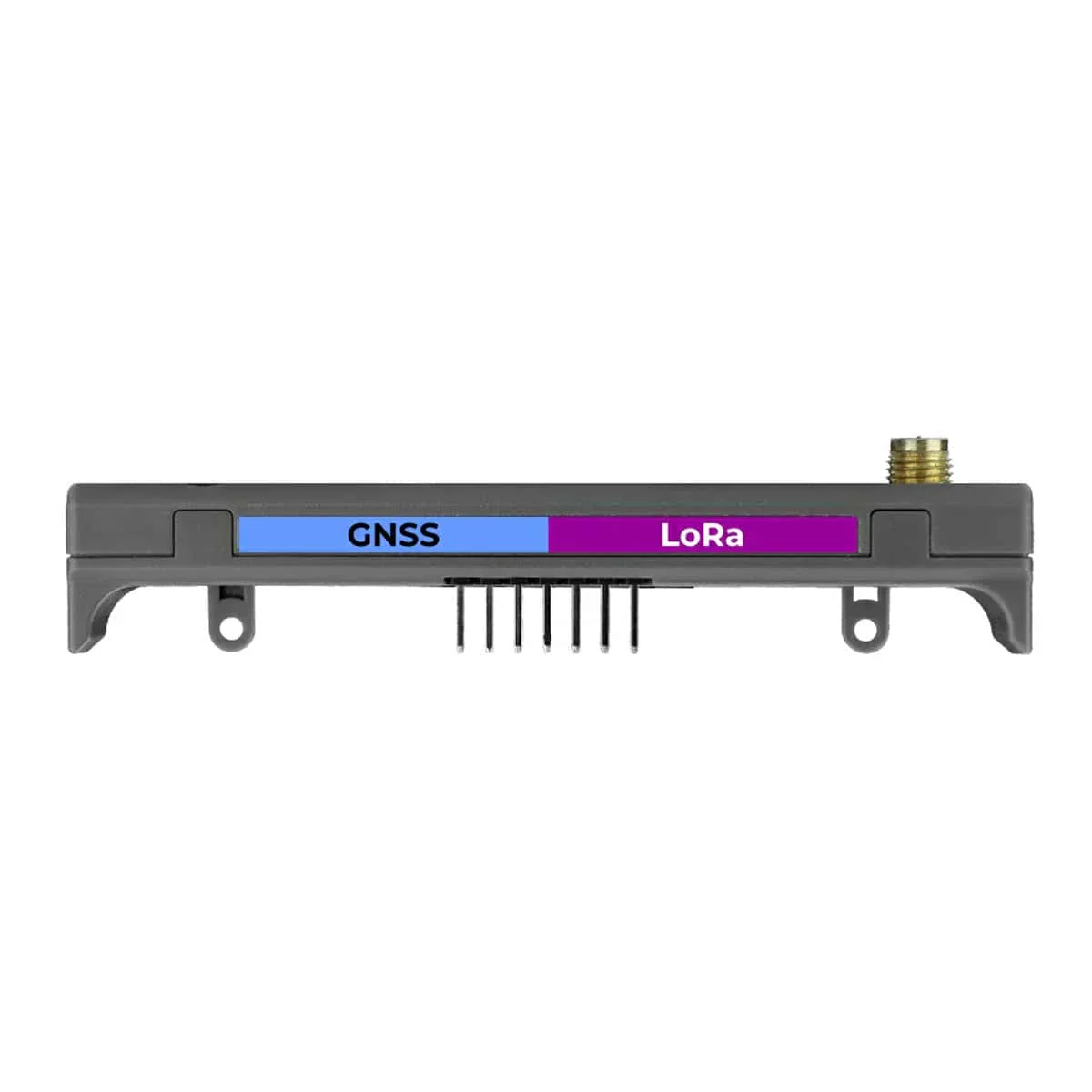

The M5Stack LoRa + GNSS Cap 1262 is a communication expansion module for the M5Stack Cardputer Adv, combining LoRa wireless communication with GNSS global positioning in one unit. It connects via an expansion interface, connecting to the top of the Cardputer Adv (hence the "cap" 🧢 name).

The LoRa side is based on the SX1262 chip and uses an external SMA antenna for stronger anti-interference performance and long-range communication. It supports the 868-923 MHz frequency band, along with FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes, with receiving sensitivity down to -147 dBm in LoRa low data rate mode and maximum transmission power of +20 dBm.

For positioning, the module uses an AT6668-based GNSS solution with a built-in ceramic antenna for accurate, reliable satellite positioning. It supports multi-frequency, multi-system reception across GPS, QZSS, BD2, BD3, GAL and GLO, with support for both combined multi-system positioning and single-system independent positioning.

Also available as part of the M5Stack Cardputer Mesh Kit for Meshtastic.

Cardputer Adv not included.

Features

• Wireless and positioning: Integrates LoRa modulation technology and GNSS global positioning system
• Operating frequency: 868 ~ 923 MHz
• Modulation modes: Supports FSK, GFSK, MSK, GMSK, LoRa and OOK
• LoRa receiving sensitivity: Down to -147 dBm (LoRa low data rate mode)
• LoRa maximum transmission power: +20 dBm

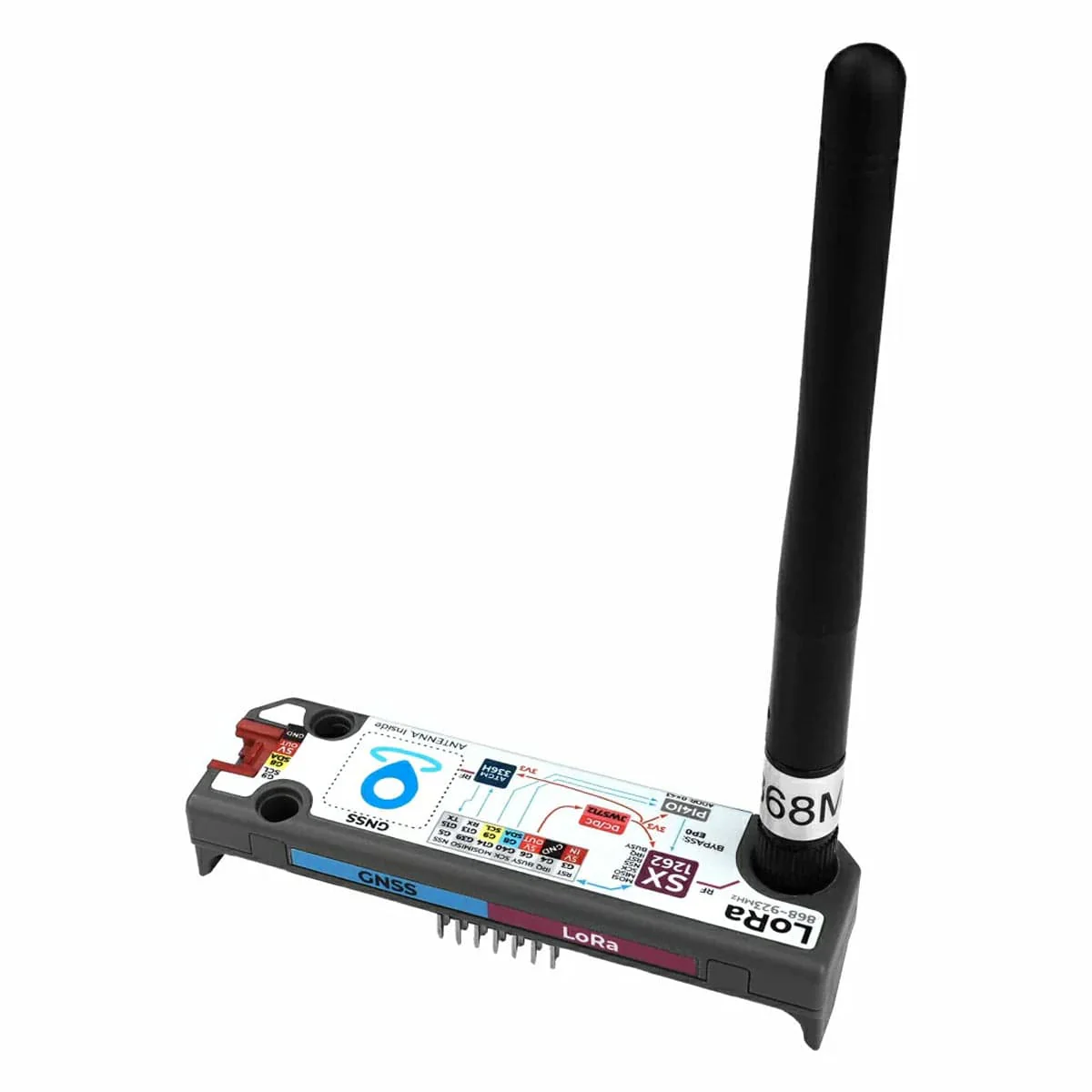

• Antenna configuration: External SMA antenna interface for LoRa, built-in ceramic antenna for GPS
• Satellite systems: Supports GPS / QZSS / BD2 / BD3 / GAL / GLO
• Reception: Multi-frequency and multi-system reception

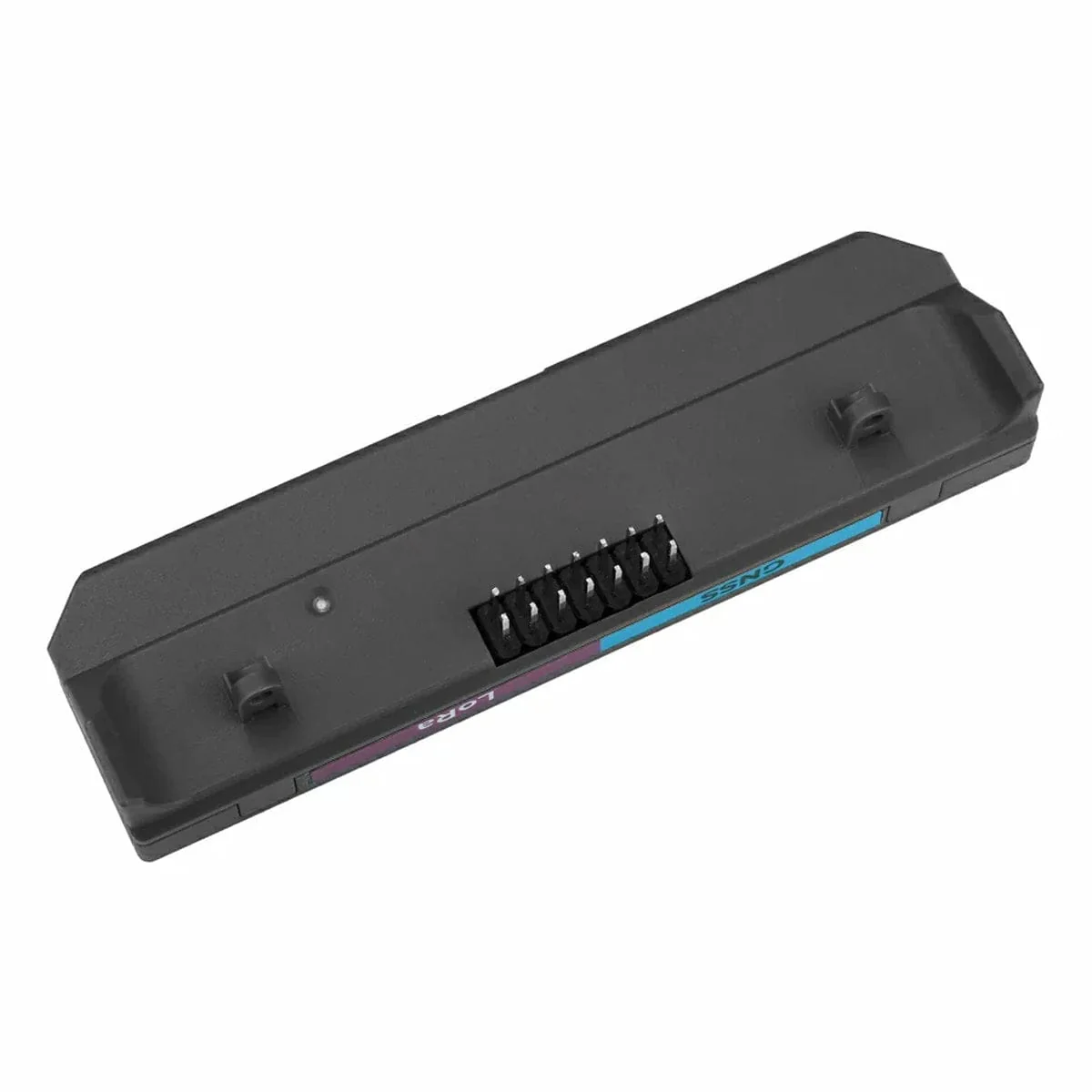

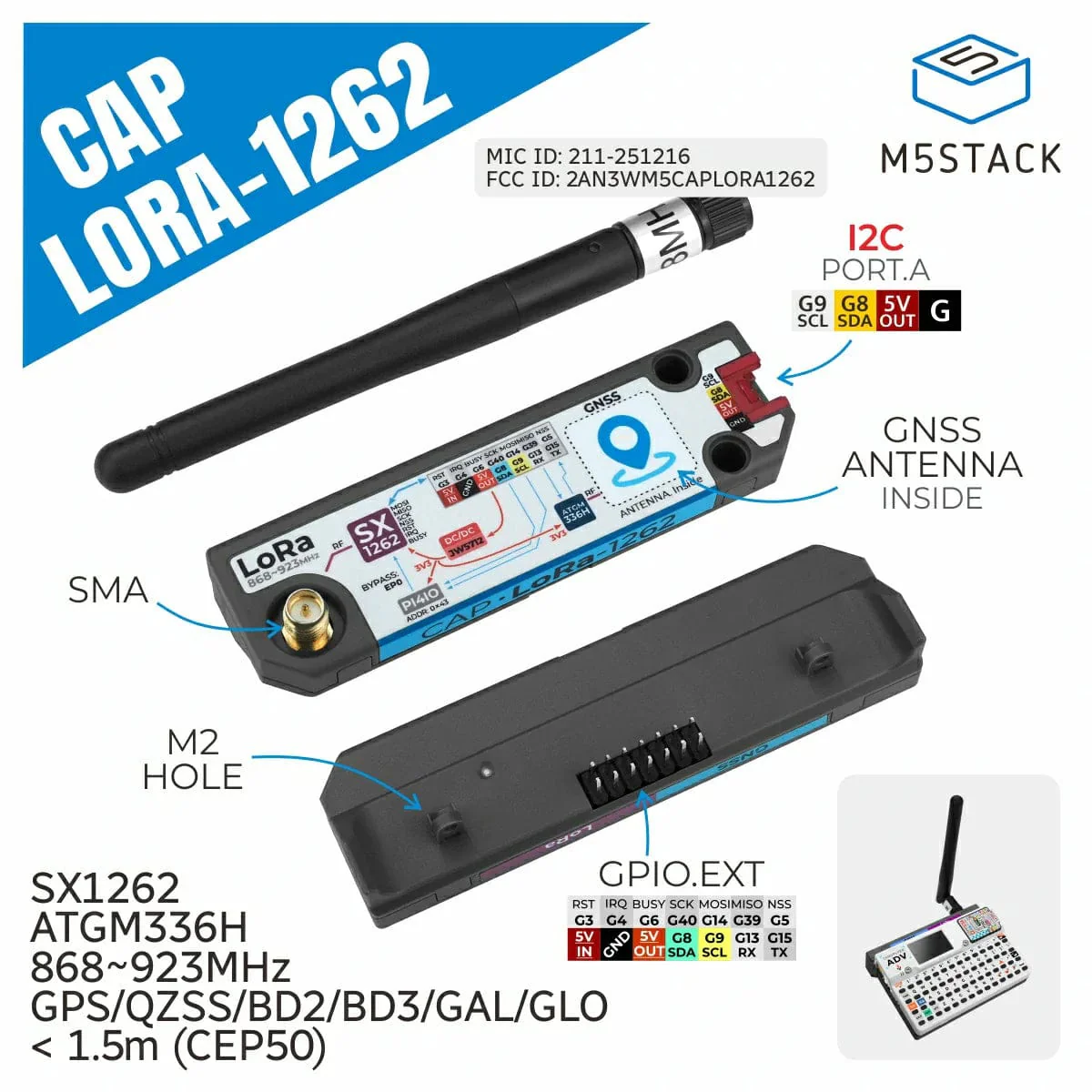

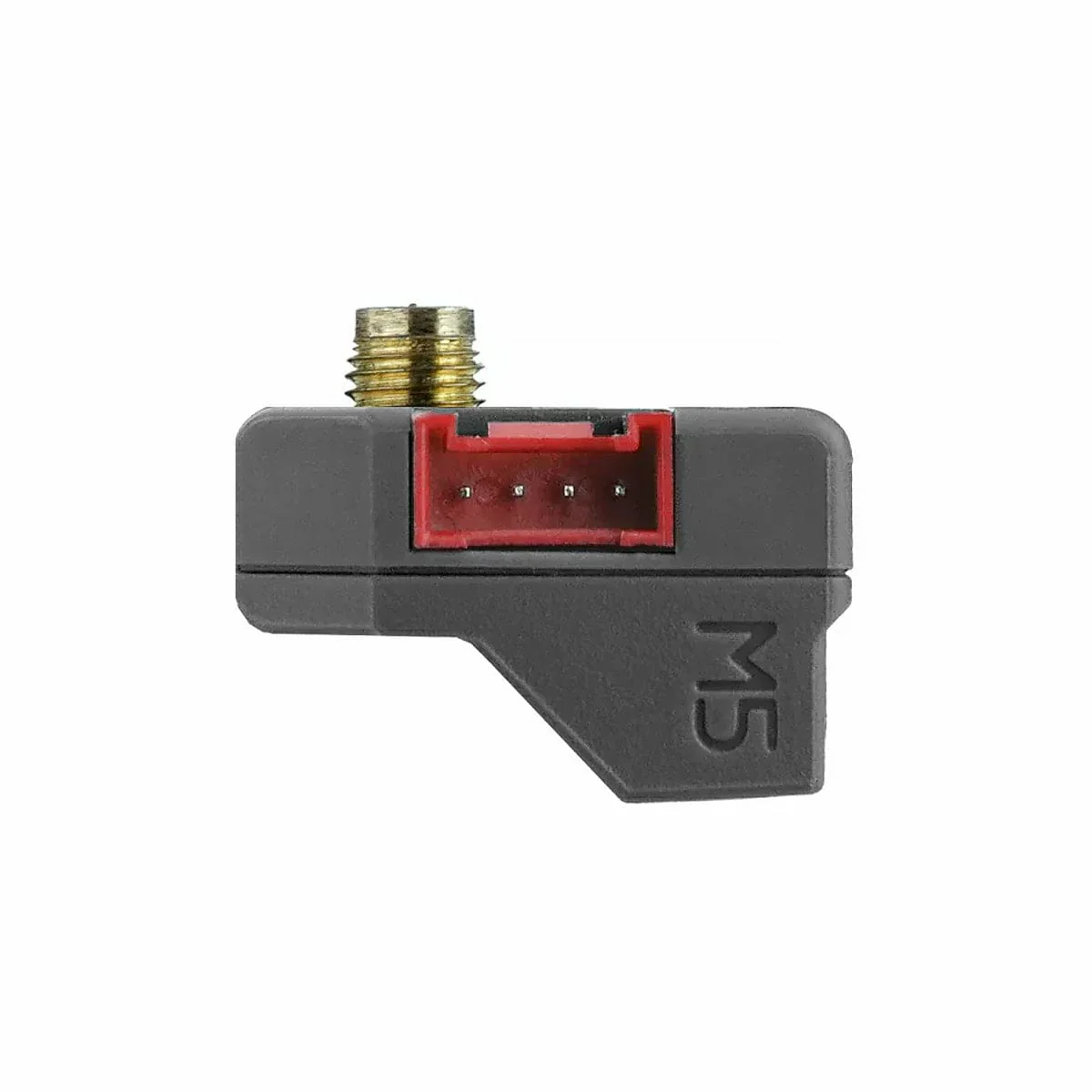

• Expansion interface: HY2.0-4P
• Development platforms: Arduino and UiFlow2

Specifications

LoRa Module	SX1262
LoRa Frequency Range	868 ~ 923 MHz
LoRa Programmable Bitrate	Up to 300kbps
LoRa Communication Interface	SPI
LoRa Antenna	Size 108 x 9.3mm, Interface Type SMA (internal thread, internal hole), Gain 3dBi
LoRa Transmit Power	+22dBm
LoRa Receiver Sensitivity	-147dBm (LoRa Low Data Rate Mode)
LoRa Operating Current	DC [email protected]
Supported Modulation Modes	FSK / GFSK / MSK / LoRa / OOK
GPS Module	ATGM336H-6N@AT6668
GPS Communication Interface	UART, default 115200bps@8N1
Supported GNSS Systems	GPS / QZSS / BD2 / BD3 / GAL / GLO
Frequency Bands	BDS: B1I+B1C GPS / QZSS / SBAS: L1 GALILEO: E1 GLONASS: R1
GPS Channels	50 Channels
GPS Positioning Accuracy	<1.5m (CEP50)
GPS Update Rate	Up to 10Hz
GPS Protocol	NMEA 0183 4.1
GPS Sensitivity	Tracking: -162dBm Acquisition: -160dBm Cold Start: -148dBm
GPS Time to First Fix	Cold Start: 23s Hot Start: 1s
Power Consumption (Power On)	33.1mA

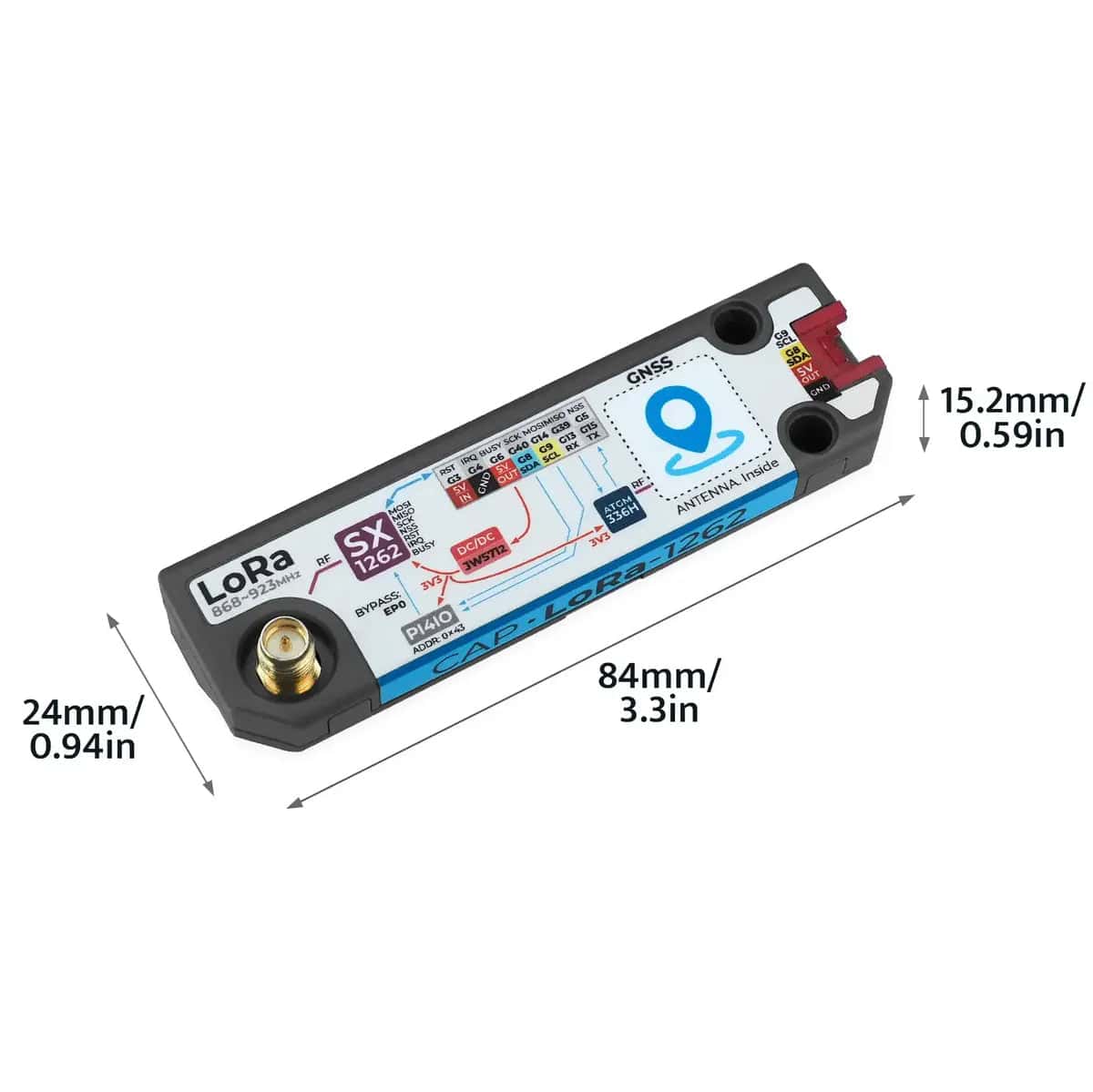

Product Size	84.0 x 24.0 x 15.2mm
Product Weight	34.0g
Package Size	170.0 x 120.0 x 17.0mm
Gross Weight	48.6g

Resources

• Product documentation
• Schematic
• Dimensions

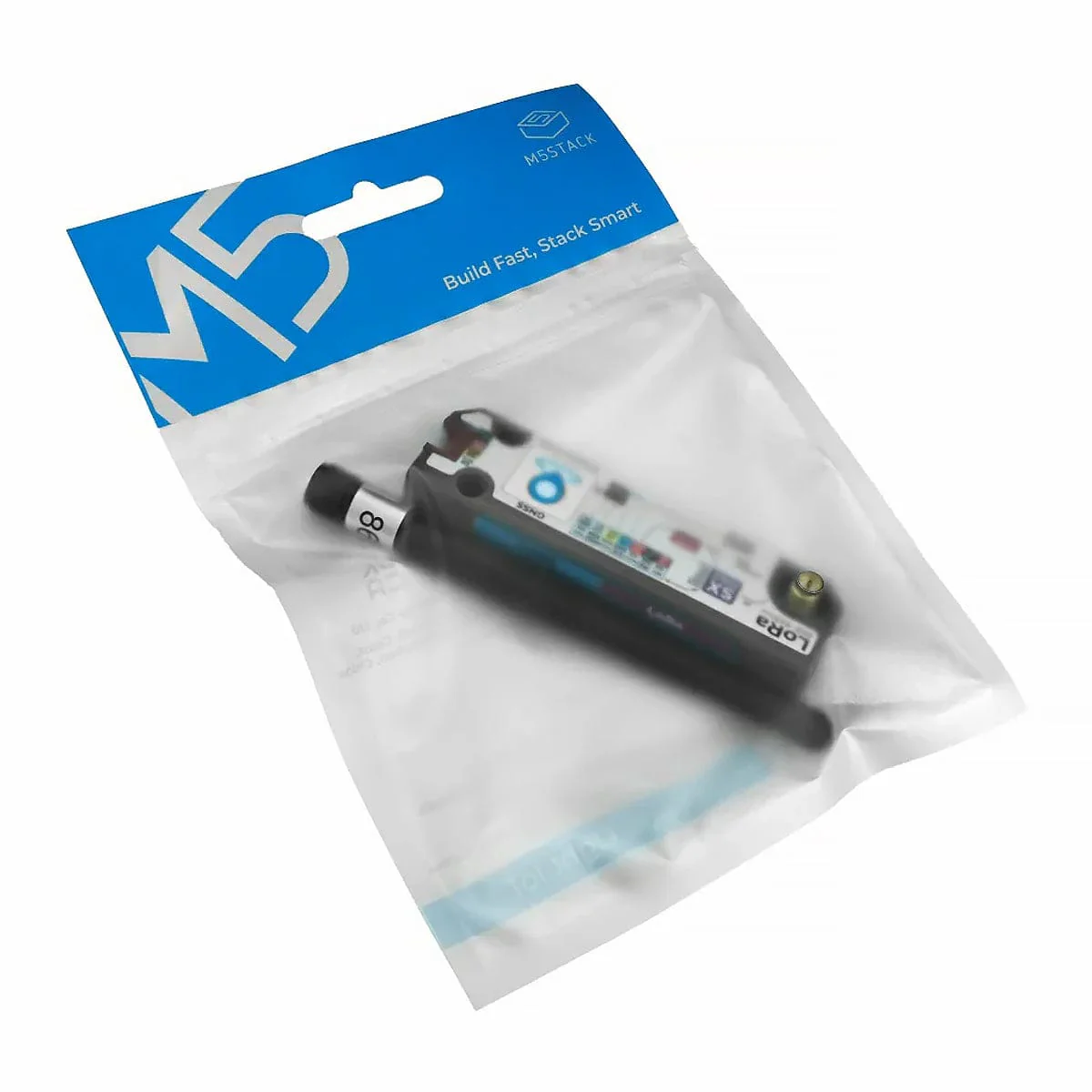

Package Contents

• 1x M5Stack LoRa + GNSS Cap for Cardputer Adv
• 1x LoRa Antenna

Cardputer Adv not included.
