M5Stack Core ESP32 IoT Development Kit - Fire (PSRAM) V2.0 [Discontinued]

A high spec starter kit for the modular, stackable, and portable M5Stack IoT development board series, with upgraded hardware and inbuilt motion sensors.

Powered by an ESP-32 dual-core processor, M5Stack is open source, low cost, and easily expandable with a variety of stackable modules. All Core starter kits come with an industrial-grade case, onboard Wi-Fi & Bluetooth and an inbuilt lithium battery.

The top of the range Fire kit includes a built-in 9-Axis IMU motion sensor (6-Axis posture acceleration measurement + 3-Axis magnetic measurement) as well as more hardware resources (16MB flash + 4M PSRAM), upgraded base modules (M5GO Base and M5GO CHG Base) and a chunky 500 mAh battery, as well as some building brick compatible connectors!

For more information and for help getting started, click here

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Product Features

• ESP32-based
• Speaker, 3 buttons, LCD screen (320*240)
• TF card slot (16G Maximum size)
• Battery Socket & Lipo Battery
• Extendable Pins & Holes
• M-Bus Socket & Pins
• Development Platform UIFlow, MicroPython, Arduino

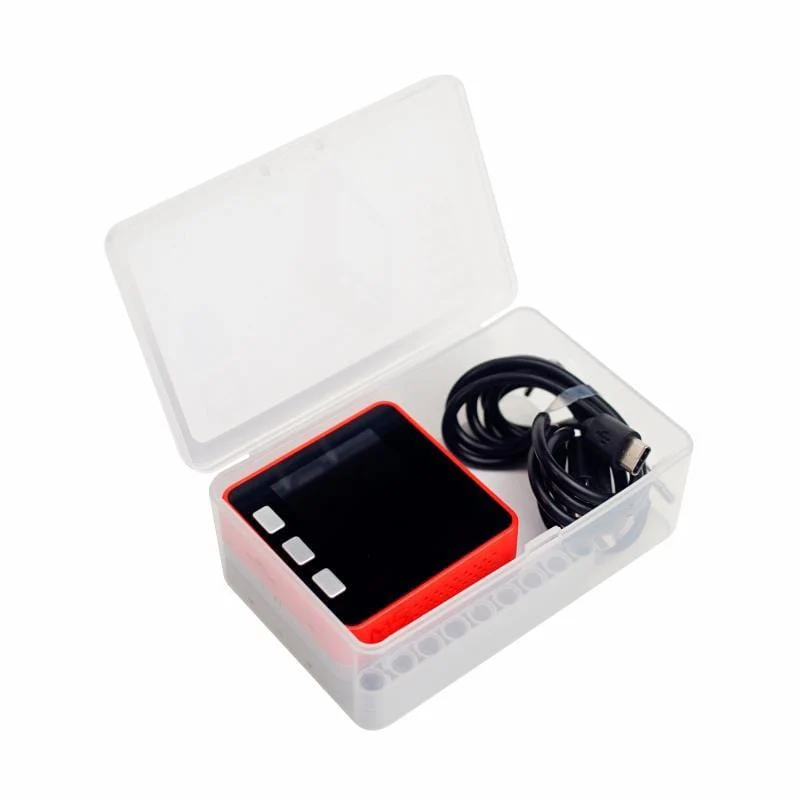

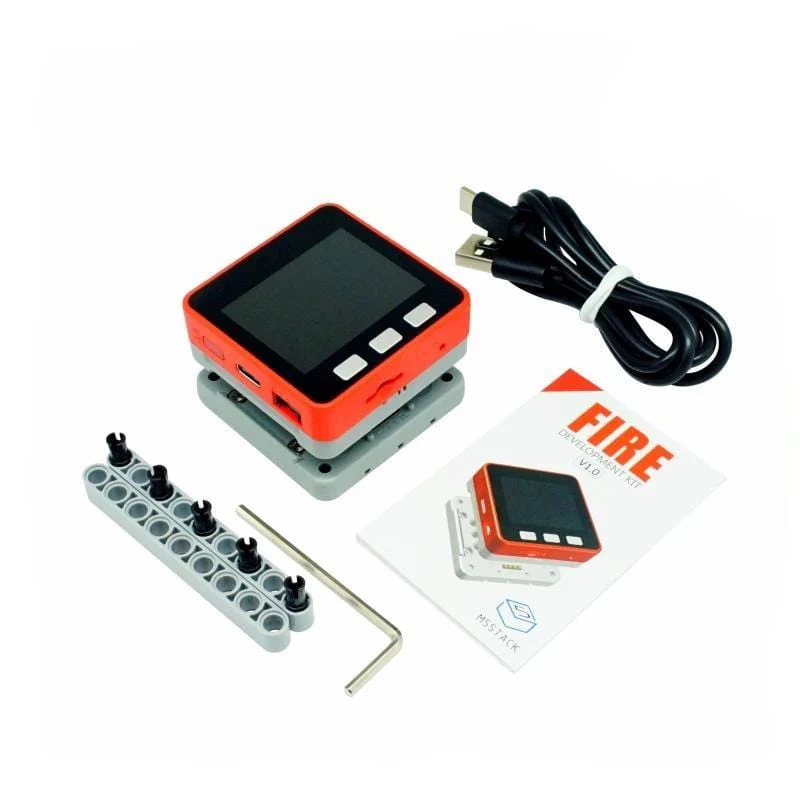

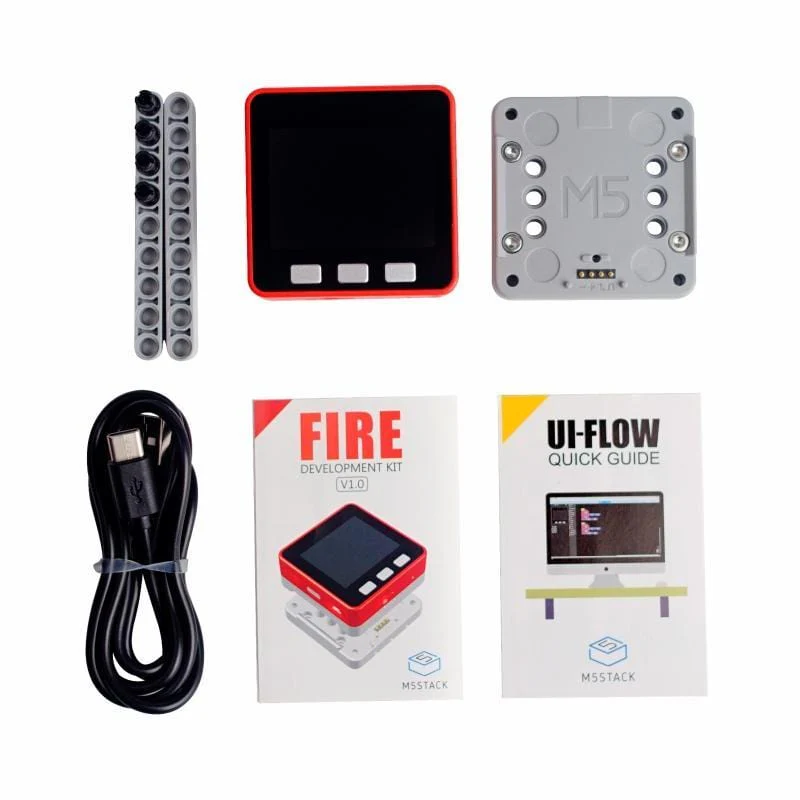

Includes

• 1x FIRE

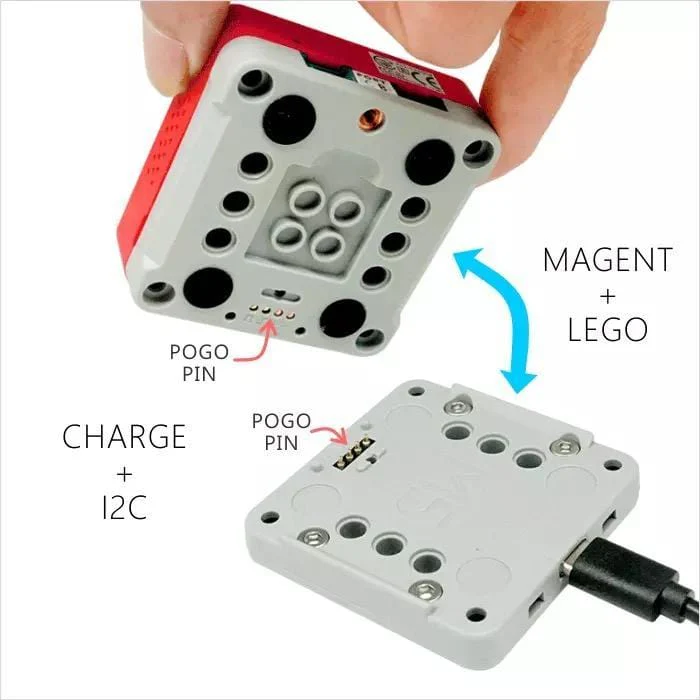

• 1x M5GO CHG Base
• 2x Building brick-compatible blocks
• 5x Building brick-compatible connectors
• 1x M3 hex wrench
• 1x Type-C USB cable (100cm)
• 1x User Manual

Applications

• Internet of things terminal controller
• Stem education product
• DIY creation

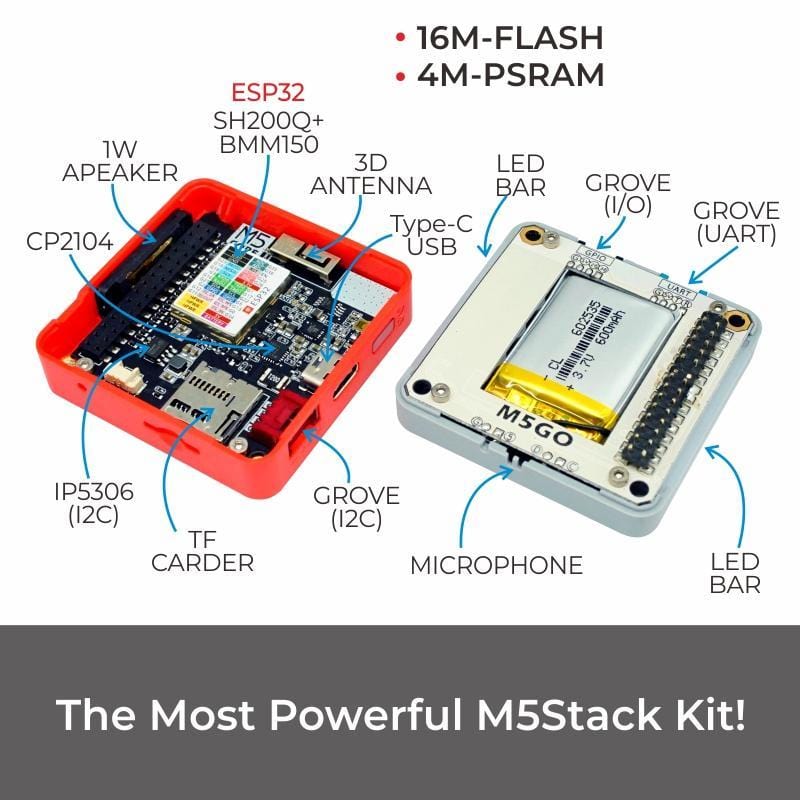

Specification

Resources	Parameter
ESP32	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash Memory	16MB
PSRAM	4MB
Power Input	5V @ 500mA
Port	TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS Screen	2 inch, 320x240 Colorful TFT LCD, ILI9342C
Speaker	1W-0928
Button	Custom button x 3
MEMS	BMM150 + MPU6886
Battery	500 mAh @ 3.7V
Operating Temperature	32°F to 104°F ( 0°C to 40°C )
Size	54.2 x 54.2 x 30.5mm
Weight	62.3g
Case Material	Plastic ( PC )
