The Story

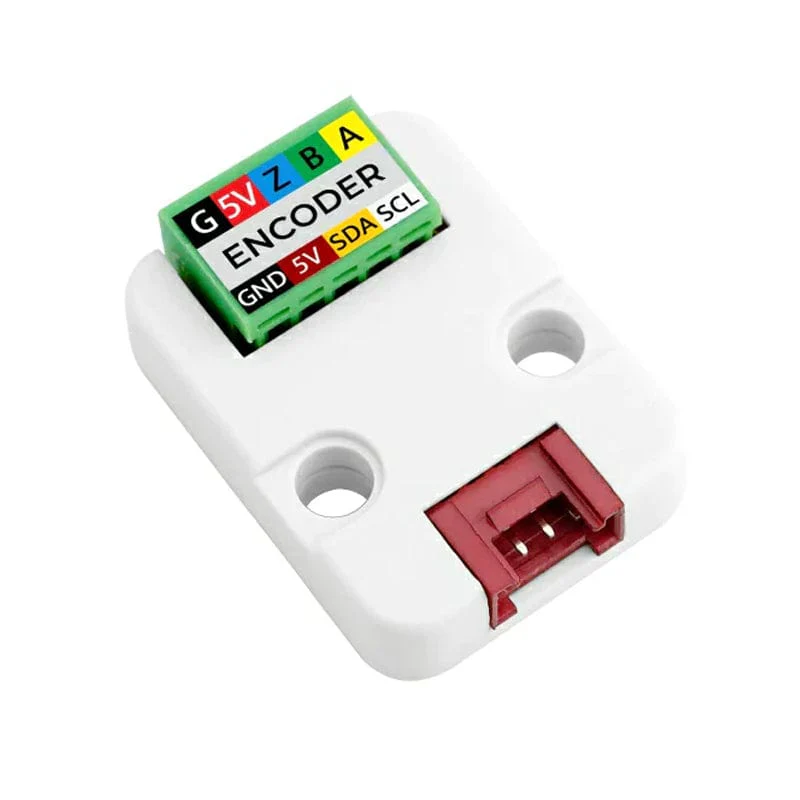

The Ext Encoder unit is an acquisition unit for an external rotary encoder, it supports AB/ABZ signal input, using the STM32F030 main control integrated encoder signal acquisition and decoding firmware, users can obtain the encoded value through the I2C reading operation, suitable for robot arm position control, automatic cutting in the field of industrial automation, meter wheel, and many more projects!

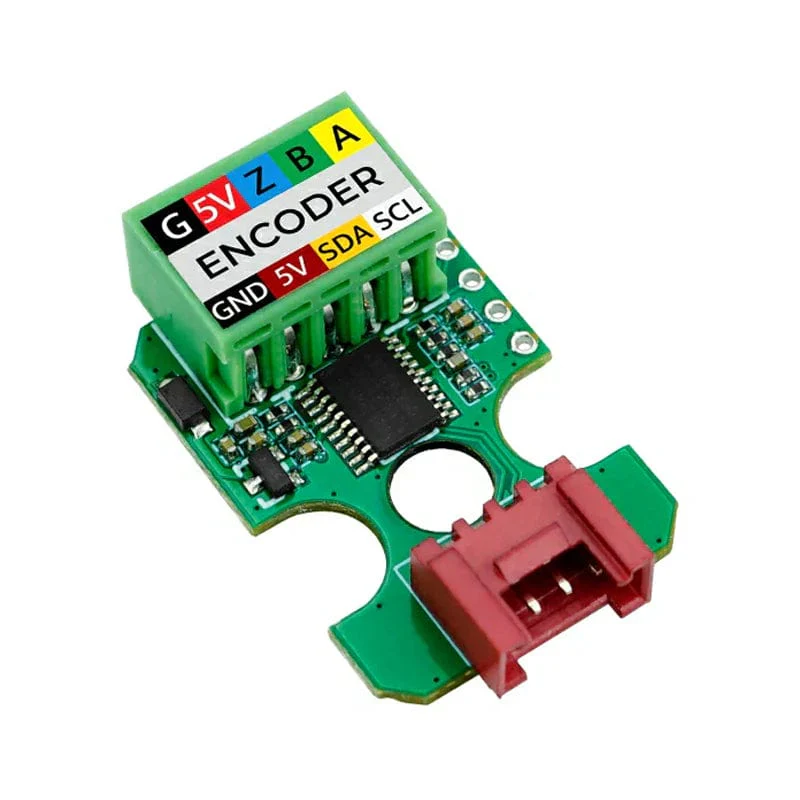

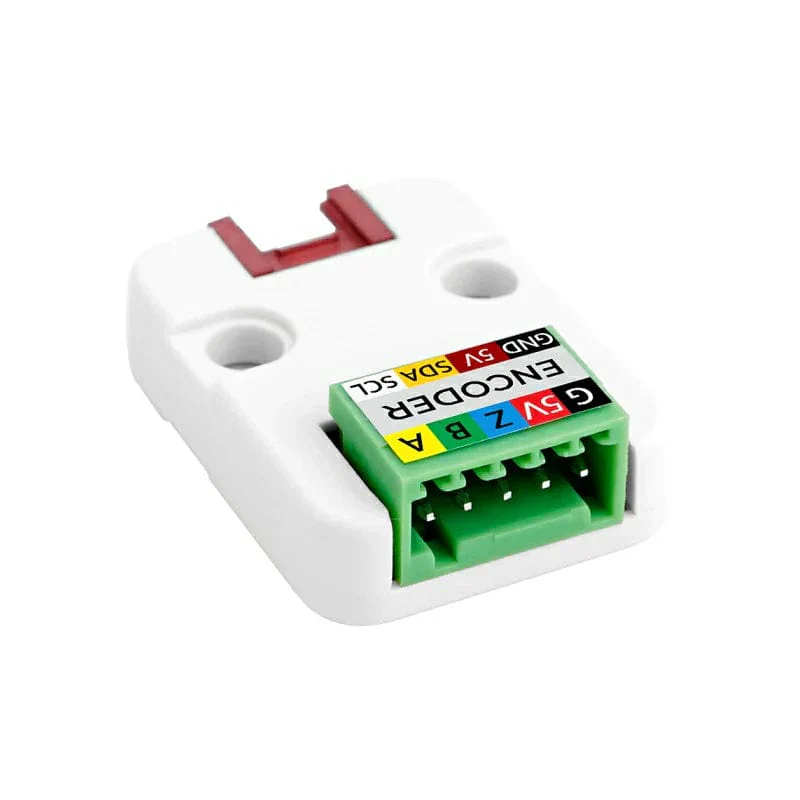

Features
- Supports signal acquisition with external rotary encoders
- AB/ABZ signal input
- Built-in STM32F030 main control, integrated encoder signal acquisition and decoding firmware
- The encoded value can be obtained directly through the I2C read operation
Specifications

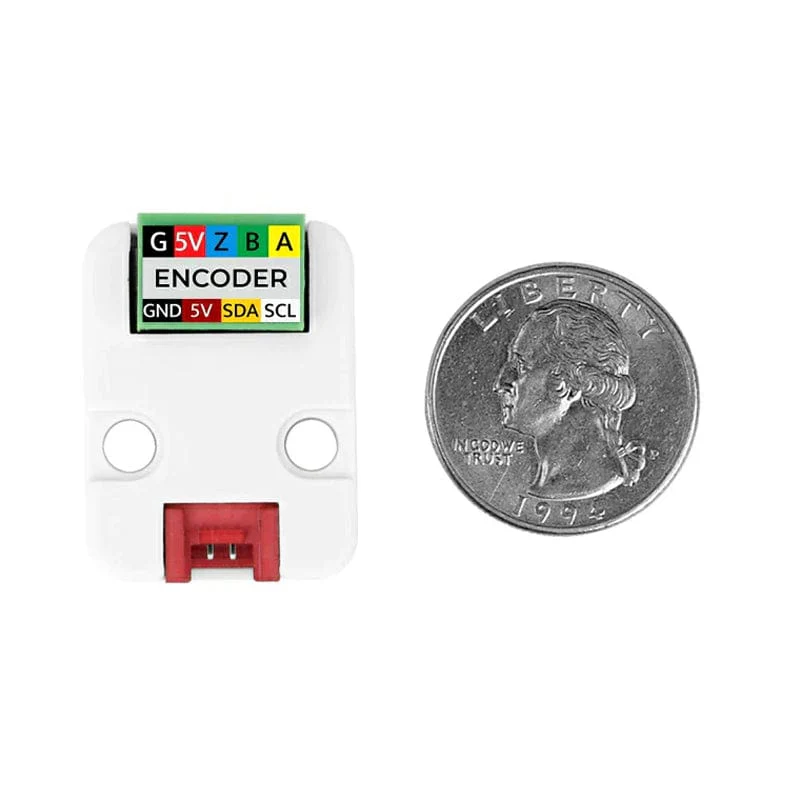

| Resources | Parameters |
| Sampling accuracy | 12 bit |
| Signal input type | AB/ABZ |
| I2C Address | 0x59 |
| Product Size | 40x24x14mm |
| Package Size | 67x53x12mm |
| Product Weight | 8g |
| Package Weight | 21g |
Resources
- Product Wiki
- STM32F030F4P6 Datasheet
Package Contents

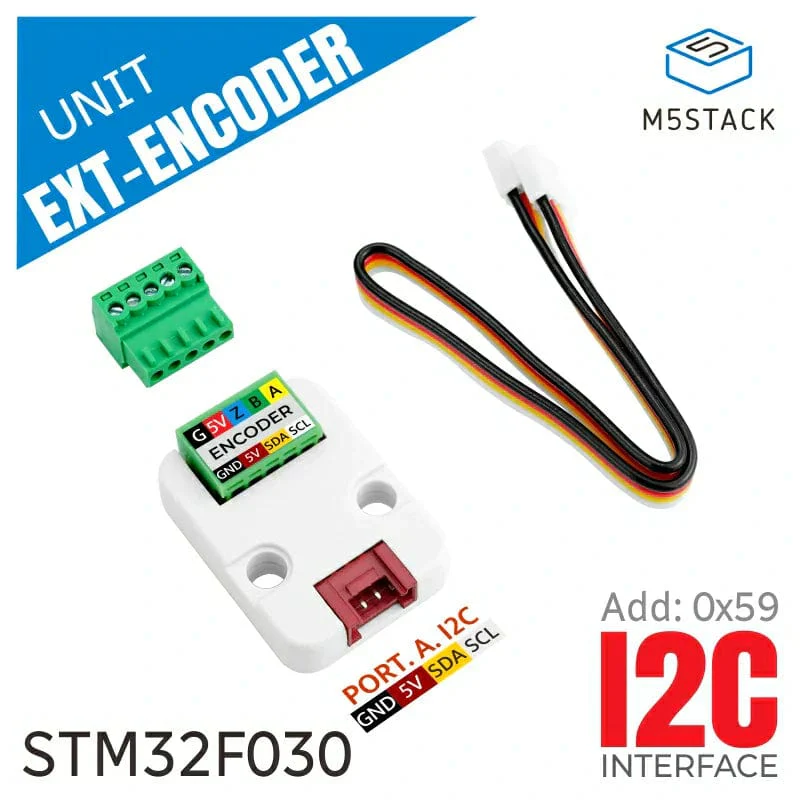

- 1x ExtEncode Unit
- 1x Grove Cable(20cm)
- 1x VH2.54-5P
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Ext Encoder unit is an acquisition unit for an external rotary encoder, it supports AB/ABZ signal input, using the STM32F030 main control integrated encoder signal acquisition and decoding firmware, users can obtain the encoded value through the I2C reading operation, suitable for robot arm position control, automatic cutting in the field of industrial automation, meter wheel, and many more projects!
Features
- Supports signal acquisition with external rotary encoders
- AB/ABZ signal input
- Built-in STM32F030 main control, integrated encoder signal acquisition and decoding firmware
- The encoded value can be obtained directly through the I2C read operation
Specifications
| Resources | Parameters |
| Sampling accuracy | 12 bit |
| Signal input type | AB/ABZ |
| I2C Address | 0x59 |
| Product Size | 40x24x14mm |
| Package Size | 67x53x12mm |
| Product Weight | 8g |
| Package Weight | 21g |
Resources
- Product Wiki
- STM32F030F4P6 Datasheet
Package Contents
- 1x ExtEncode Unit
- 1x Grove Cable(20cm)
- 1x VH2.54-5P
