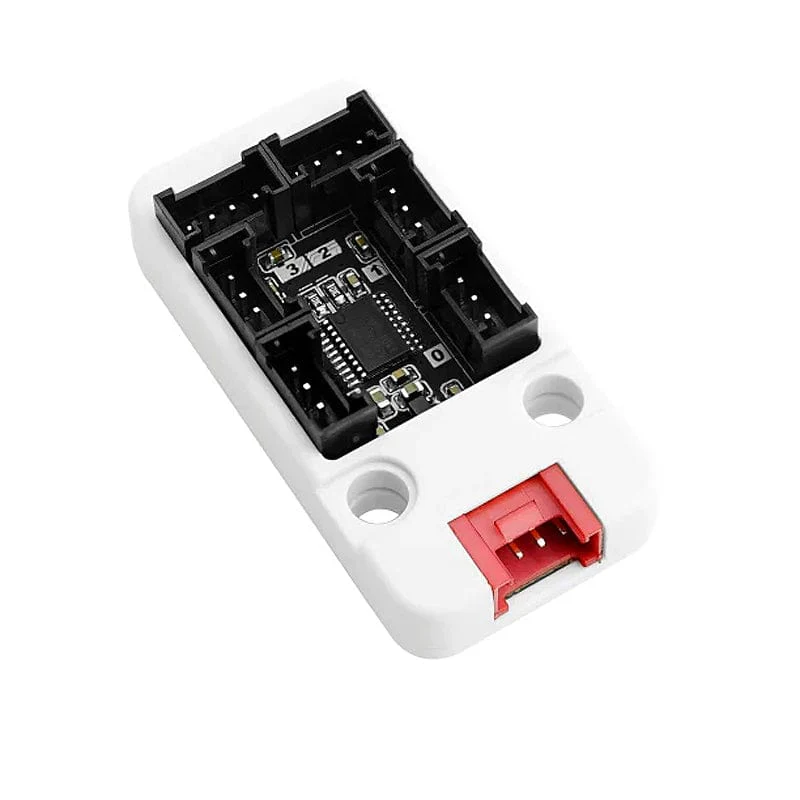

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)
HomeStore

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)

$10.48
M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)—
$10.48

The Story

The I/O Hub Unit from M5Stack is a 6-channel expansion unit with I2C control.

Each Port B interface is capable of GPIO, PWM, Servo control, ADC sampling, RGB light control and other functions. The unit adopts an STM32F030 for internal control.

Features

  • 6 x GPIO Ports Expansion
  • 1 x I2C Input
  • Internal STM32F030 control
  • 2 x Brick holes

Package Contents

  • 1x I/O Hub 1 to 6 Unit
  • 1x HY2.0 4-pin cable (20cm)

Specifications

Communication protocol I2C:0x61 (Modified by register)
Net weight 6.7g
Gross weight 11.8g
Product Size 48*24*12mm
Package Size 13.6*9.1*12mm

Resources

  • Product Documentation
  • Schematic
  • I2C Map

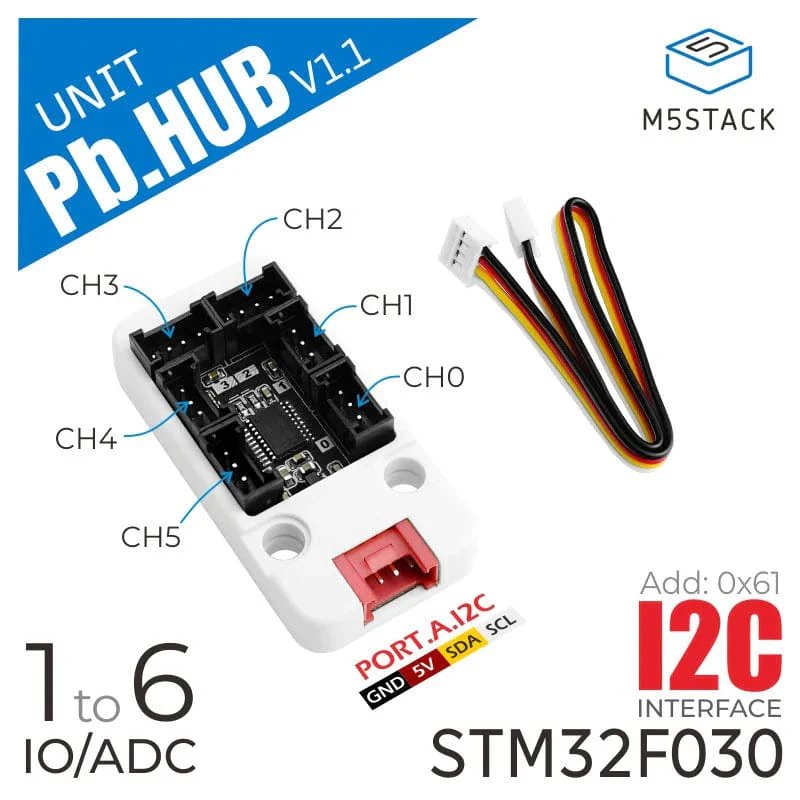

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

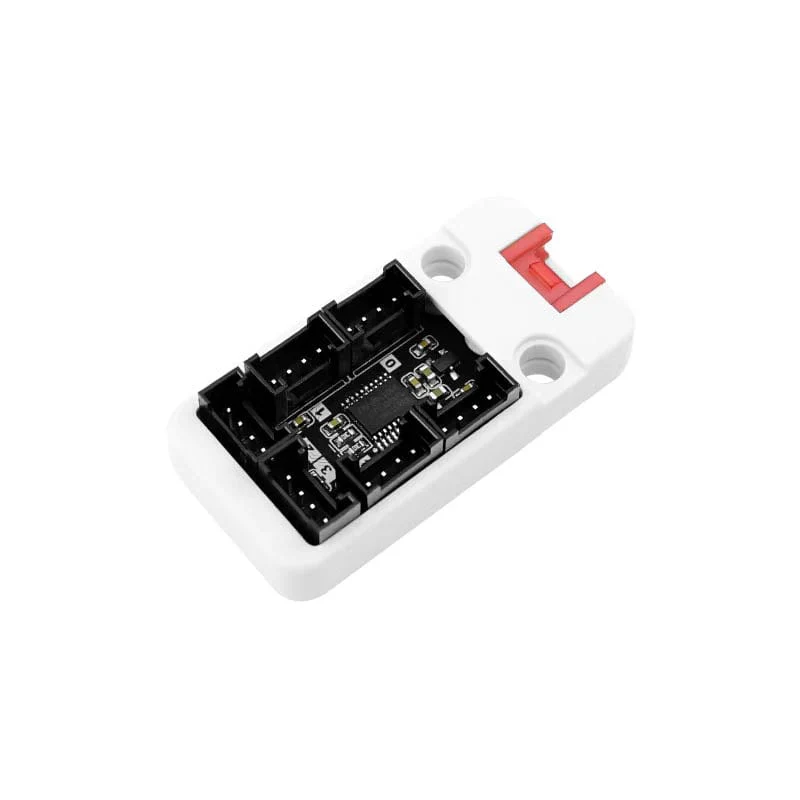

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

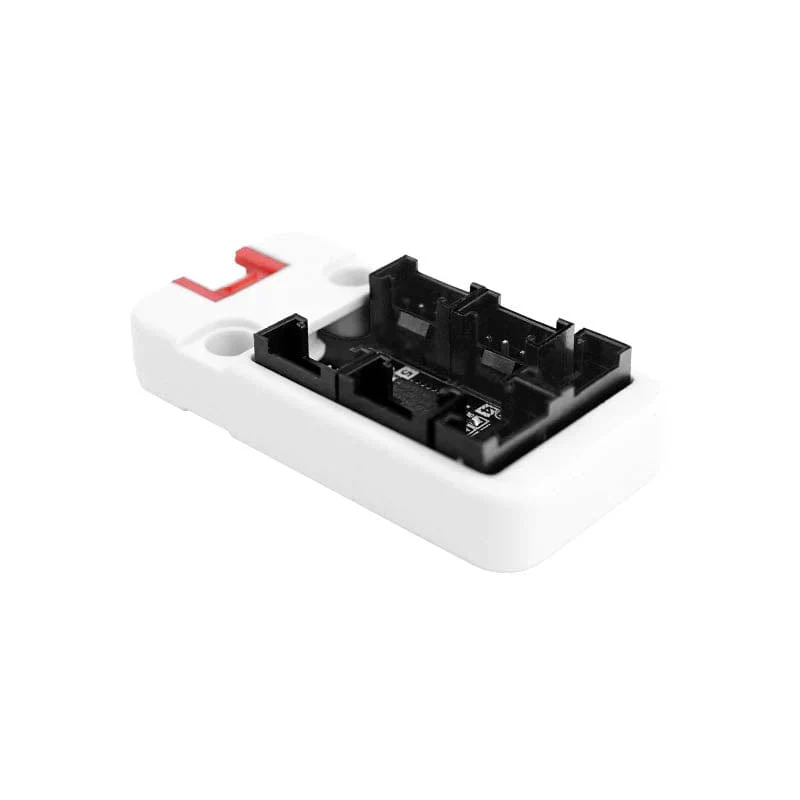

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

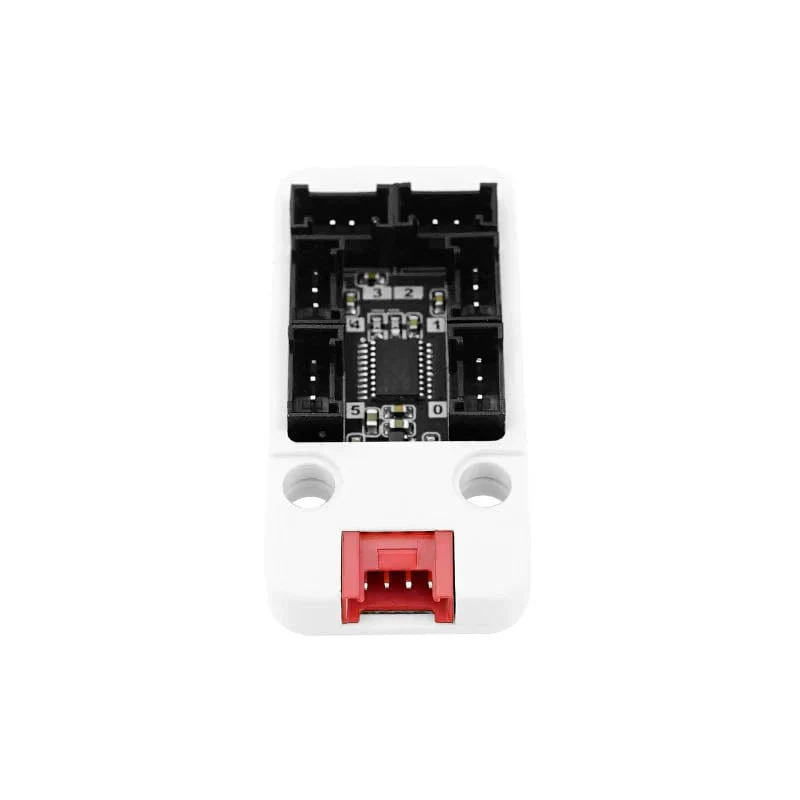

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

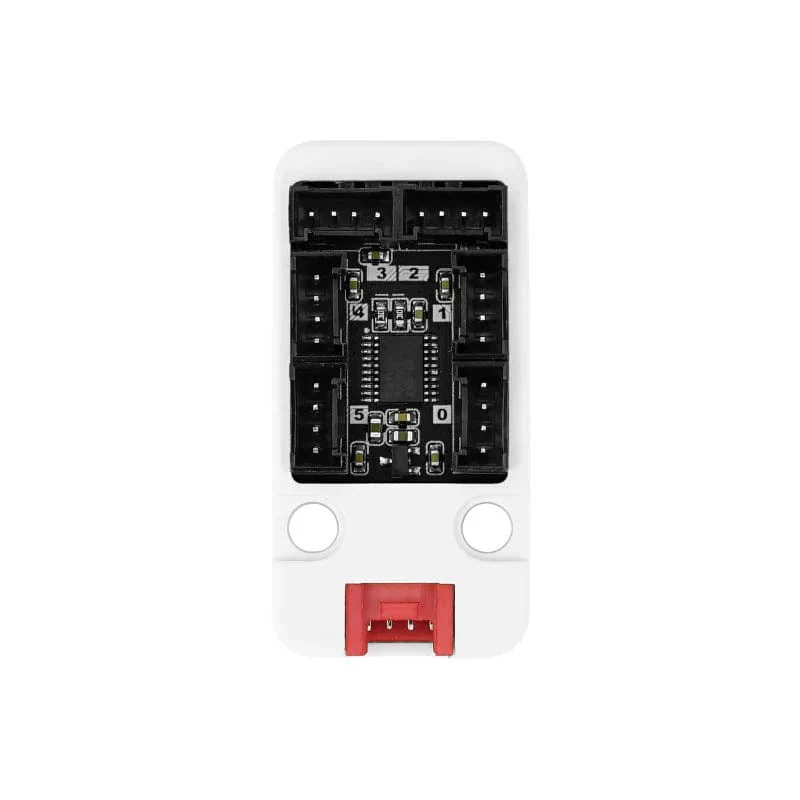

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

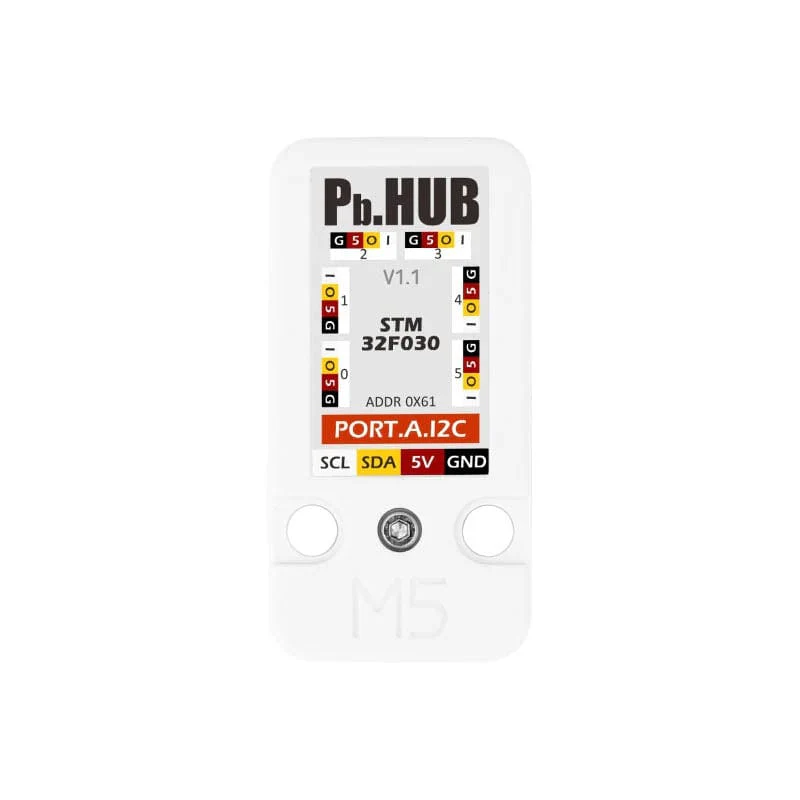

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

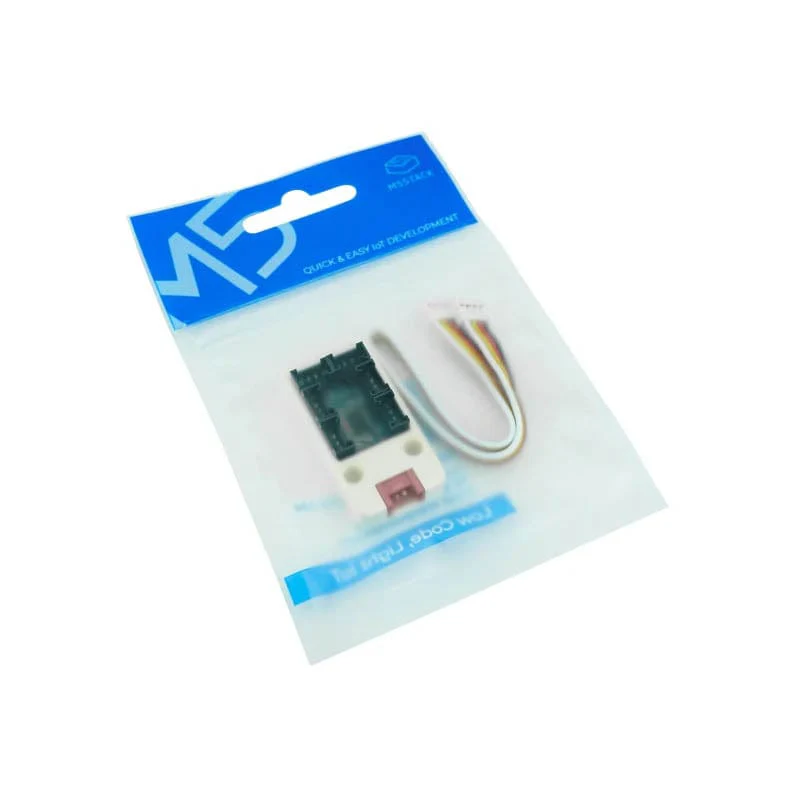

M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - Image 9
