The Story

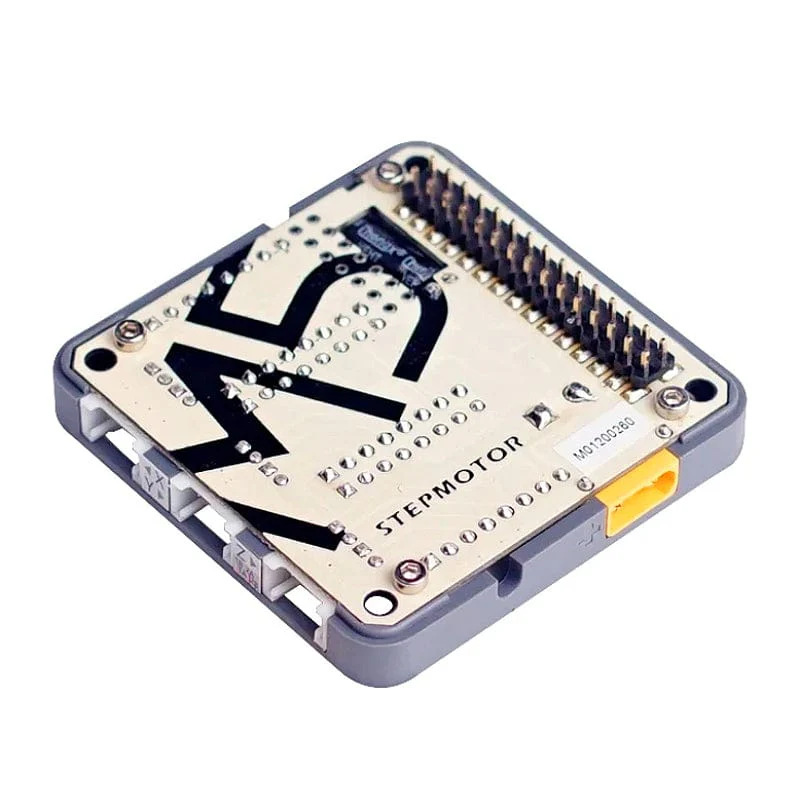

This Stepmotor Module from M5Stack is used for stepper motor control. It is perfect for any motion project as it can drive up to 3 Stepper motors with GRBL control.

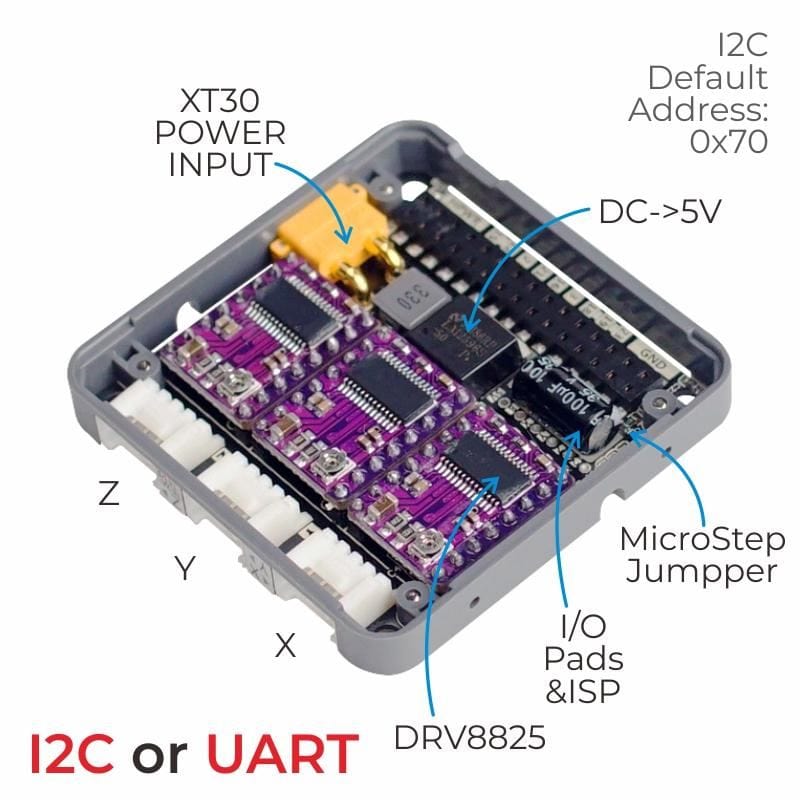

It is built with a MEGA328P and has been flashed GRBL firmware. The module communicates with M5Core via I2C (0x70).

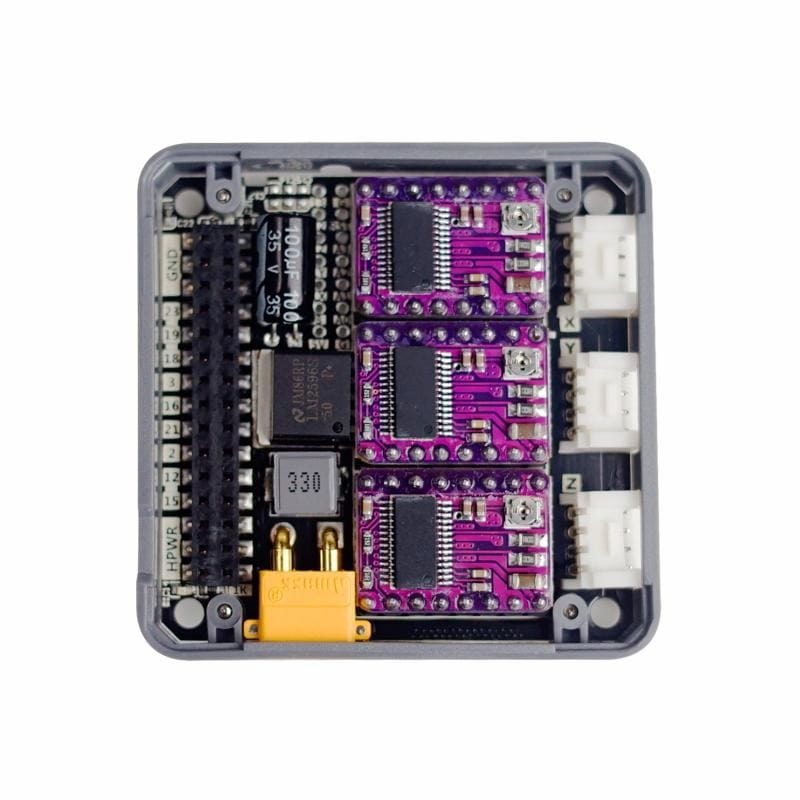

Integrated 3 DRV8825, a simple but very powerful board that can control one bipolar stepper motor at a time and allows micro-stepping up to 1/32 of a step.
A matching M5Stack UK power supply with XT30 connector is also available.
Product Features
- 9-24V Power Input
- 3-way stepper motors (X, Y, Z)
Include

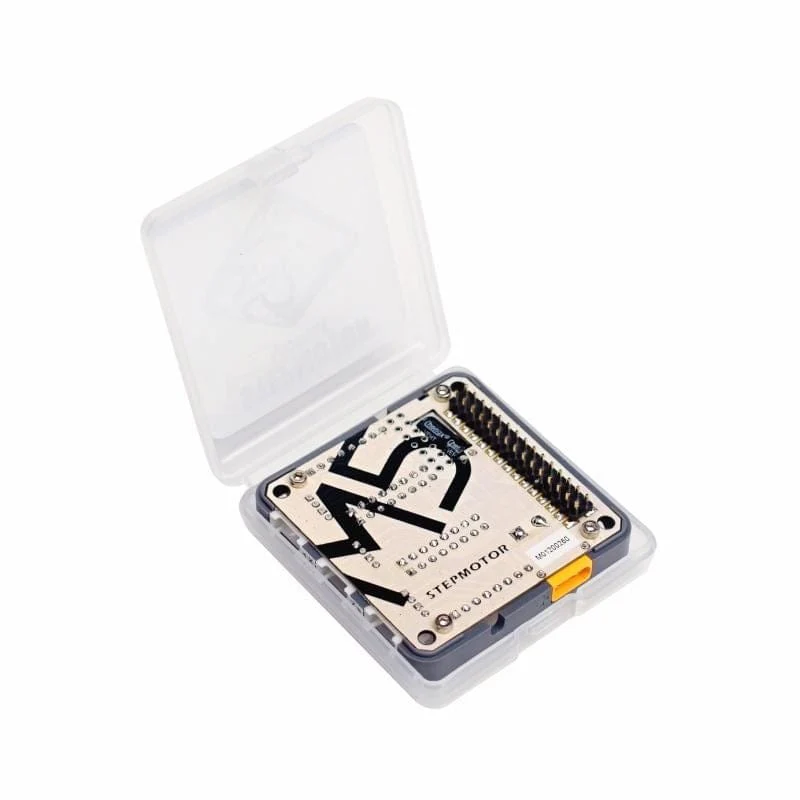

- 1x Step Motor Module
Power supply not included
Applications
- DIY 3D Printer
- Simple Robot Arm
Specification
| Resources | Parameter |
|---|---|
| DC Interface | XT30 |
| Motor Interface | HY2.0-4P |
| Net weight | 24g |
| Gross weight | 34g |
| Product Size | 54.2*54.2*12.8mm |
| Package Size | 60*57*17mm |
Documentation & Resources
- Documentation
