The Story

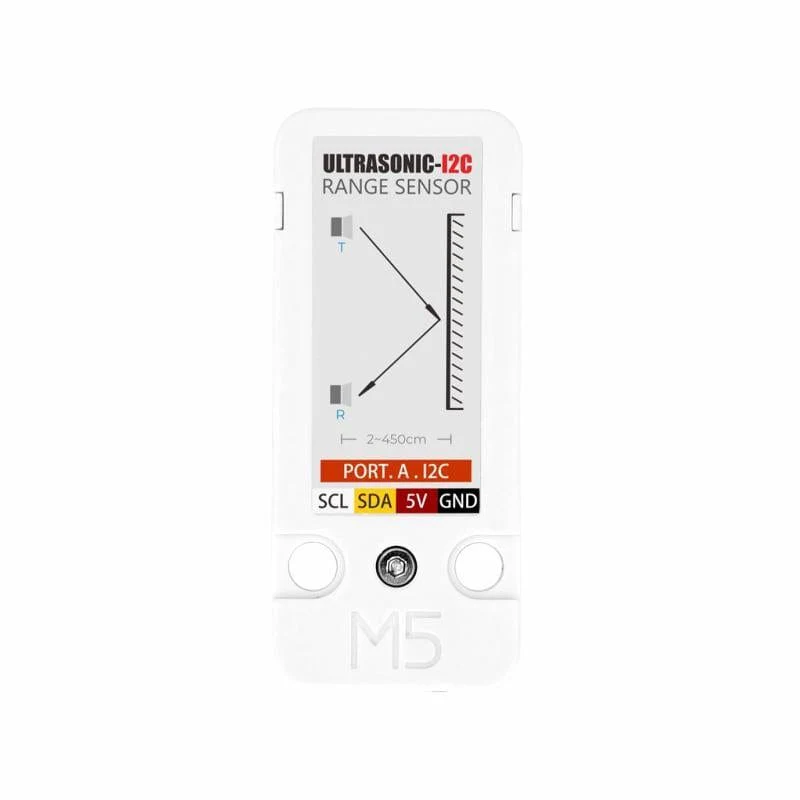

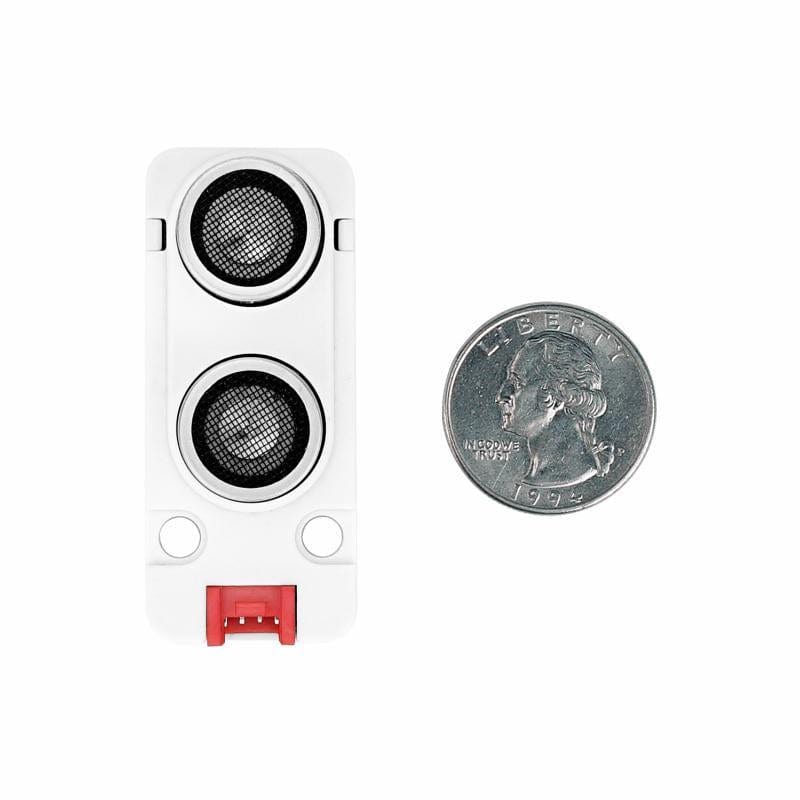

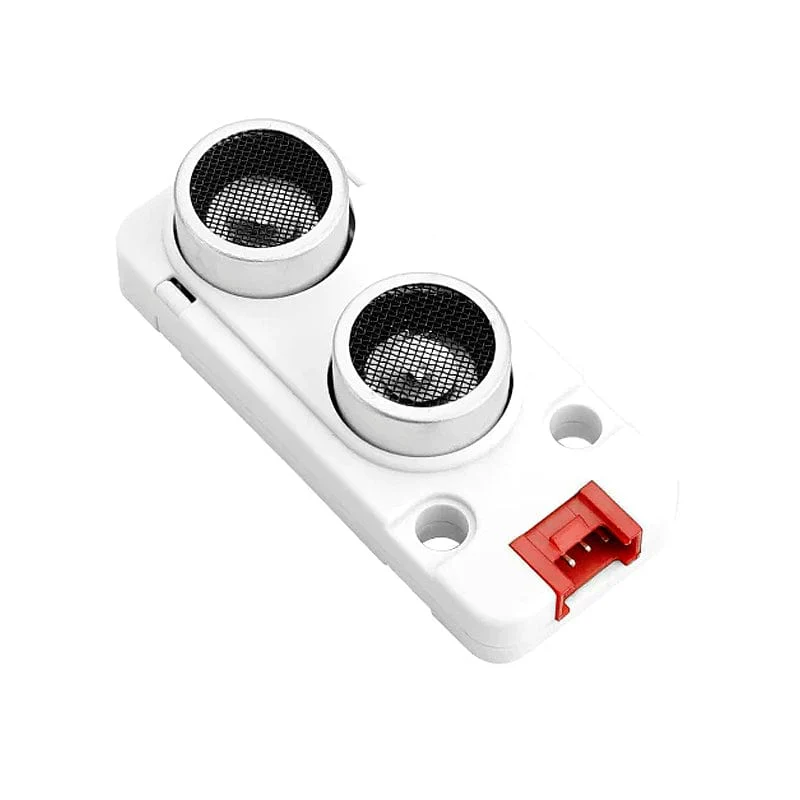

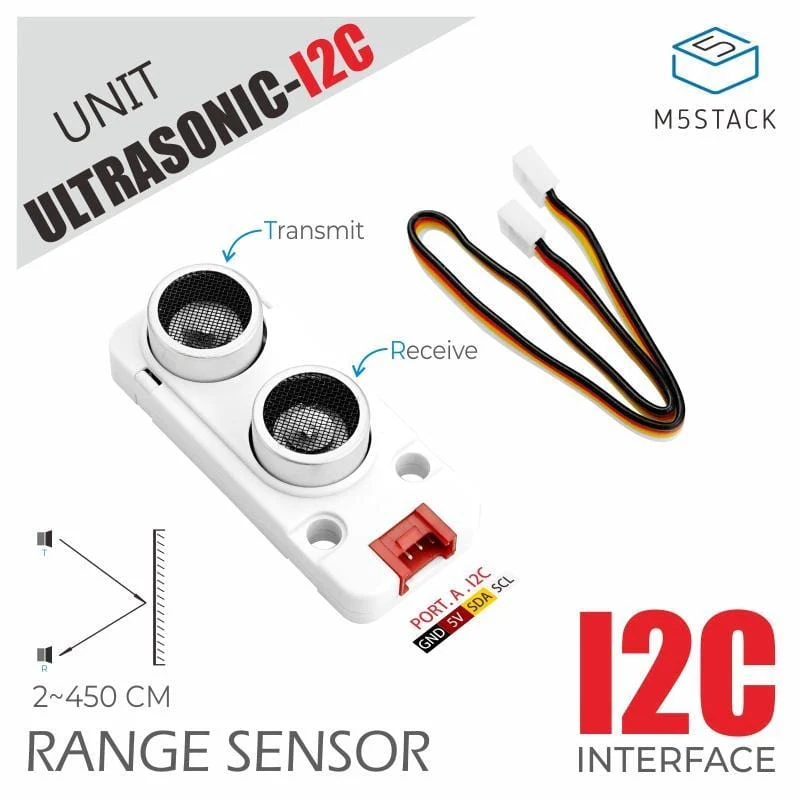

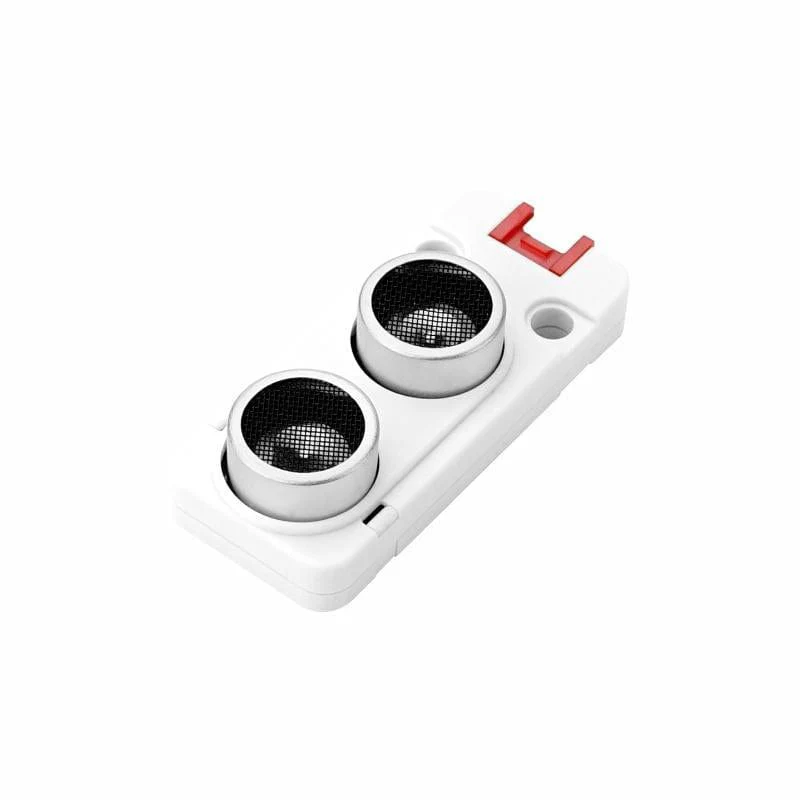

The M5Stack Unit I2C is an I2C interface ultrasonic distance sensor. This allows for easy I2C integration and multi-sensor operation using a single BUS, to save I/O resources.
The module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%).
It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.
Features

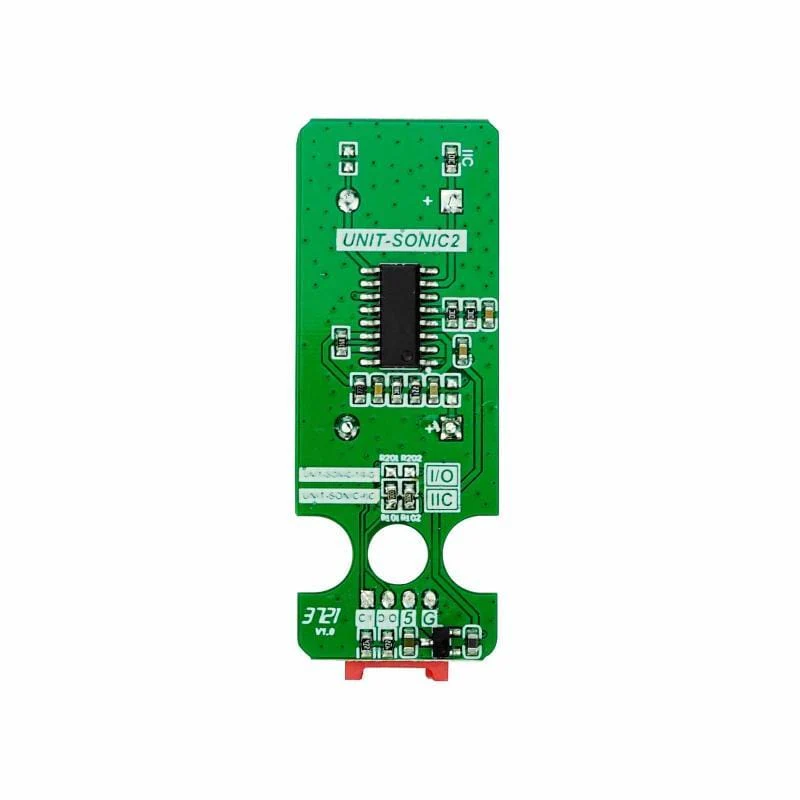

- RCWL-9620 Chip
- I2C communication interface (addr: 0x57)
- Measuring range: 2cm-450cm
- Protective housing
- Built-in temperature compensation, reduce the temperature drift
- Support UIFlow platform

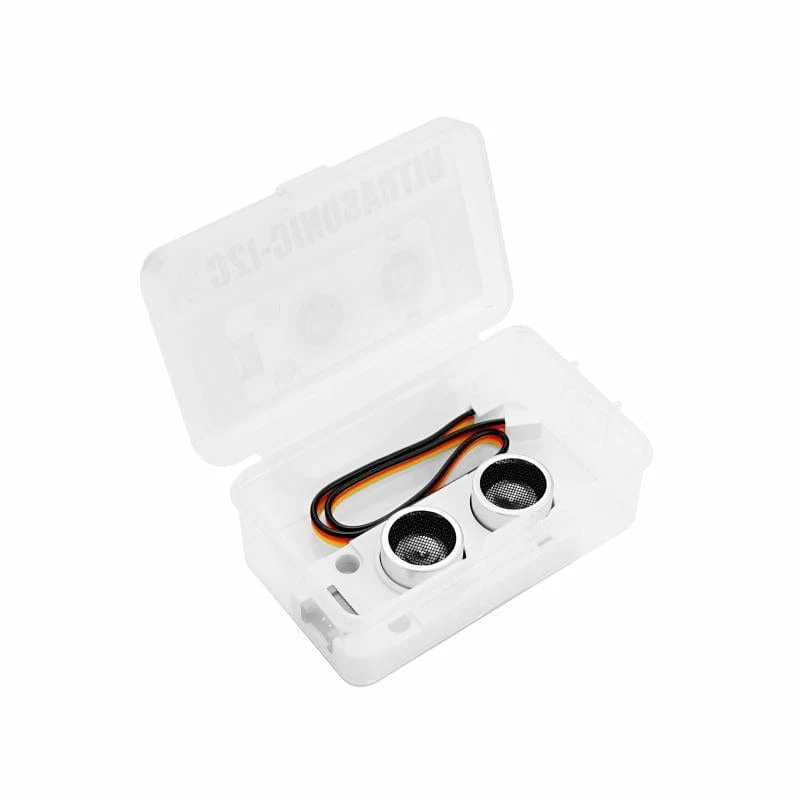

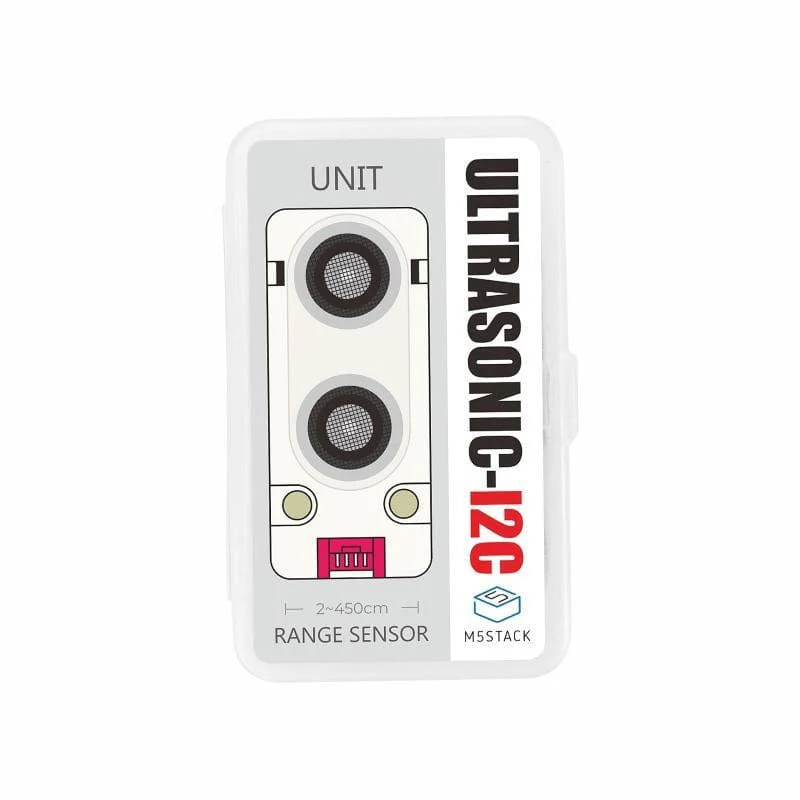

Package Contents
- 1x Unit UNIT SONIC I2C
- 1x HY2.0-4P cable (20cm)
Specifications
| Specifications | Parameters |
| Ultrasonic Ranging Single Chip | RCWL-9620 |
| Range | 2cm-450cm |
| Probe Specifications | 16mm |
| Receiving/Transmitting Frequency | 40KHz |
| Receiving sensitivity | -65dB |
| Pointing angle | 60° |
| Measurement accuracy | ±2% |
| Working current | 2mA |
| Net weight | 10g |
| Gross weight | 25g |
| Product size | 56 * 24 * 15mm |
| Packing size | 76 * 47 * 29mm |
Resources
