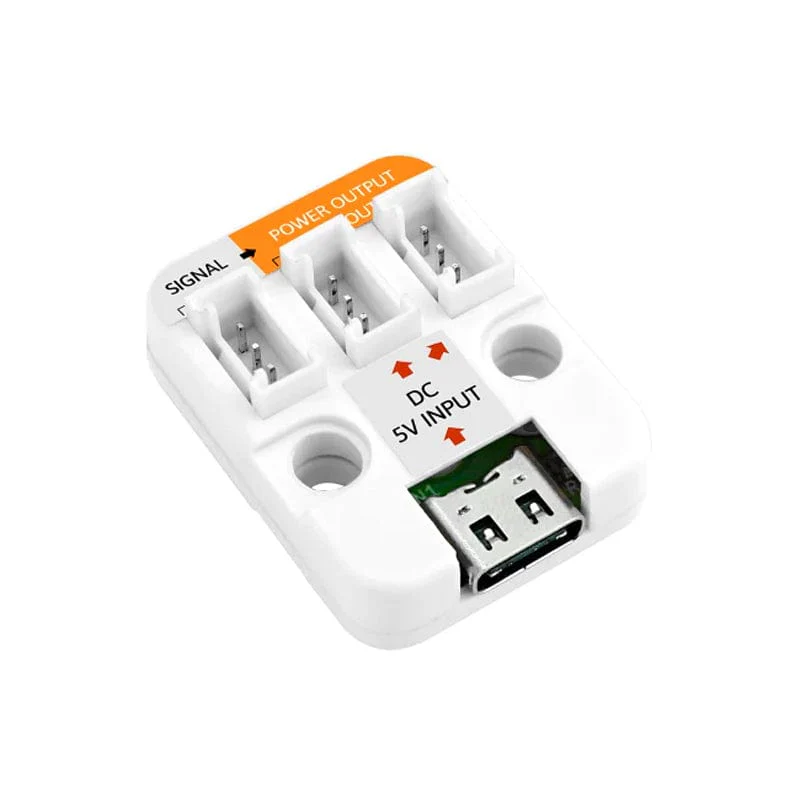

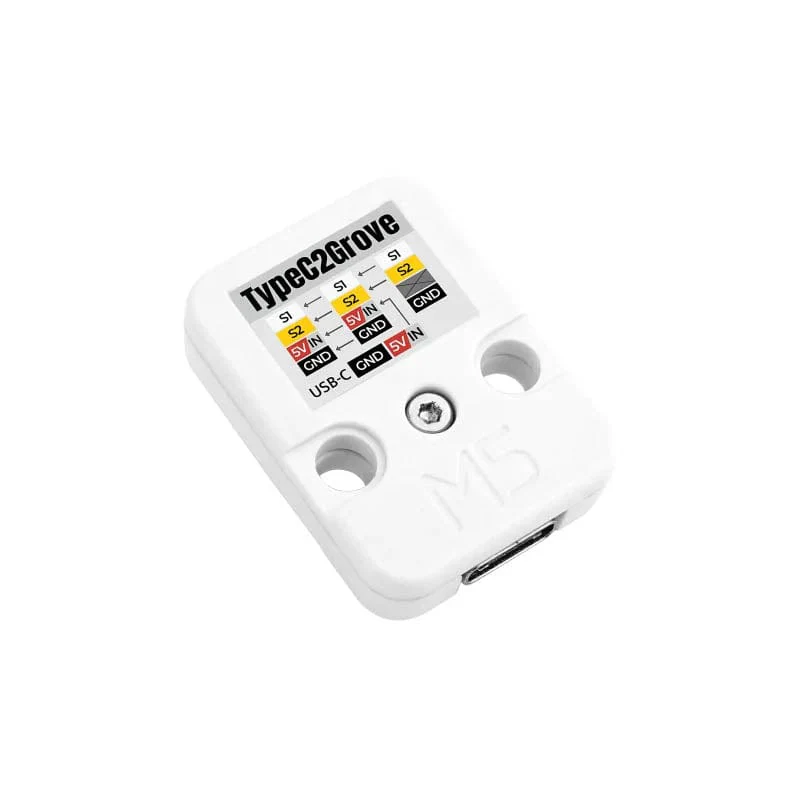

M5Stack USB TypeC2Grove Unit

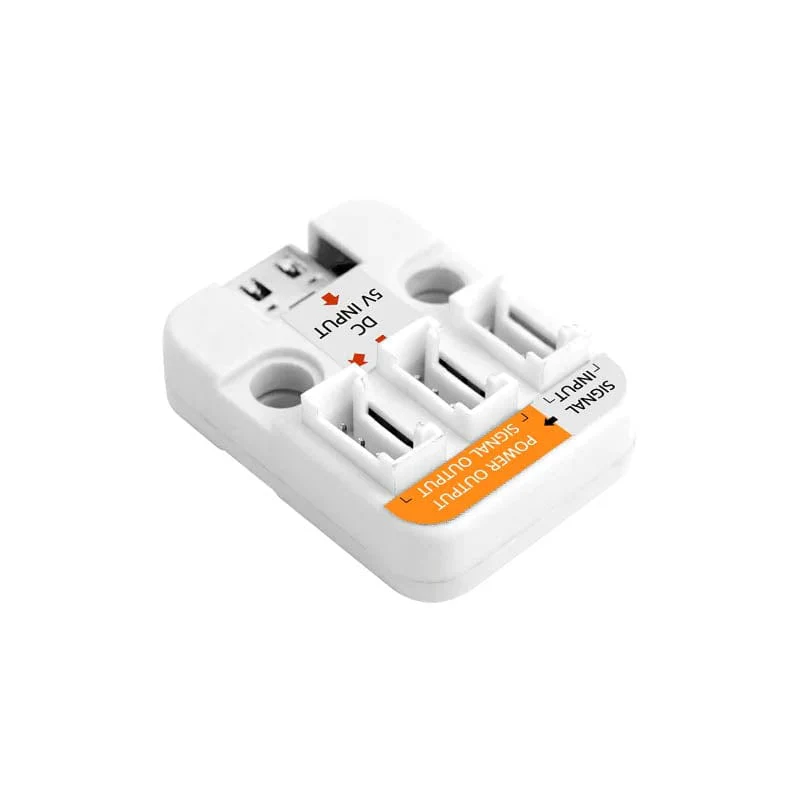

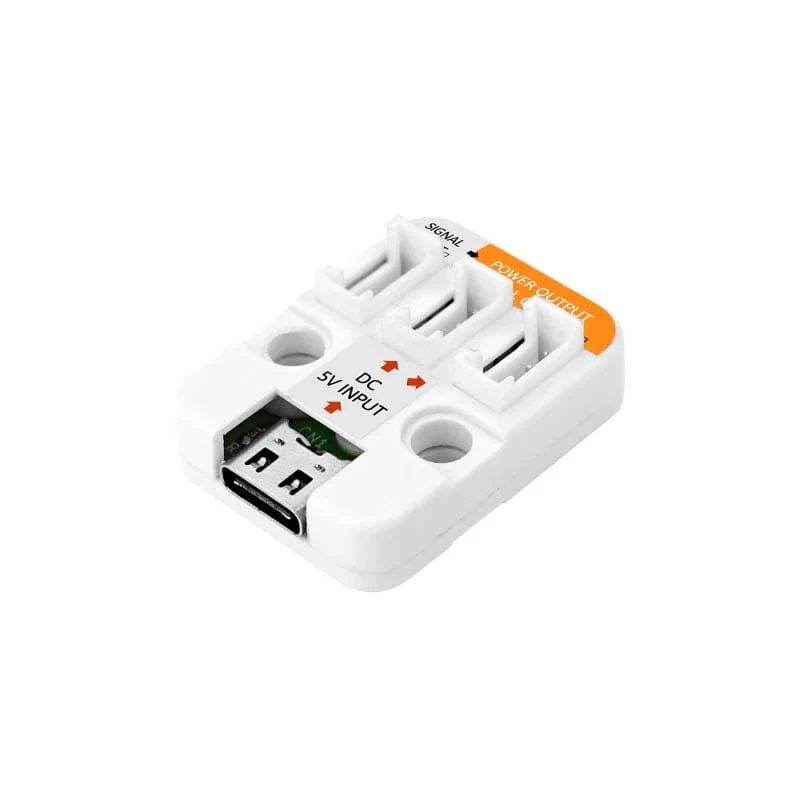

The USB TypeC2Grove Unit from M5Stack is a Grove hub Unit with a USB-C 5V DC input.

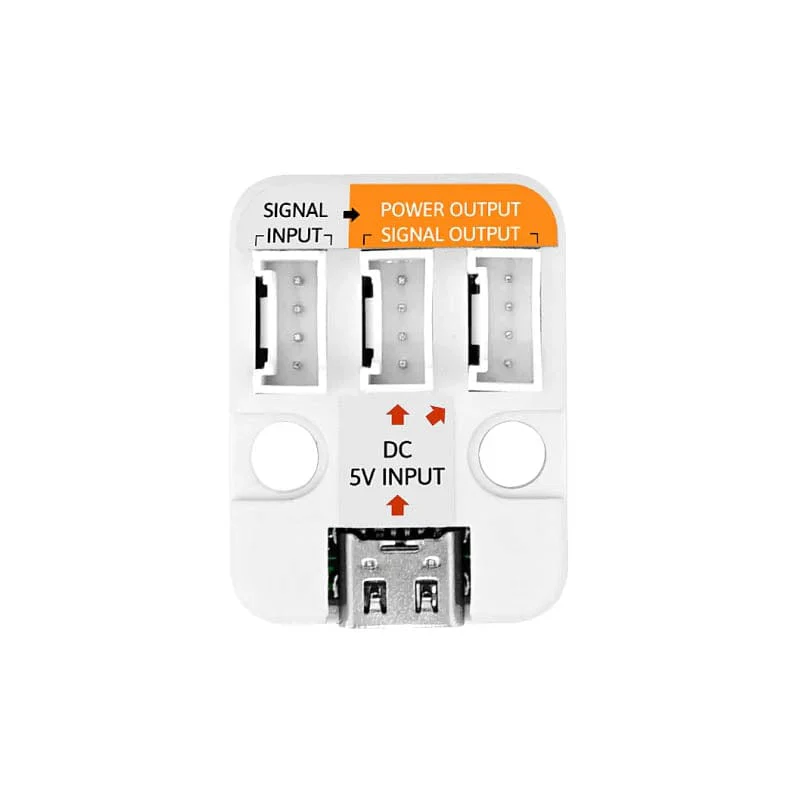

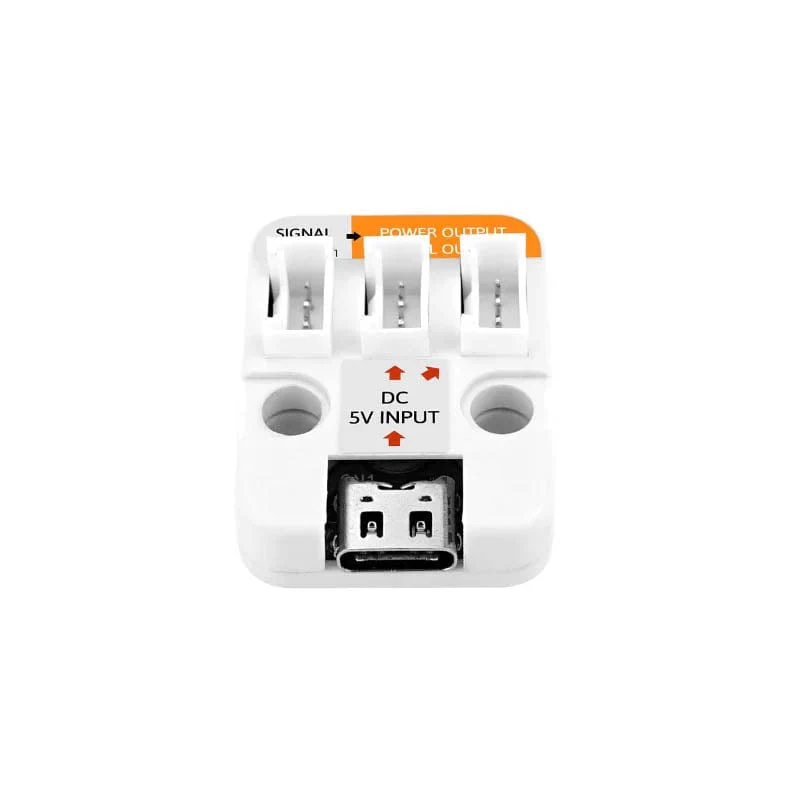

Powered through a USB-C port, the first channel is Singal Input, and the second and third channels are Power and Singal Output. Applied for the Units which need external 5V DC power.

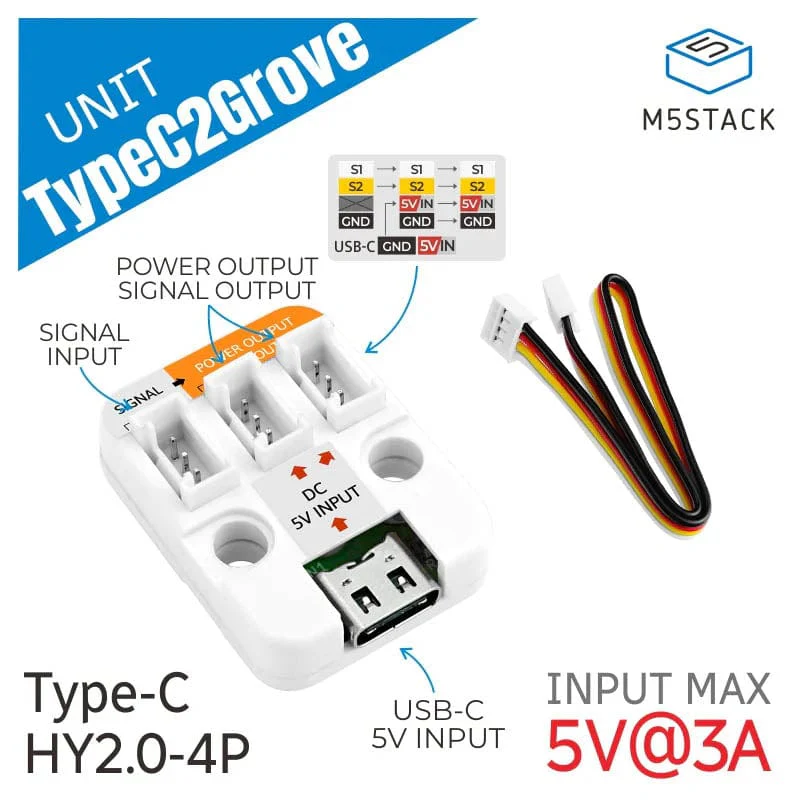

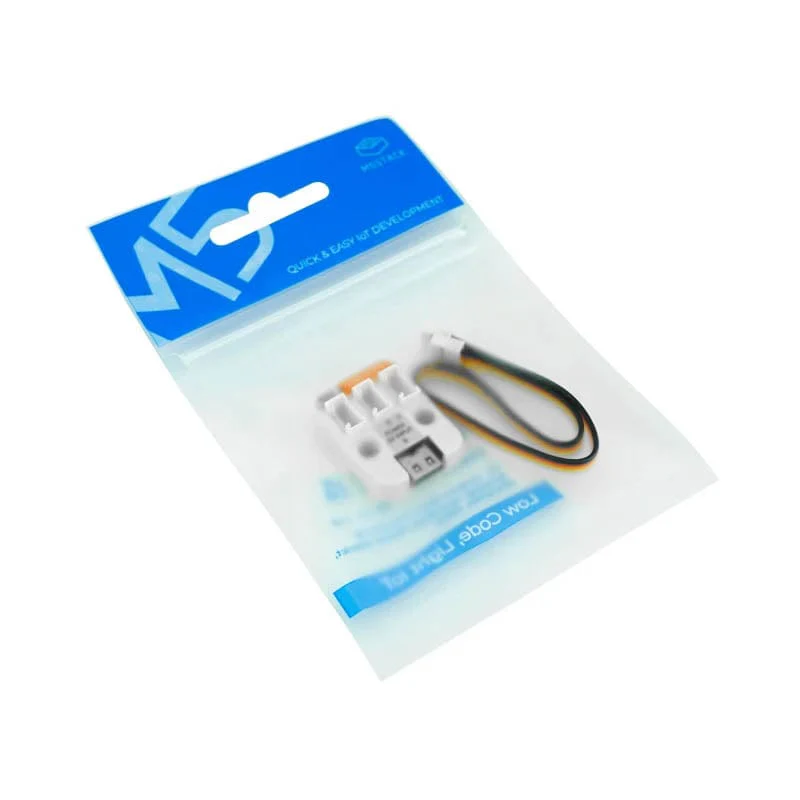

Package Contents

• 1x TypeC2Grove Unit
• 1x HY2.0 4-pin Cable (20cm)

Specifications

Power Supply	MAX 5V@3A
Net Weight	4.9g
Gross Weight	10.7g

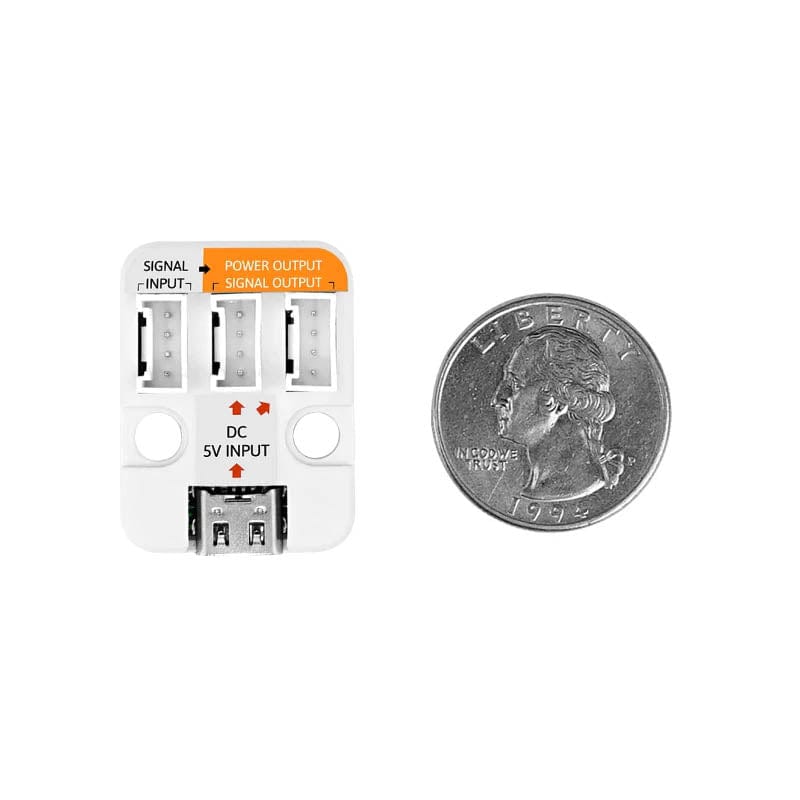

Product Size	32*24*12mm
Package Size	136*92*13mm

Resources

• Product Documentation
• Schematic

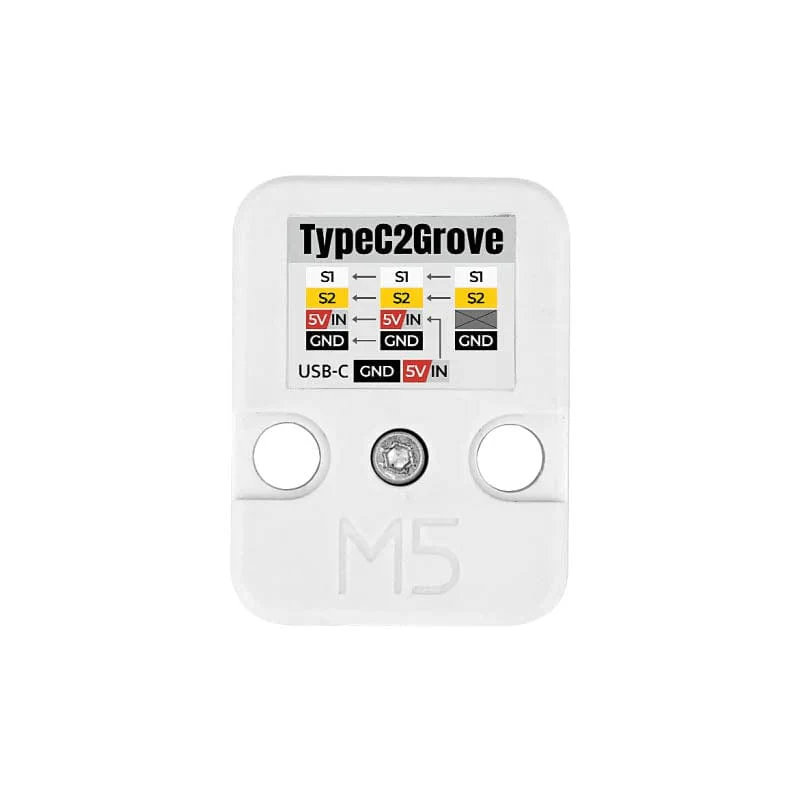

Pinout

PORT	WHITE	YELLOW	RED	BLACK
CN2	SCL/RX	SDA/TX	NULL	GND
CN3	SCL/RX	SDA/TX	+5V	GND
CN4	SCL/RX	SDA/TX	+5V	GND
