The Story

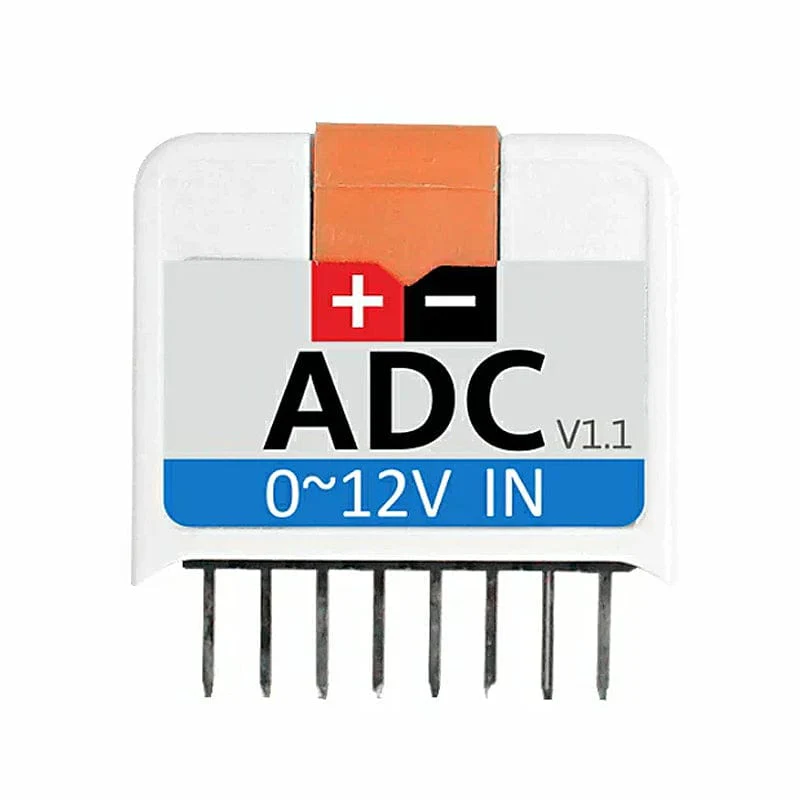

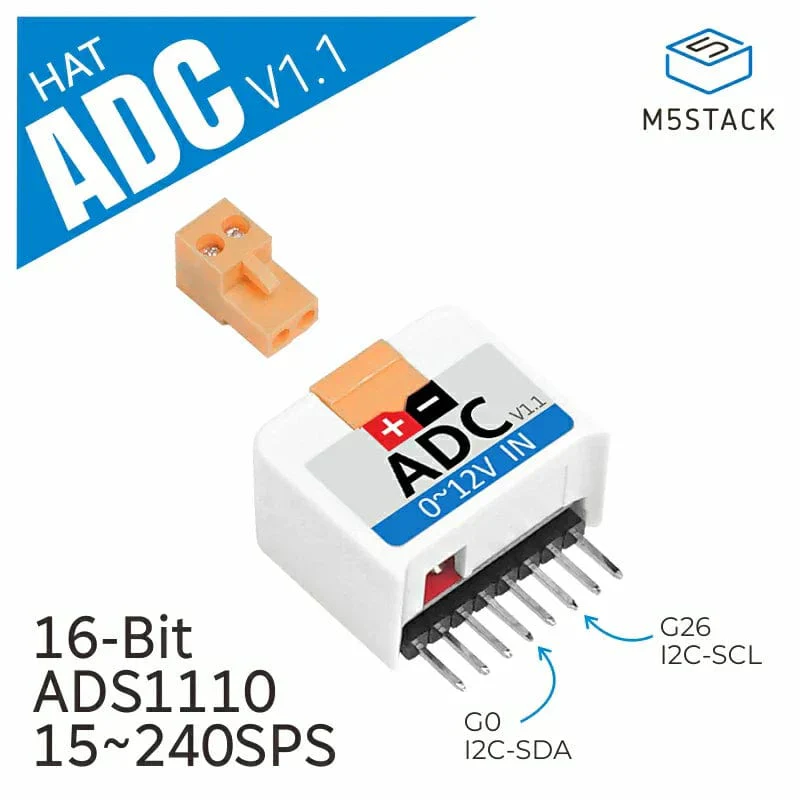

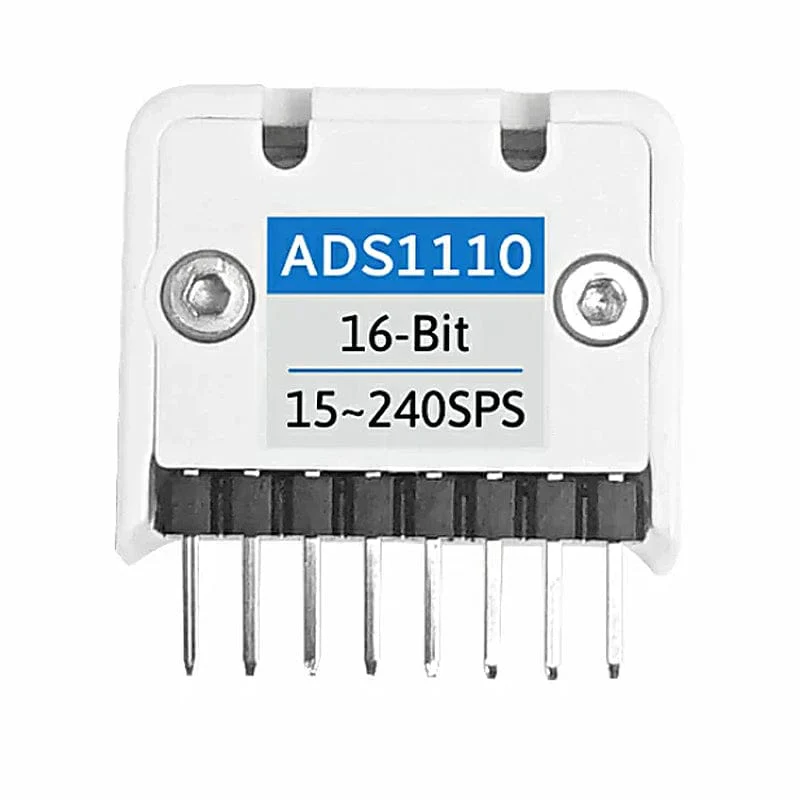

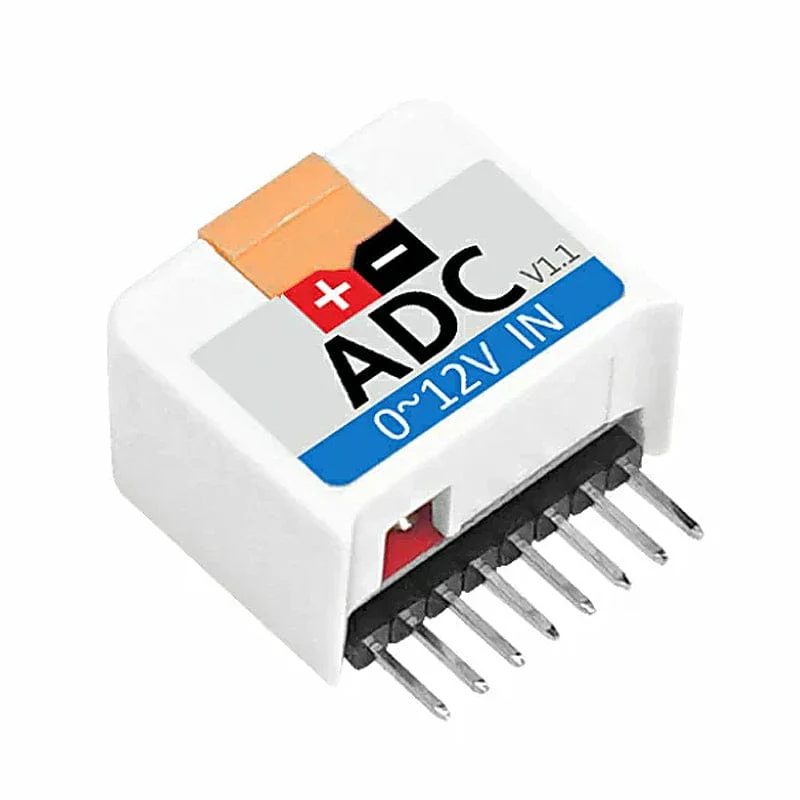

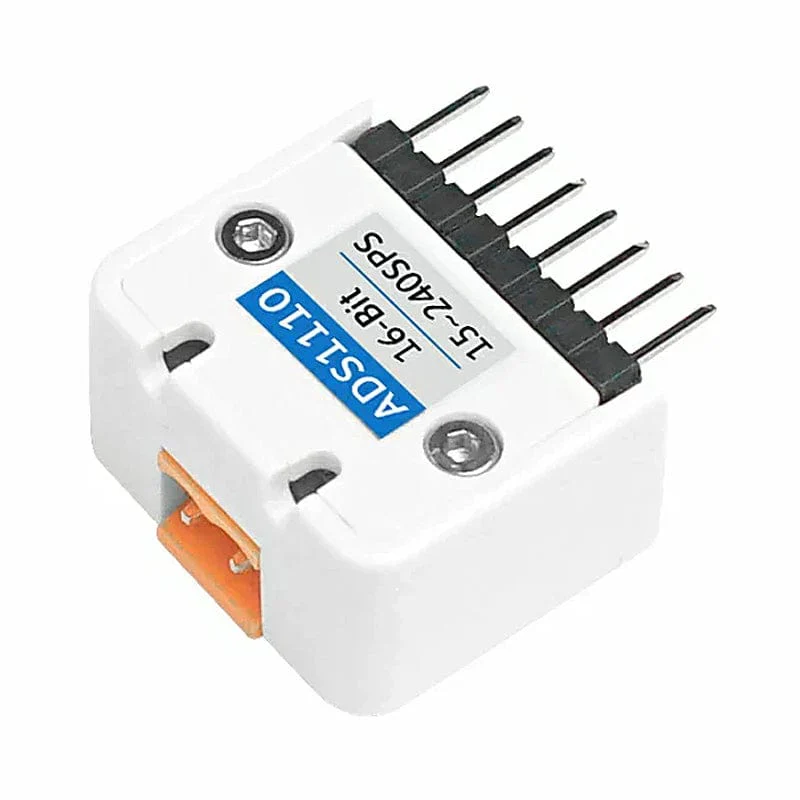

The M5Stack M5StickC ADC HAT V1.1 is another type of C-HAT specifically designed for the M5StickC controller.
Same as the ADC unit, this is an ADC converter for M5StickC. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort.
The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. The ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0 to 12V by adding the peripheral circuit design of this IC.
Features
- Programmable gain amplifier (PGA = 1, 2, 4 or 8 continuous self-calibration)
- Low noise (10uVP-P)
- I2C Communication
- Built-in reference (accuracy: 2.048V ± 0.05%)
Specifications
| Programmable Gain Amplifier | PGA=1, 2, 4, or 8 |
| Built-in Reference Voltage | 2.048V ± 0.05% |
| I2C Communication | 0x48 |
| Temperature Drift | 5ppm/℃ |
| INL | 0.01% of full scale (maximum) |
| Programmable Rate | 15SPS TO 240SPS |
| ADS1110 Resolution | 16-bit |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 32.0 x 24.0 x 10.2mm |
| Product Weight | 4.5g |
Resources
- Product Wiki
- Schematics
- ADS1110 Datasheet
- Dimension diagram
Arduino
- Unit ADC v1.1 with M5Core
- Unit ADC v1.1 with M5Core2
- Unit ADC v1.1 with M5Atom
- Unit ADC v1.1 with M5StickC
- Unit ADC v1.1 with M5StickCPlus
Package Contents
- 1x ADC V1.1 Unit
- 1x Grove Wire (20cm)
- 1x HT3.96 Male Socket (2 pins)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The M5Stack M5StickC ADC HAT V1.1 is another type of C-HAT specifically designed for the M5StickC controller.
Same as the ADC unit, this is an ADC converter for M5StickC. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort.
The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. The ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0 to 12V by adding the peripheral circuit design of this IC.
Features
- Programmable gain amplifier (PGA = 1, 2, 4 or 8 continuous self-calibration)
- Low noise (10uVP-P)
- I2C Communication
- Built-in reference (accuracy: 2.048V ± 0.05%)
Specifications
| Programmable Gain Amplifier | PGA=1, 2, 4, or 8 |
| Built-in Reference Voltage | 2.048V ± 0.05% |
| I2C Communication | 0x48 |
| Temperature Drift | 5ppm/℃ |
| INL | 0.01% of full scale (maximum) |
| Programmable Rate | 15SPS TO 240SPS |
| ADS1110 Resolution | 16-bit |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 32.0 x 24.0 x 10.2mm |
| Product Weight | 4.5g |
Resources
- Product Wiki
- Schematics
- ADS1110 Datasheet
- Dimension diagram
Arduino
- Unit ADC v1.1 with M5Core
- Unit ADC v1.1 with M5Core2
- Unit ADC v1.1 with M5Atom
- Unit ADC v1.1 with M5StickC
- Unit ADC v1.1 with M5StickCPlus
Package Contents
- 1x ADC V1.1 Unit
- 1x Grove Wire (20cm)
- 1x HT3.96 Male Socket (2 pins)
