The Story

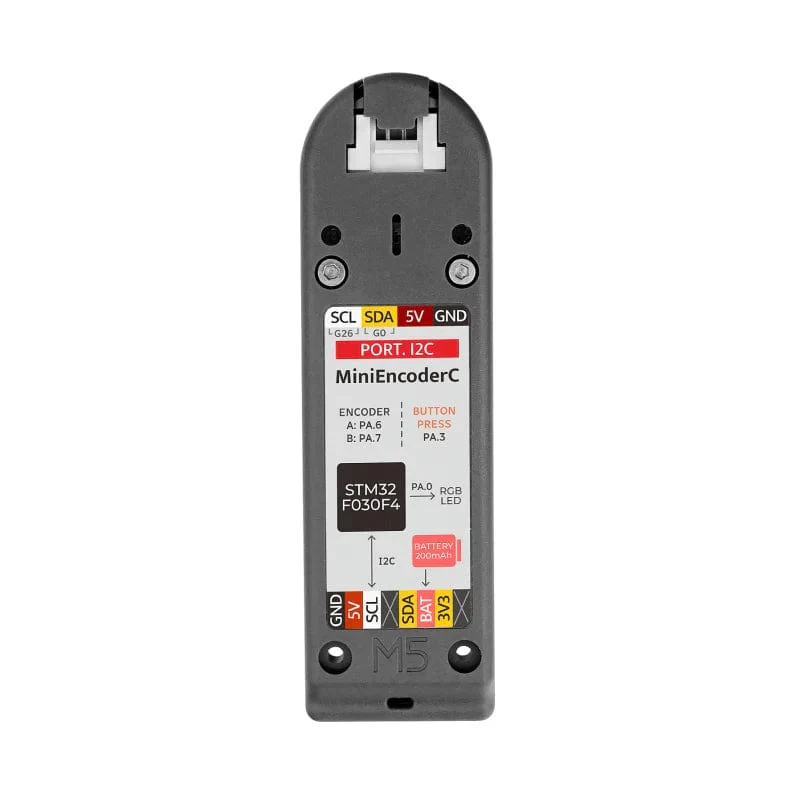

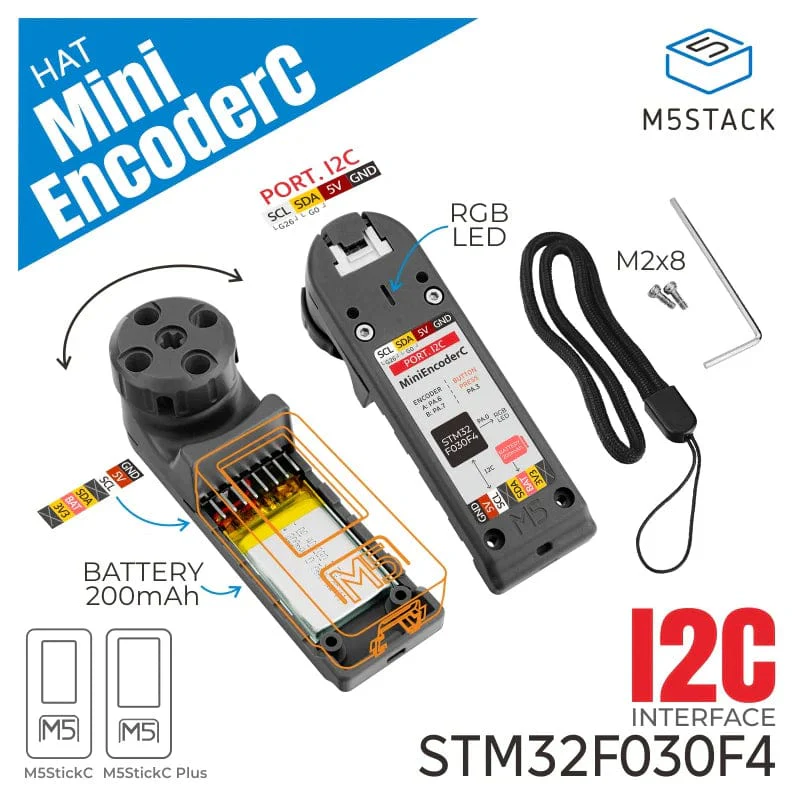

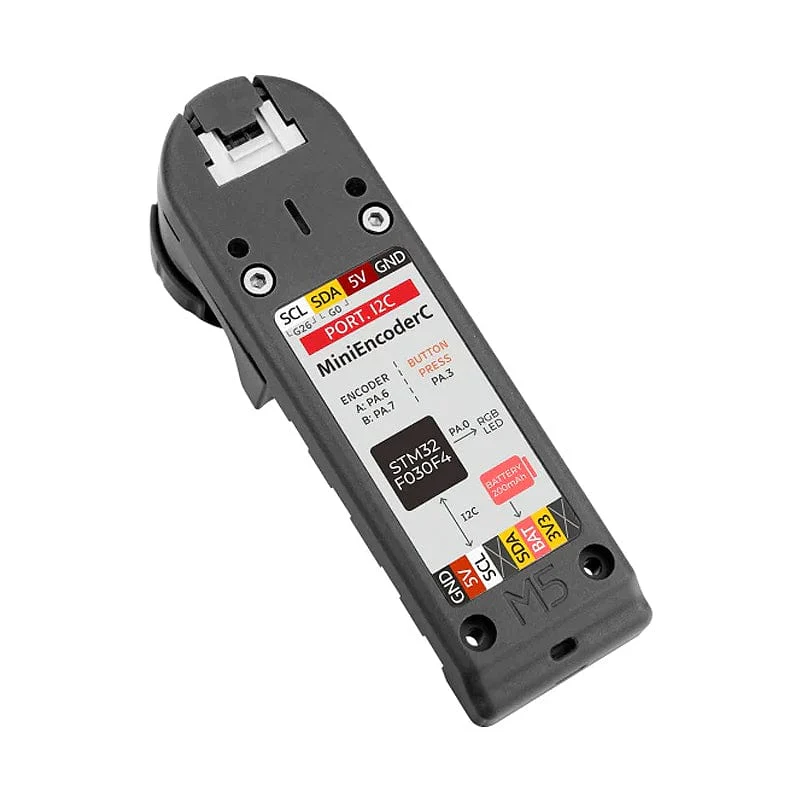

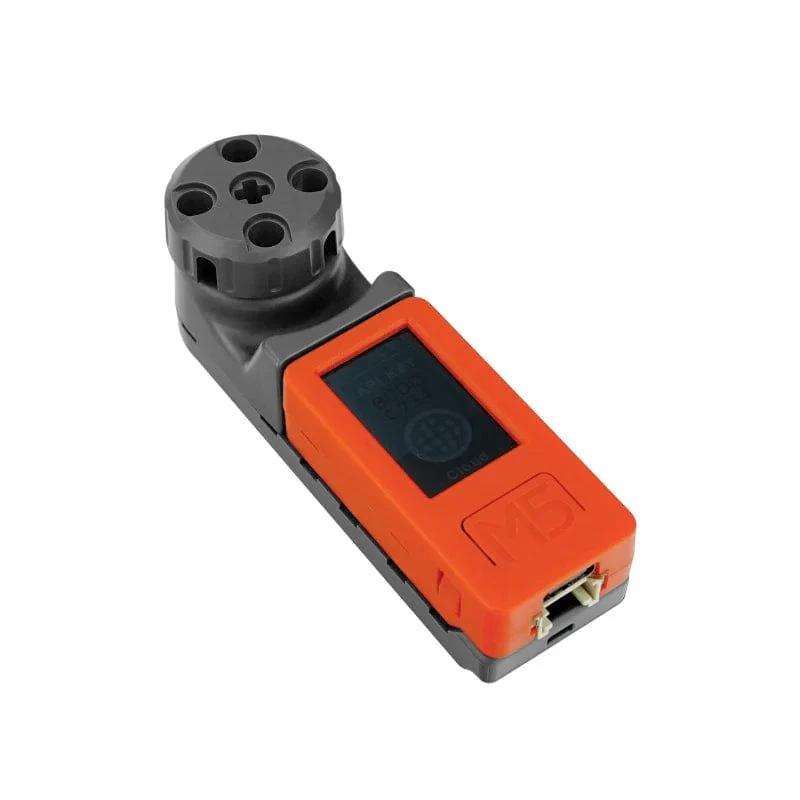

The M5Stack MiniEncoderC HAT is a rotary encoder extension base for the M5StickC/C-CPlus, which integrates a rotary AB encoder with a button function, and comes with standard building brick holes to facilitate the expansion of structural parts.

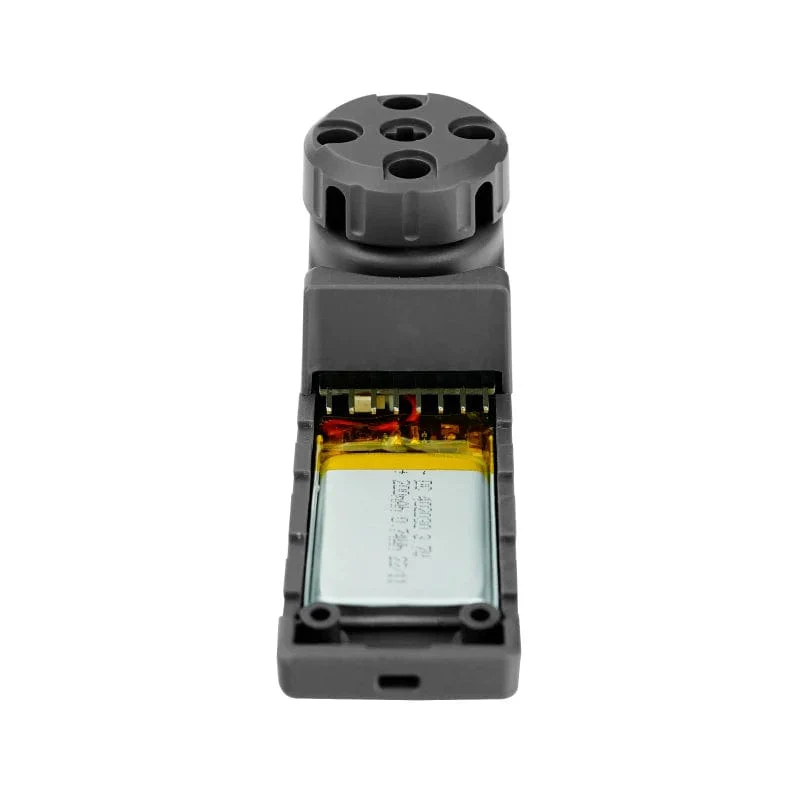

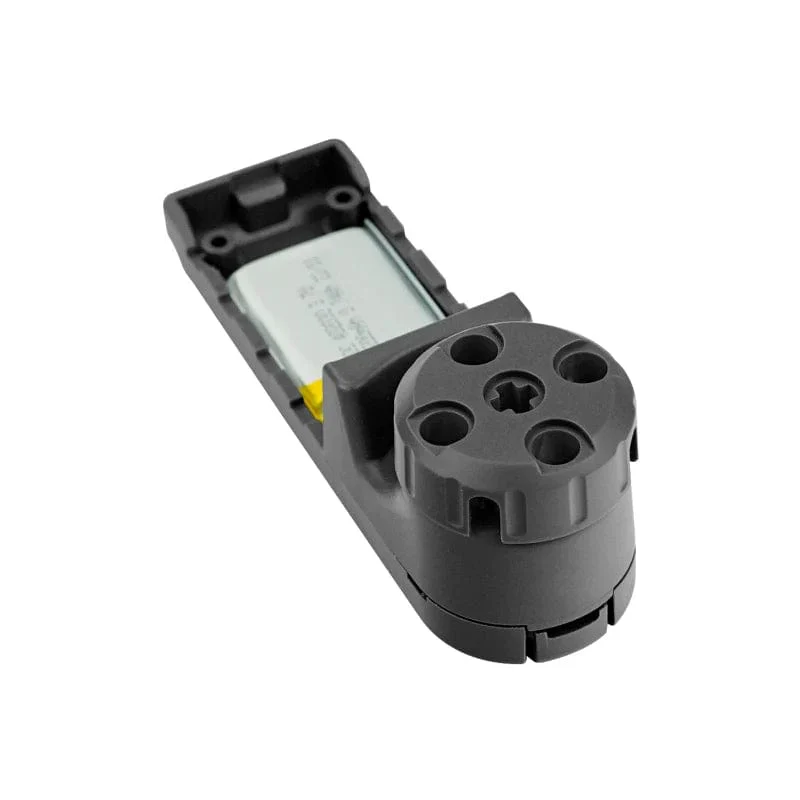

It contains a 200mAh polymer lithium battery and an SK6812 RGB LED. This product can be used to remotely adjust RGB lighting and remotely control robot joints.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?
Features
- 30-bit pulse coding knob (30 pulses per revolution)
- SK6812 programmable RGB LED
- Press the key input
- HY2.0-4P interface
- 4x LEGO connectors
Package Contents
- 1x MiniEncoderC HAT
- 1x Lanyard
StickC not included
Specification
| MCU | STM32F030F4P6 |
| support voltage | 3.3V |
| RGB | SK6812-3535 |
| Battery level | 200mAh |
| Product Size | 81.05mm × 29mm × 24mm |
| Package Size | 101mm × 27mm × 22mm |
| Product Weight | 19.3g |
| Package Weight | 24.5g |
Resources
- Product Wiki
- Arduino Example
- Uiflow Example
- STM32F030F4P6 datasheet
- Schematic
