$7.84The Story

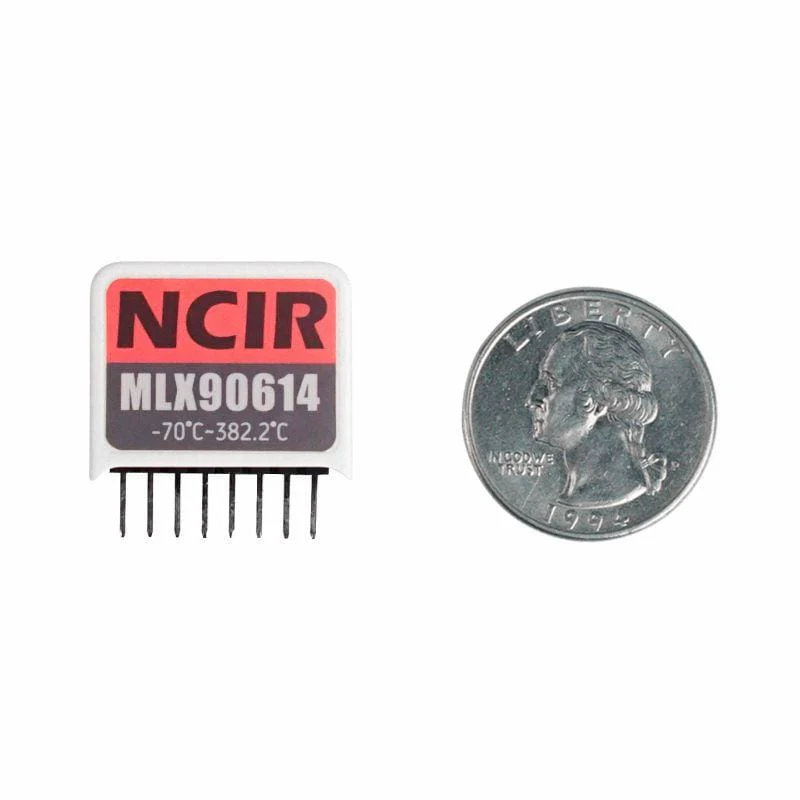

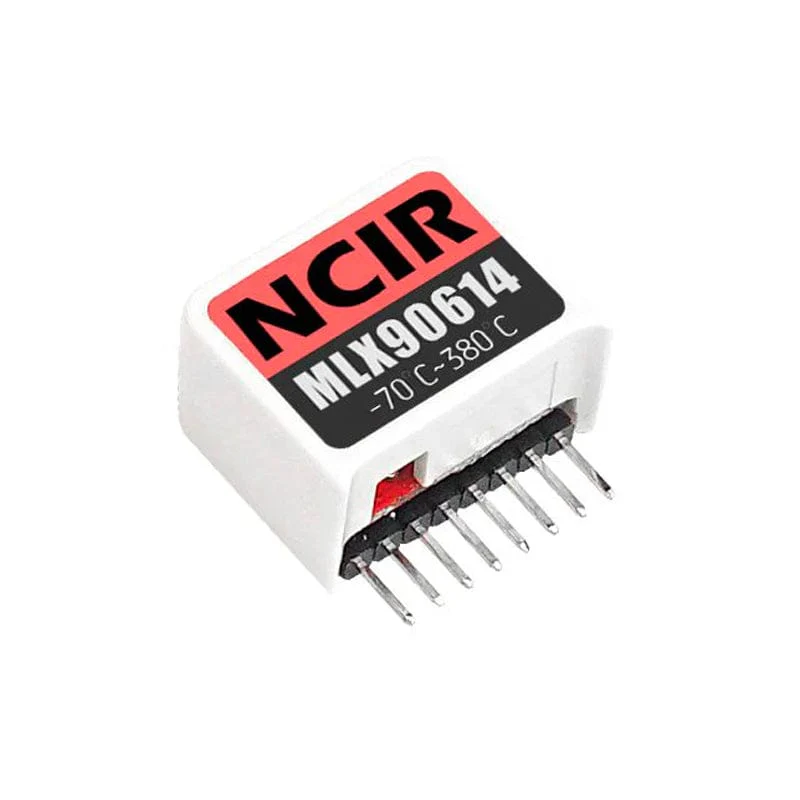

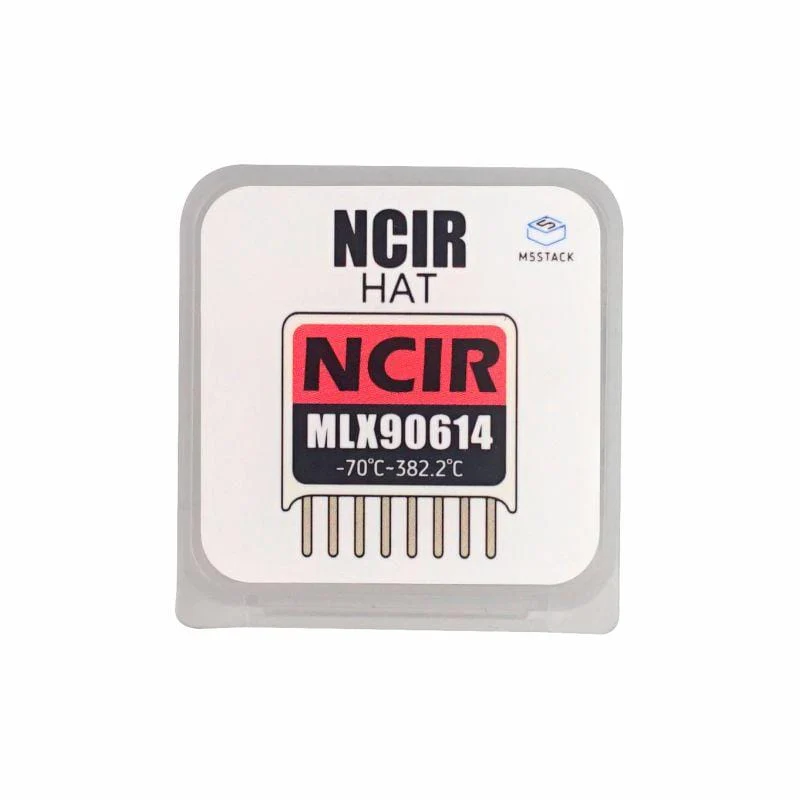

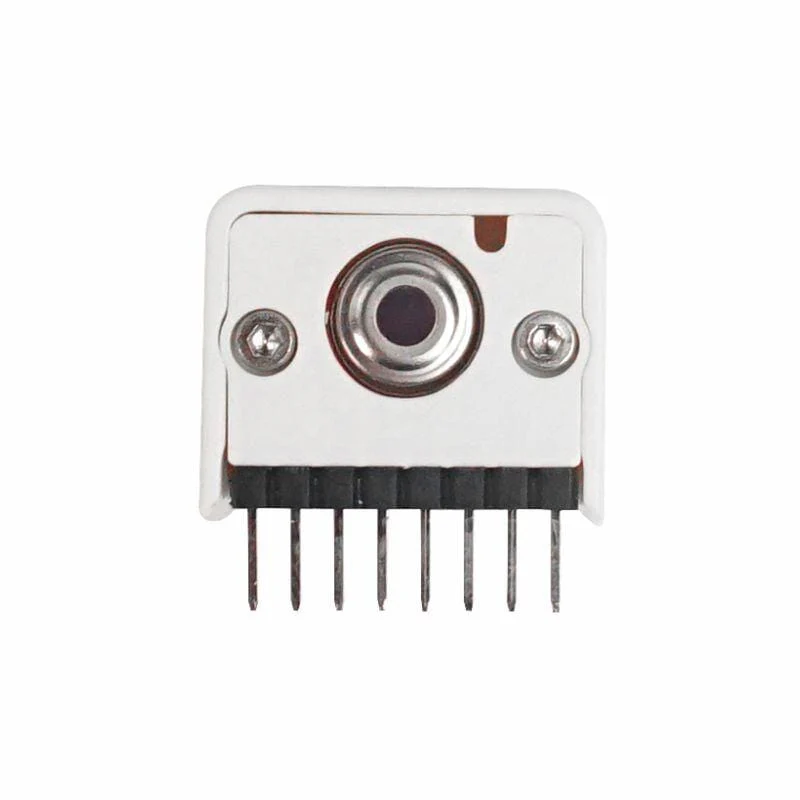

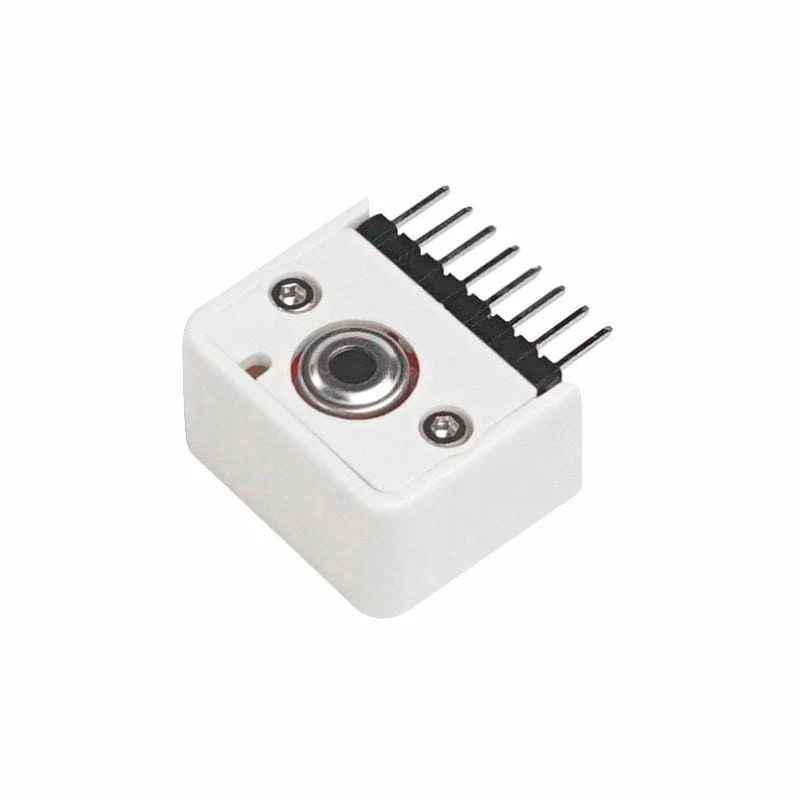

The NCIR HAT is an M5StickC compatible infrared sensor. Same as the M5Unit NCIR, this stickc HAT module integrates MLX90614 which can be used to measure the surface temperature of a human body or other object.
Unlike most temperature sensors, this sensor measures infrared light bouncing off of remote objects so it can sense temperature without having to touch them physically. Simply point the sensor towards what you want to measure and it will detect the temperature by absorbing IR waves emitted. Because it doesn't have to touch the object it's measuring, it can sense a wider range of temperatures than most digital sensors. It takes the measurement over a 90-degree field of view so it can be handy for determining the average temperature of an area.
The MLX90614 is factory calibrated in wide temperature ranges: -40 to 125 ˚C for the ambient temperature and -70 to 380 ˚C for the object temperature.
Connect with M5StickC via GOIO 0/26 (I2C add: 0x5A).
Features
- Operating voltage: 4.5 to 5.5V
- Measuring object temperature range: -70°C ~ 380°C
- Measuring ambient temperature range: -40 to 125 ˚C
- Measurement accuracy at room temperature: ±0.5°C
- Field of view: 90°
- Software Development Platform: Arduino, UIFlow(Blockly, Python)
Package Contents
- 1x NCIR HAT
Specifications
| Resources | Parameter |
|---|---|
| Communication protocol | I2C：0x5A |
| Net weight | 5g |
| Gross weight | 13g |
| Product Size | 24 x 25 x 14mm |
| Package Size | 40 x 42 x 30mm |
