$11.85The Story

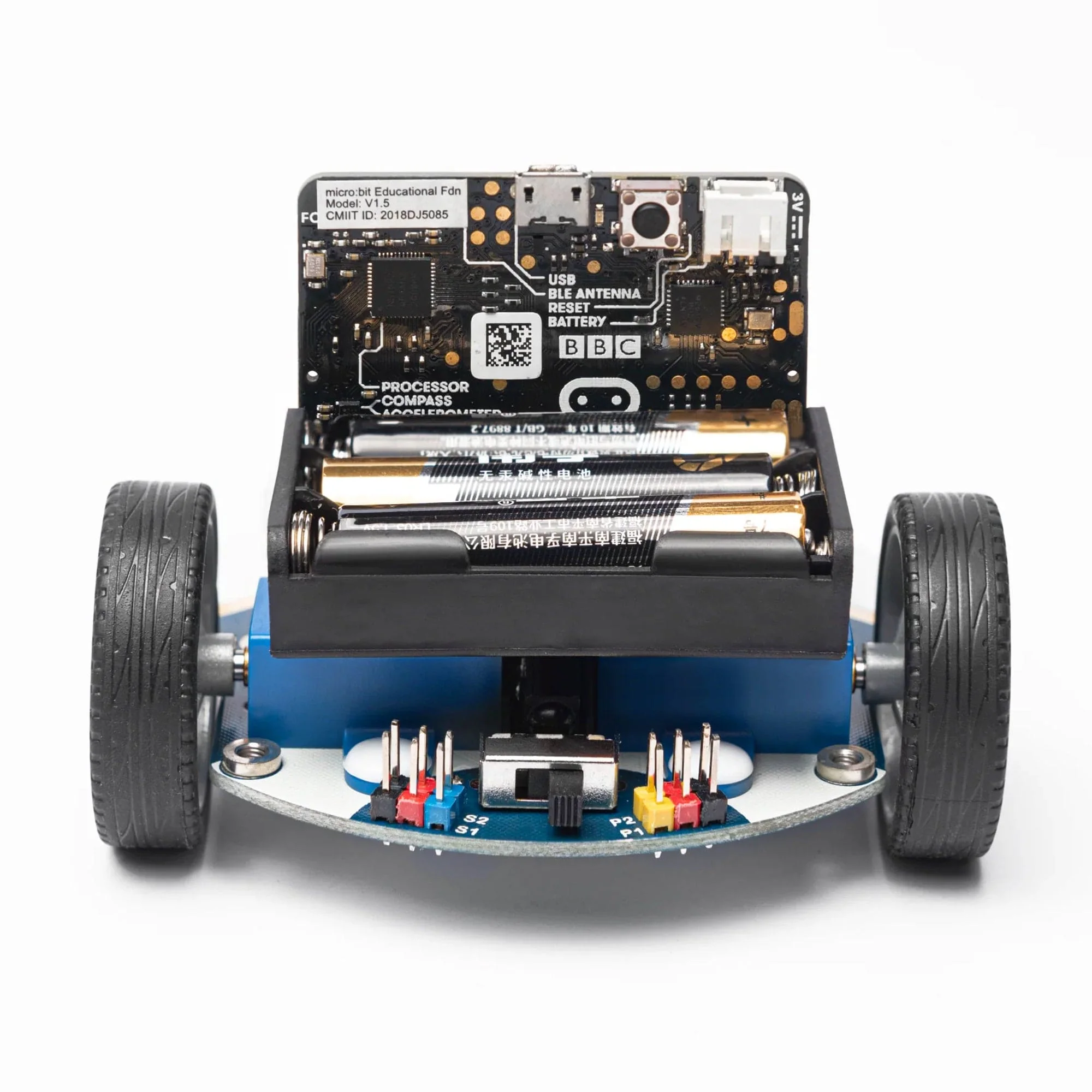

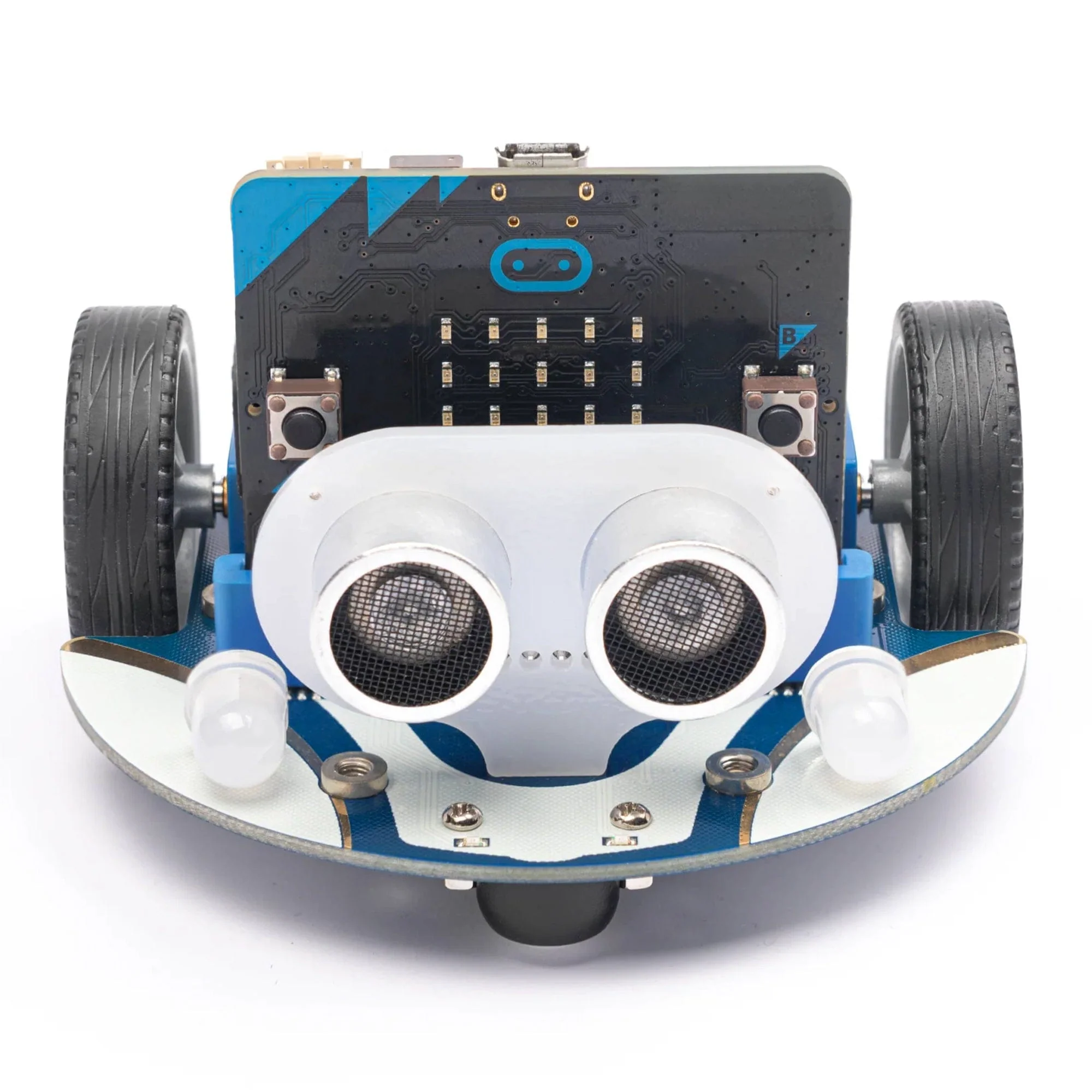

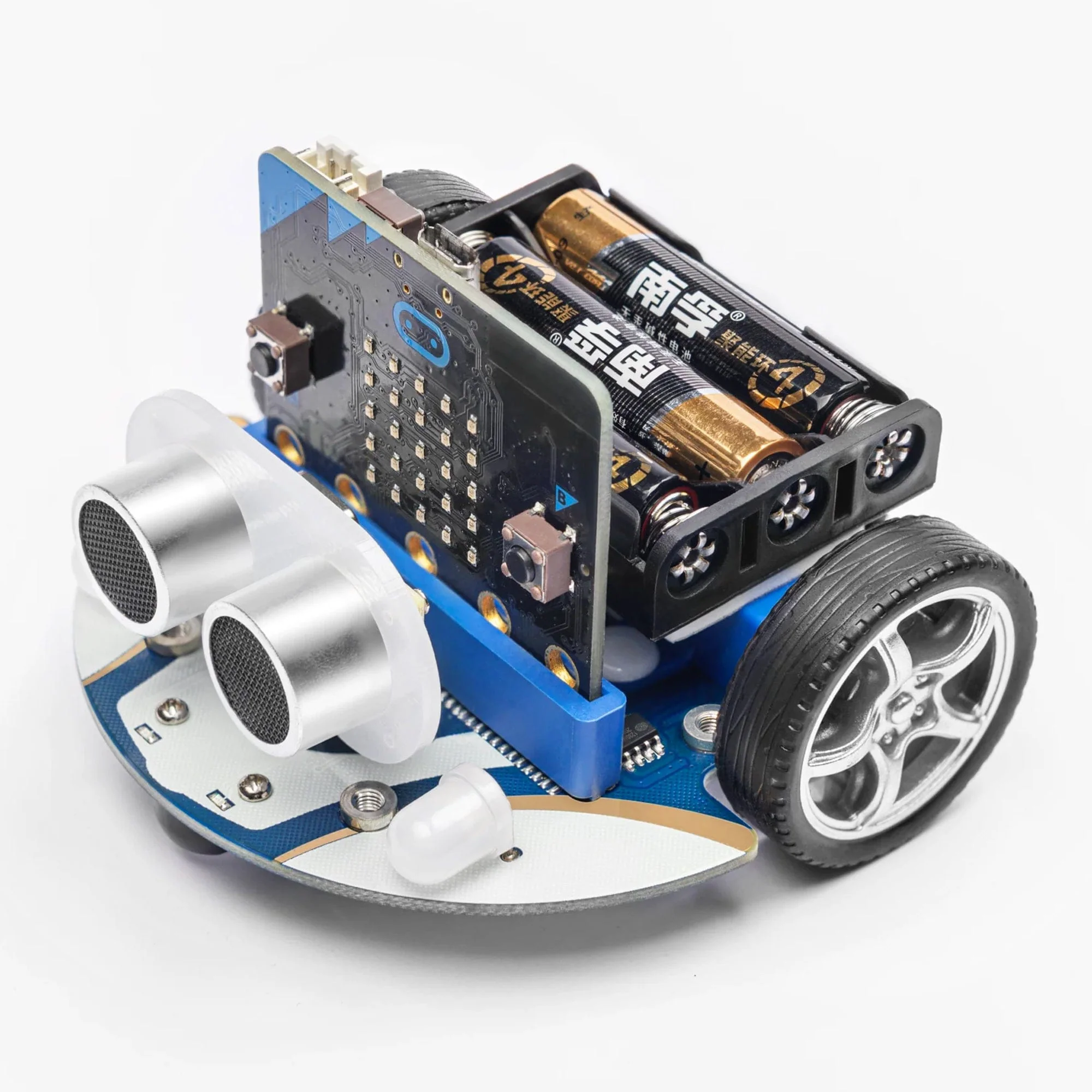

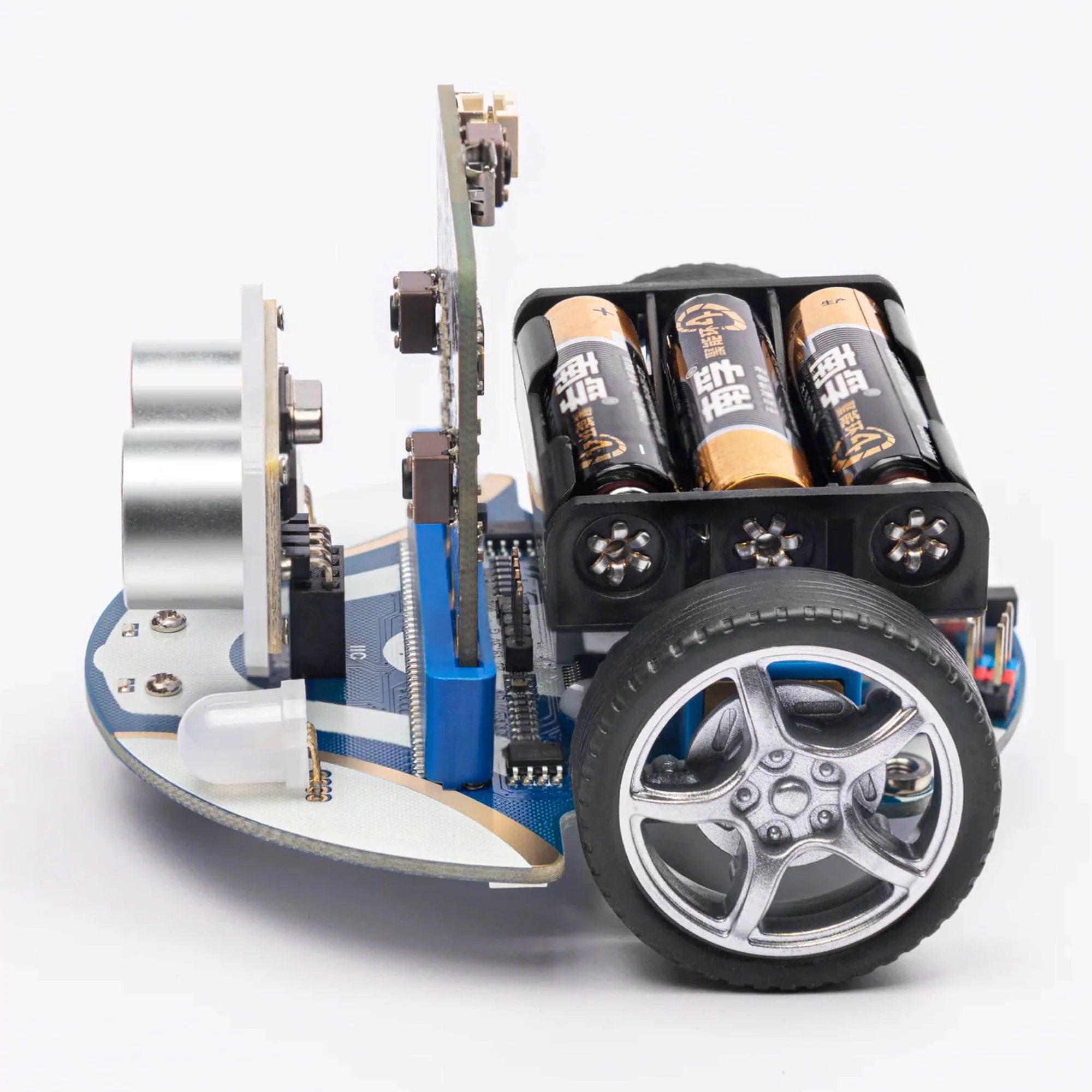

The Elecfreaks Cutebot is a super-cute rear-drive smart car for the micro:bit, driven by dual high-speed motors and a micro:bit (not included but available here).
There are many on-board features on the Cutebot including an ultrasonic sensor, distance sensor, two RGB LED headlights, clearance lamps on the bottom, two line-tracking probes and an active buzzer as a horn! Let’s drive your first smart car!
The kit includes the Cutebot robot, distance sensor, large line-following map and user guide - all in a well-presented box!
Features
- Rear-drive high-speed motors
- Tiny structure with an arc shape
- Only 3x AAA batteries and ultrasonic sensor need to be assembled
Resources
- Product Wiki
Tech Specs
| Working Voltage | 3.5V — 5V |
| Dimension | 85.68mm X 85.34mm X 38.10mm |
| Buzzer | Active buzzer connects to P0 |
| Infrared Control | Connect to P16 |
| RGB Headlights | 2 x RGB |
| Rainbow LED | 2 x Neopixel (P15) |
| Connection | IIC Port (P19,P20) Ultrasonic Port P1 P2(GVS lead-out) |
| Motor Type | GA12-N20 DC micro gear deceleration motor (300 RPM) |
| Ultrasonic Sensor Type | HC-SR04 (2cm-400cm distance detection, precision ±1.5mm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Elecfreaks Cutebot is a super-cute rear-drive smart car for the micro:bit, driven by dual high-speed motors and a micro:bit (not included but available here).
There are many on-board features on the Cutebot including an ultrasonic sensor, distance sensor, two RGB LED headlights, clearance lamps on the bottom, two line-tracking probes and an active buzzer as a horn! Let’s drive your first smart car!
The kit includes the Cutebot robot, distance sensor, large line-following map and user guide - all in a well-presented box!
Features
- Rear-drive high-speed motors
- Tiny structure with an arc shape
- Only 3x AAA batteries and ultrasonic sensor need to be assembled
Resources
- Product Wiki
Tech Specs
| Working Voltage | 3.5V — 5V |
| Dimension | 85.68mm X 85.34mm X 38.10mm |
| Buzzer | Active buzzer connects to P0 |
| Infrared Control | Connect to P16 |
| RGB Headlights | 2 x RGB |
| Rainbow LED | 2 x Neopixel (P15) |
| Connection | IIC Port (P19,P20) Ultrasonic Port P1 P2(GVS lead-out) |
| Motor Type | GA12-N20 DC micro gear deceleration motor (300 RPM) |
| Ultrasonic Sensor Type | HC-SR04 (2cm-400cm distance detection, precision ±1.5mm) |
