Micro Metal Geared Stepper Motor (12V 0.6kg.cm)

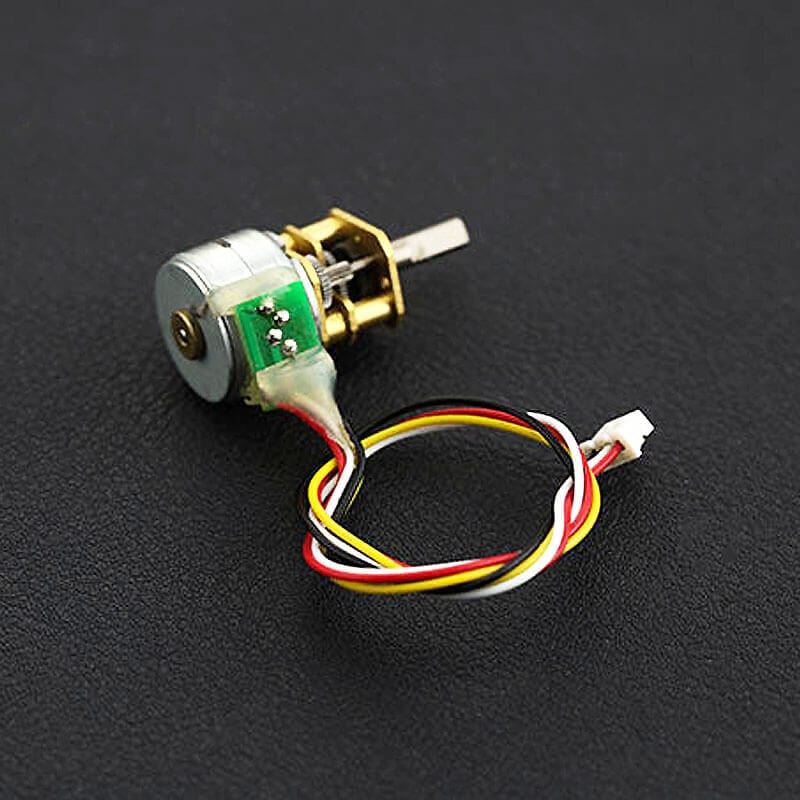

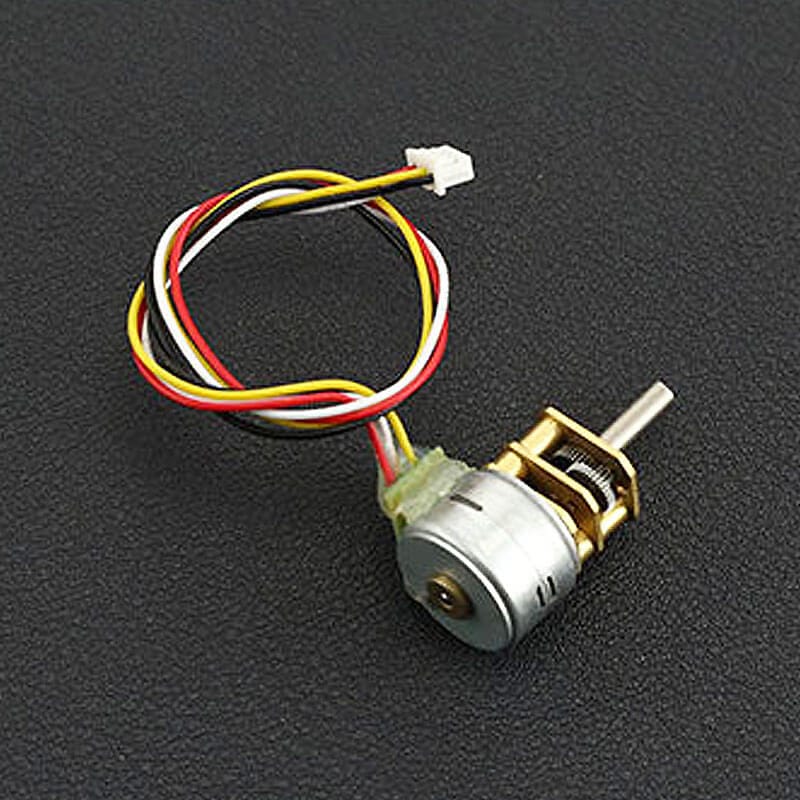

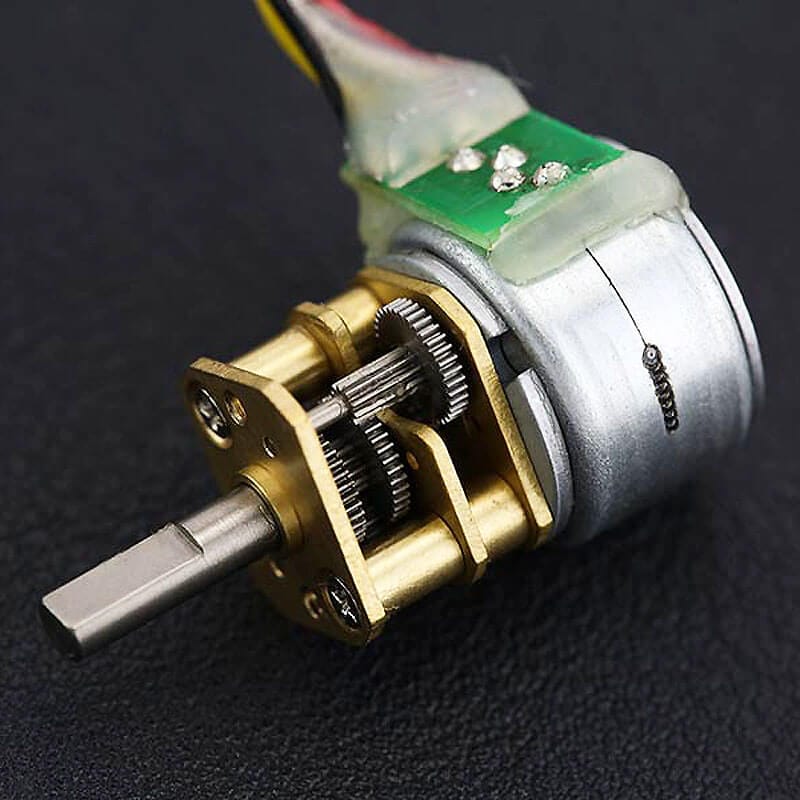

This is a miniature stepper motor with 100:1 metal reduction gearbox for enhanced torque. It has a voltage input range of 5 - 12V DC. This product is suitable for 3D printers and applications which require precise rotation control.

Note: The motor has a current limit of 0.4A - please limit the motor current, overcurrent will damage the motor!

The connector is Molex Picoblade compatible 4-pin 1.25mm - the same connector used in these cable assemblies which might come in handy for use with this motor.

Specification

• Stepper Motor:
  • Coil resistance: 30Ω±10%
  • NO. Of Phases: 2 PHASES
  • Step Angle: 18° / Step
  • MAX.Starting Frequency: 900PPS min
  • MAX.Slewing Frequency: 1200 PPS min
  • Pull IN Torque: 6gf-cm min
  • Lead Out Torque: 10gf-cm max
• Stepper Motor with Gear Box:
  • Step Angle: 18/100° / Step
  • MAX.Starting Frequency: 900PPS min
  • MAX.Slewing Frequency: 1200 PPS min
  • Pull IN Torque: 0.5Kgf-cm min
  • Lead Out Torque: 0.8Kgf-cm max
• Cable Length: 15cm
• Weight: 14g

Documents

Shipping List

• Micro Metal Geared Stepper Motor (12V 0.6kg.cm) x1
