The Story

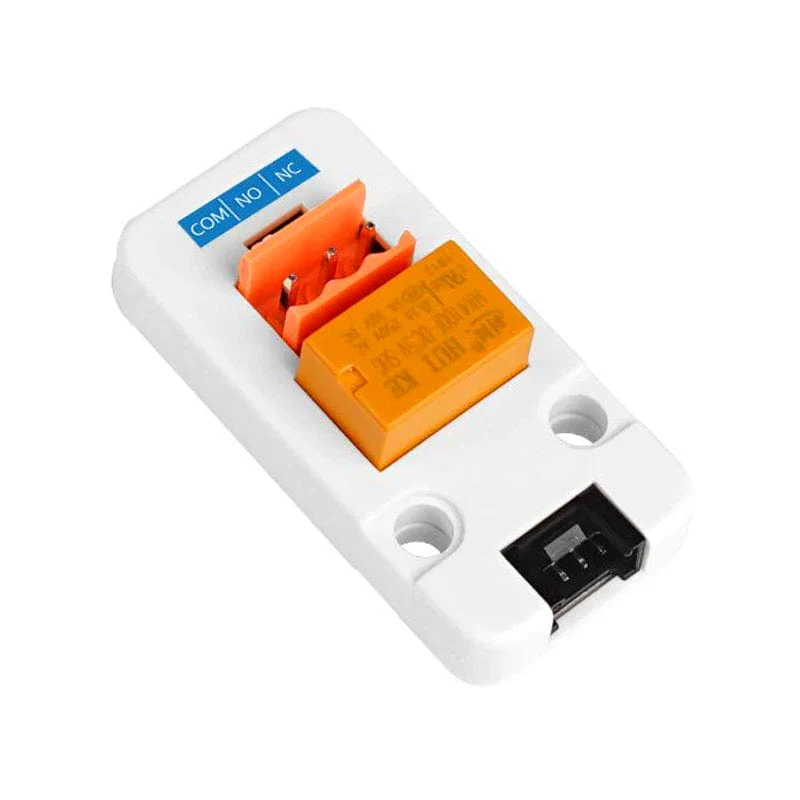

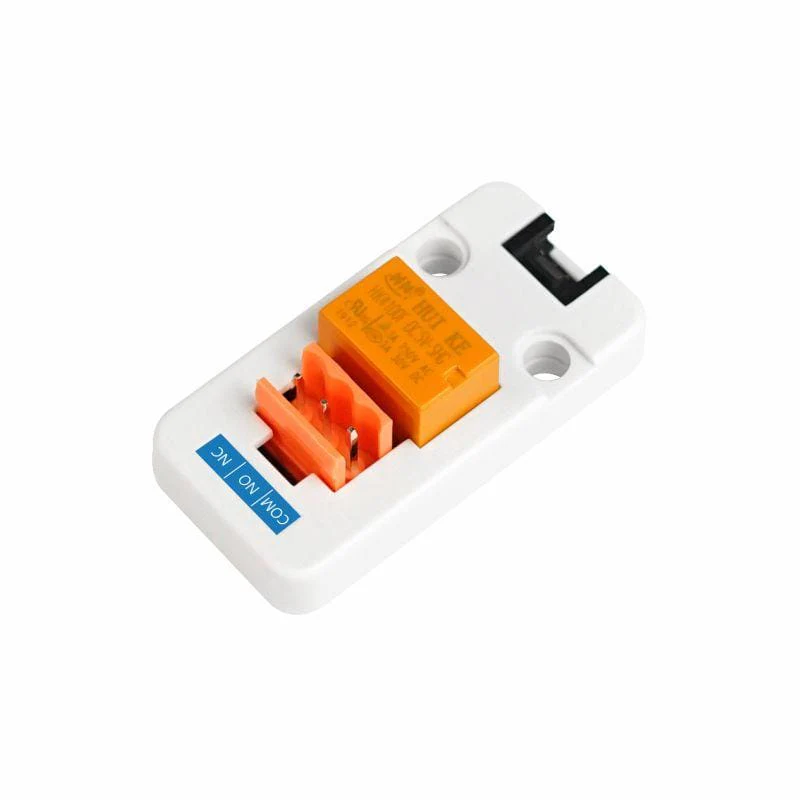

This Relay as it says, is an M5Unit that implements relay functions. The relay can be used as an electric operated switch, using an electromagnet to mechanically operate a switch where it is necessary to control a large power load circuit by a separate low-power signal such as digital signal output from a microprocessor.
The Relay support input voltage goes up to 30V DC and 220V AC.

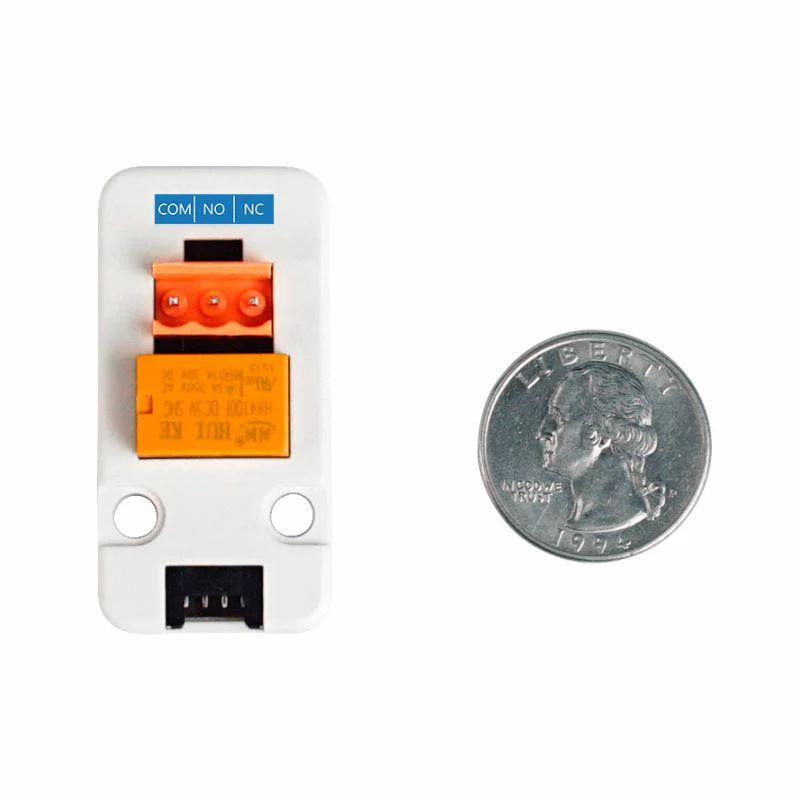

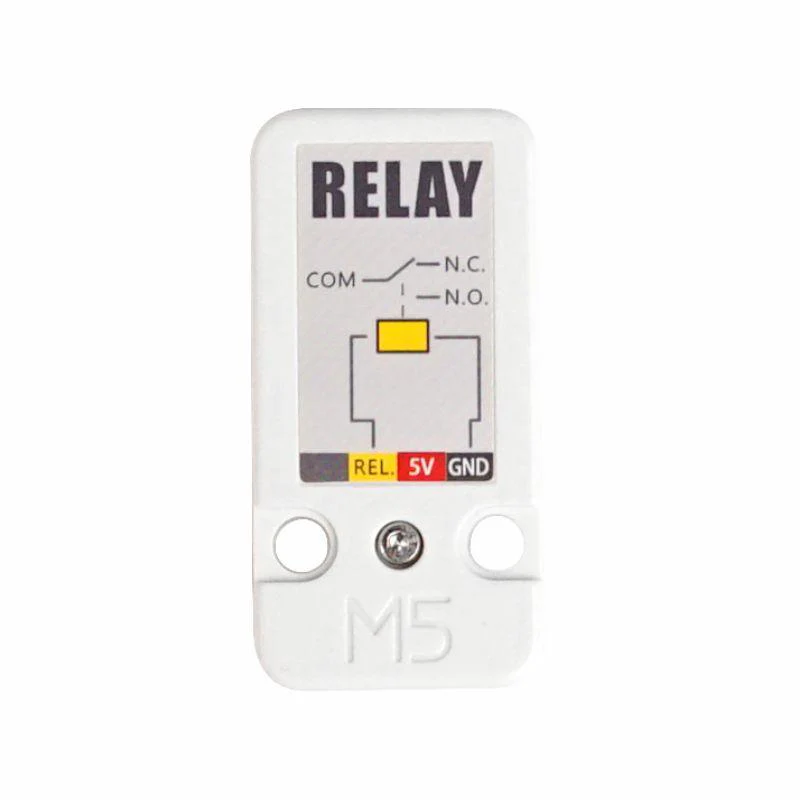

There are 3 pins named: ON, OFF, and COM. You can program it to make COM connect to ON or OFF, just like high and low output of a digital GPIO.
Features
- Single-BUS control
- Up to 3A @ 30 V DC or 220 V AC
- Software Development Platform: Arduino, UIFlow (Blockly, Python)
- Two Lego-compatible holes

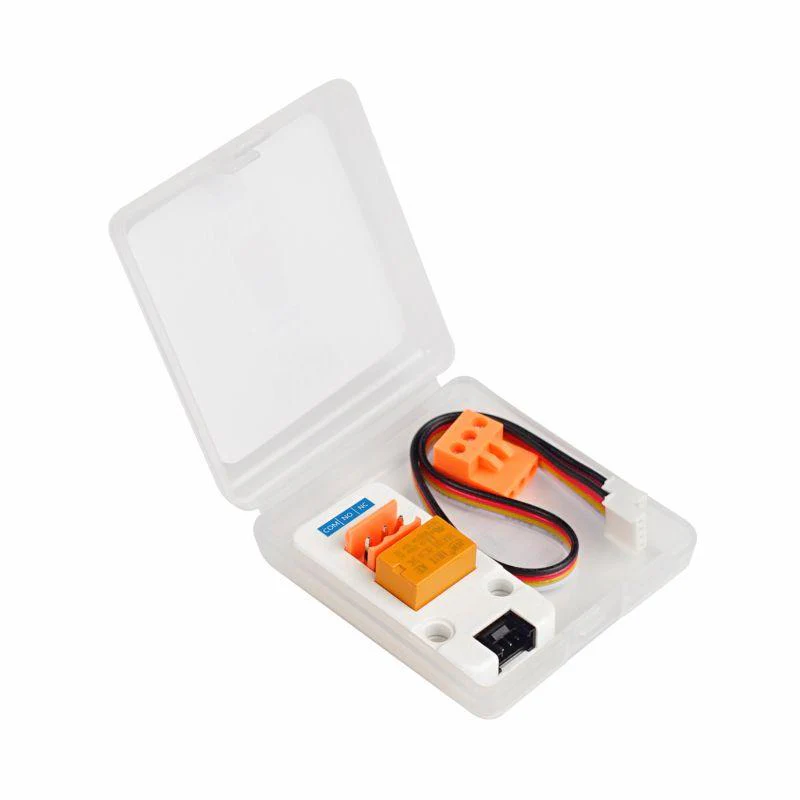

Package Contents
- 1x Relay Unit
- 1x Grove Cable
- 1x 3.96 soket
Specifications
| Resources | Parameter |
|---|---|
| Net weight | 12g |
| Gross weight | 26g |
| Product Size | 48 x 24 x 21mm |
| Package Size | 60 x 57 x 17mm |
