$1.75The Story

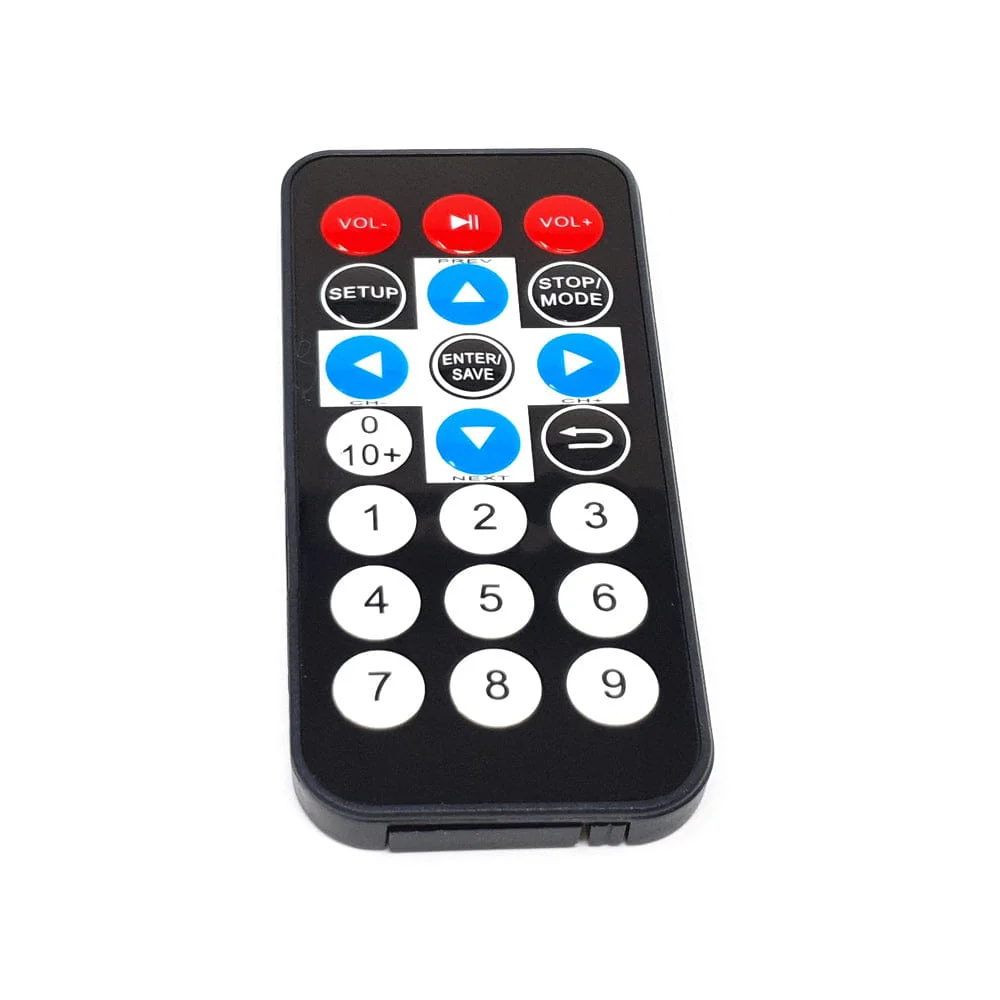

This little remote control is handy for any project requiring infra-red control - use it with a robot project, a FLIRC receiver on a media centre, a RemotePi board - the possibilities are endless!
It features 21 buttons and a common-sense layout of directional buttons, number pad, volume control and more (you can map these to do whatever you want on your own project if your receiver allows!).
It uses NEC encoding type and sends data codes 0 thru 26 (it skips #3, #7, #11, #15, #19 and #23) to address #0. You can use this to control something that is expecting NEC codes or you can pair this with our IR remote receiver sensor.
Comes with an included CR2025 lithium battery! Just remove the plastic pull-tab to use.
Here is some example Arduino code that, when used with the IR remote receiver sensor will decode button presses.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Mini remote with 21 buttons
- 38KHz NEC code output, 940nm IR LED
- 40mm x 86mm x 7mm
- CR2032 battery included
