NCIR 2 Thermometer Unit (MLX90614)

The NCIR 2 Thermometer Unit utilizes the MLX90614 temperature sensor, and takes ambient and object temperature readings.

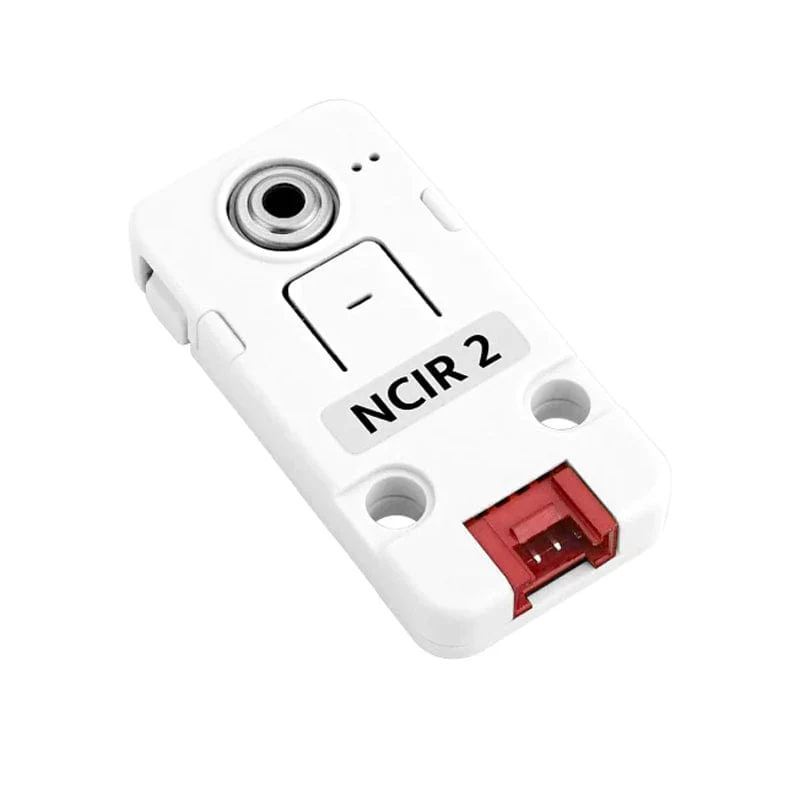

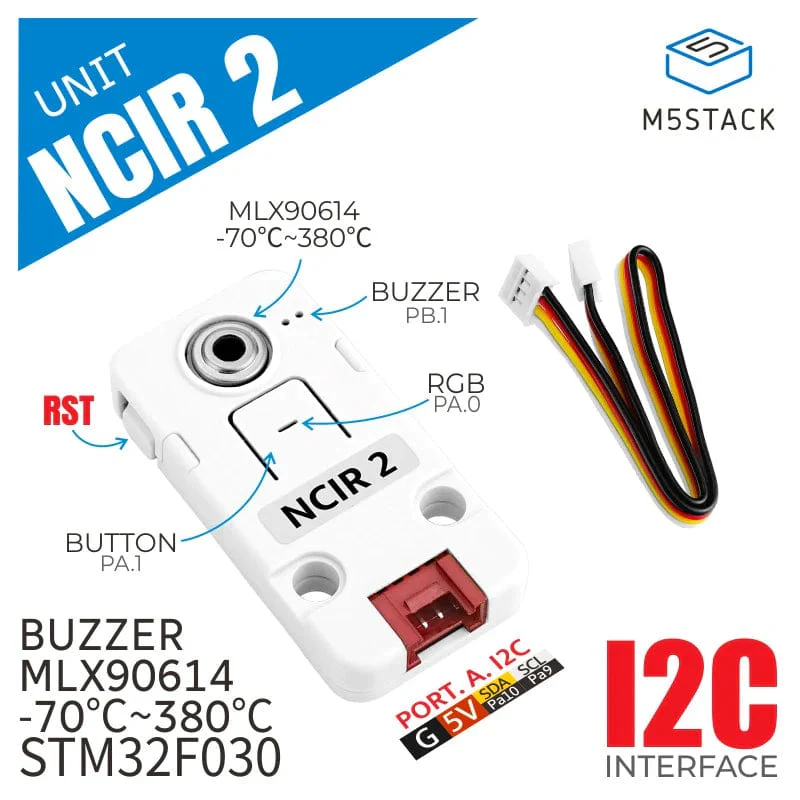

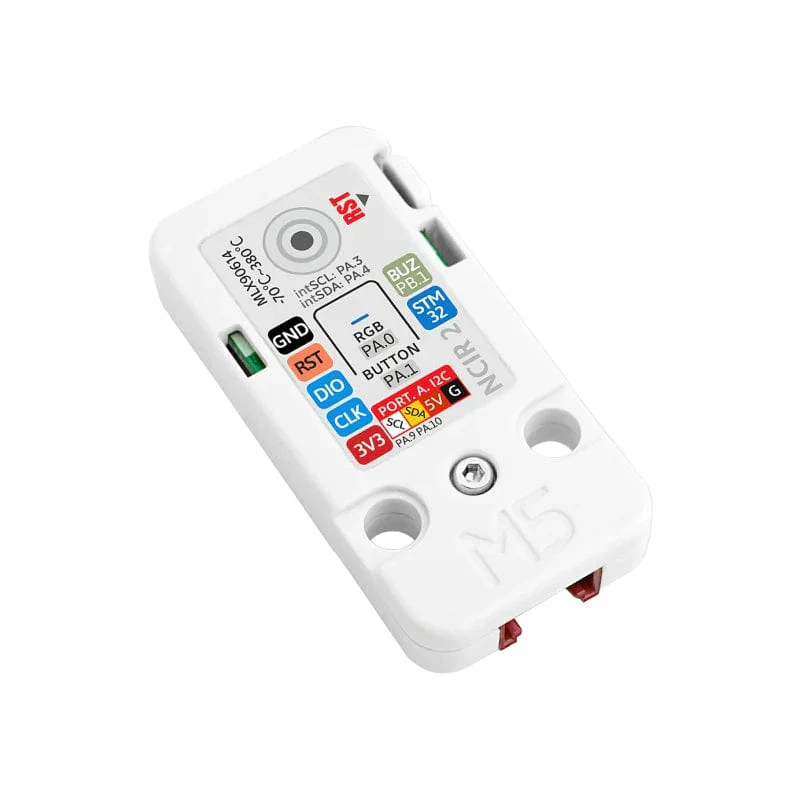

The MLX90614 sensor is factory calibrated in a wide temperature range, -40 to 125 ˚C for the ambient temperature and -70 to 380 ˚C for the object temperature. The embedded MCU - STM32 can process the data to achieve a high/low temperature alert function. There is also a buzzer, RGB LED, function button and reset button on board.

This Unit can either work with an M5Core through I2C protocol, or work alone. This is suitable for medical, environmental monitoring, and home automation applications.

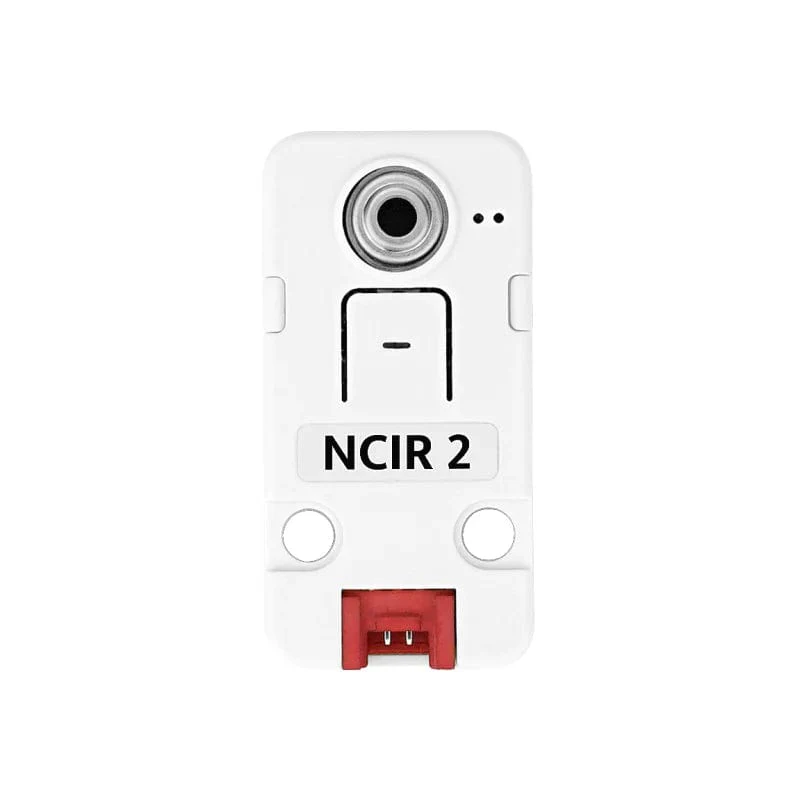

Features

• STM32F030F4P6
• MLX90614 IR Sensor
• HY2.0 - 4-pin Connector (I2C)
• Program platform: Arduino, UIFlow
• Two brick compatible holes

Package Contents

• 1x NCIR 2 Unit
• 1x HY2.0 - 4-pin Cable (20cm)

Specifications

Resources	Parameters
MCU	STM32F030F4P6
Sensor	MLX90614ESF-BAA
Object Measurement Temperature Range	-70°C ~ 380°C
Calibrated Sensor Temperature	-40°C ~ 125˚C
Unit Operation Temperature	0°C ~ 40°C
Accuracy	±0.5°C
Program Platform	Arduino, UIFlow
I2C Address	0x5A

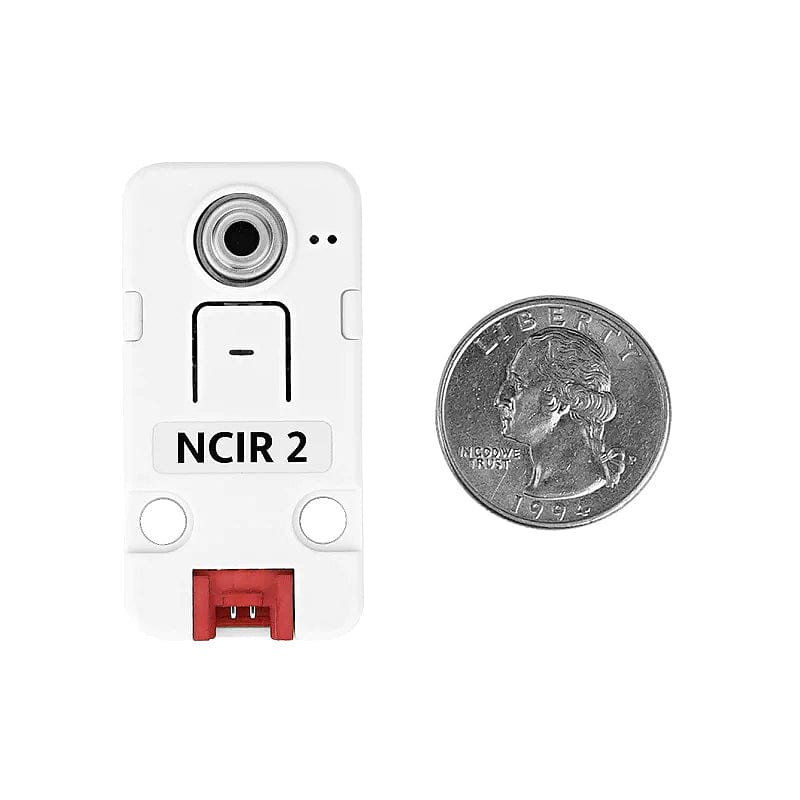

Product Size	48mm × 24mm ×8mm
Package Size	136mm × 92mm × 13mm
Product Weight	7.3g
Package Weight	12.8g
