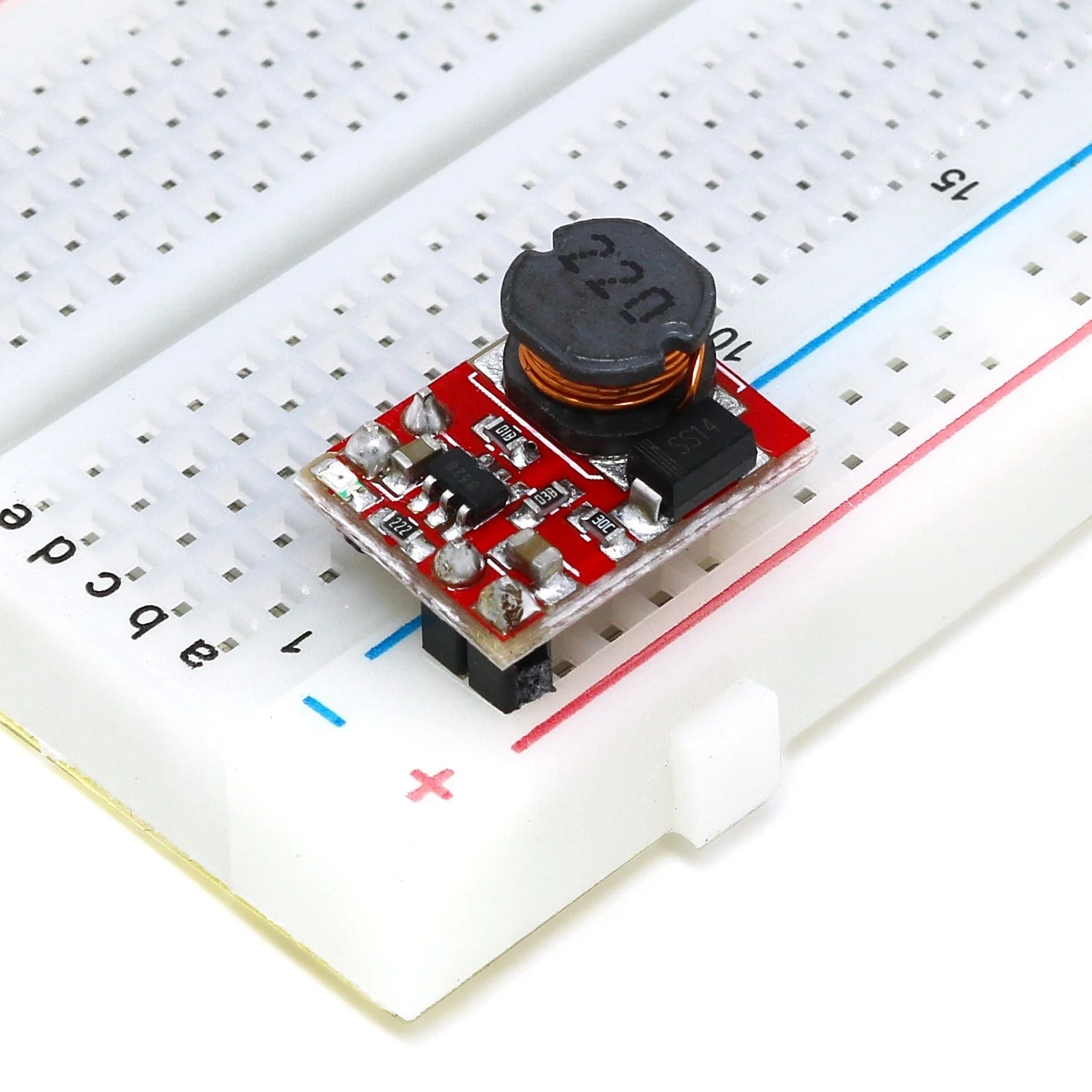

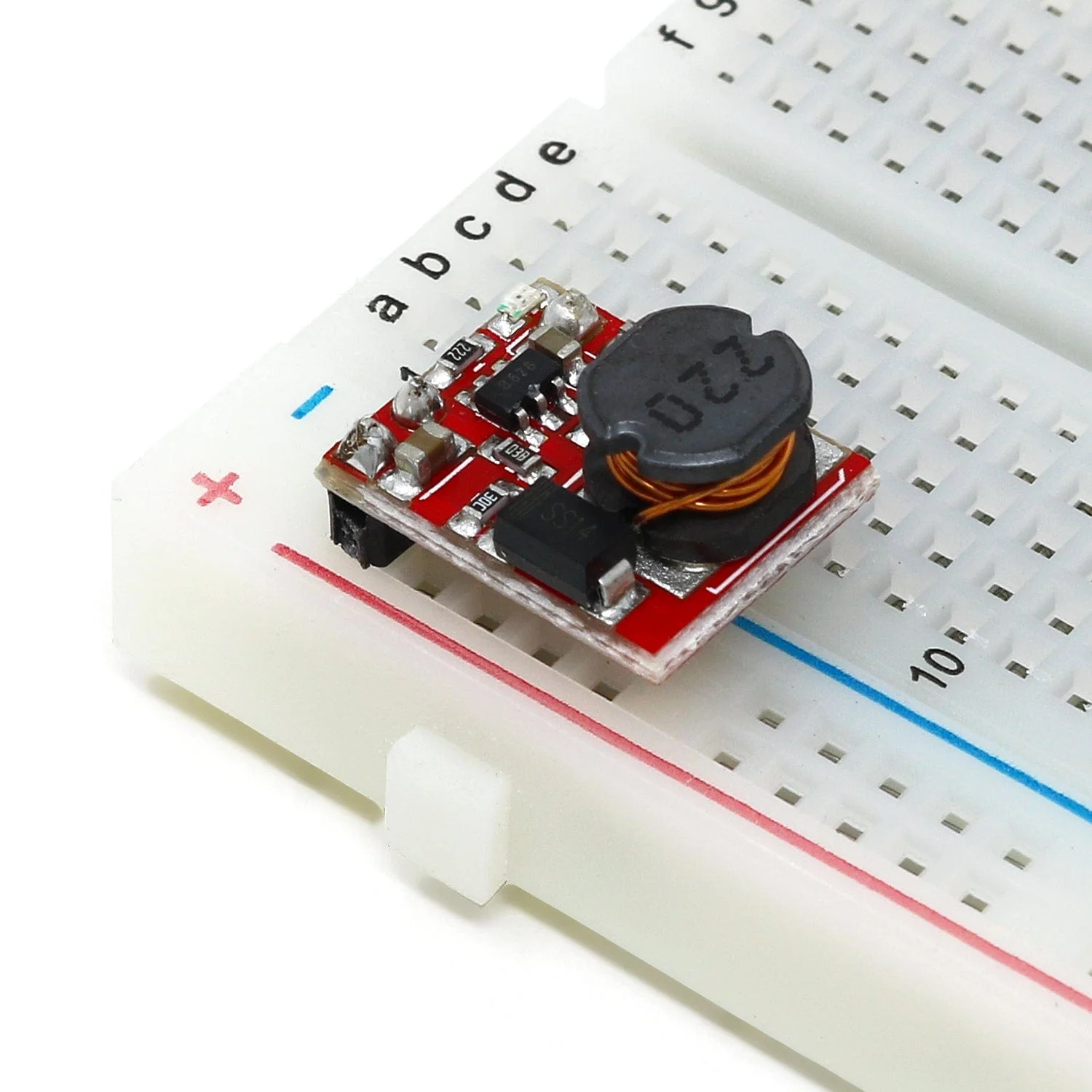

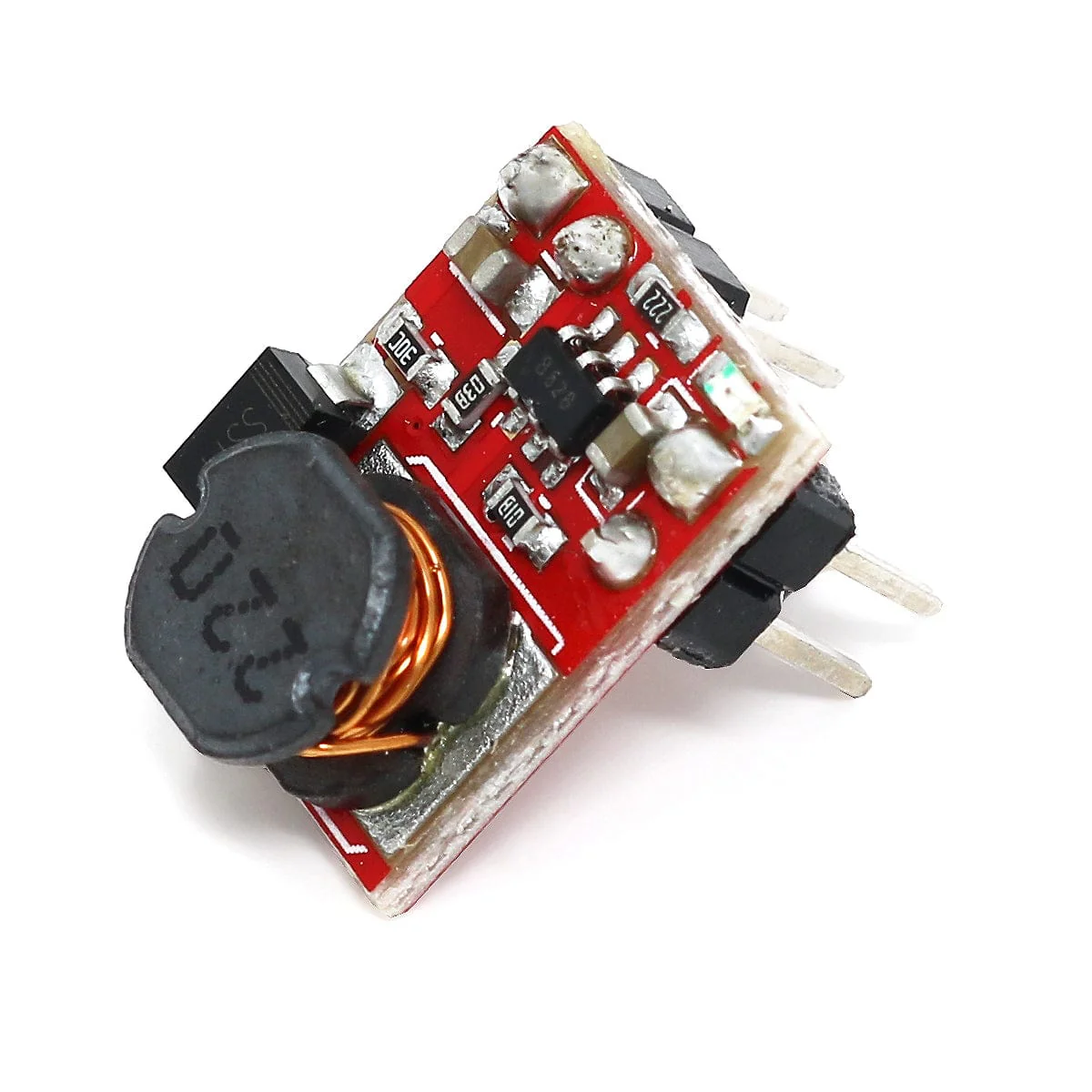

Olimex BB-PWR-3608 Breadboard Regulator (12V/24V)

Serious power for your breadboard! This breadboard rail-compatible regulator/boost module can input 5V (up to 4A) and output either 12V/1A or 24V/0.5A.

The Olimex BB-PWR-3608 is a high-efficiency, high-frequency synchronous step-up DC-DC regulator with up to 4A switching input current. It operates with a 5V input and has an efficiency of more than 90%.

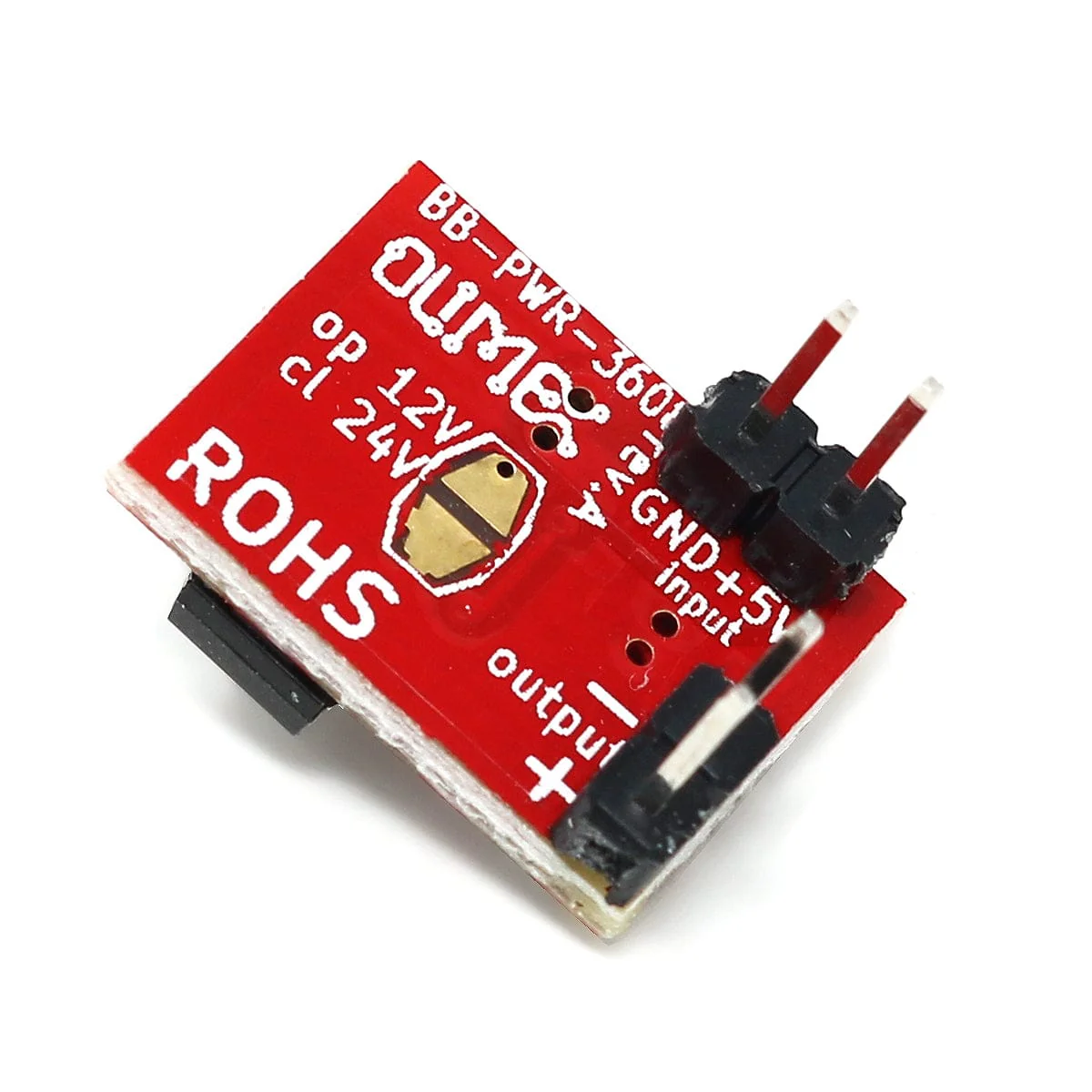

The output voltage is selectable via solder pads on the read - close (solder together) the pads for 24V, or leave them open (default) for 12V.

Notes

• Depending on the style and brand of breadboard, the regulator can sit a little wonky (it still works just fine)
• Breadboard not included

Features

• Breadboard rail compatible
• Input 5V up to 4A
• Output 12V / 1A or 24V / 0.5A
  • Selectable via solder pads
• Quiescent current 200uA (if STATUS LED is off)
• Power efficiency >90%
• Operating temperature -40+85C

Resources

Documents

• Datasheet
• EU Declaration of Conformity
• UKCA Declaration of Conformity

Hardware

• GitHub
• Schematic

Package Contents

• 1x BB-PWR-3608 Power Board

Breadboard not included
