The Story

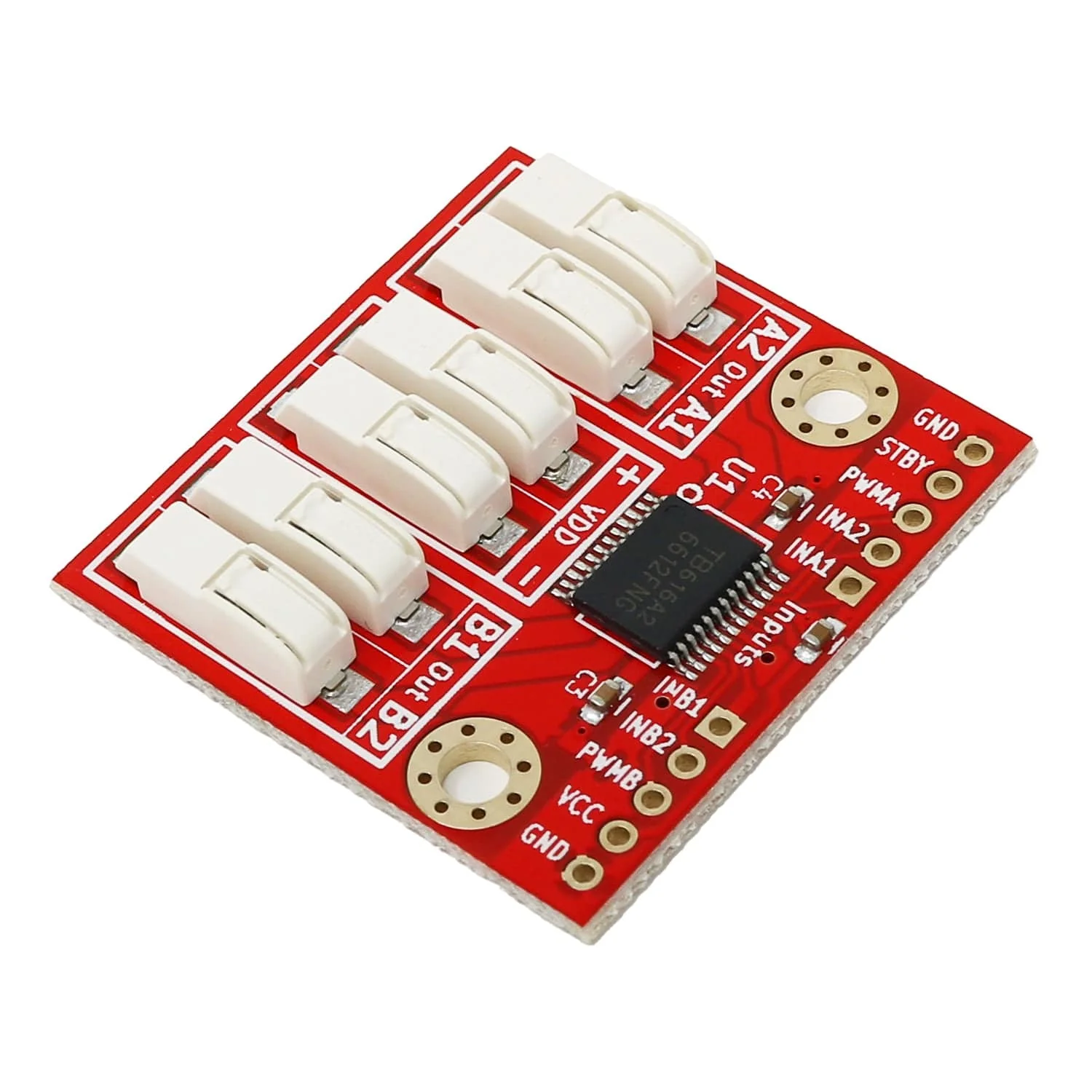

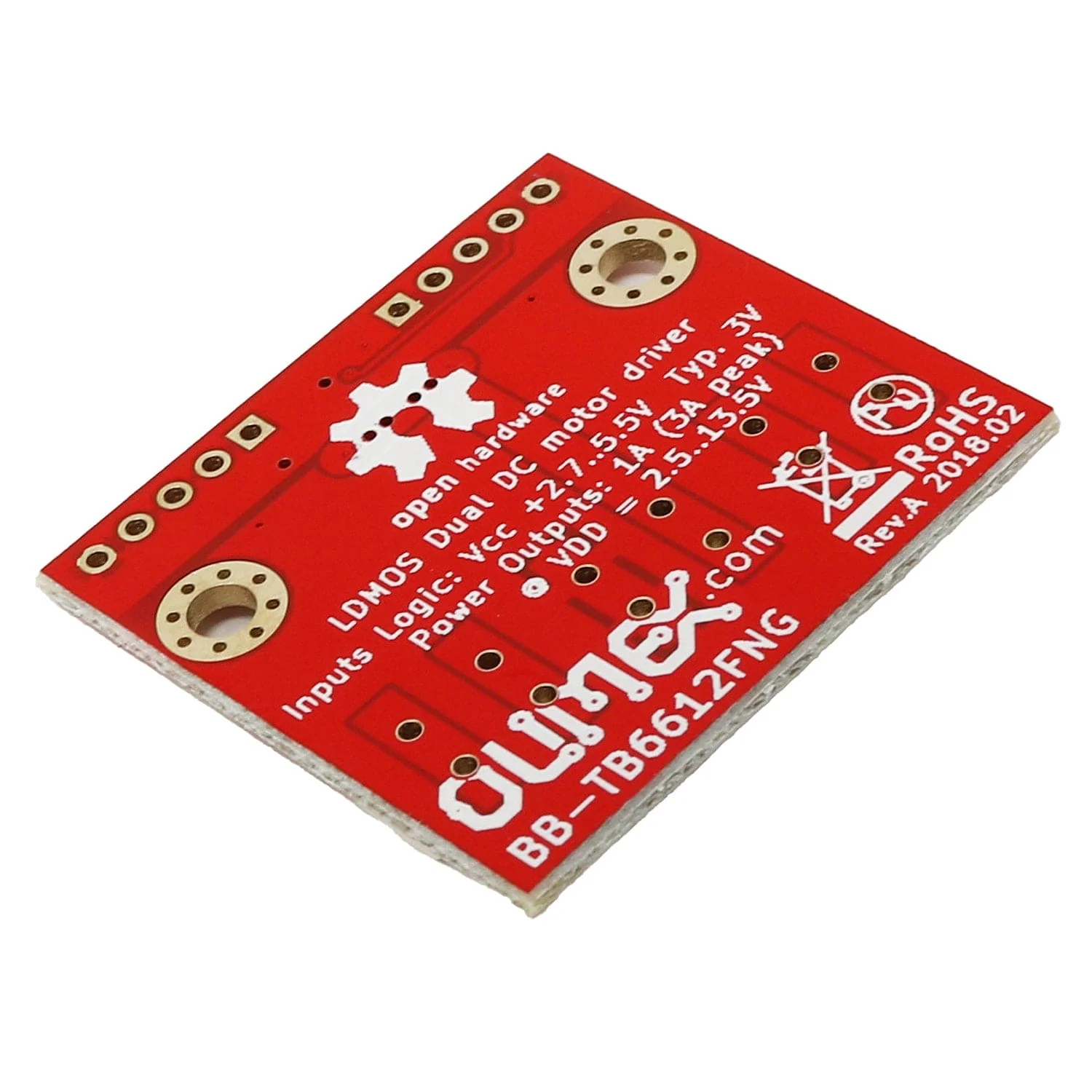

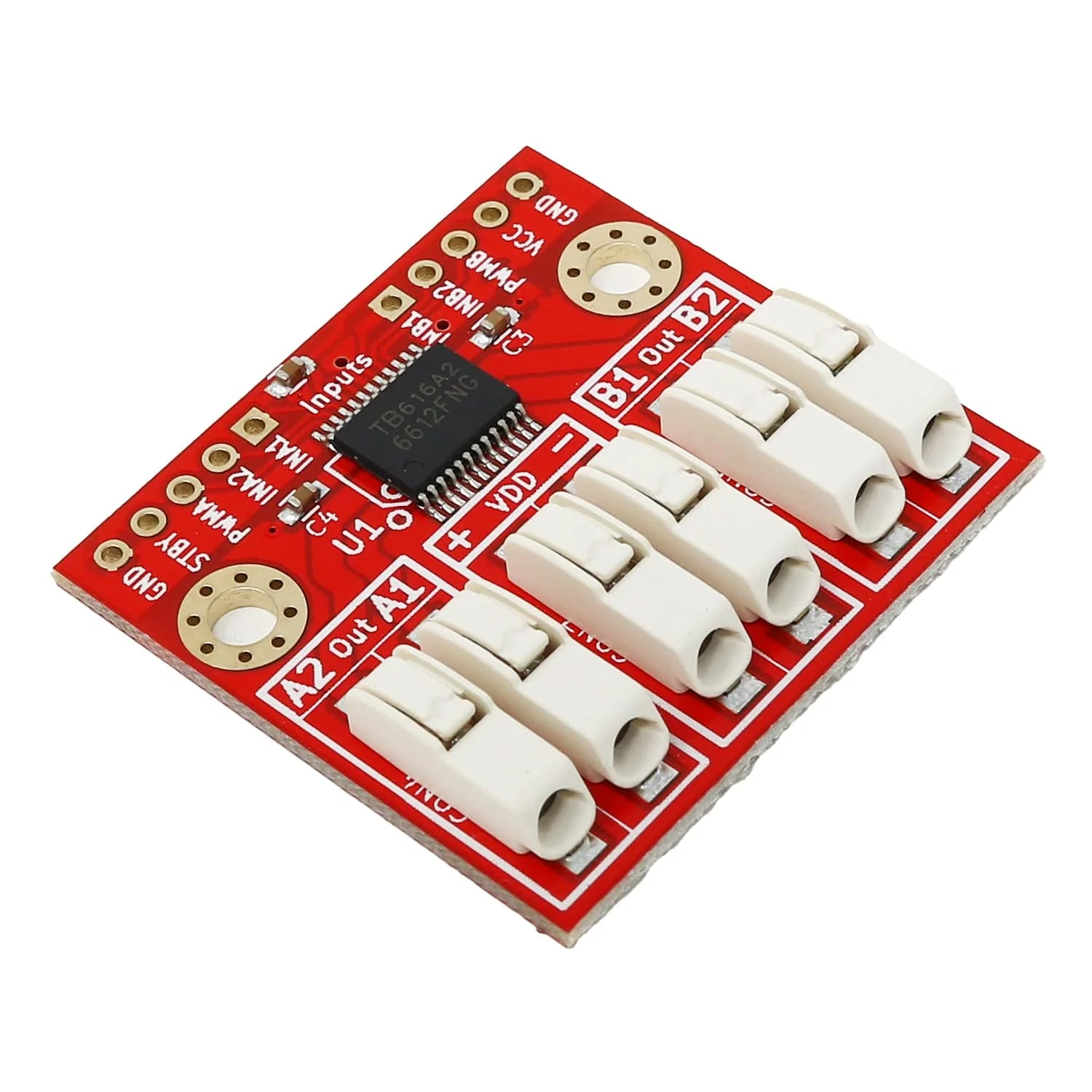

The Olimex BB-TB6612 is a dual DC motor driver with digital logic working from 2.7-5.5V and a motor voltage from 2.5-13.5V.
It's perfect for driving small robot cars with 6V/12V motors and a 12V battery source. Combined it with one of our robot chassis kits and your own microcontroller of choice.Â
Features
- Digital logic power supply: 2.7-5.5V
- Motor Power supply: 2.5-13.5V
- Output current 1.2 (3A max)
- Output ON resistance 0.5ohm
- Power save mode
- CW/CCW motor rotation
- Short brake and stop states
- Thermal shut-down
- Operating temperature -20 to 85C
- Dimensions: 34 x 34 mm
Resources
Documents
- User manual
- EU Declaration of Conformity
- UKCA Declaration of Conformity
Hardware
- Schematic
- CAD files in KiCAD format
Package Contents

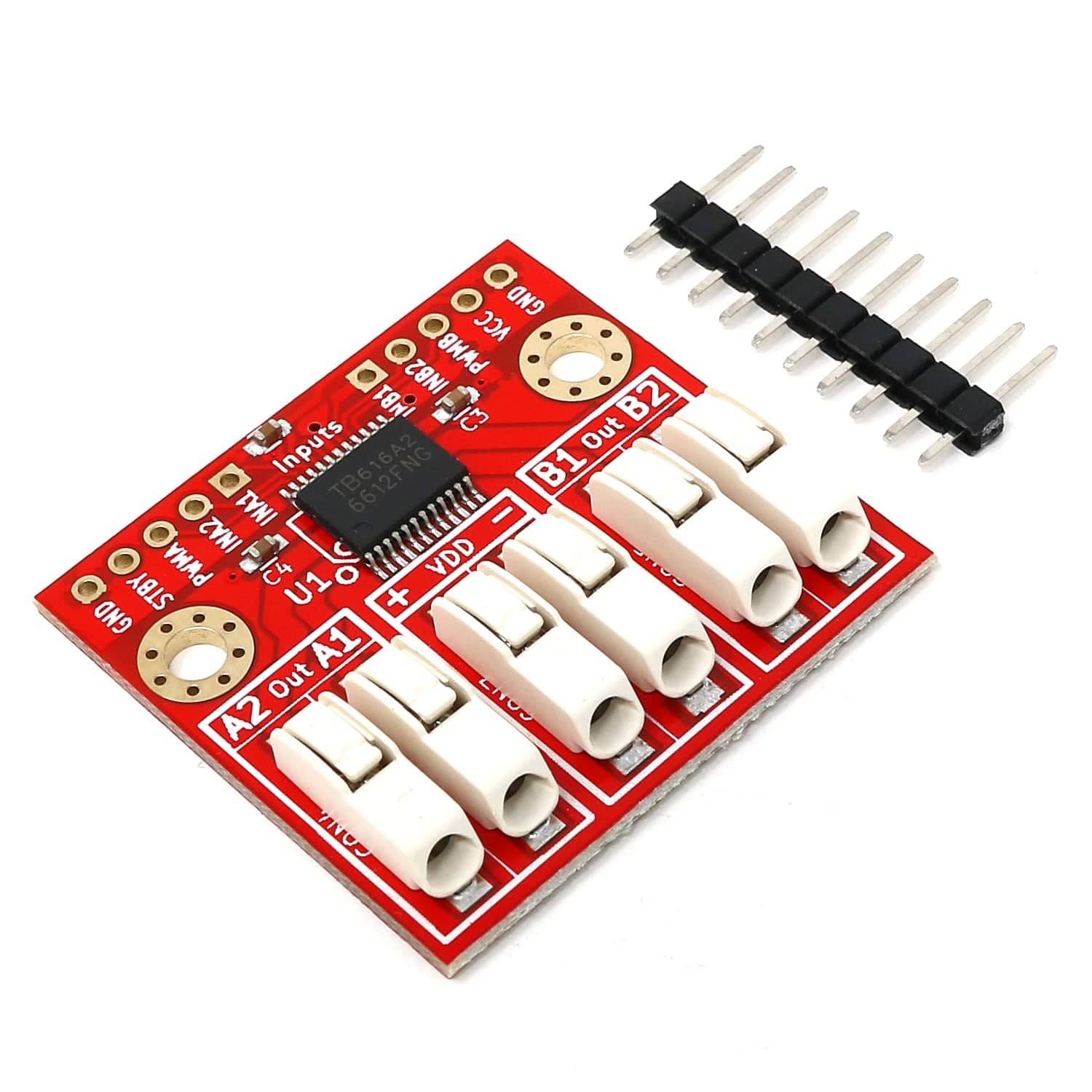

- BB-TB6612 Dual DC Motor Driver (12V)
- 1x Header strip
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Olimex BB-TB6612 is a dual DC motor driver with digital logic working from 2.7-5.5V and a motor voltage from 2.5-13.5V.
It's perfect for driving small robot cars with 6V/12V motors and a 12V battery source. Combined it with one of our robot chassis kits and your own microcontroller of choice.Â
Features
- Digital logic power supply: 2.7-5.5V
- Motor Power supply: 2.5-13.5V
- Output current 1.2 (3A max)
- Output ON resistance 0.5ohm
- Power save mode
- CW/CCW motor rotation
- Short brake and stop states
- Thermal shut-down
- Operating temperature -20 to 85C
- Dimensions: 34 x 34 mm
Resources
Documents
- User manual
- EU Declaration of Conformity
- UKCA Declaration of Conformity
Hardware
- Schematic
- CAD files in KiCAD format
Package Contents
- BB-TB6612 Dual DC Motor Driver (12V)
- 1x Header strip
