The Story

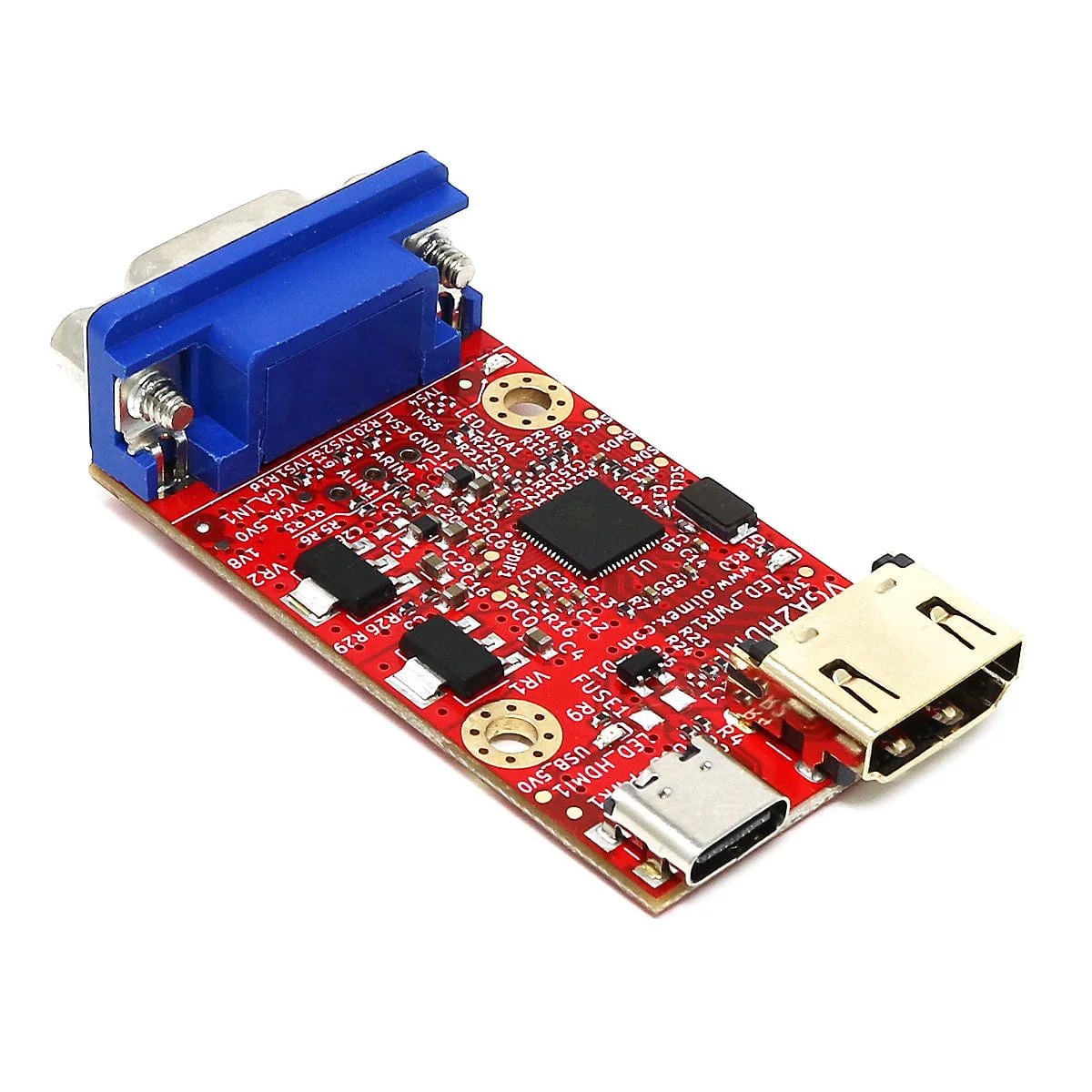

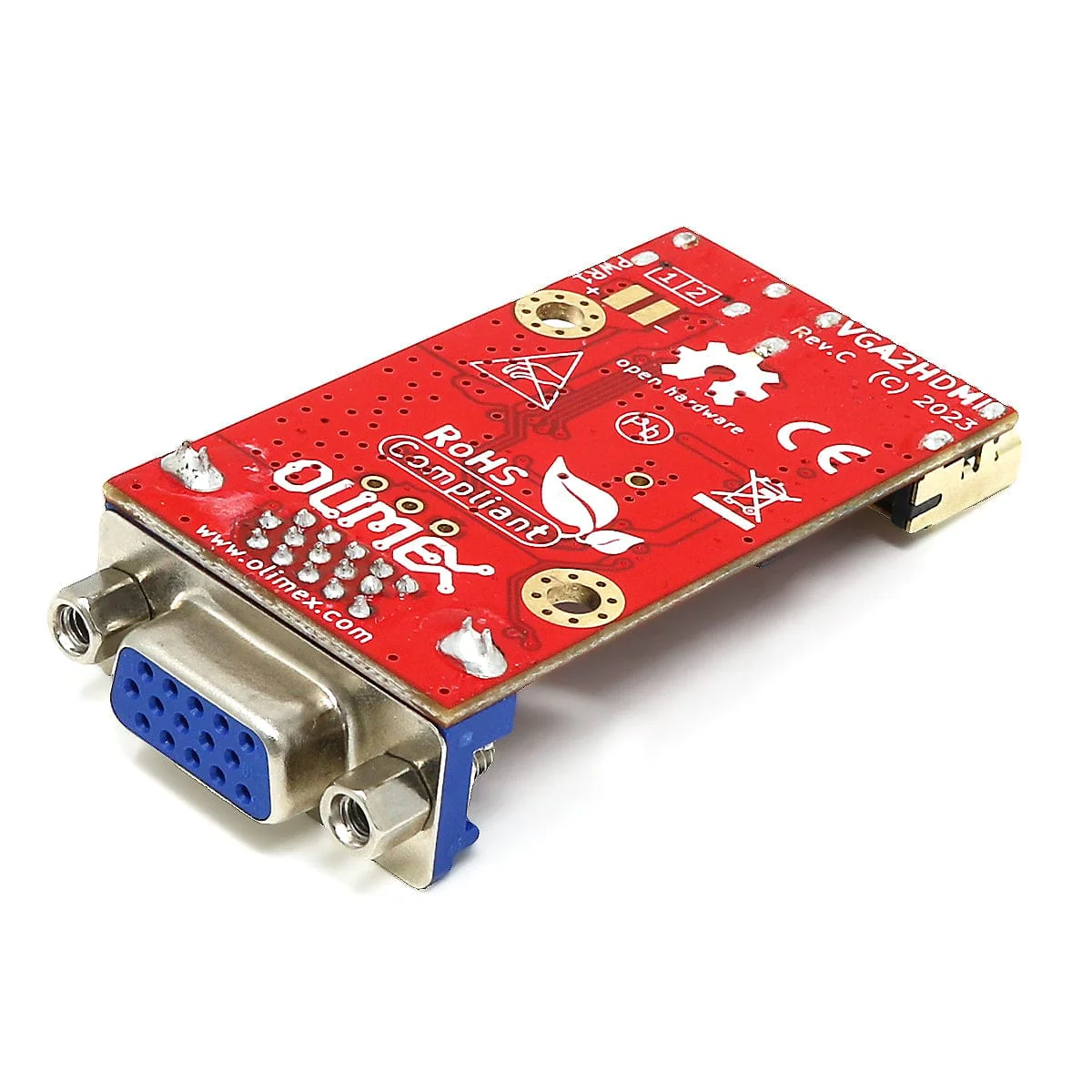

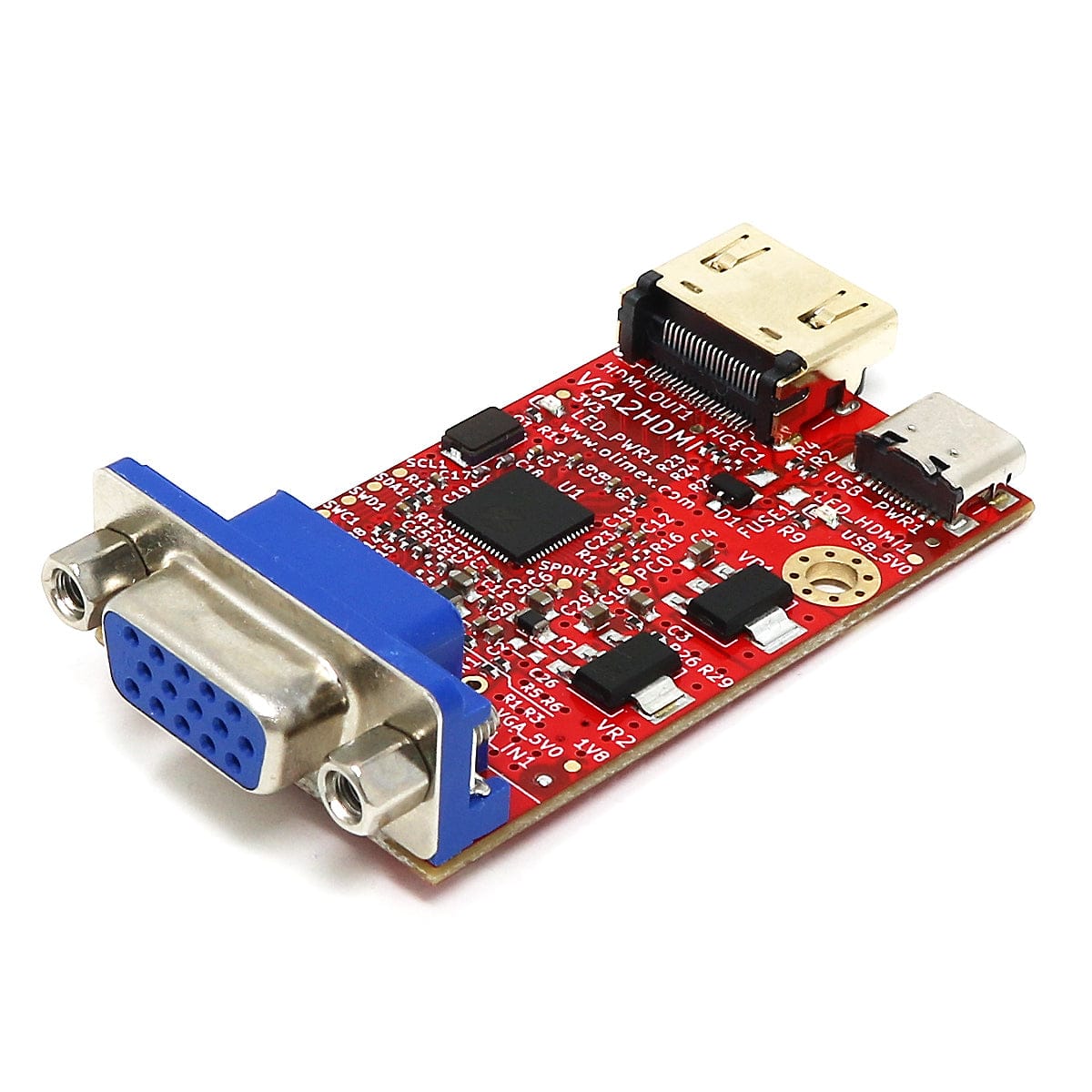

The Olimex VGA2HDMI is a compact board which converts signals from VGA to HDMI - this allow old retro computers, game consoles and devices with VGA output to be displayed on modern displays and TVs with HDMI input.
Great for use with (and fully tested for) the Olimex AgonLight2, AgonOrigins and Cerberus2100.
Power is provided via the onboard USB-C power supply connector, and VGA/HDMI signal LEDs are onboard for troubleshooting.

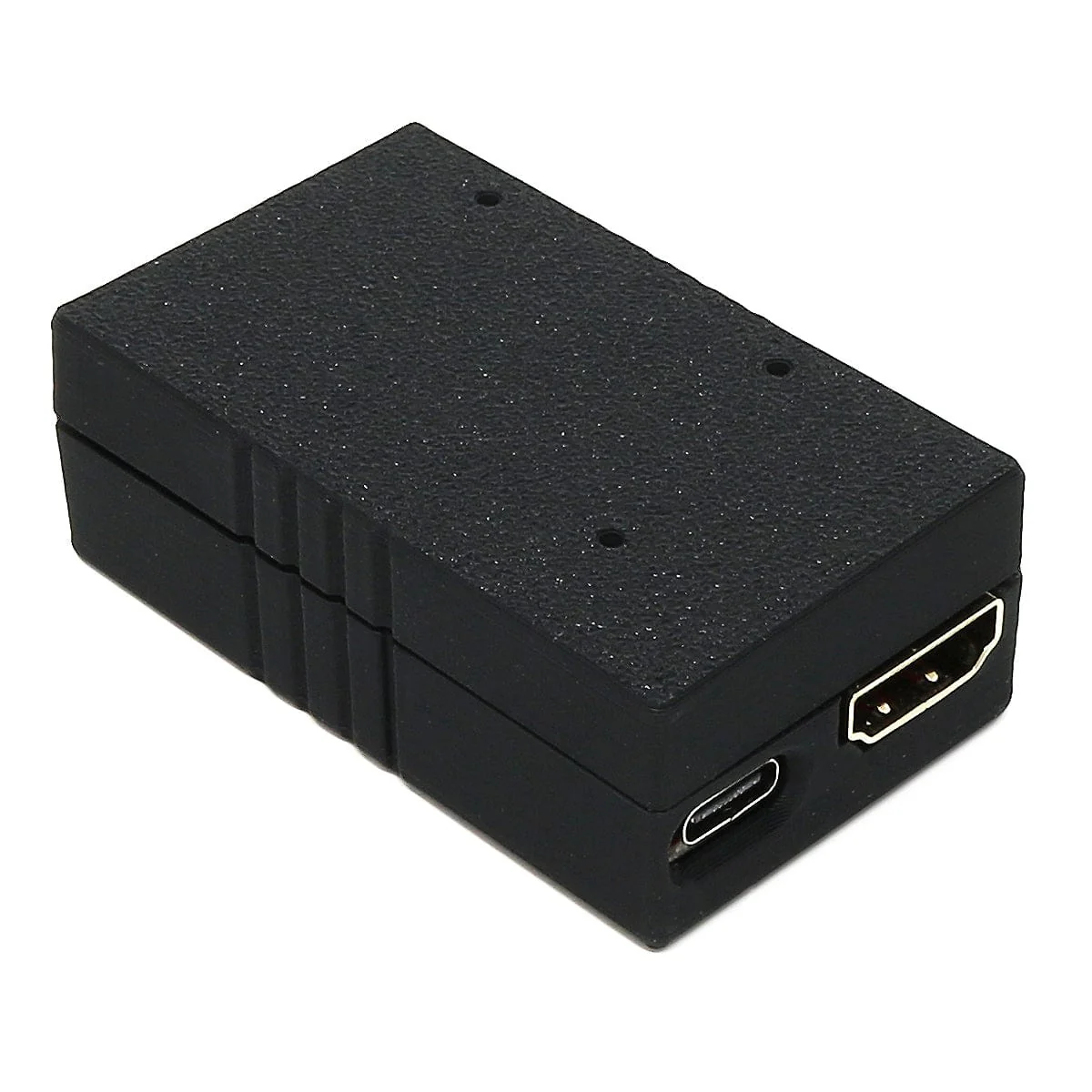

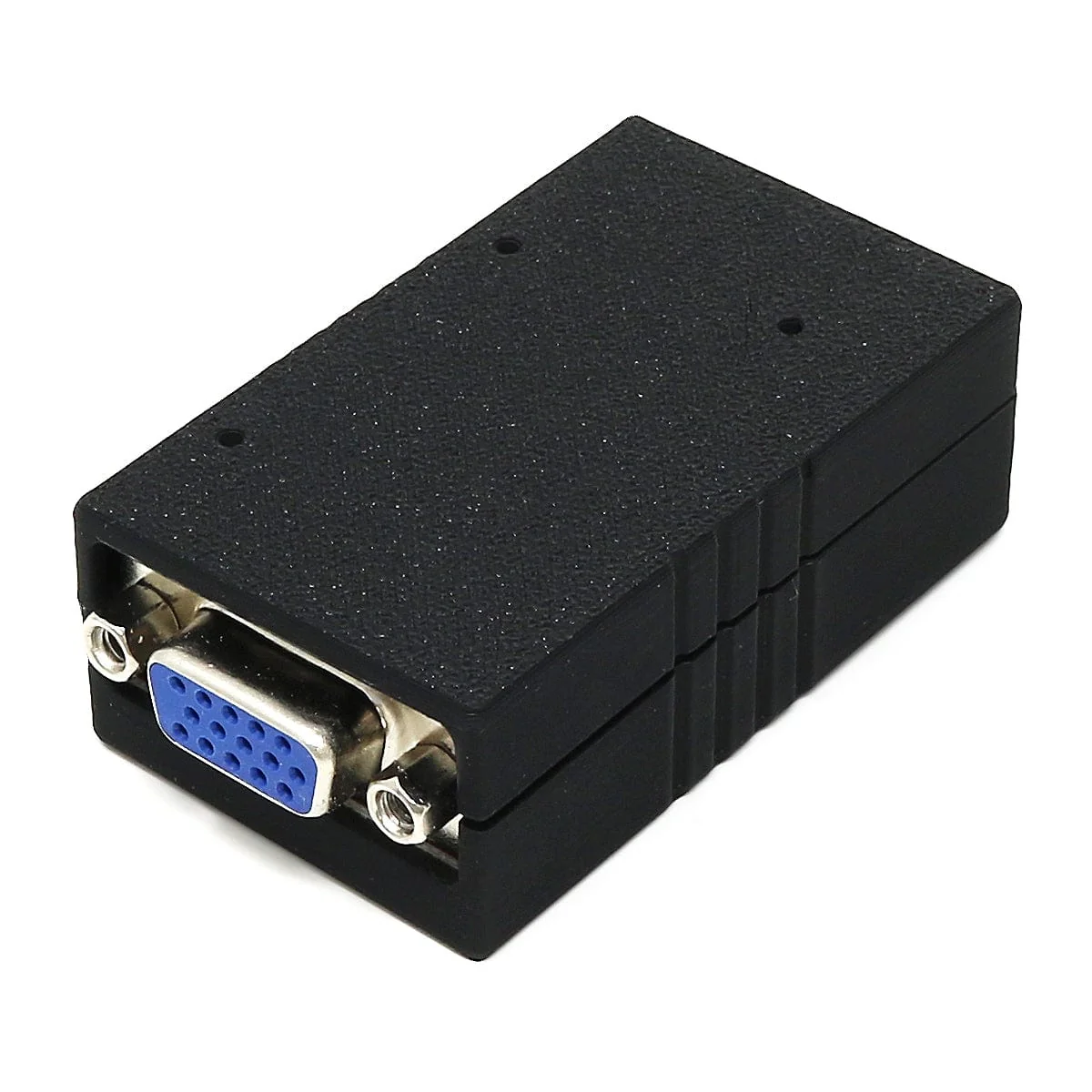

We stock two versions - the board on its own, or the board with a 3D printed enclosure from Olimex. Please select an option before adding to cart.
Features
- CV8986 VGA to HDMI converter
- VGA connector
- HDMI connector
- USB-C power connector
- Optional 3D printed enclosure
- Dimensions: 55 x 31 mm
Resources
Documents
- VGA2HDMI user manual
- VGA2HDMI EU declaration of conformity
- VGA2HDMI UKCA declaration of conformity
Hardware
- VGA2HDMI schematic in PDF format
- VGA2HDMI KiCad source files
Package Contents
- 1x Olimex VGA2HDMI board
- If you select the version with an enclosure, you will receive a 3D printed enclosure too
