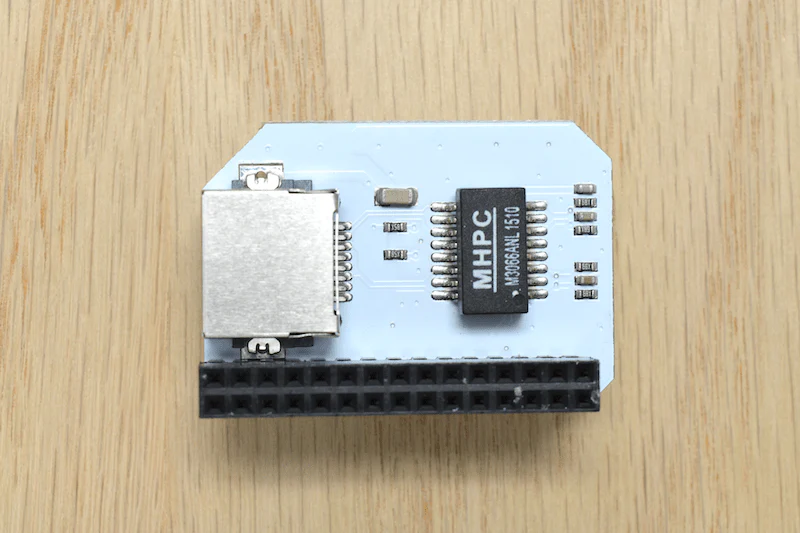

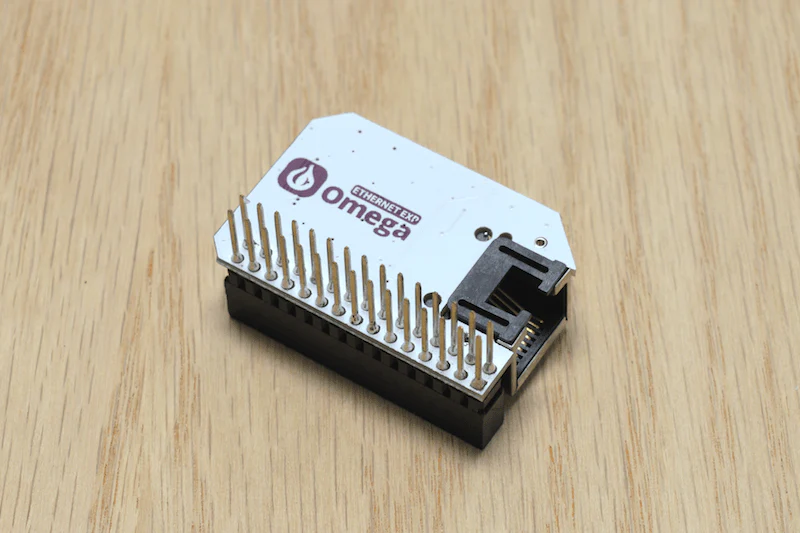

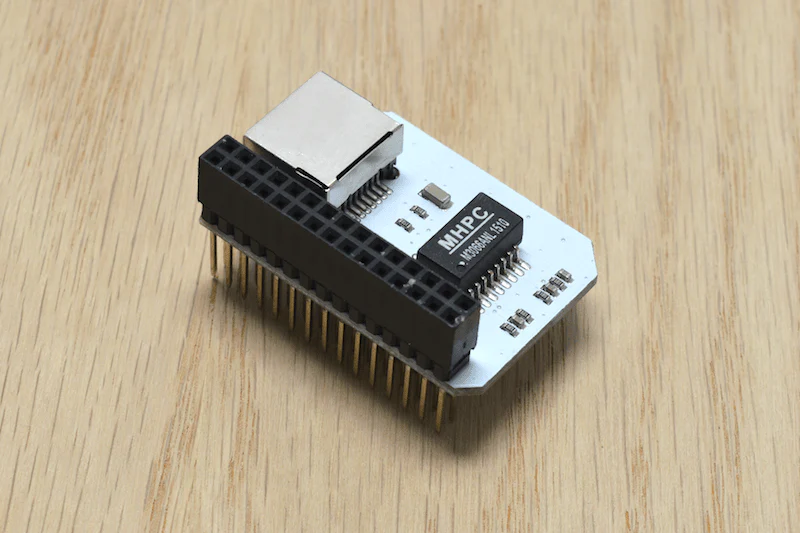

Onion Ethernet Expansion [Discontinued]

The Ethernet Expansion adds an Ethernet port to your Omega with a maximum connection speed of 100Mbps. While the Omega is all about wireless connectivity, a reliable wired network connection can be a great addition to a project, and the Ethernet Expansion is a great tool for quickly reflashing your Omega’s firmware.

The Ethernet Expansion adds an Ethernet port to your Omega. While the Omega is all about wireless connectivity, a reliable wired network connection can be a great addition to a project. Since the Omega is so flexible when it comes to networking, you can use the Ethernet Expansion to:

• Provide network connectivity to the Omega
• Connect a modem to your Omega and have it act like a router
• Provide network connectivity to a wired device by bridging a wireless network
• Quickly flash new firmware to the Omega

It makes use of the Omega’s exposed Ethernet pins, so only one Ethernet Expansion can be used with the Omega at any given time.

Note: This Expansion requires a Dock with an Expansion Header to use, such as the Expansion Dock, Power Dock, or Arduino Dock R2.

Technical Specs:

• Port type: RJ45
• Connection Speed: 100Mbps

Links:

• Ethernet Expansion Hardware Overview
• How to use the Ethernet Expansion
• Mechanical Drawing
