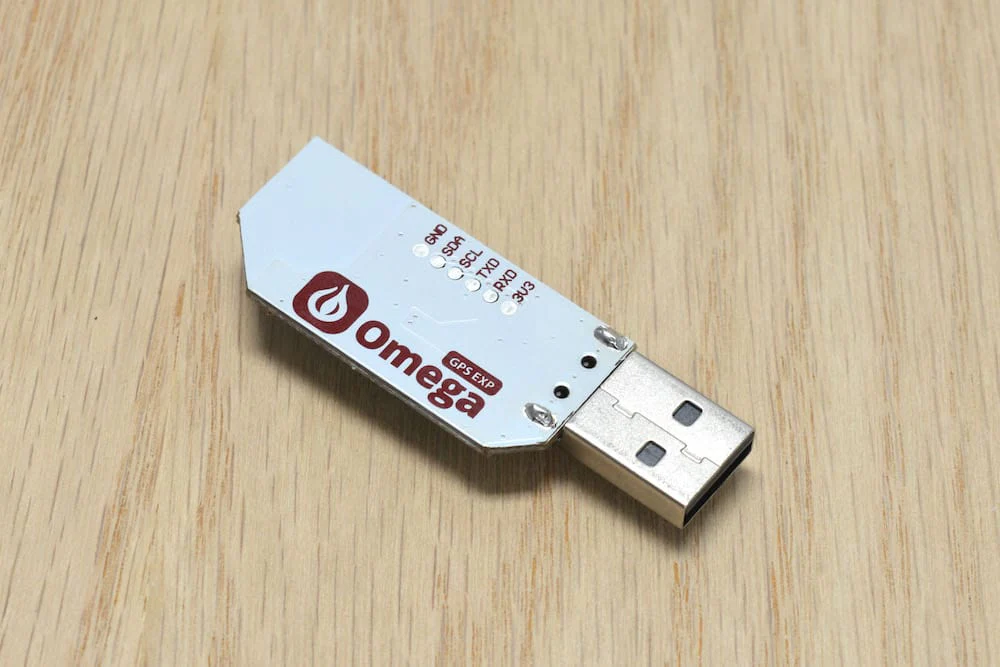

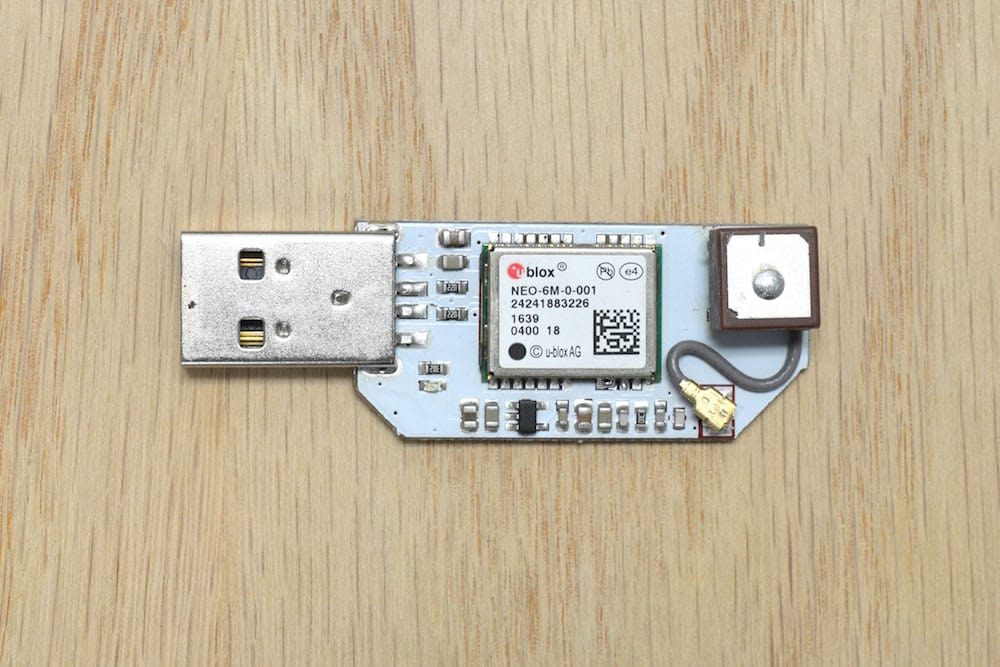

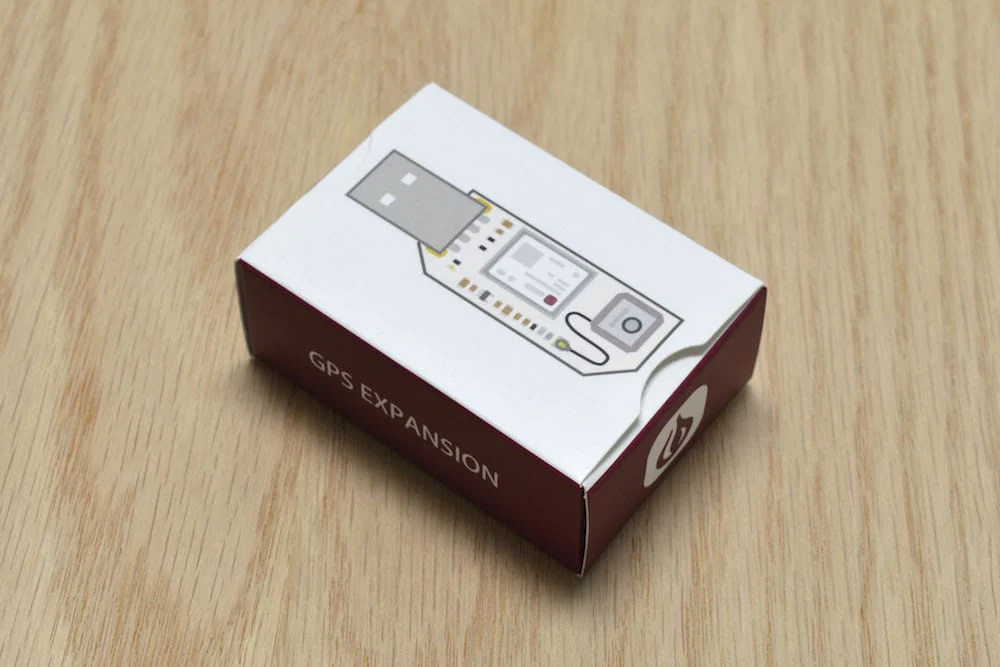

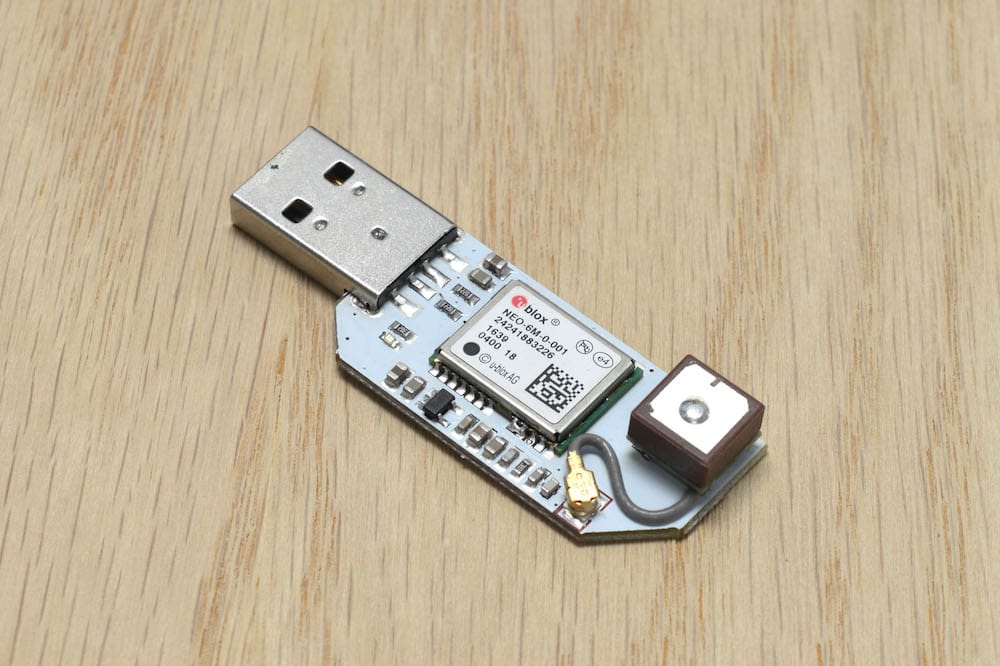

Onion GPS Expansion [Discontinued]

The GPS Expansion for the Onion Omega is a USB-based expansion that allows your Omega to pinpoint its location using both GPS as well as China’s Beidou satellite positioning systems. It comes with an on-board GPS antenna as well as a built-in u.FL connector to attach your own antenna. Provides up to 1.8m accuracy, 66 search channels, 22 tracking channels, and -165 dBM sensitivity. Up to 10Hz update rate.

Technical Details

• Accuracy: 1.8m
• Search channels: 66
• Tracking channels: 22
• Sensitivity: -165 dBM
• Update rate: 10 Hz

Links

• GPS Expansion Hardware Overview
• Using the GPS Expansion
• GPS unit Datasheet

Downloads

Onion Omega2 Documentation
