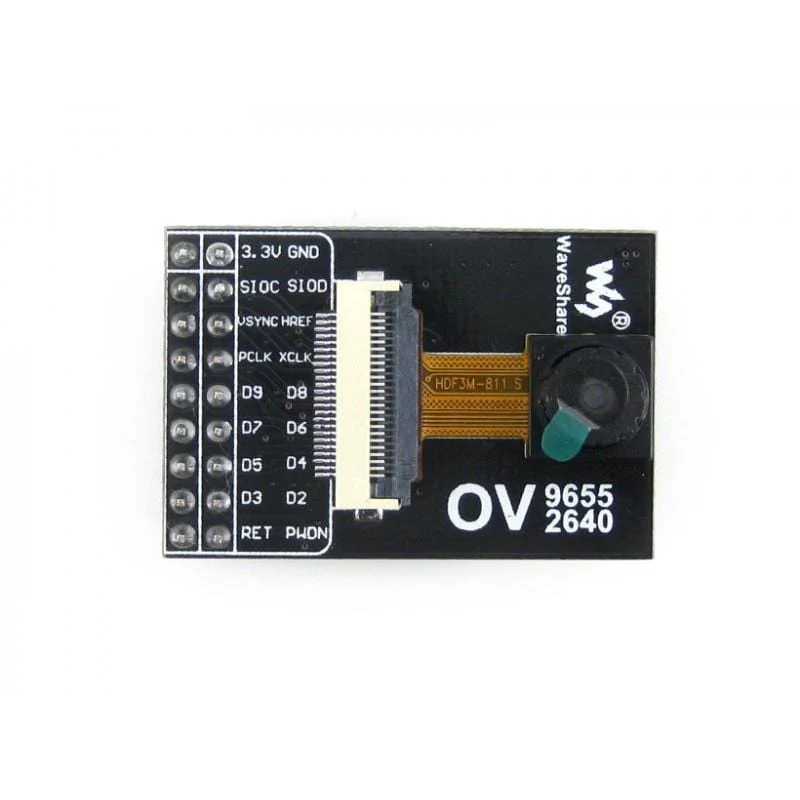

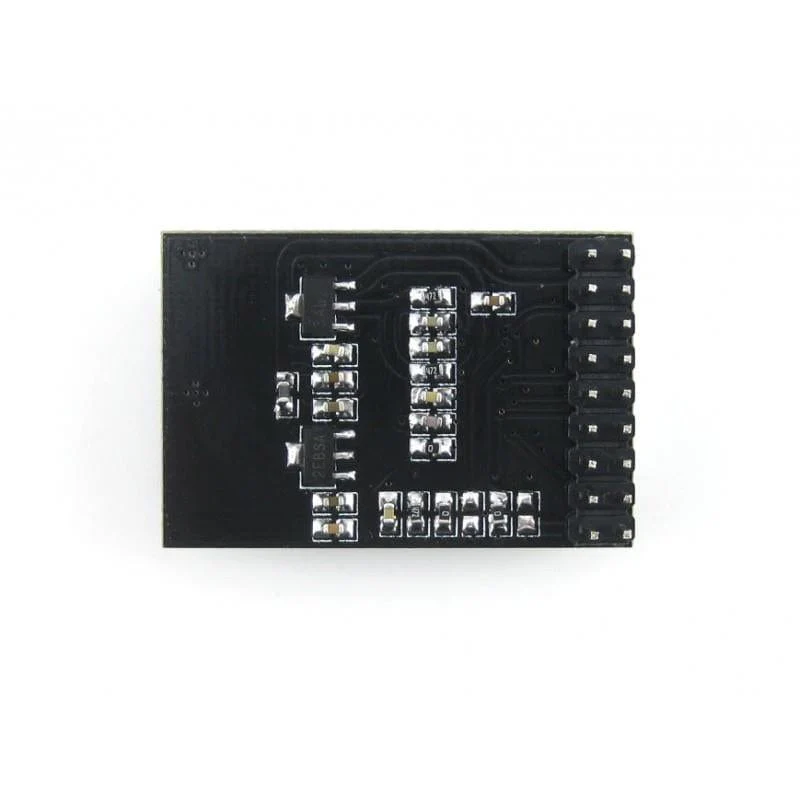

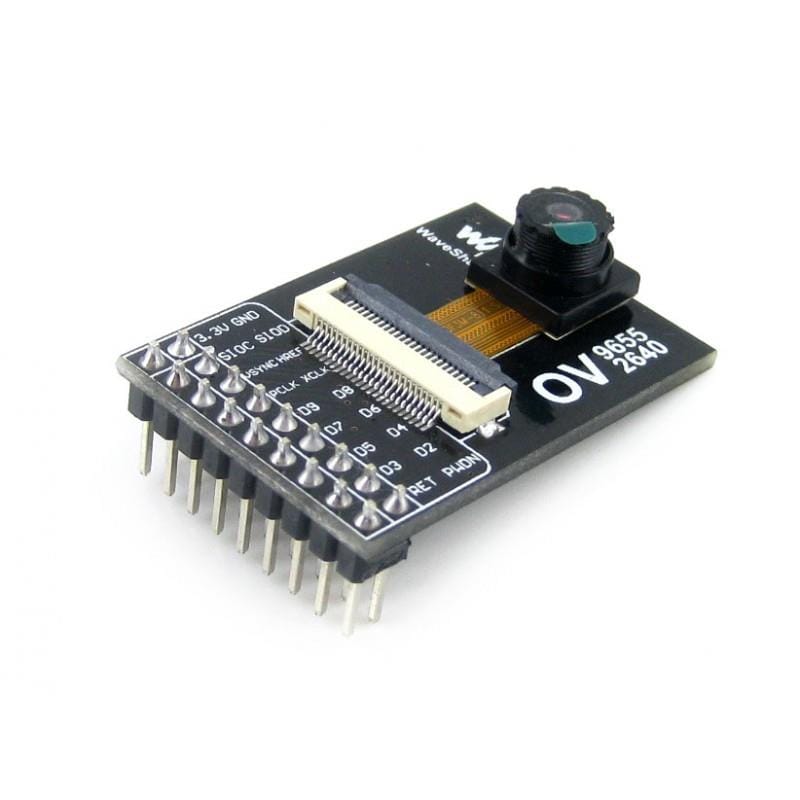

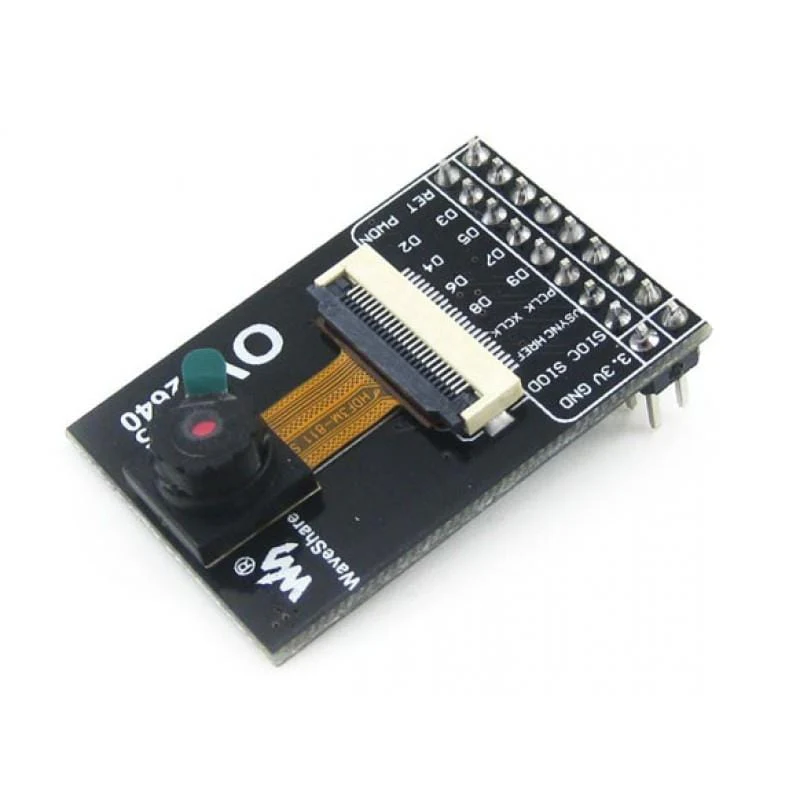

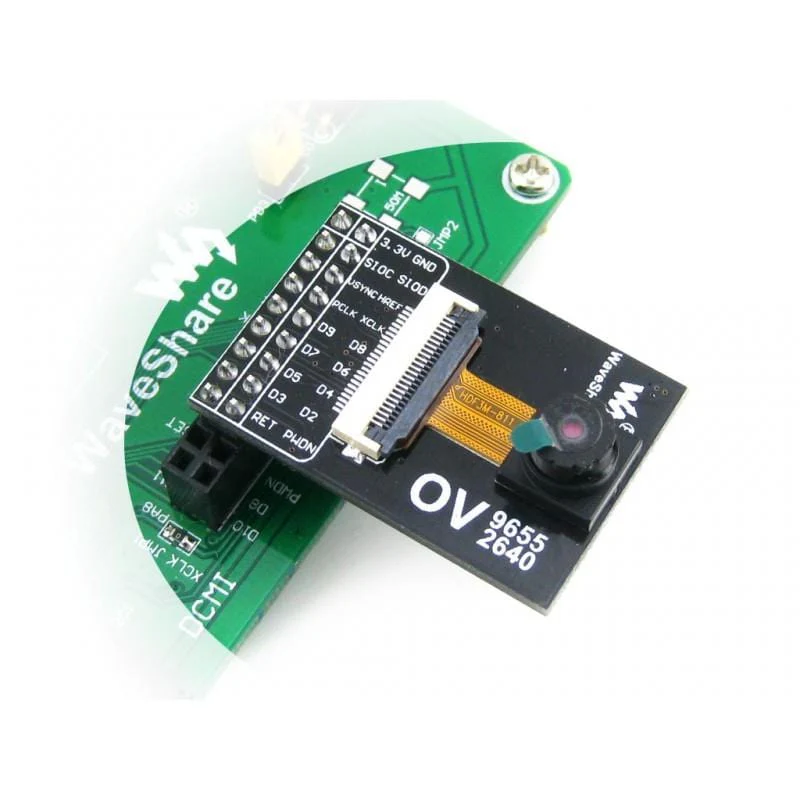

OV2640 Camera Board

This little camera module is ideal for anyone looking to add a very capable imaging sensor to their next Raspberry Pi , Raspberry Pi Zero, or Arduino project. Featuring the OV2640 Evergreen CMOS Image Sensor from OmniVision, and a capture resolution of 1632 x 1232, this module is a great low-power solution for your next IoT project.  Built-in AGC, AWB, AEC ISP functions, and supports output to JPG, RAW, RGB, and YUV formats.

Online resources including datasheets, example code, and connection information can be found on the Waveshare Wiki page for this module.

Specifications

• 2 Megapixel
• Field View: 65°C
• Array size: UXGA 1622X1200
• Power supply: 3.3V
• IO voltage level: 1.7V~3.3V DC
• Output formats:
  • YUV(422/420)/YCnCr422
  • RGB565/555
  • 8-bit compressed data
• Maximum image transfer rate:
  • UXGA/SXGA 15fps
  • UXGA/SXGA 30fps
  • SVGA 30fps
  • CIF 60fps

Resources

• Waveshare Wiki
• Schematic

Package Contents

• 1x - OV2640 Camera Board
