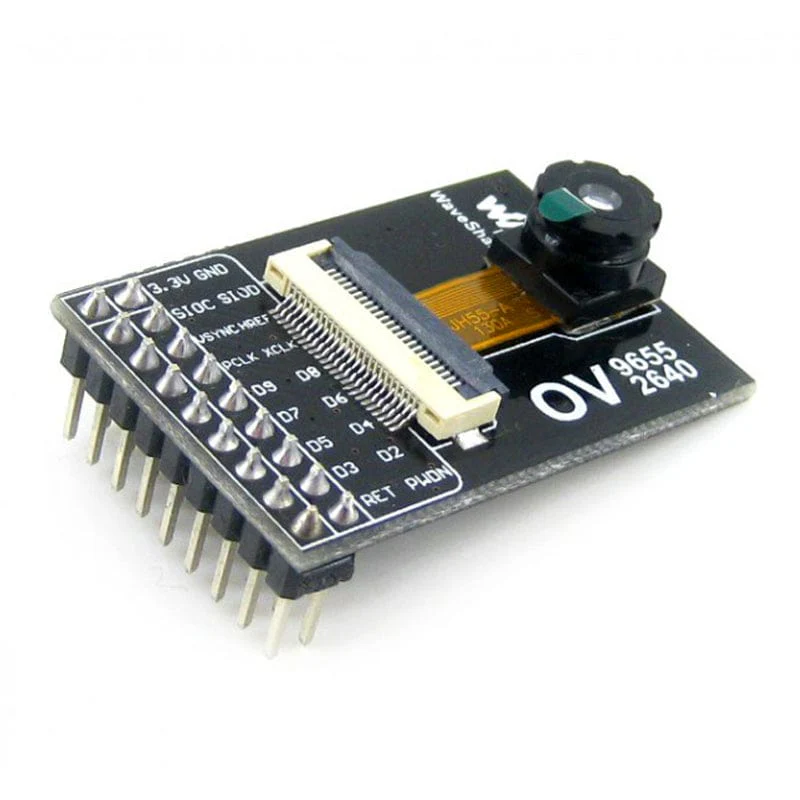

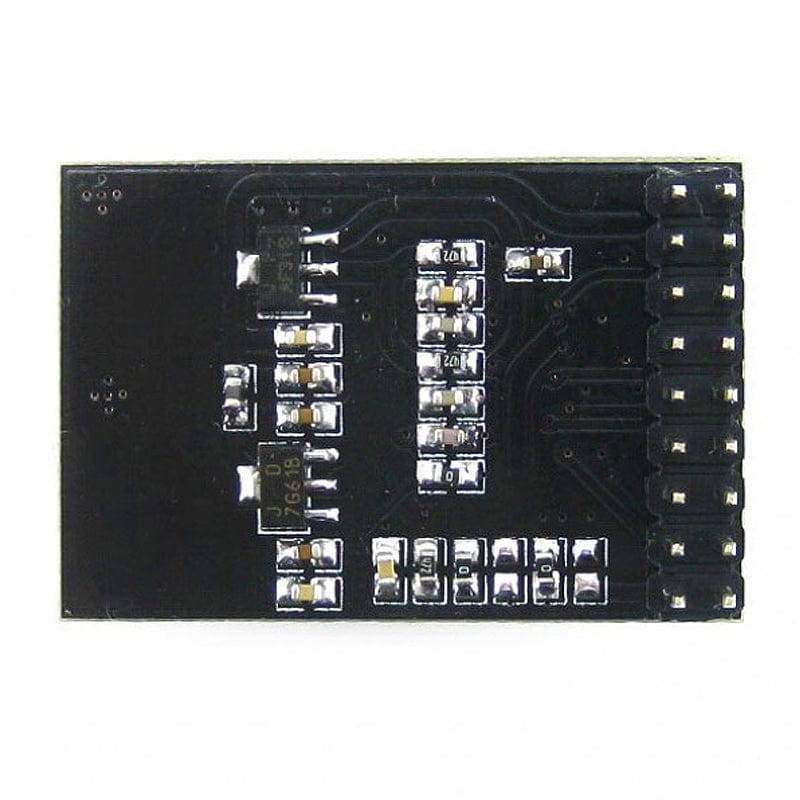

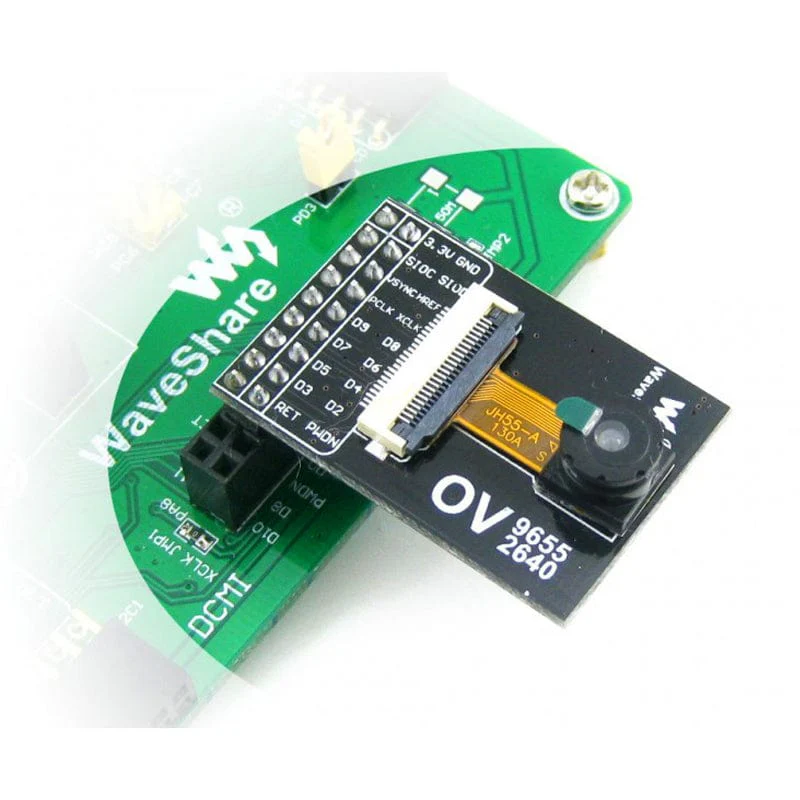

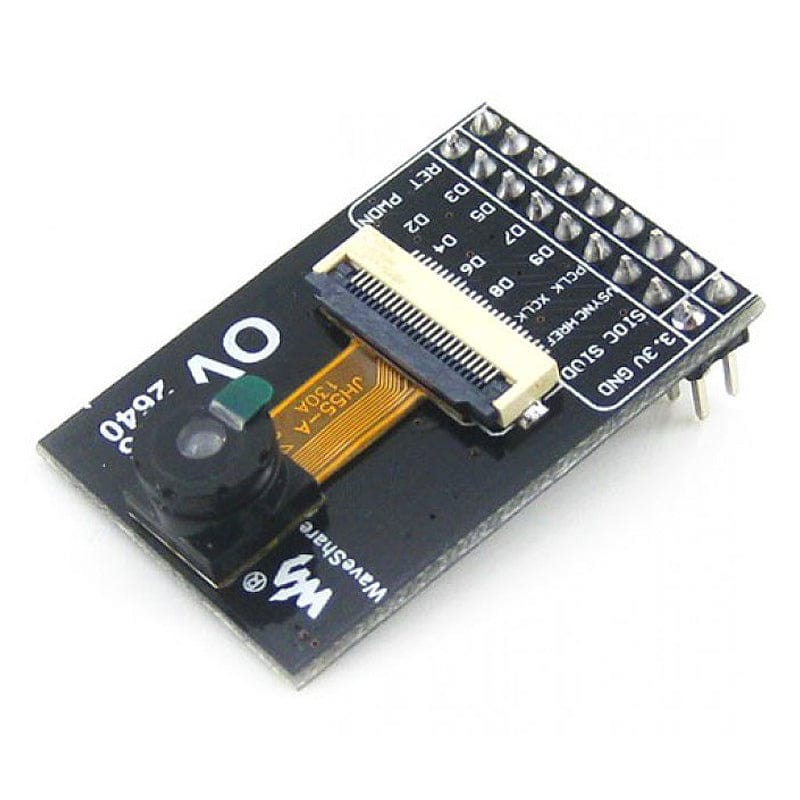

OV9655 Camera Board

This little camera module is ideal for anyone looking to add a very capable imaging sensor to their next Raspberry Pi , Raspberry Pi Zero, or Arduino project. Featuring the OV9655 CMOS Image Sensor from OmniVision, and a capture resolution of 1280 x 1024 pixels, this module is a great low-power solution for your next IoT project. Built-in AGC, AWB, AEC ISP functions, and supports output to JPG, RAW, RGB, and YUV formats.

Online resources including datasheets, example code, and connection information can be found on the Waveshare Wiki page for this module.

Specifications

• Supply voltage: 3.3 V
• Field View: 60°
• Resolution: 1280 x 1024 px
• Megapixels: 1.3
• FPS: up to 30 frames per second for VGA format
• Lens size: 0.25"
• Sensitivity: 1.1 V/(lux*sec)
• View Angle: 25° (non-linear)
• Output formats:
  • YUV / YCbCr 4:2:2
  • RGB565/555
  • GRB 4:2:2
  • RAW RGB Data
• Module dimensions: 35 x 24 mm

Resources

• Waveshare Wiki

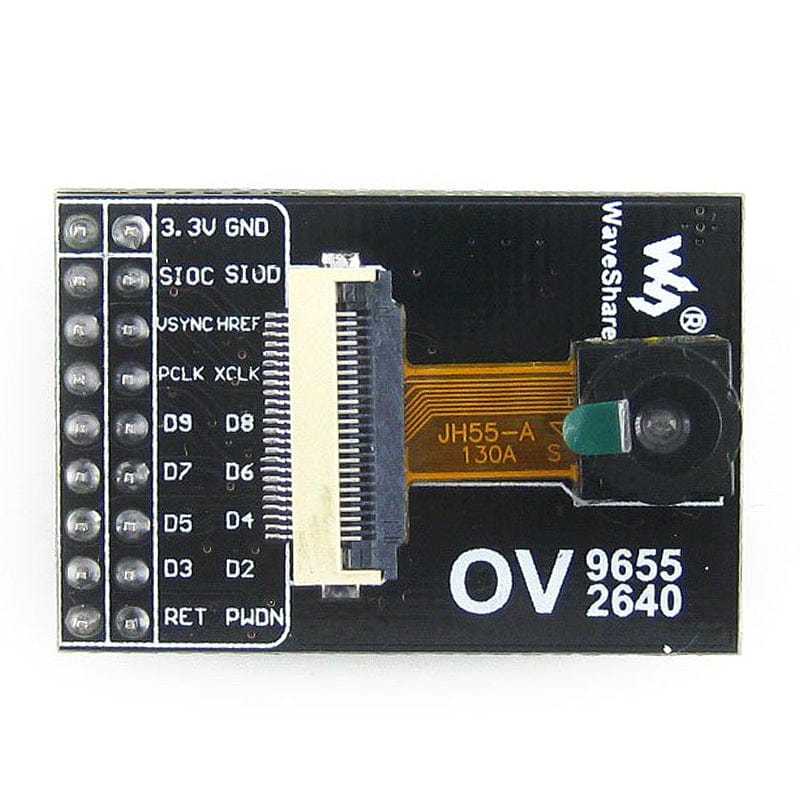

Pinout

• 3.3 V - 3.3V Supply
• GND - Ground
• SIOC - Clock input of the serial interface
• SIOD - Serial interface of I/O data
• VSYNC - Vertical synchronization
• HREF - HREF output
• PCLK - Clock output of the matrix
• XCLK - System Clock Input
• D7 - Video Data Output - bit 7
• D6 - Video Data Output - bit 6
• D5 - Video Data Output - bit 5
• D4 - Video Data Output - bit 4
• D3 - Video Data Output - bit 3
• D2 - Video Data Output - bit 2
• D1 - Video Data Output - bit 1
• D0 - Video Data Output - bit 0
• RESET - System reset is activated with the low status
• PWDN - System power off when activated by a high signal

Package Contents

• 1x - OV9655 Camera Board
