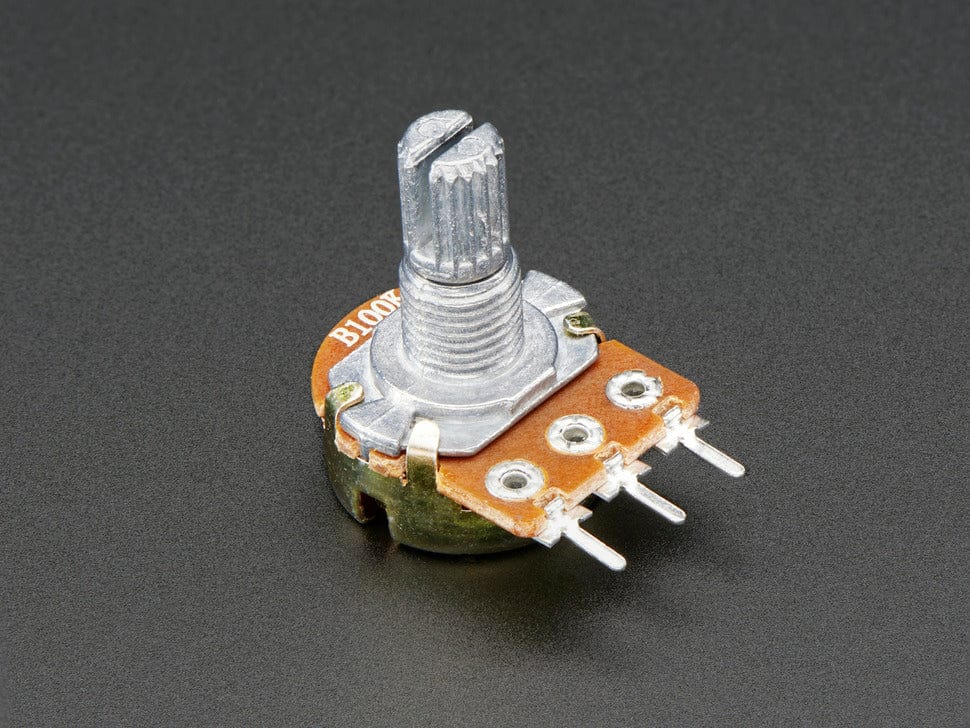

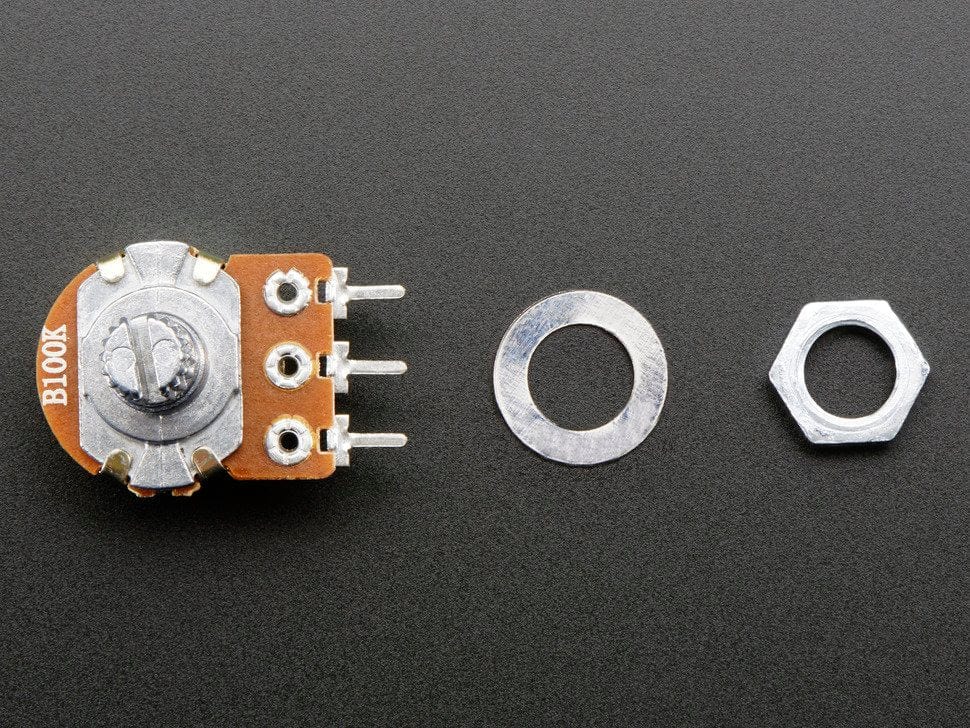

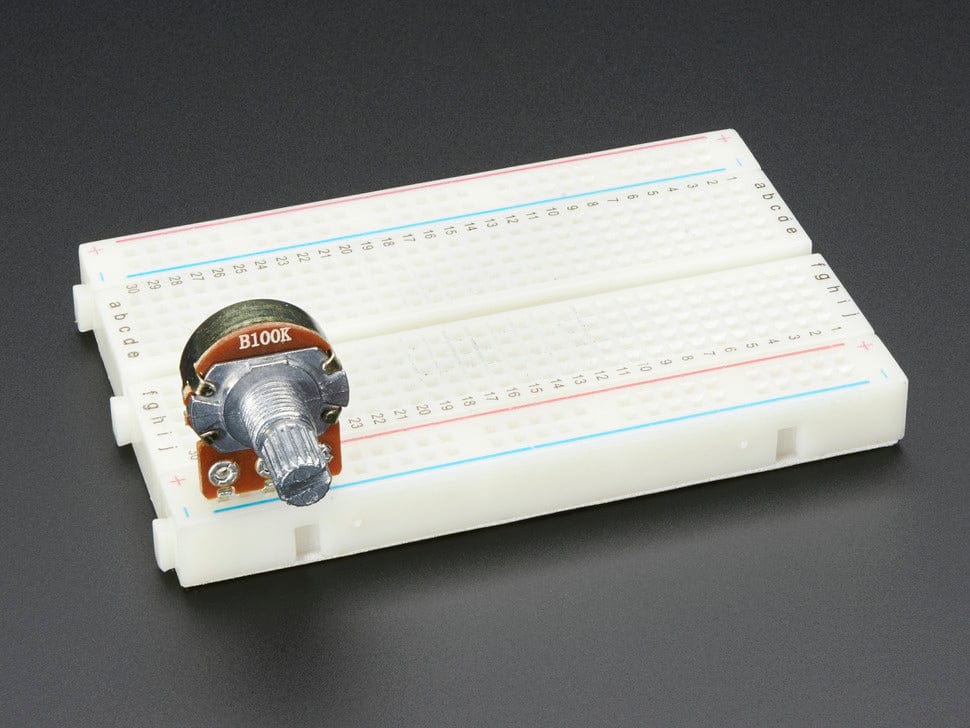

This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.
Technical details
Dimensions:
- Body: 16mm / 0.6"
- Body Circumference: 50mm / 2"
- Shaft Length: 15mm / 0.6"
- Weight: 6g
- 100K ohm potentiometer, linear taper
- 100,000 Cycle Life
- Rotational travel: 300 °
- Static Stop Strength: 90 oz-in
- Rotational Torque: 0.5 to 1.25 oz-in
- P160KN-0QC15B100K Datasheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.
Technical details
Dimensions:
- Body: 16mm / 0.6"
- Body Circumference: 50mm / 2"
- Shaft Length: 15mm / 0.6"
- Weight: 6g
- 100K ohm potentiometer, linear taper
- 100,000 Cycle Life
- Rotational travel: 300 °
- Static Stop Strength: 90 oz-in
- Rotational Torque: 0.5 to 1.25 oz-in
- P160KN-0QC15B100K Datasheet
