The Story

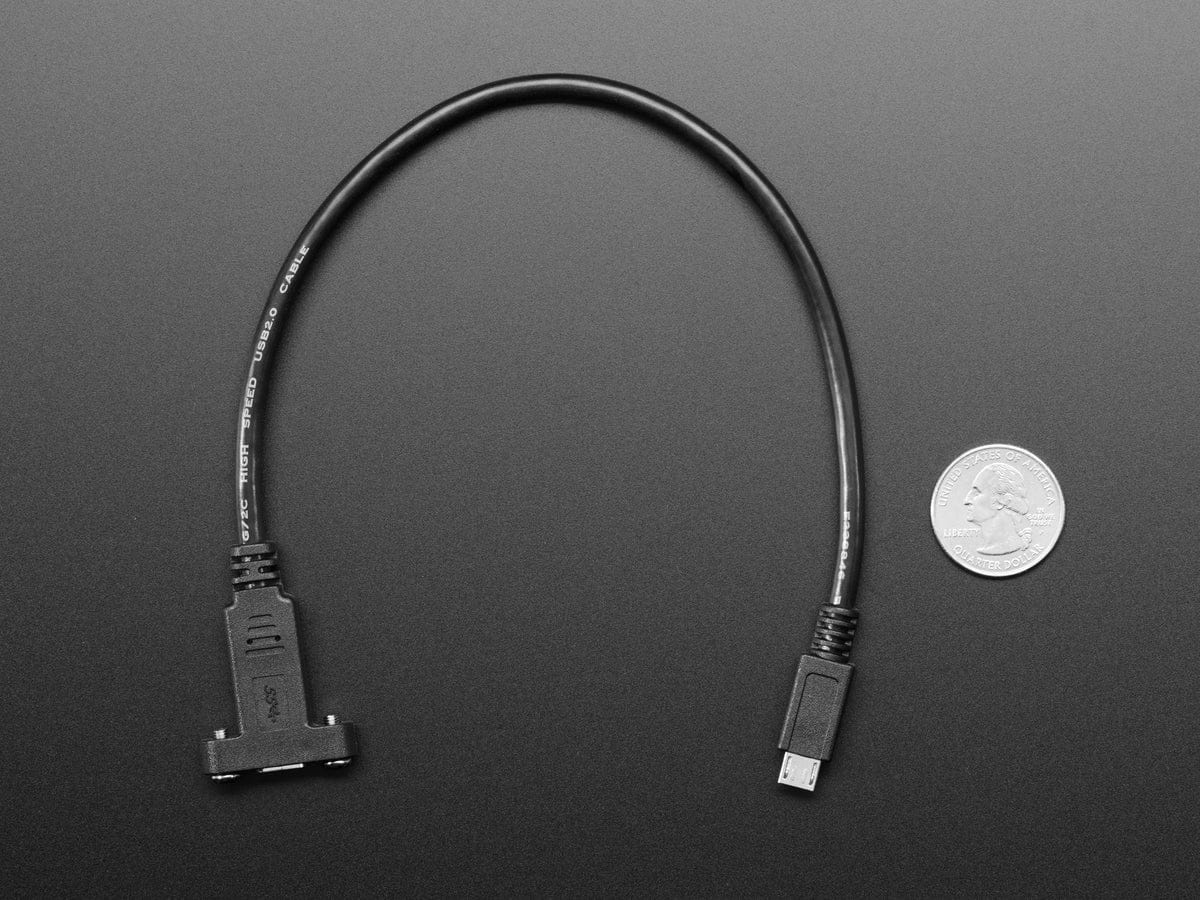

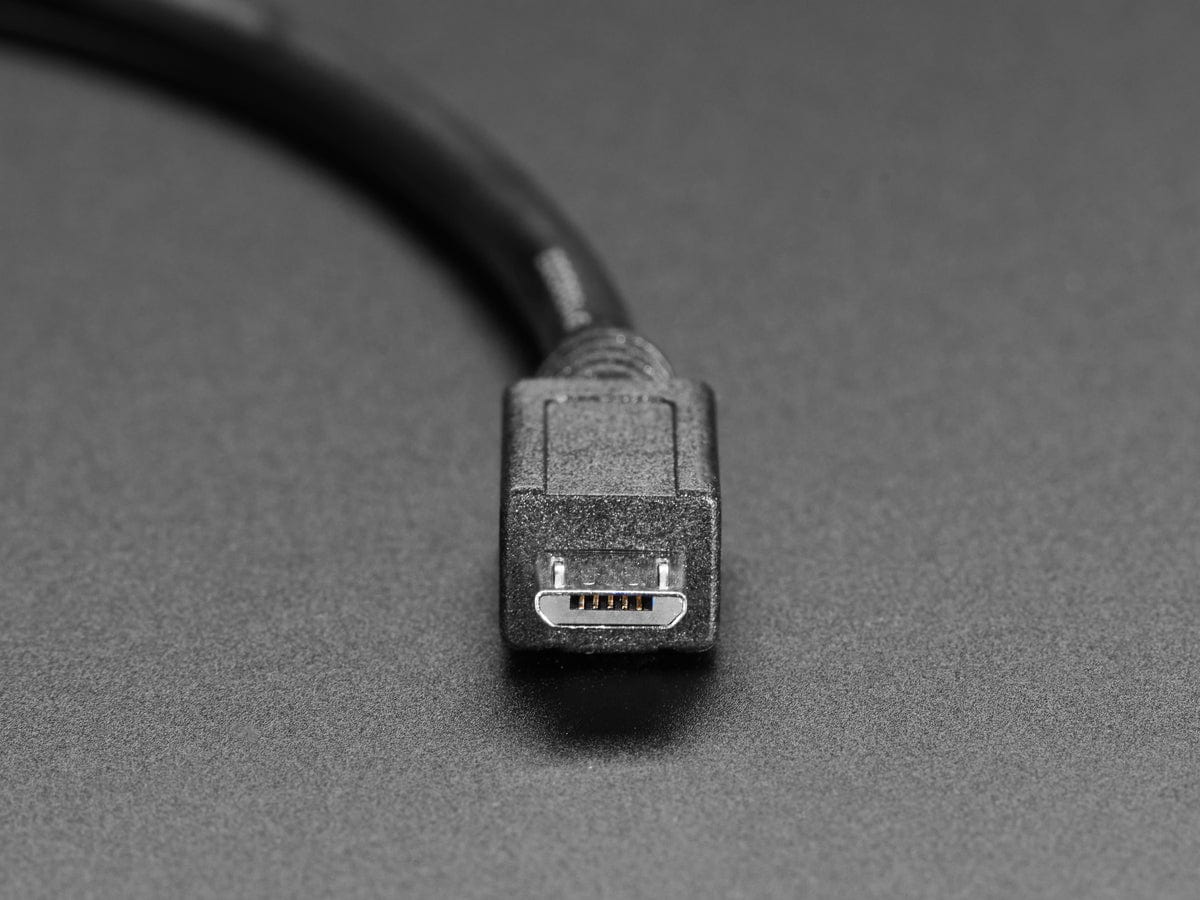

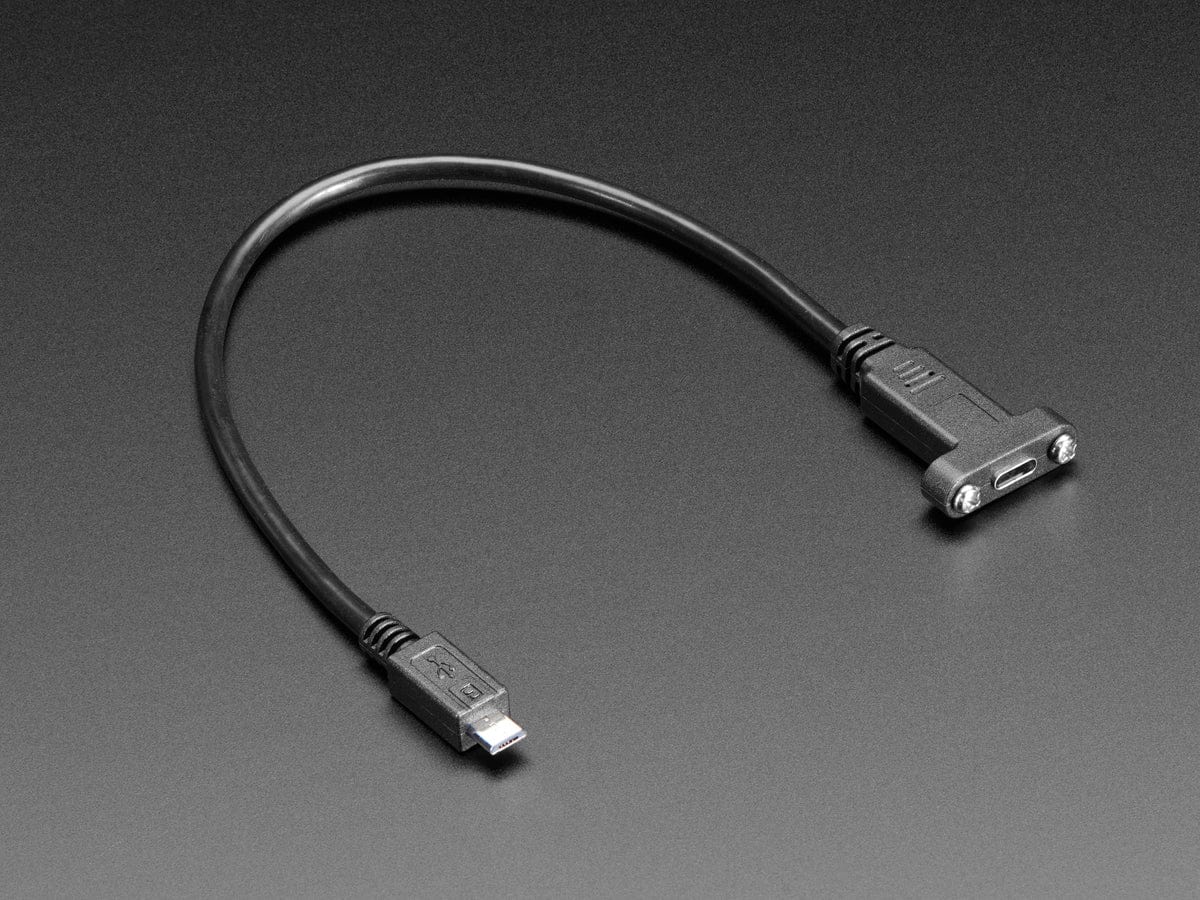

This panel mount cable will allow you to enclose a device that has a USB Micro B port, and also converts it to a modern USB C connector at the same time. Perfect for placing your project in a secure box! One end is a USB Micro B plug connector, and other is a USB C socket with special over-molding.

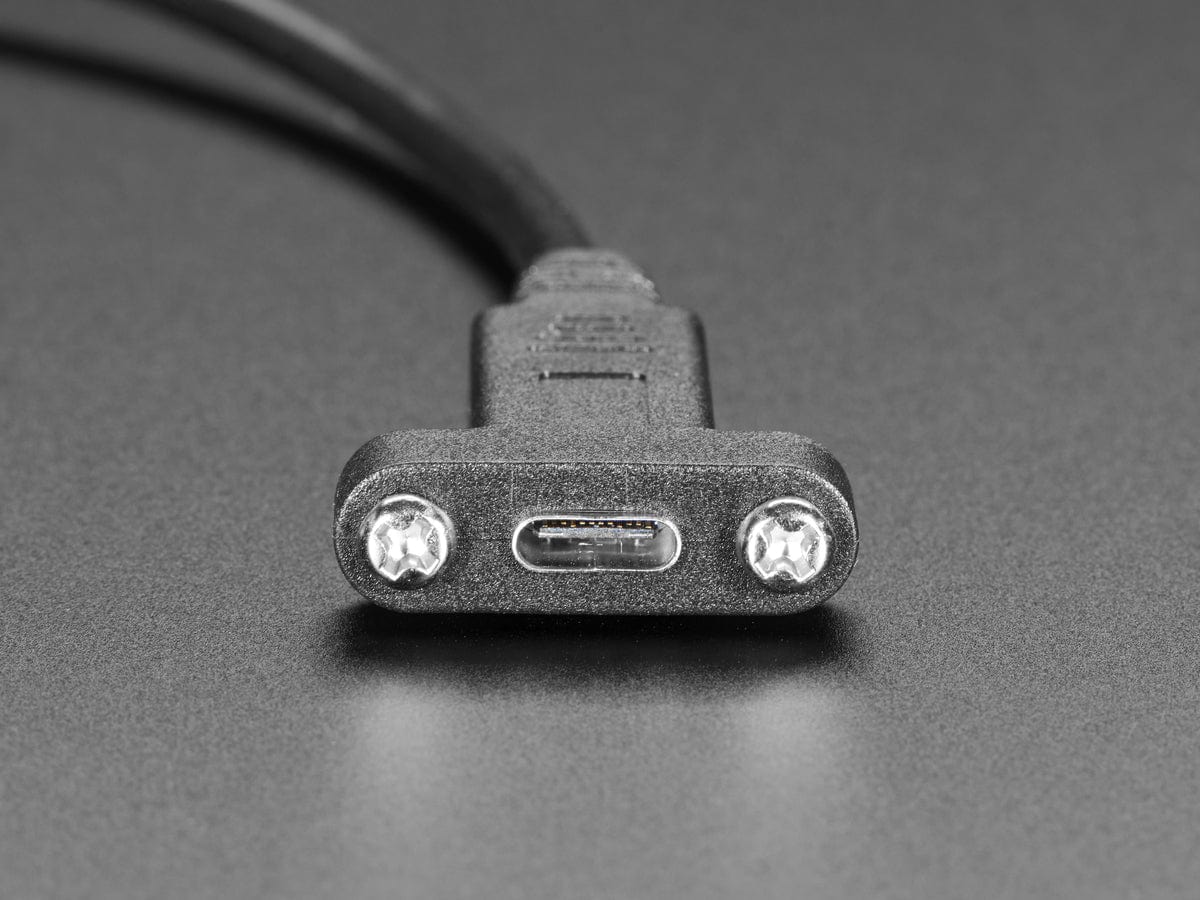

The socket side has two mounting 'ears' with M3 screws installed 20mm apart. Can be used with box walls up to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones.
Cable is 30cm long (about 12 inches)
Ā
Technical Details
- Overall length: 30cm +/- 5cm
- Cable diameter: 4.5mm
- Power wire gauge: 24 AWG
- Data wire gauge: 28 AWG
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This panel mount cable will allow you to enclose a device that has a USB Micro B port, and also converts it to a modern USB C connector at the same time. Perfect for placing your project in a secure box! One end is a USB Micro B plug connector, and other is a USB C socket with special over-molding.
The socket side has two mounting 'ears' with M3 screws installed 20mm apart. Can be used with box walls up to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones.
Cable is 30cm long (about 12 inches)
Ā
Technical Details
- Overall length: 30cm +/- 5cm
- Cable diameter: 4.5mm
- Power wire gauge: 24 AWG
- Data wire gauge: 28 AWG
