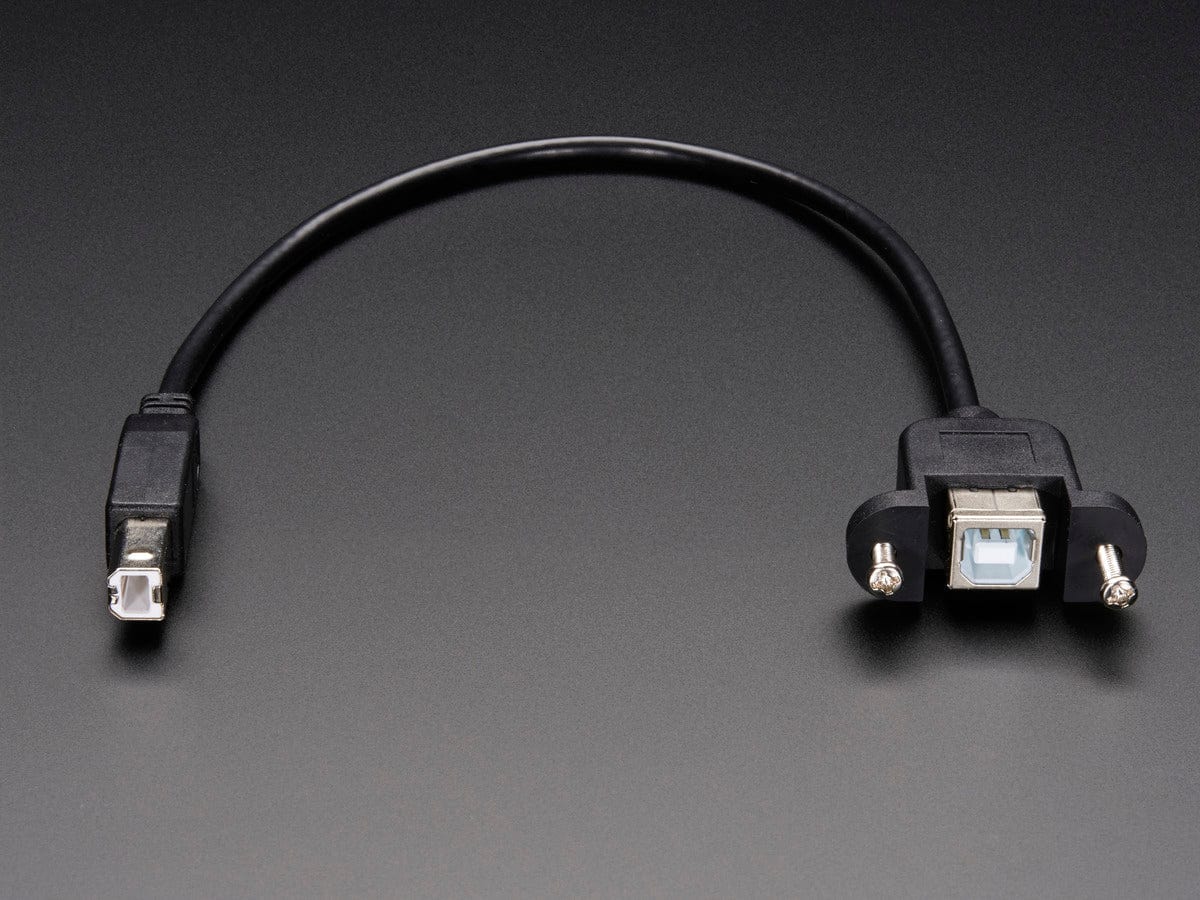

Panel Mount USB Cable - B Male to B Female
HomeStore

Panel Mount USB Cable - B Male to B Female

Panel Mount USB Cable - B Male to B Female

$1.39

Original: $4.63

-70%
Panel Mount USB Cable - B Male to B Female—

$4.63

$1.39

The Story

This handy USB extension cable will make it easy for you to enclose a device that has a B type port. We think this would be most handy when putting an Arduino in a box as these cables pass both power and data.

The jack half has two mounting 'ears' with M3 screws installed, 1.1" / 29mm apart. Can be used with box walls 0.125" to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones. Cable, from connector to connector, is 13" long.

Technical Details

  • Panel mount USB type B socket with USB type B plug at cable end
  • 28 AWG data, 24 AWG power wires
  • Length: 330mm / 13"
  • Two M3 mounting screws, 1.1" / 29mm apart
  • Panel mount end dimensions: 38mm x 14.5mm / 1.5" x 0.57"

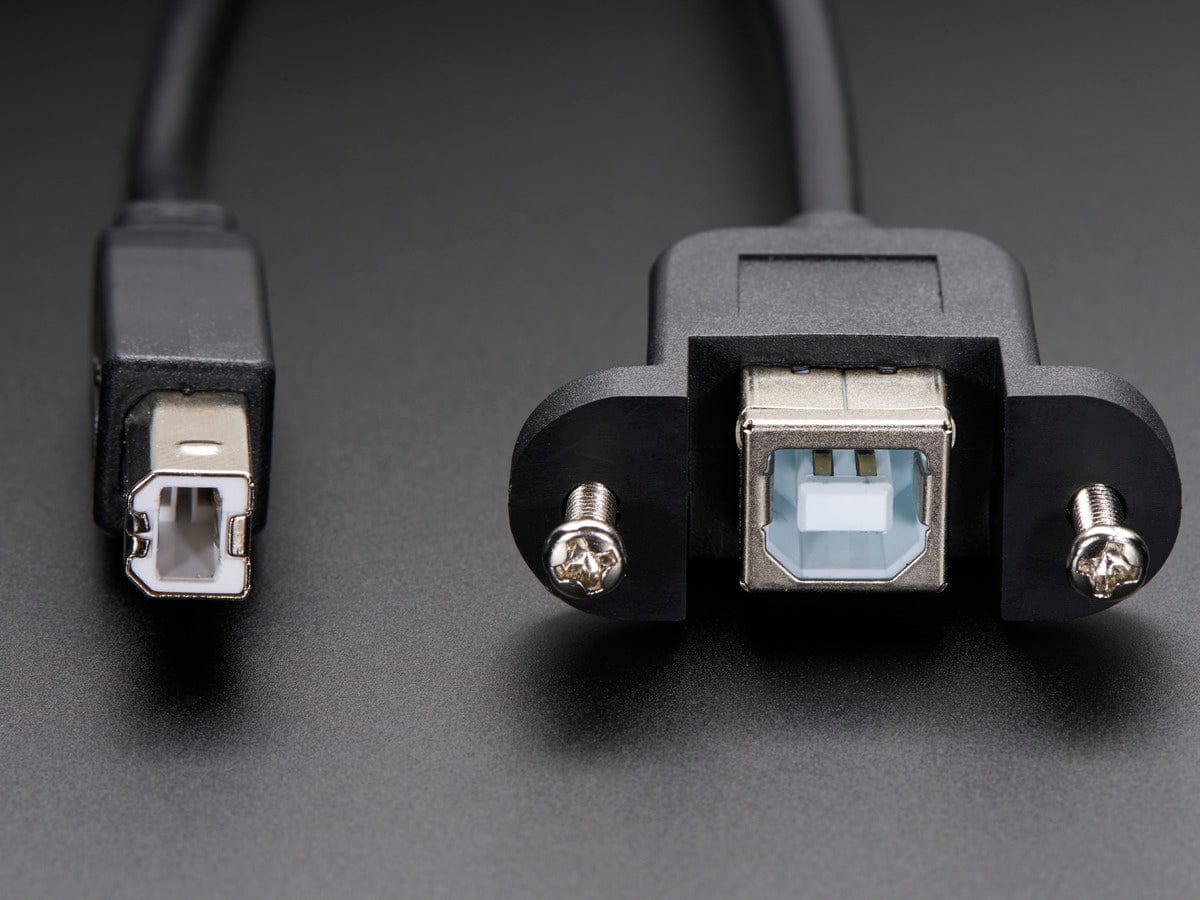

    Panel Mount USB Cable - B Male to B Female - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    This handy USB extension cable will make it easy for you to enclose a device that has a B type port. We think this would be most handy when putting an Arduino in a box as these cables pass both power and data.

    The jack half has two mounting 'ears' with M3 screws installed, 1.1" / 29mm apart. Can be used with box walls 0.125" to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones. Cable, from connector to connector, is 13" long.

    Technical Details

    • Panel mount USB type B socket with USB type B plug at cable end
    • 28 AWG data, 24 AWG power wires
    • Length: 330mm / 13"
    • Two M3 mounting screws, 1.1" / 29mm apart
    • Panel mount end dimensions: 38mm x 14.5mm / 1.5" x 0.57"
