$0.98The Story
Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

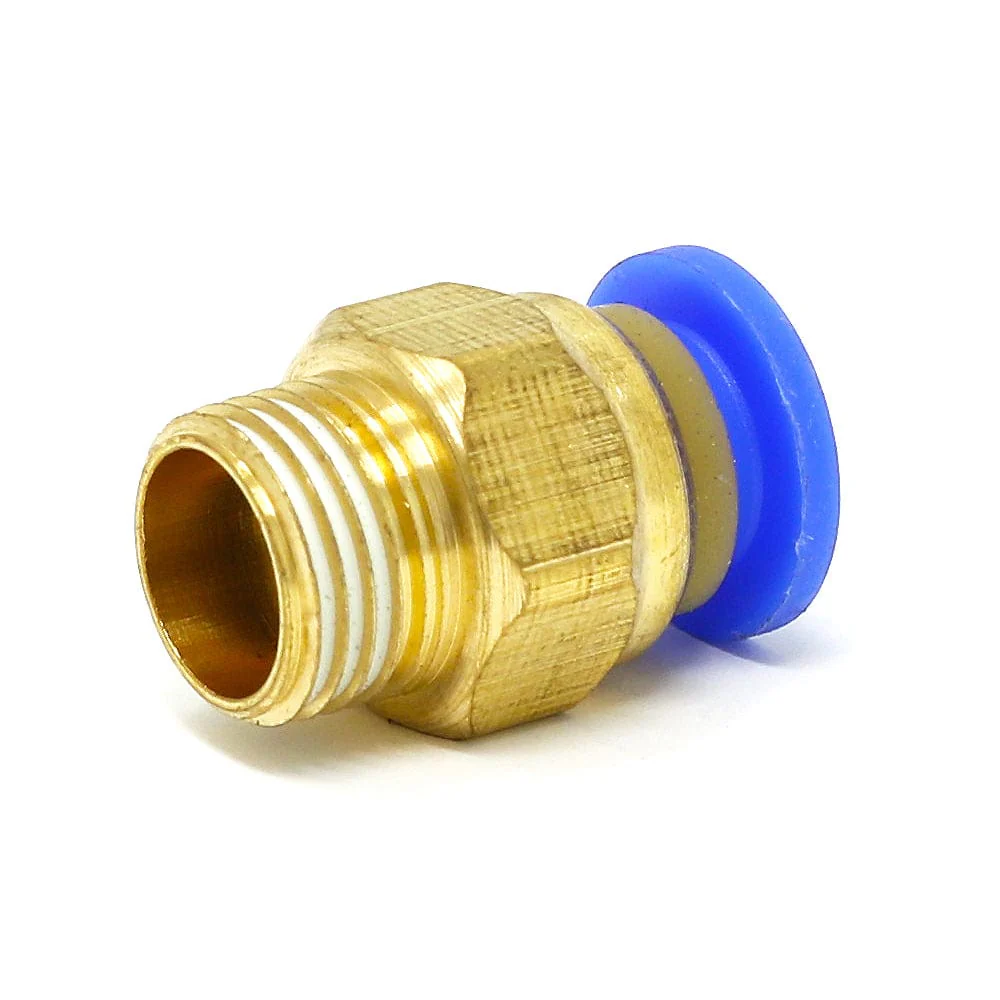

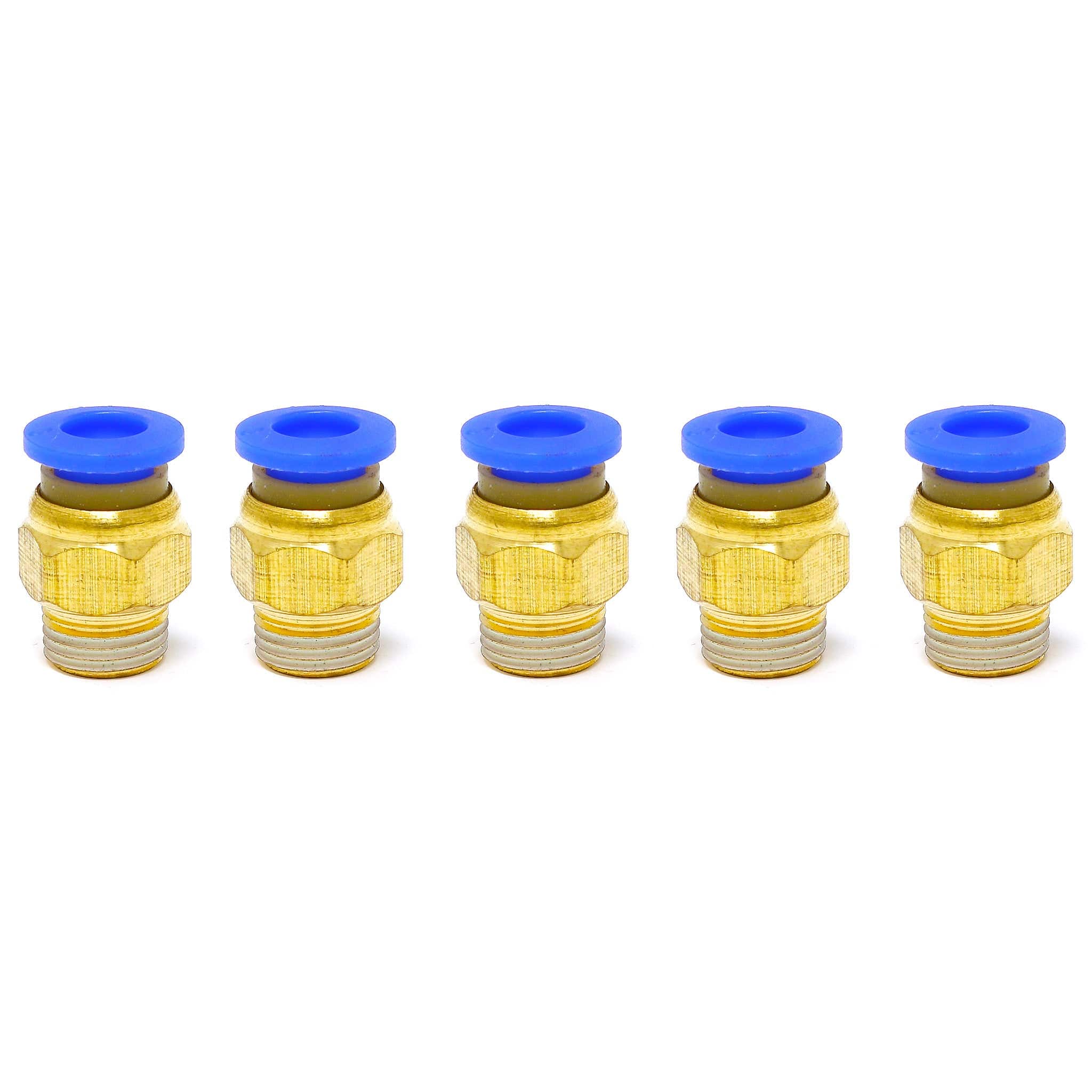

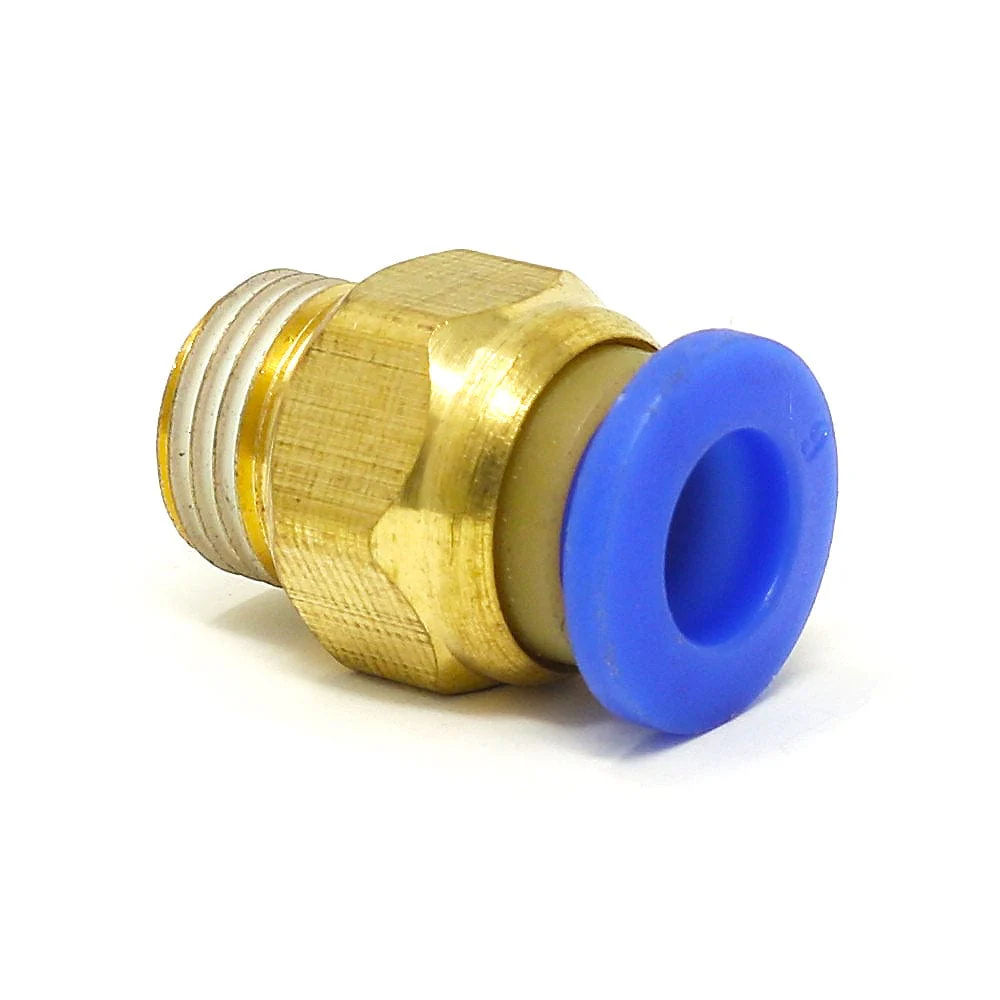

This is a pack of five PC6-01 pneumatic connectors which accept non-traditional larger Bowden tubes with a 6mm outer dimension (6mm OD) and 4mm inner dimension (4mm ID).
We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!
Specifications
- Type: PC6-01
- Thread OD: 9.6mm
- Height: 18.5mm
- Nut OD: 12mm
- Thread length: ~5.6mm
- Input diameter (thread end): 7.3mm
- Compatible PTFE: 6mm OD / 4mm ID
- Weight (per connector): 5.7g
Package Contents
- 5x PC6-01 pneumatic connectors
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.
This is a pack of five PC6-01 pneumatic connectors which accept non-traditional larger Bowden tubes with a 6mm outer dimension (6mm OD) and 4mm inner dimension (4mm ID).
We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!
Specifications
- Type: PC6-01
- Thread OD: 9.6mm
- Height: 18.5mm
- Nut OD: 12mm
- Thread length: ~5.6mm
- Input diameter (thread end): 7.3mm
- Compatible PTFE: 6mm OD / 4mm ID
- Weight (per connector): 5.7g
Package Contents
- 5x PC6-01 pneumatic connectors
