M.2 E-Key HAT for Raspberry Pi 5

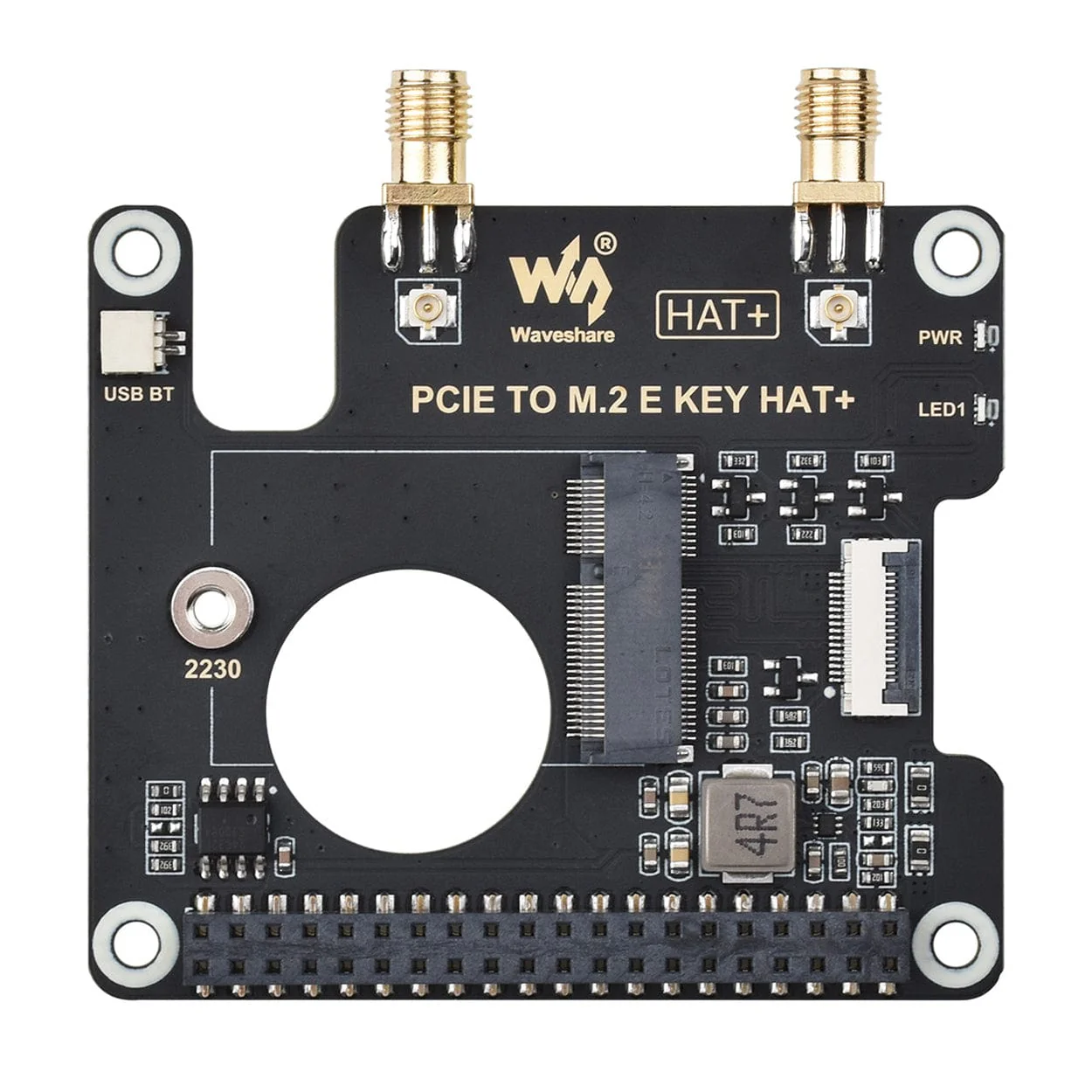

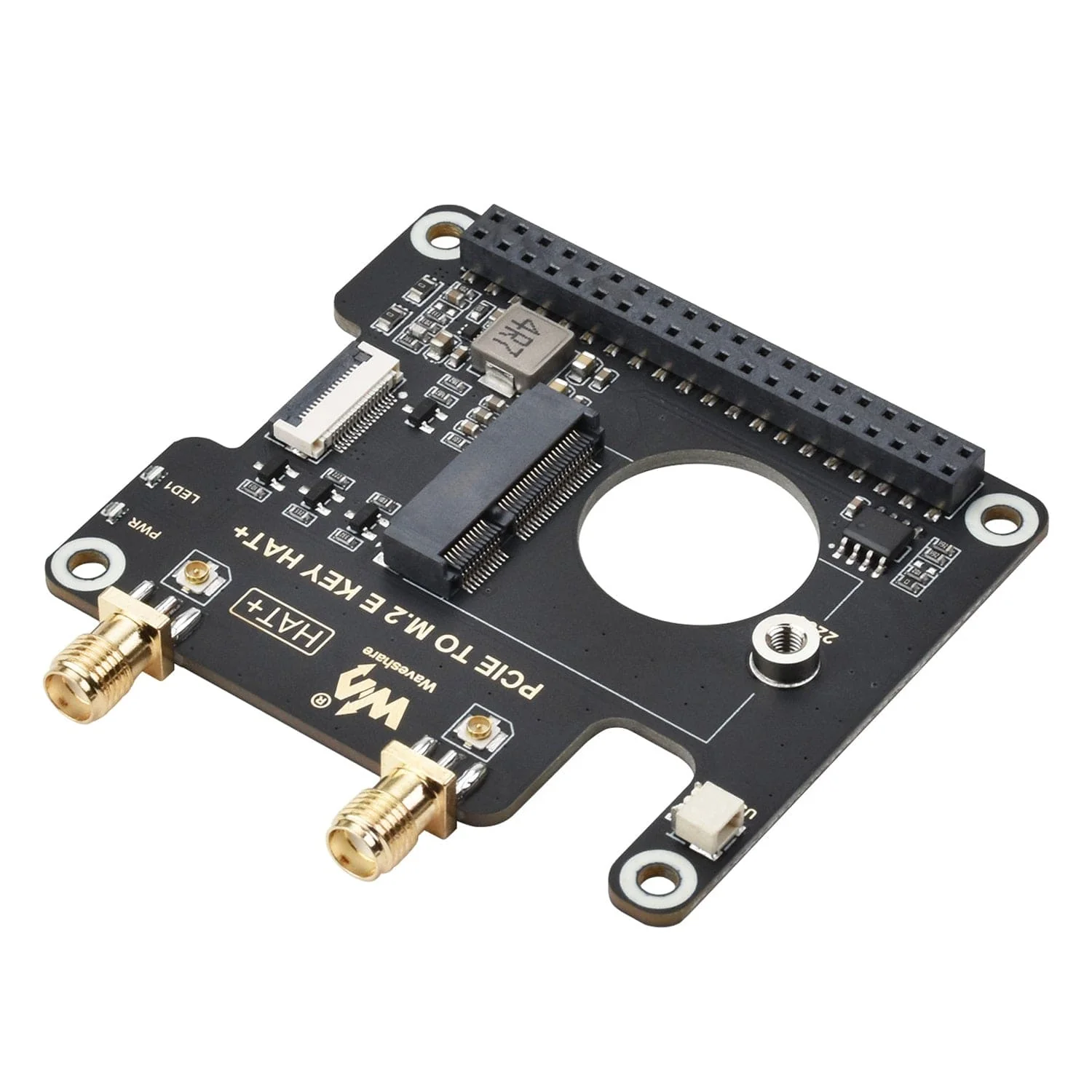

This HAT takes advantage of the Raspberry Pi 5 PCIe interface to offer an NGFF (Next Generation Form Factor) M.2 E-Key slot for your Pi 5, allowing you to connect an E-Key wireless NIC (Network Interface Controller).

We offer this product as either just the HAT itself, or bundled with a compatible AX210 Wi-Fi 6E wireless NIC offering 2.4GHz, 5GHz and 6GHz WiFi and Bluetooth 5.3 - please select an option before adding to your cart.

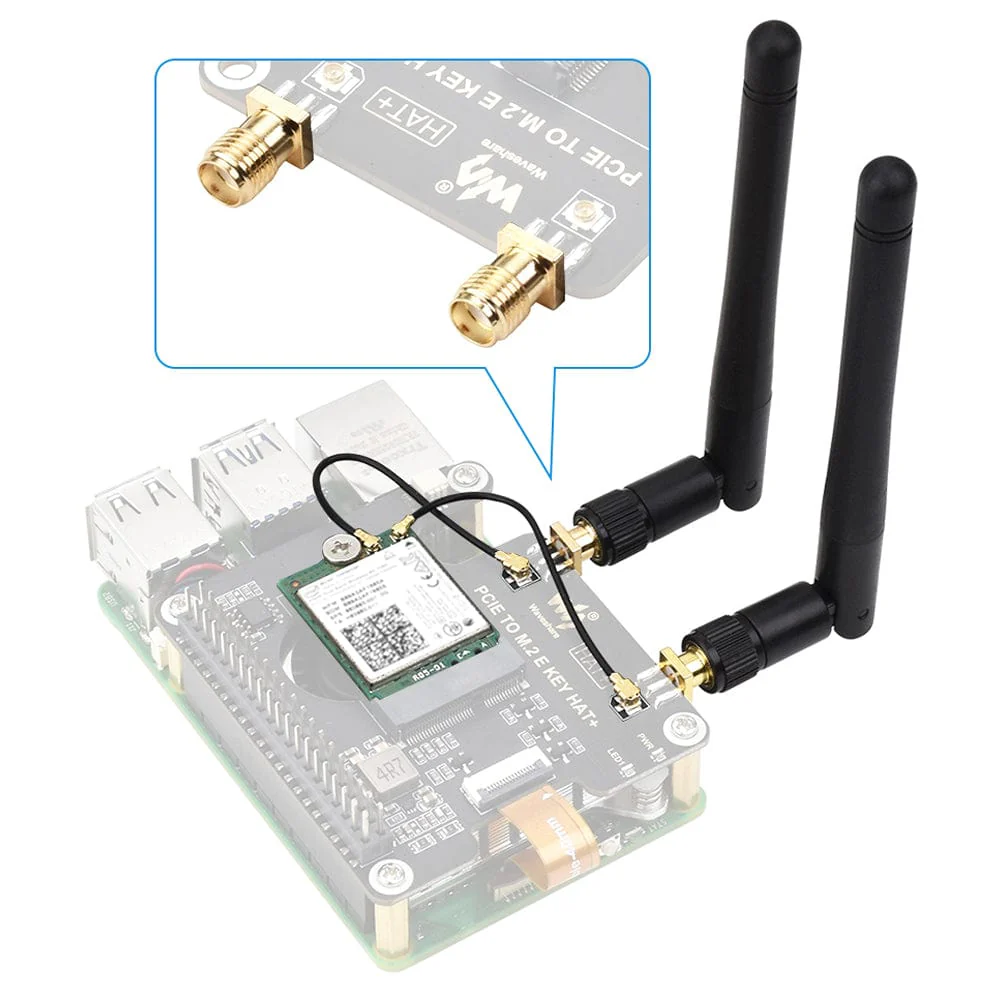

The HAT supports the E-Key device with dual SMA female antenna connectors, with two antennas included in the package. Two IPEX 1 to IPEX 4 adapter cables are also included to connect your NIC to the HAT/antennas.

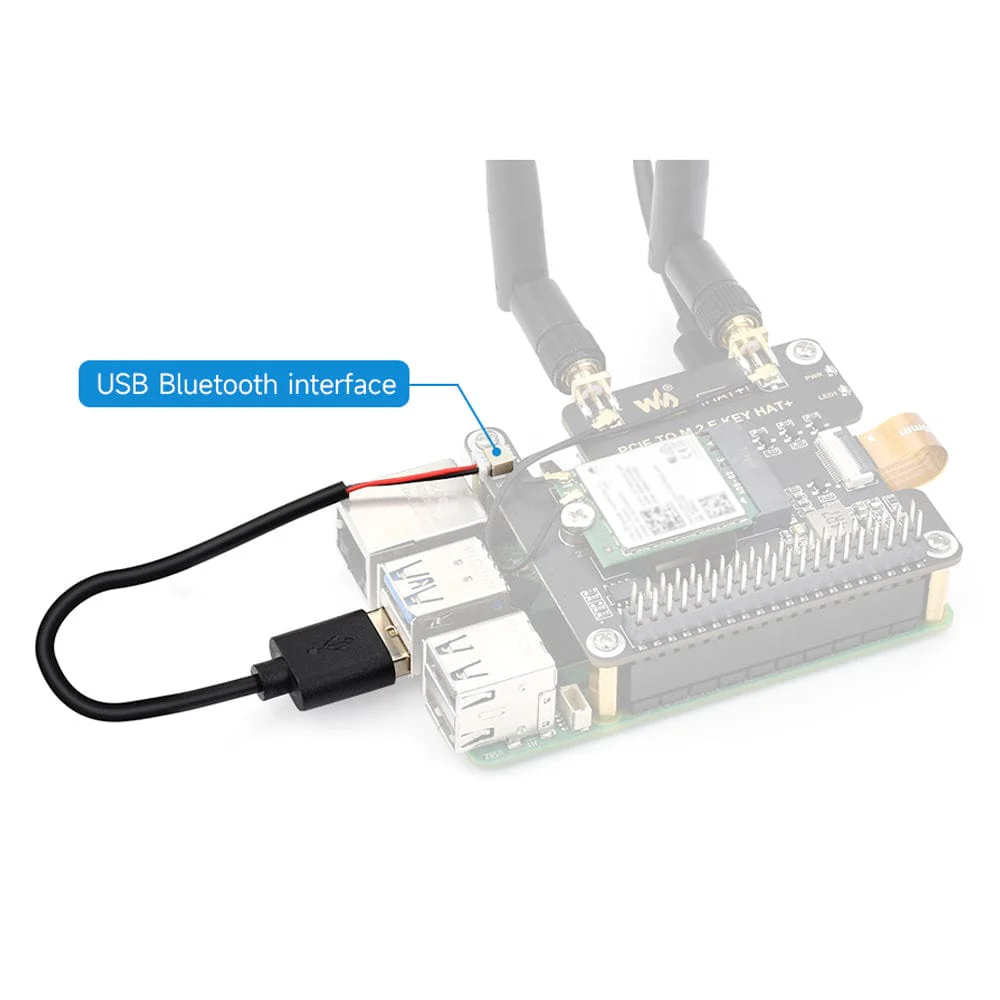

Bluetooth signals are communicated to the Raspberry Pi via a USB adapter cable, also included in the package. A power LED on the HAT provides power status indication. A central hole in the HAT ensures the best possible airflow (with a HAT fitted at least!) for your active cooler.

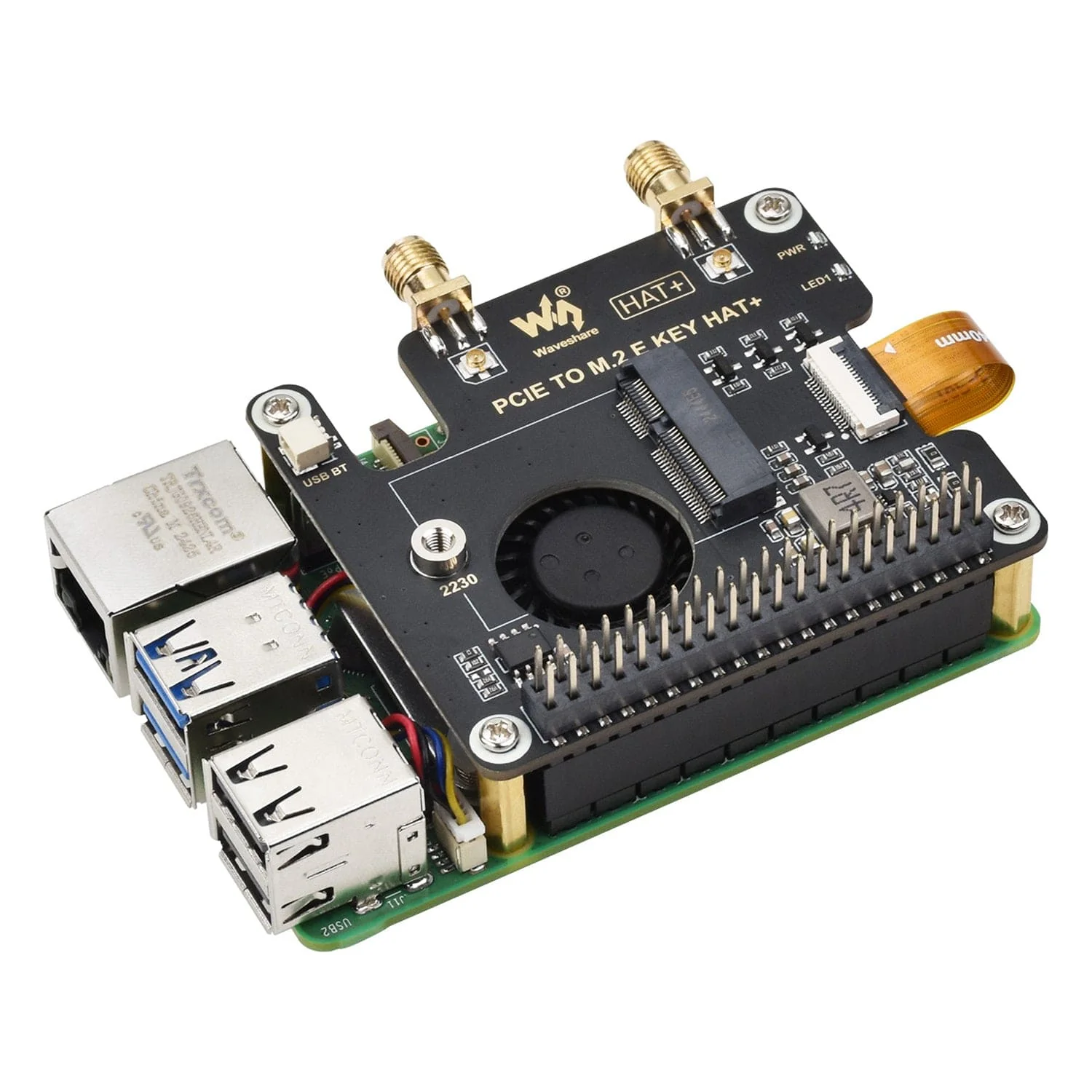

The HAT comes with a GPIO riser header which passes through the board, meaning all your GPIO pins are accessible.

Raspberry Pi not included.

Video Feature

Check out this video from Jeff Geerling as he tries this board with an Intel BE200 WiFi 7 NIC:

HAT Features

• PCIe HAT for Raspberry Pi 5 with M.2 E-Key slot
• Supports NGFF E-Key wireless NICs
• Available as HAT only or with AX210 NIC bundle
• Dual SMA antenna connectors with two antennas included
• Includes IPEX 1 to IPEX 4 adapter cables for NIC connection
• Bluetooth signal routed via included USB adapter cable
• Power LED for status indication

AX210 NIC Features

Note: AX210 NIC is only included in the bundle option.

• Based on the sixth-generation 802.11AX Wi-Fi standard, offering improved performance, compatibility, lower power consumption, and extended service life compared to 802.11AC
• Supports 2.4GHz, 5GHz, and 6GHz tri-band connectivity
  • Speeds up to 574Mbps on 2.4GHz and up to 2400Mbps on 5GHz/6GHz
• Compliant with the Bluetooth 5.3 standard for longer range and enhanced stability
• Uses an NGFF (M.2 A/E Key) interface
• Incorporates next-generation MU-MIMO wireless technology for improved network quality, more than triple the Internet speed, and greater transmission and download efficiency
• Compatible with Linux, Windows 10/11, and other platforms

Resources

• Product Wiki
• AX210 NIC Wiki

Package Contents

The contents depend on the option you select:

Board only

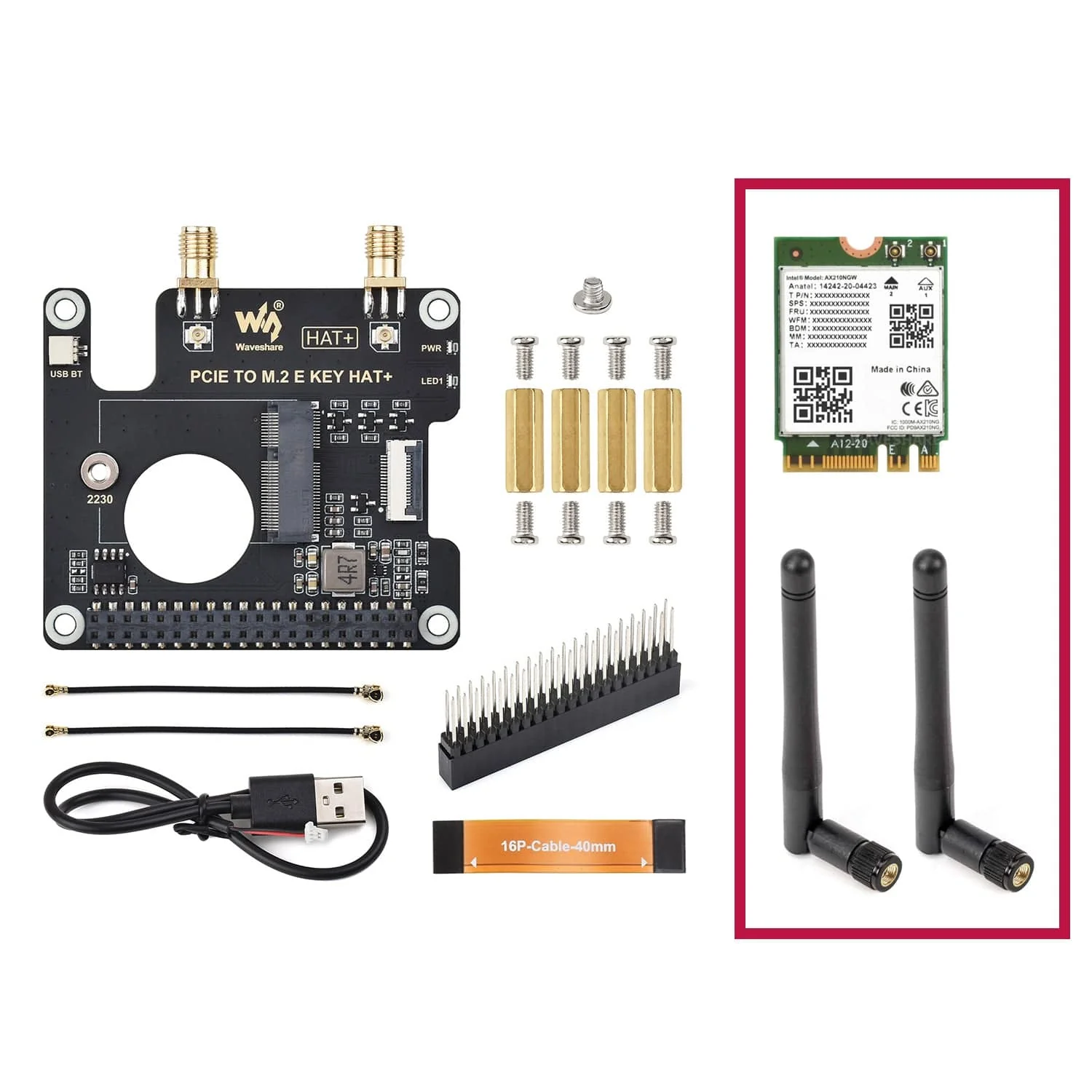

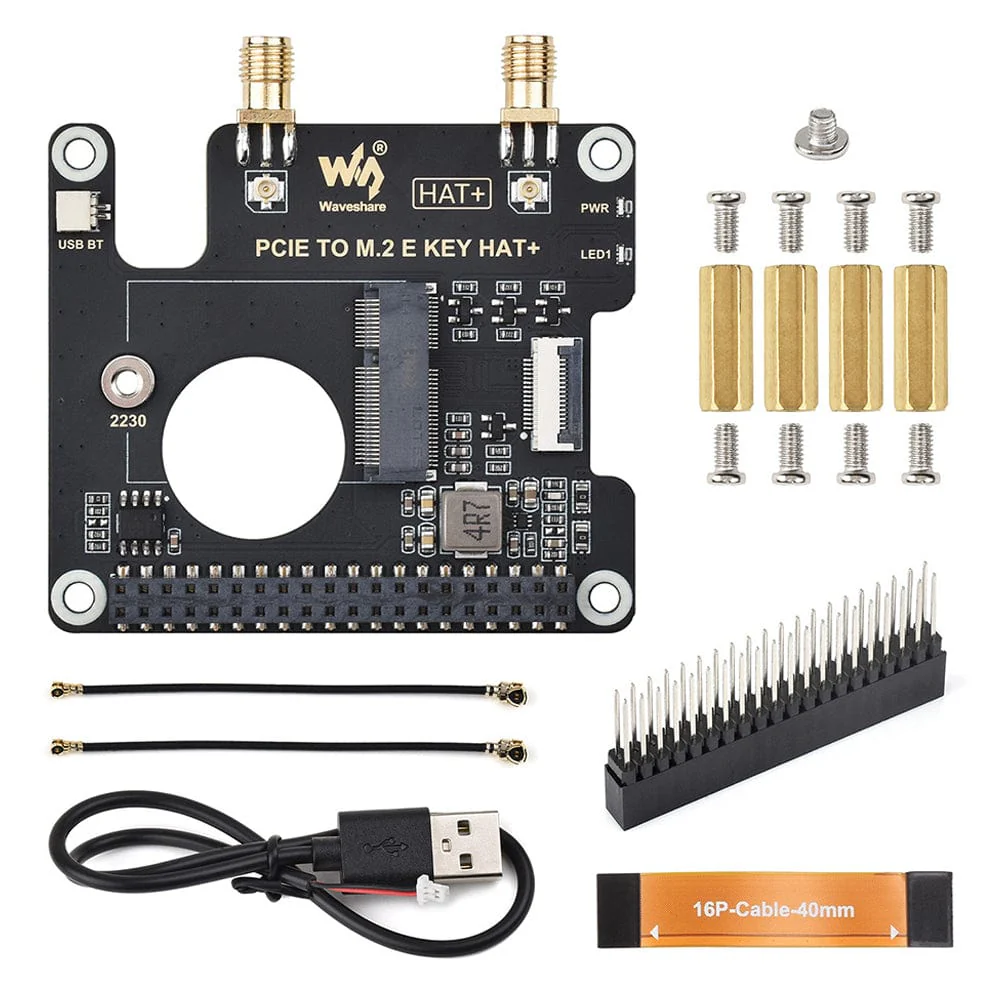

• 1x PCIe to M.2 E-Key HAT for Raspberry Pi 5
• 1x GPIO riser header
• 2x IPEX 1 to IPEX 4 adapter cable - 6cm
• 1x USB-A to SH1.0 2-pin cable
• 1x PCIe flex cable - 40mm
• 1x Screws pack

Board + AX210 NIC

• 1x PCIe to M.2 E-Key HAT for Raspberry Pi 5
• 1x GPIO riser header
• 2x IPEX 1 to IPEX 4 adapter cable - 6cm
• 1x USB-A to SH1.0 2-pin cable
• 1x PCIe flex cable - 40mm
• 1x Screws pack
• 1x AX210 Wireless NIC
• 2x WiFi antenna - 11cm

Raspberry Pi not included with either option.
