Pi-Box Pro 5

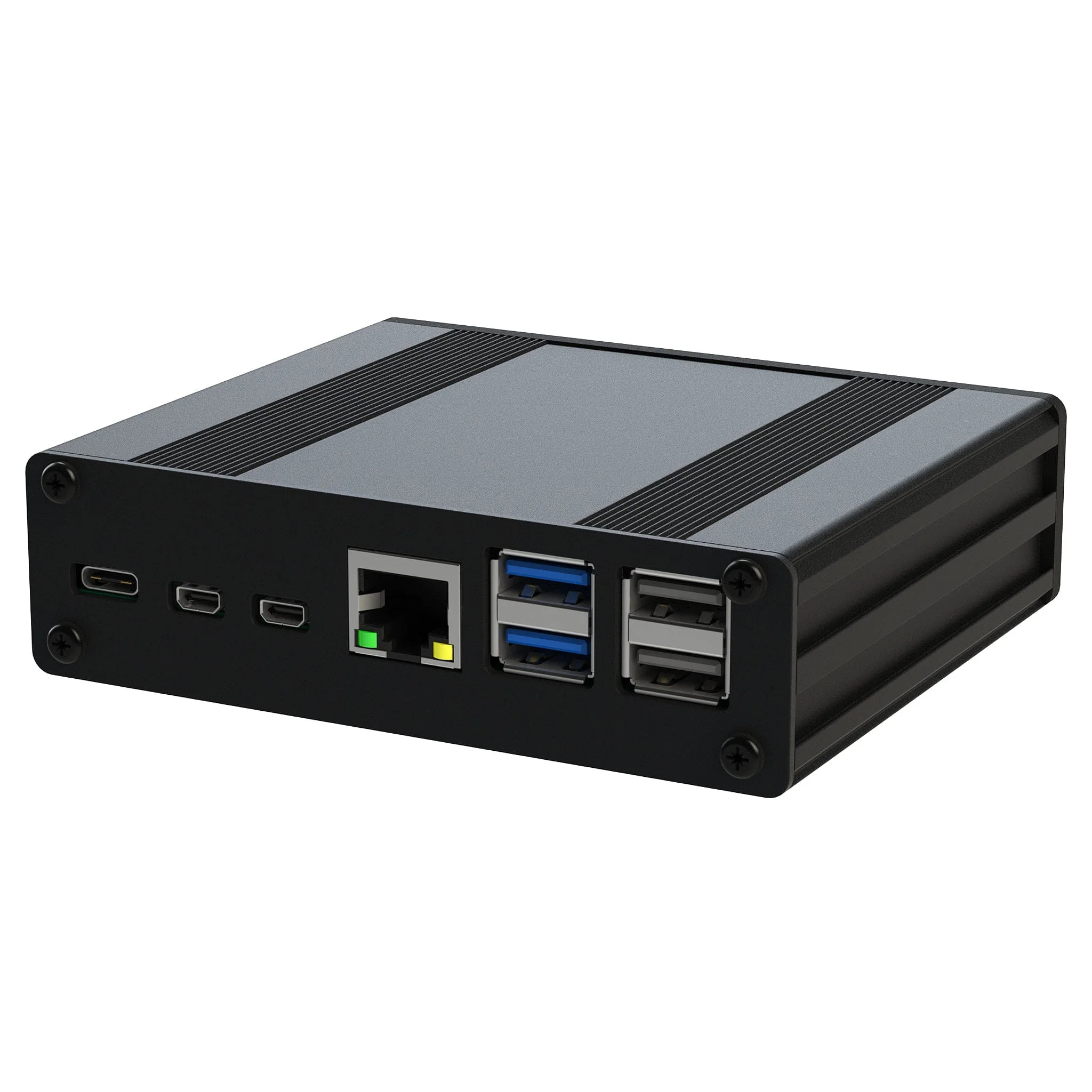

The Pi-Box Pro 5 is a rugged aluminium enclosure kit for Raspberry Pi 5 designed for harsh industrial environments.

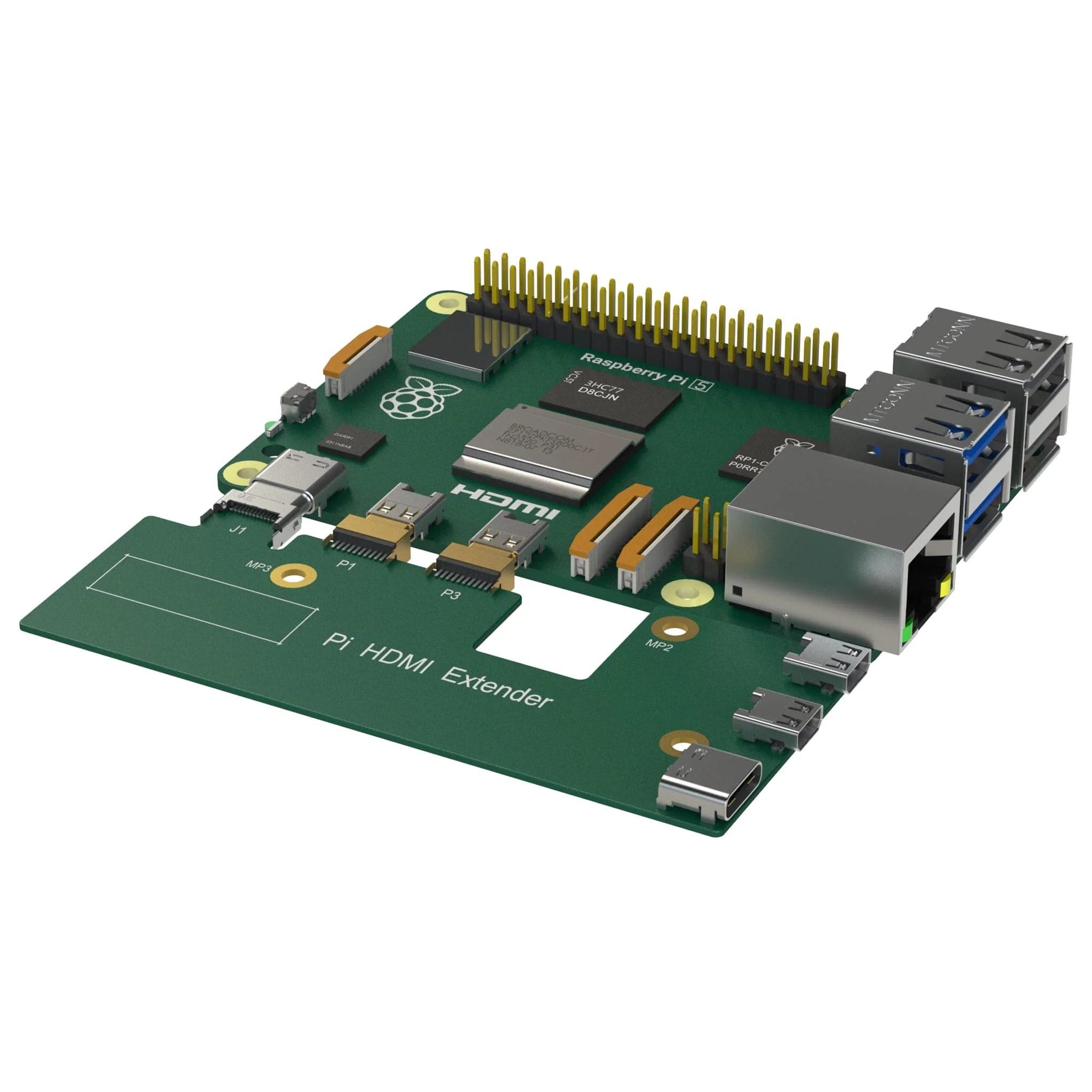

By utilising an internal PCB extender board, the USB-C power and micro-HDMI ports are routed to the same edge as the ethernet and USB ports - ensuring all cables exit via the same side for a tidy and logical setup.

The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi 5.

The case can accommodate a Raspberry Pi 5 with an Active Cooler fitted, which is supported by ventilation slots in the acrylic panel, and the natural heat dissipating qualities of the aluminium body.

A number of optional accessories are available to go with this case:

• DIN Rail mounting kit
• Linc-Lugs (mounting brackets) for wall/surface mounting
• VESA mounting bracket kit

Product Notes

• Assembly is required
  • No assembly guide is available however construction is reasonably straightforward and logical.
  • Protective film should be removed from the acrylic panel before assembly.
  • Care: Internal mounting plate may have some sharp edges.
• Two versions are available
  • A no SD access version that restricts SD access (SD fitted before assembly)
  • An SD access version that allows the SD card to be removed once assembled (via the acrylic panel side).
  • Please select an option before adding to cart.

Features

• Industrial rugged case for Raspberry Pi 5
• Solid construction
  • Main body: Aluminium 6063 T6 (HE9)
  • Front plate: Aluminium 5005 sheet
  • Rear plate: 3mm Acrylic
• Internal PCB adapter board included - moves HDMI and USB-C alongside Ethernet and USB ports
• Internal mounting plate supports Raspberry Pi Active Cooler (not included)
• Rear plate ventilation and power button access
• Versions available with/without SD access
• All required fixings are included.

Specifications

• Extrusion main body
  • Material: Aluminium 6063 T6 (HE9)
  • Finish: Black anodised 10μm
• Front End Plate
  • Material: Aluminium 5005 sheet
  • Finish: Black anodised 10μm
  • Thickness: 1.5mm
• Rear End Plate
  • Material: Acrylic
  • Finish: Black
  • Thickness: 3.0mm
• Screws
  • No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
• Assembled Dimensions
  • SD access version : 108.5mm x 30mm x 91mm
  • No SD access version: 108.5mm x 30mm x 94mm

Package Contents

• Main body (E-Case B Extrusion)
• Extender Board
• Internal Carrier Plate - cut to accomodate the Raspberry Pi Active Cooler
• Aluminium End Plate
• Acrylic End Plate (For WiFi & Bluetooth)
• Screws & Fixings

Raspberry Pi 5 and Active Cooler not included
