PiCam Module for Raspberry Pi Compute Module 4 (CM4)

The PiCam Module is the mechanical solution to connect a Raspberry Pi camera module to a Raspberry Pi Compute Module 4 board. Great for making simple camera/vision projects with your CM4.

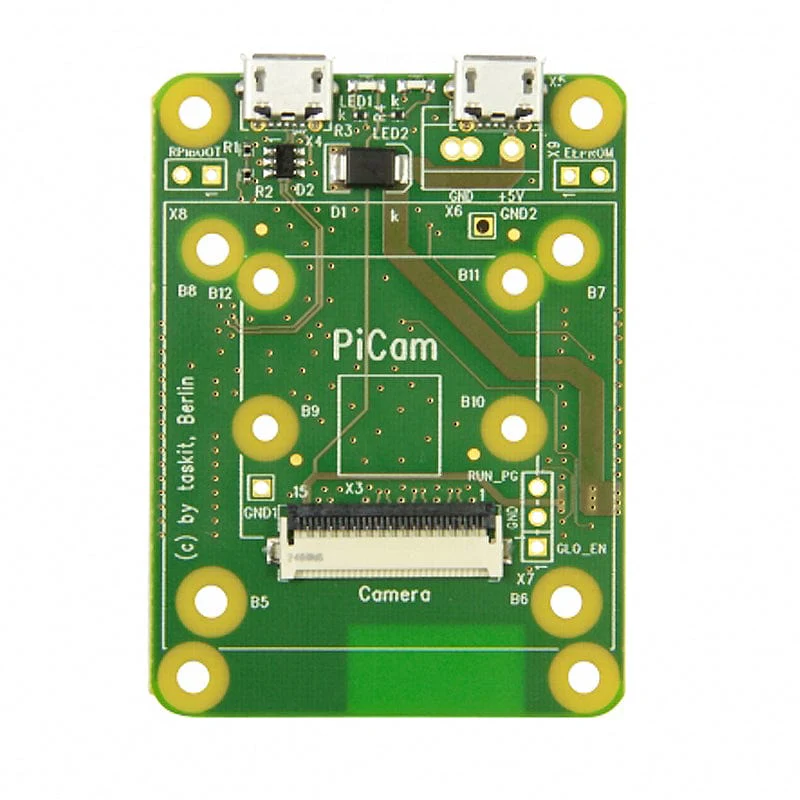

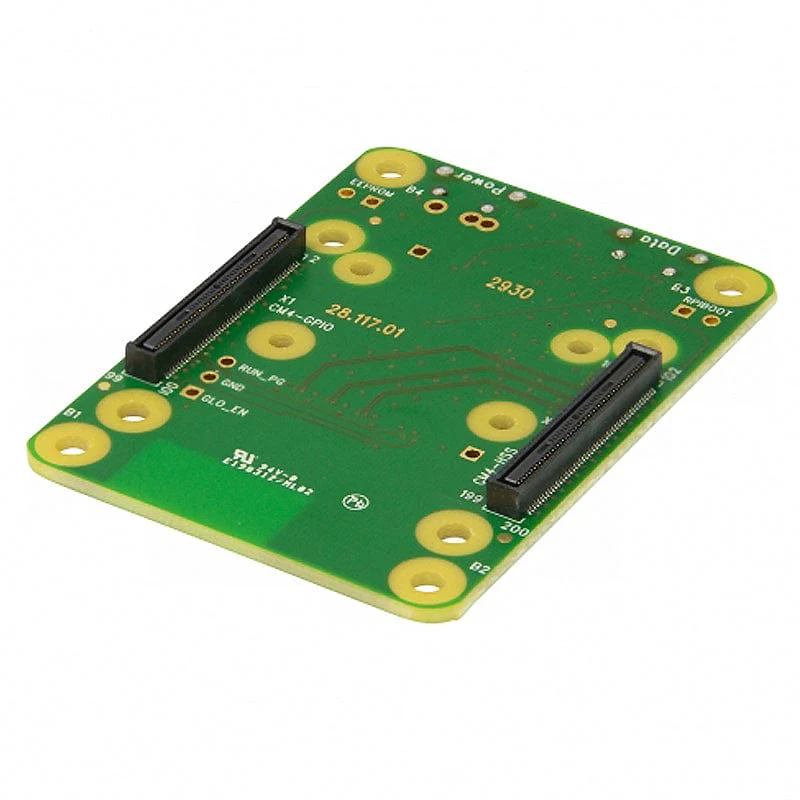

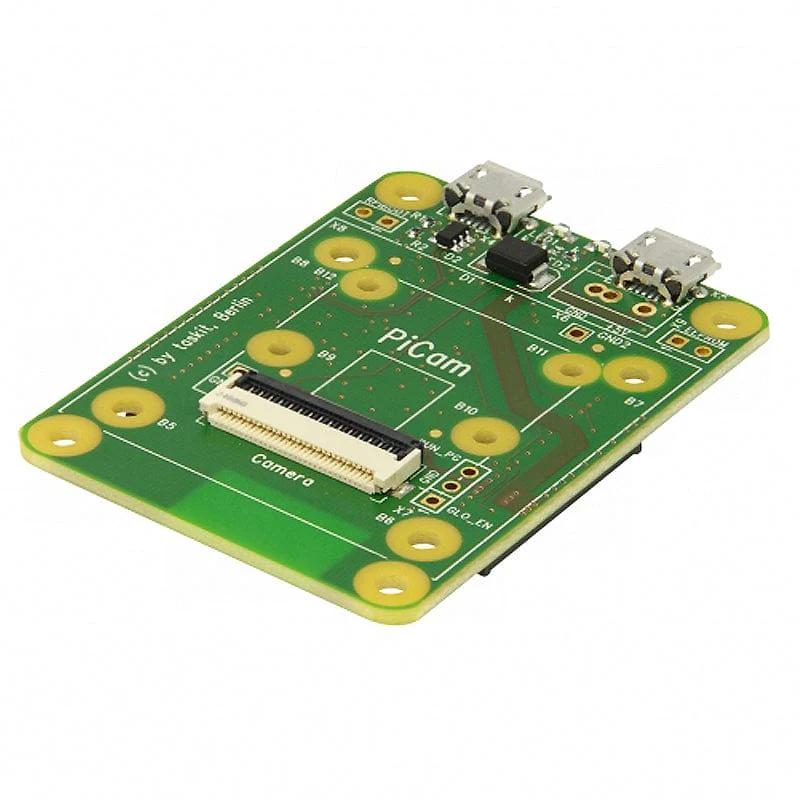

The Raspberry Pi Compute Module 4 (not included) can be plugged into the bottom of the PiCam module. The camera (also not included) is connected to the PiCam module via FFC/FPC ribbon cable. If needed, the camera module can also be mounted directly on the PiCam module, which achieves maximum compactness!

The existing mounting holes cover a variety of 'standard' 15-pin Raspberry camera modules. Mounting hardware is not included. In addition, the PiCam module can also be used for programming the Raspberry Pi Compute Module 4.

Important - Please ensure that the ribbon cable is fitted with the correct polarity or you run the risk of damaging your entire setup - CM4, camera module and even the PiCam board!

CM4 and Camera Module not included

Specifications

• Camera adapter board for CM4
• USB-Interface for service (micro-USB)
• USB-Interface for power (micro-USB)
• 100-pin connector for connection to the CM4 module
• 15-pin camera connector

Resources

• Quick start guide
• Manual
• Forum
• Software:
  • Install Manual
  • rpiboot_setup.exe (file link)
  • picam_module210222.img (file link - 2,4Gb)
• 3D STEP file

Package Contents

• 1x PiCam Module
