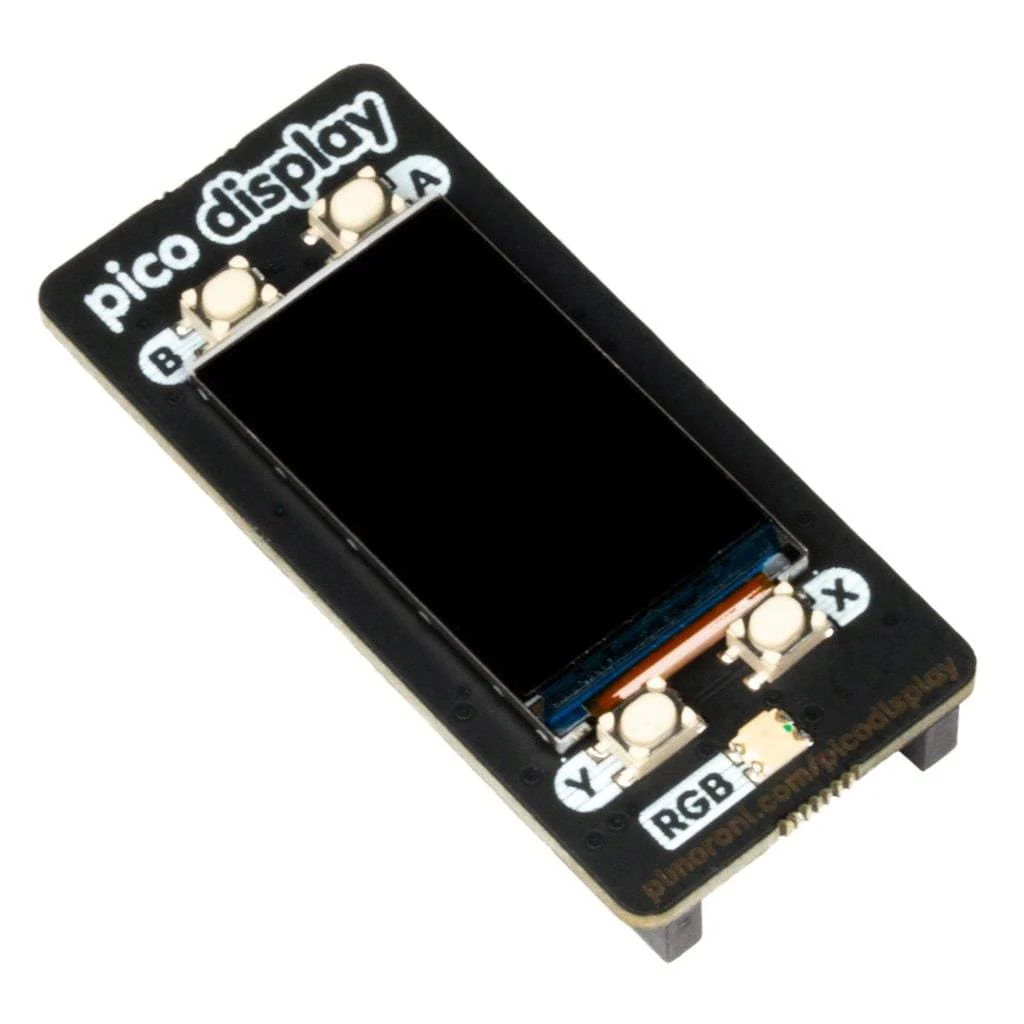

Pico Display Pack

A vibrant 1.14" IPS LCD screen for your Raspberry Pi Pico, with four useful buttons and an RGB LED!

We've sourced a new LCD screen especially for our Pico Display Pack - it's a lovely, bright 18-bit capable 240x135 pixel IPS display and fits the Pico perfectly. We've surrounded it with four tactile buttons so you can easily interface your Pico with your human fingers and an RGB LED that you can use as an indicator, for notifications or just for adding extra rainbows.

Pico Display lets you turn a Pico into a compact user interface device for a bigger project, capable of giving instructions, displaying readouts and even incorporating elaborate nested menus. If you'd rather use your Pico as a standalone device you could make a little rotating slideshow of images, display beautiful graphs from sensor data or build your own Tamagotchi or matchbox-sized text adventure game.

A Raspberry Pi Pico is not included - click here if you'd like to buy one!

Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.

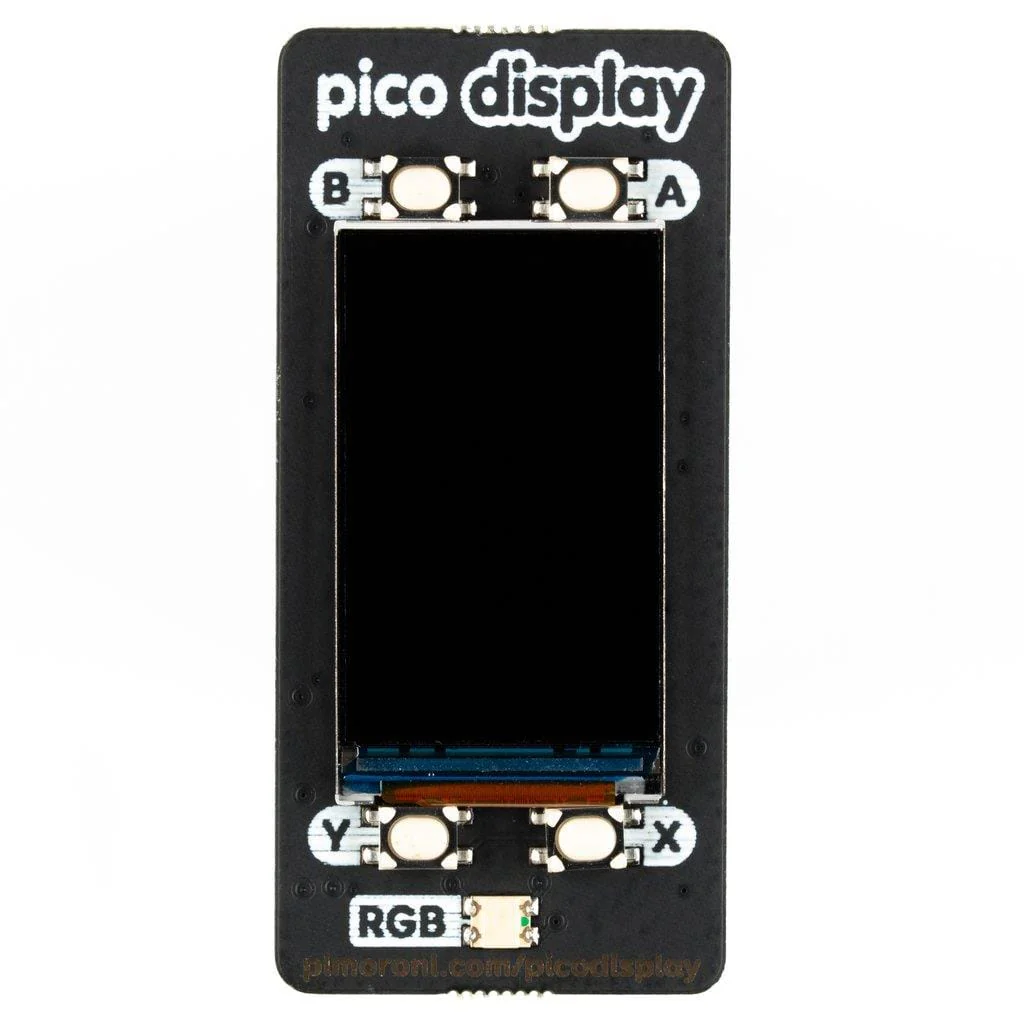

Features

• 1.14” 240x135 pixel IPS LCD screen
• 4 x tactile buttons
• RGB LED
• Pre-soldered female headers for attaching to Pico
• Compatible with Raspberry Pi Pico.
• Fully assembled
• No soldering required (as long as your Pico has header pins attached).
• Dimensions: approx 53mm x 25mm x 9mm (L x W x H)
• Screen usable area: approx 25mm x 15mm (L x W)
• C/C++ and MicroPython libraries

Getting started

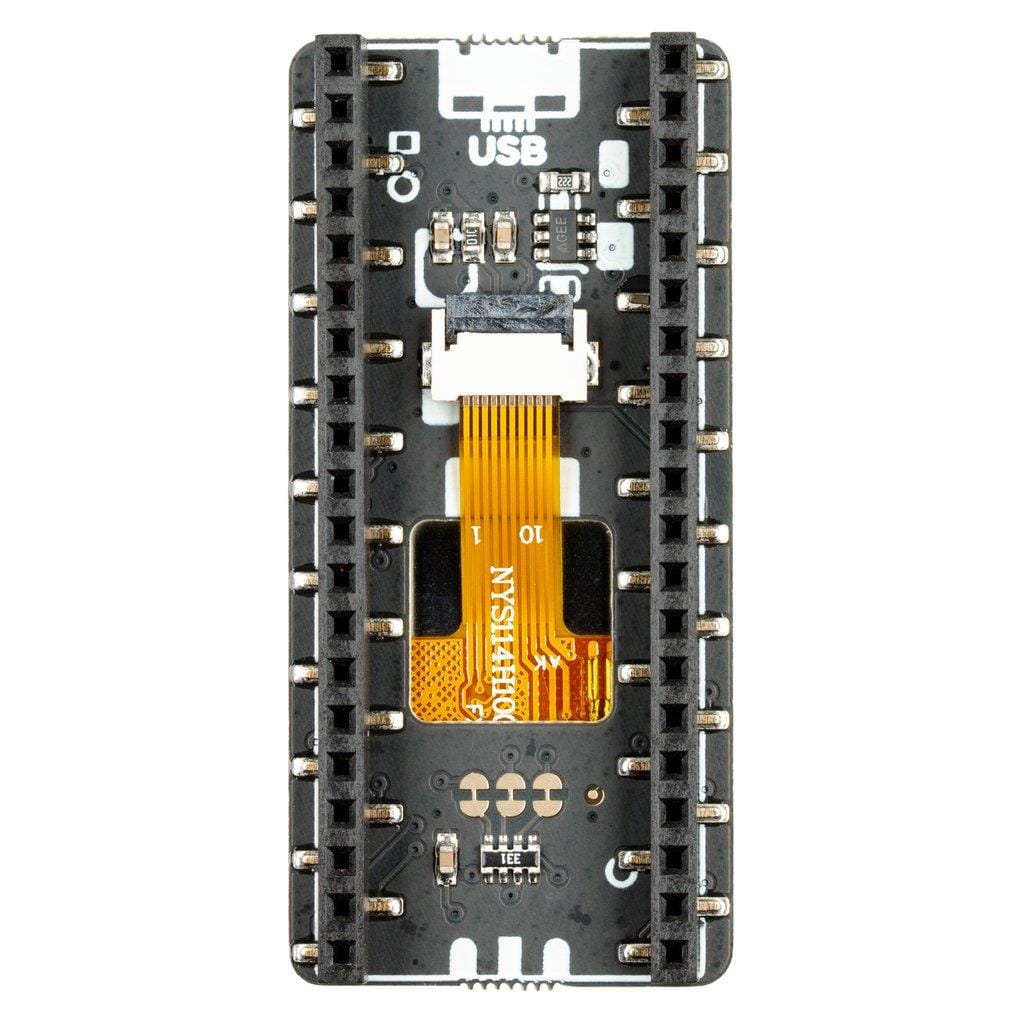

The labels on the underside of Pico Display will show you which way round to plug it into your Pico - just match up the USB port with the markings on the board.

The easiest way to get started with Pimoroni Pico add-ons is by downloading and copying the custom MicroPython firmware to your Pico. Click here for our beginner-friendly tutorial!

Pinout

Pico Display Pack communicate with the LCD display via SPI on pins LCD_CS, LCD_DC, LCD_SCLK, and LCD_MOSI. We also PWM the BL_EN pin (with gamma correction) for full, linear, backlight control. LCD_RESET is tied to the RUN pin on Pico so the LCD will be fully reset whenever Pico is.

The four switches are wired up as SW_A, SW_B, SW_X, and SW_Y.

There is also an onboard RGB LED (ideal to use an activity indicator!) which is also PWMed (with gamma correction) on pins LED_R, LED_G, and LED_B. If you want to use the LED pins for something else there are three cuttable traces on the underside of the board.

Power is supplied through 3V3 meaning that you can use Pico Scroll Pack both on USB power and from external supplies (from 1.8V to 5.5V) making it ideal for battery-powered projects.
