Pico:ed - RP2040 Development Board [Discontinued]

The Pico:ed is a development board based on the Raspberry Pi RP2040 with the same shape and size as the BBC micro:bit and the same edge-connector on the bottom! It's a Pico in micro:bit pants, with extra features for added YAY!

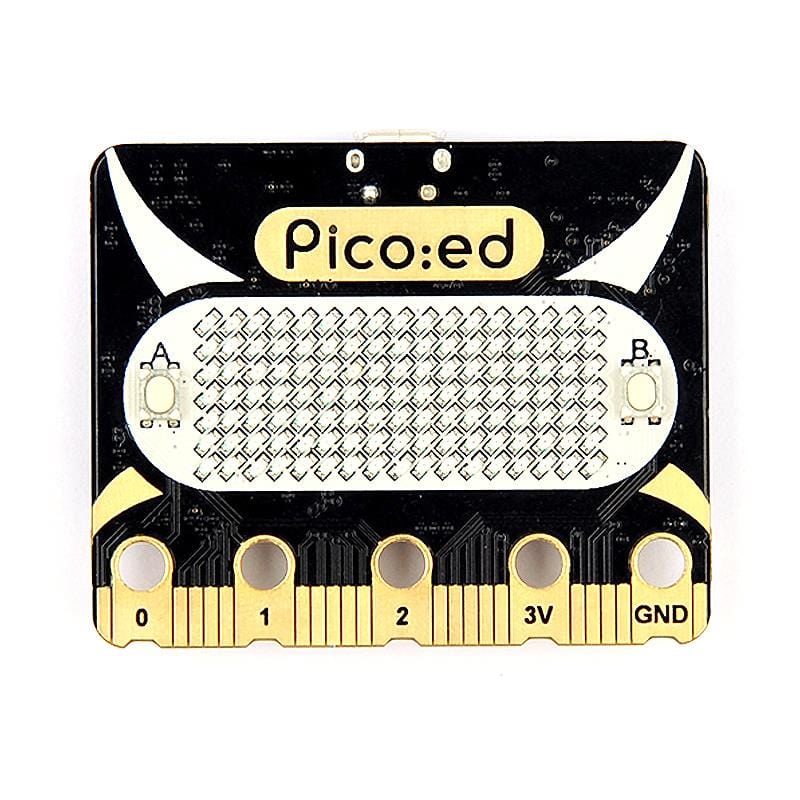

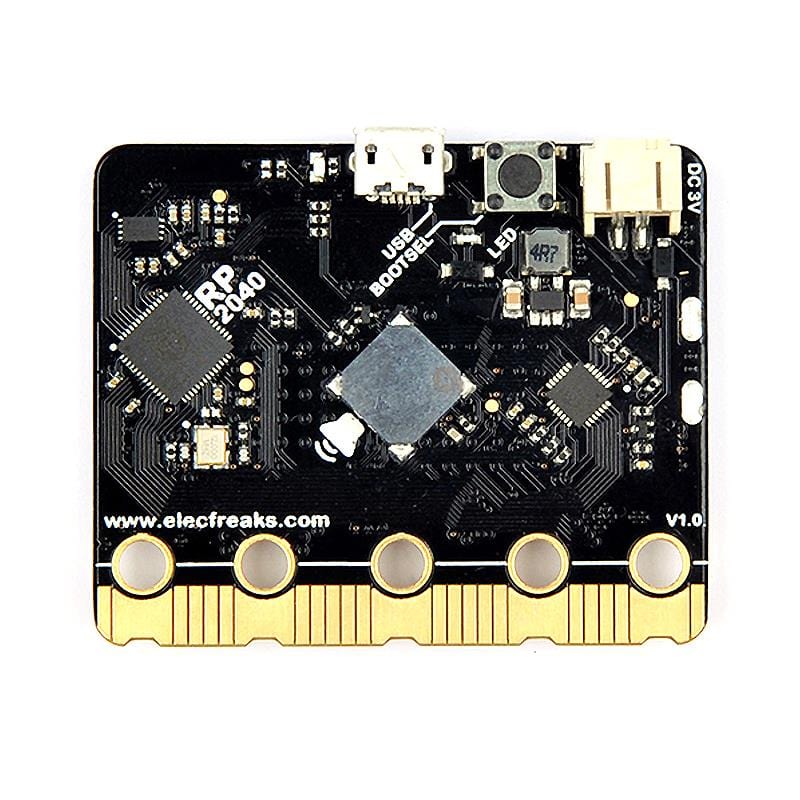

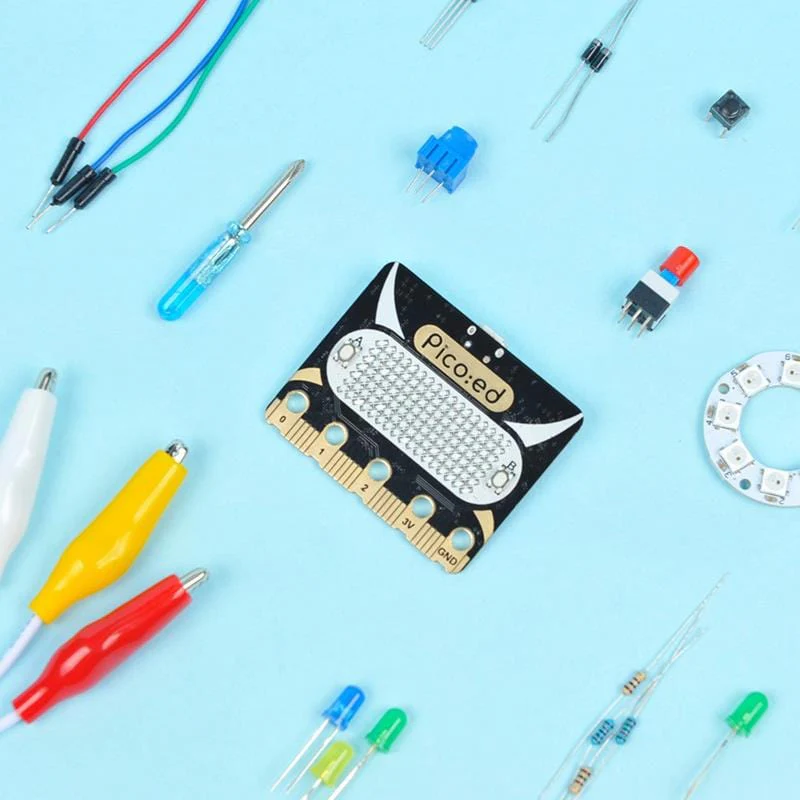

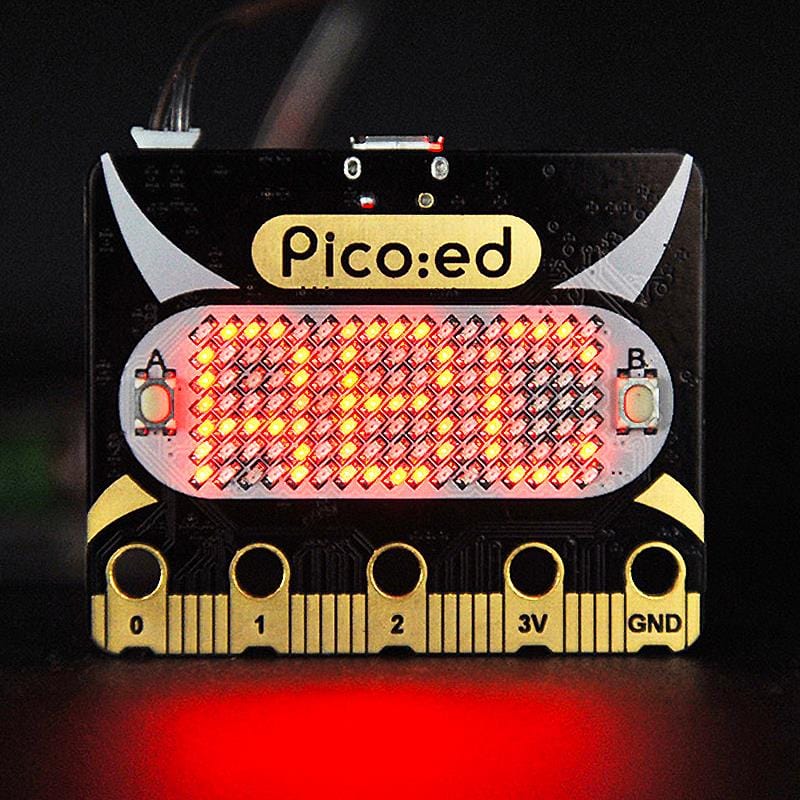

The board uses a dual-core Arm Cortex-M0+ processor with 264KB RAM. The board features two buttons, a 7x17 LED dot matrix, buzzer and even a little LED behind the 'i' in 'Pico' on the front of the board! With the same edge connector as the popular micro:bit board, you can use most micro:bit add-ons and extensions, or simply wire up your own parts with crocodile clip cables!

Just like the micro:bit, you can power the Pico:ed with a Micro-USB cable (used for programming as well) or via the JST connector with a battery holder.

As the board uses an RP2040 chip you can program it with popular supported languages such as Python and C++. We have our own Getting Started with the Elecfreaks Pico:ed guide showing how to control the board's features, including the dot matrix display and even use externally connected OLED!

Specifications

Item	Parameter
MCU	RP2040
SRAM	256KB
Flash	2MB
Programmable IO	19
Onboard Device	Buzzer, LED, 7x17 LED matrix, 2x Button
Program Language	Micropython, C++
Size	Approx. 52mm X 42mm
Net Weight	10g

Package Contents

• 1x Pico:ed board

Resources

• Getting started with the Elecfreaks Pico:ed
• Manufacturer documentation
  • Python Samples
  • Sample Projects
  • Technical Files
  • Pinout
