Pico to Pi HAT

Bring your Raspberry Pi Pico or Pico-pin-compatible boards into the standard Raspberry Pi form-factor!

This HAT compatible GPIO mapper is a game changer, enabling hobbyists to use the hundreds of available HATs with their favourite microcontroller boards! Develop ever-faster by combining the speed and lightweight-nature of the Pico with the ecosystem of Raspberry Pi HATs - just use the pinout to see where pins are mapped to.

The colour-coded male 40-pin header also makes developing on your Pico boards easier than ever, whether or not you have HATs to incorporate into your project.

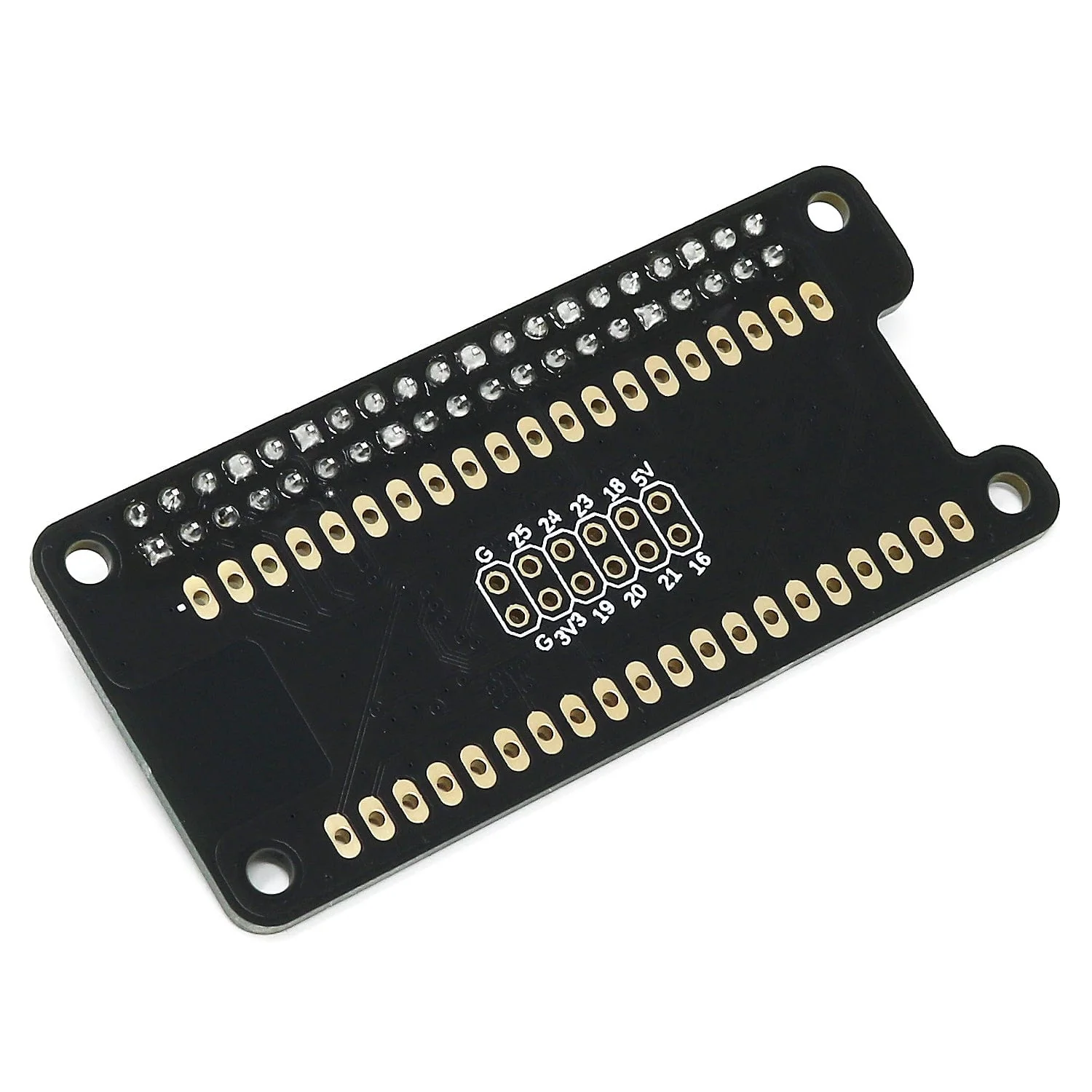

Plus, with 8 GPIOs exposed underneath, along with 5V, 3.3V, and 2x GND pins, you can leverage the full flexibility of the Pico's adaptable pin configurations (especially on these ESP32-S3 boards, where you can very dynamically alter the purpose of pins, and this layout offers a lot of flexibility).

Available Options

This board is available in two different versions (select option before adding to cart). Both versions have the colour-coded header pre-soldered:

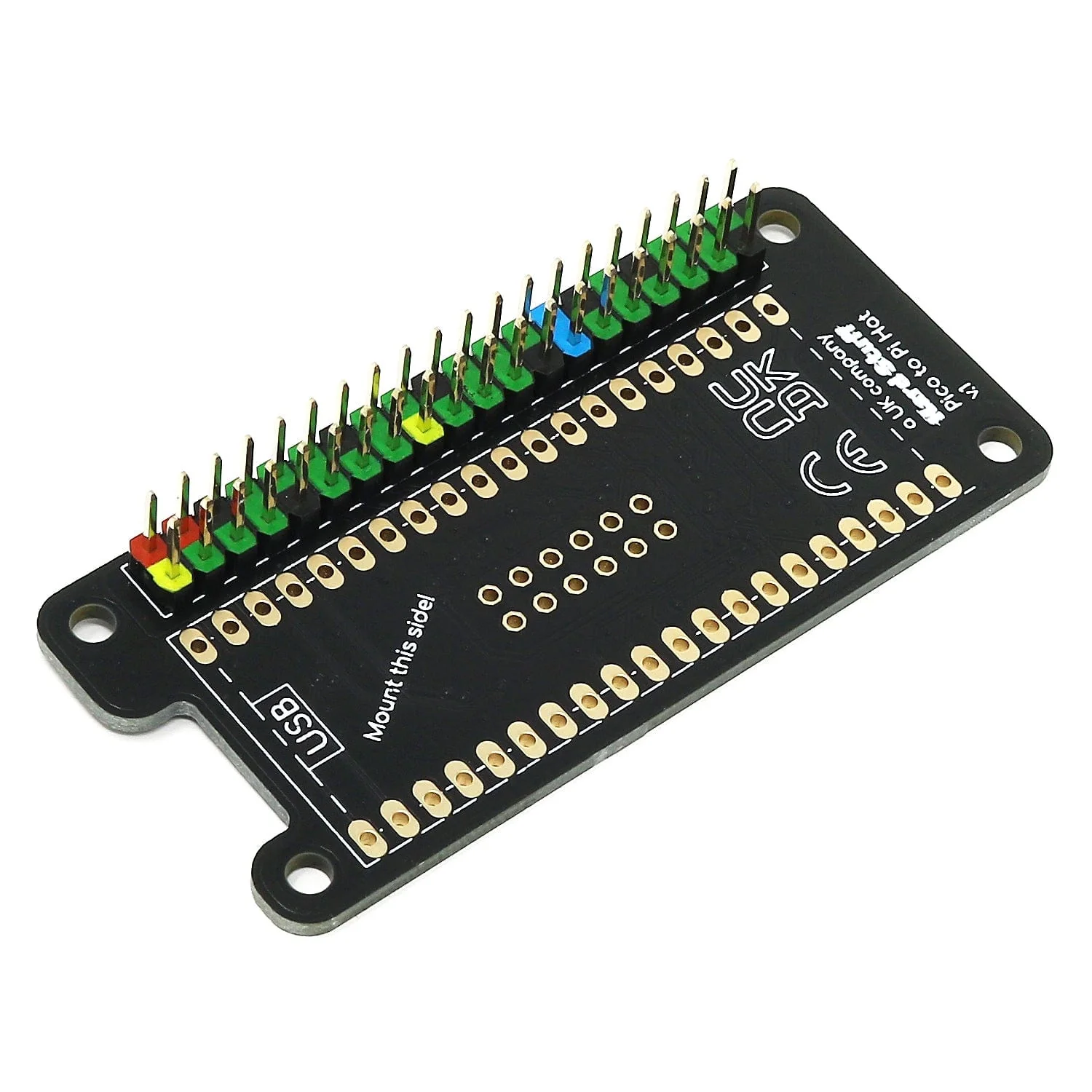

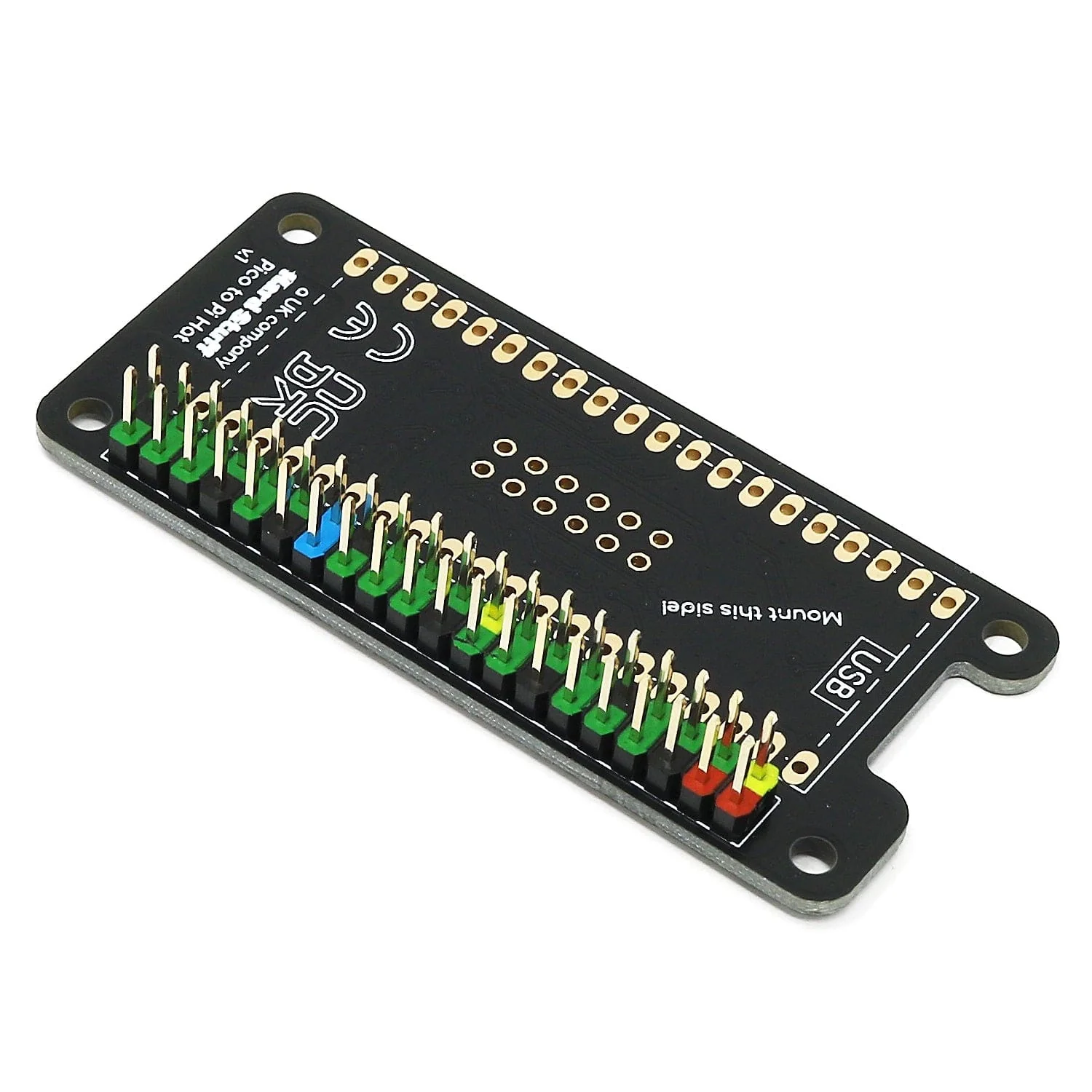

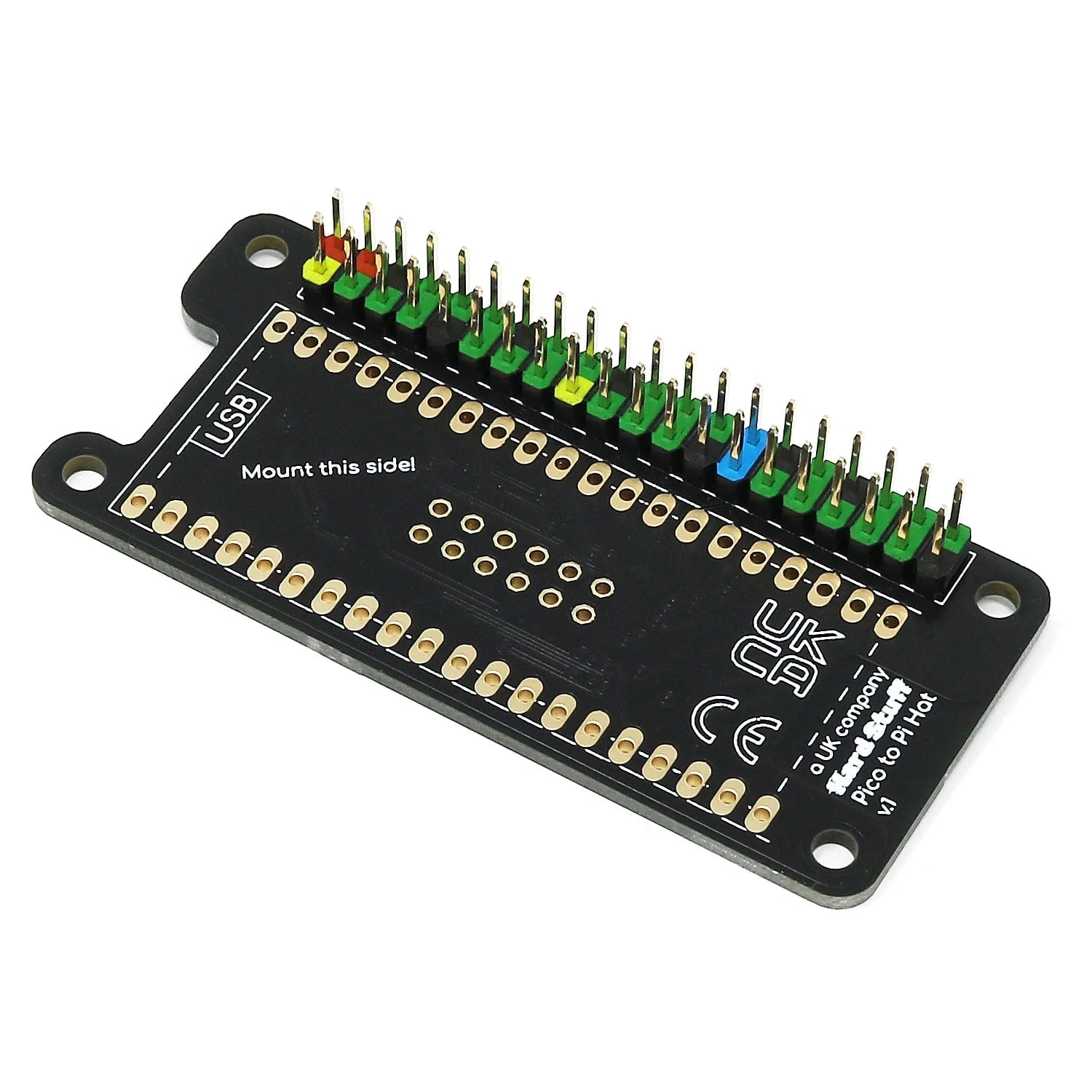

• Pico to Pi HAT X - Board only (for soldering your Pico flush to the board, or even using your own headers of choice). Soldering required.

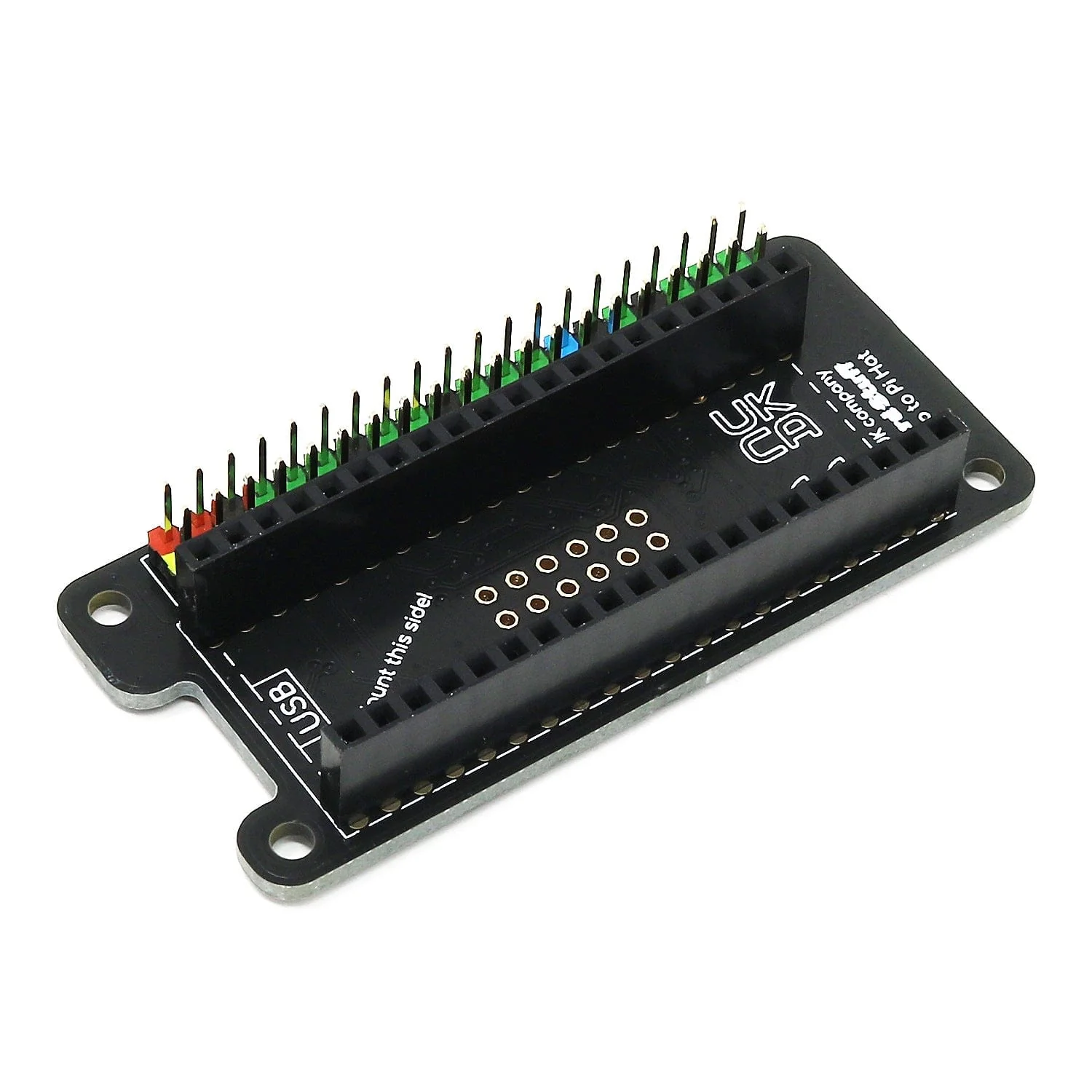

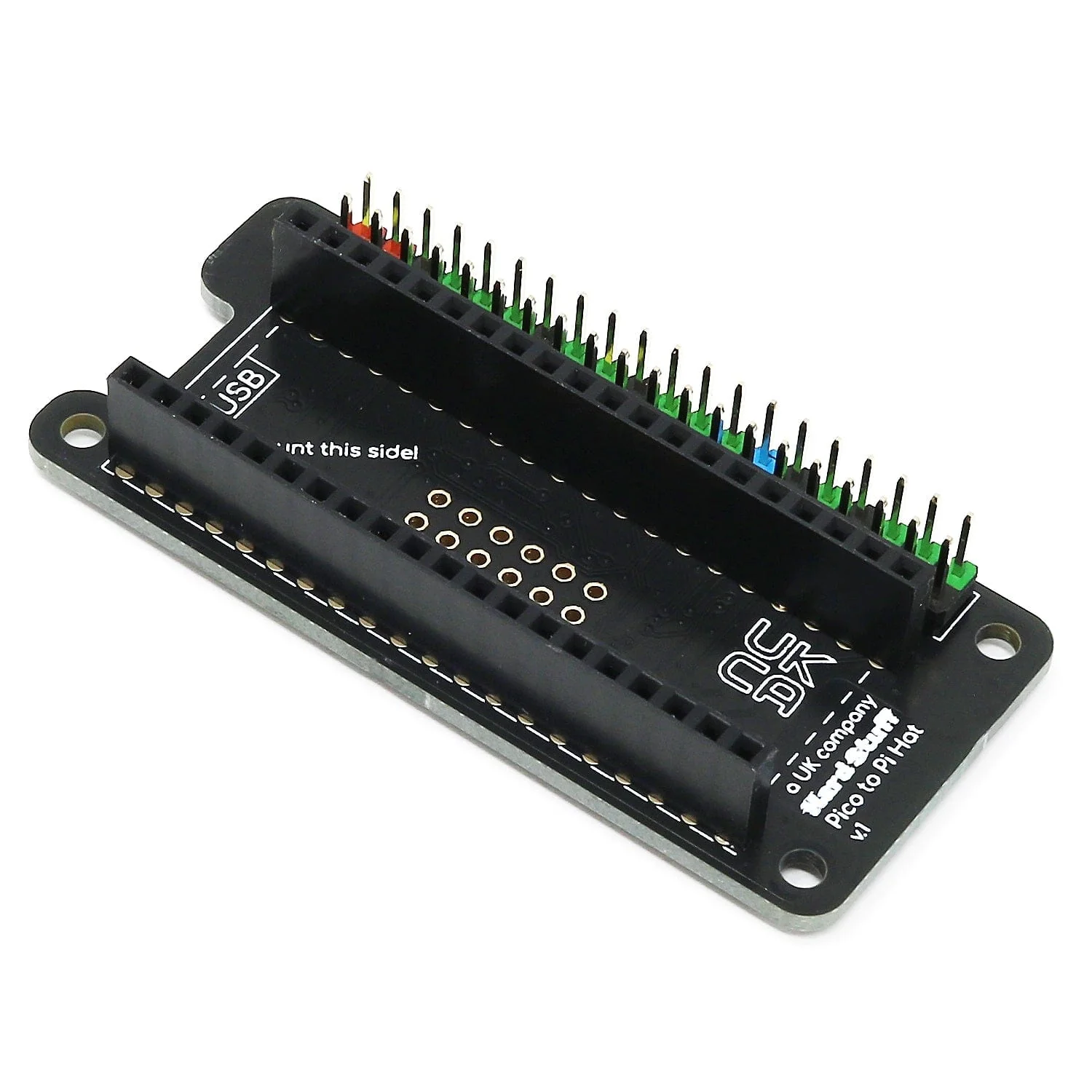

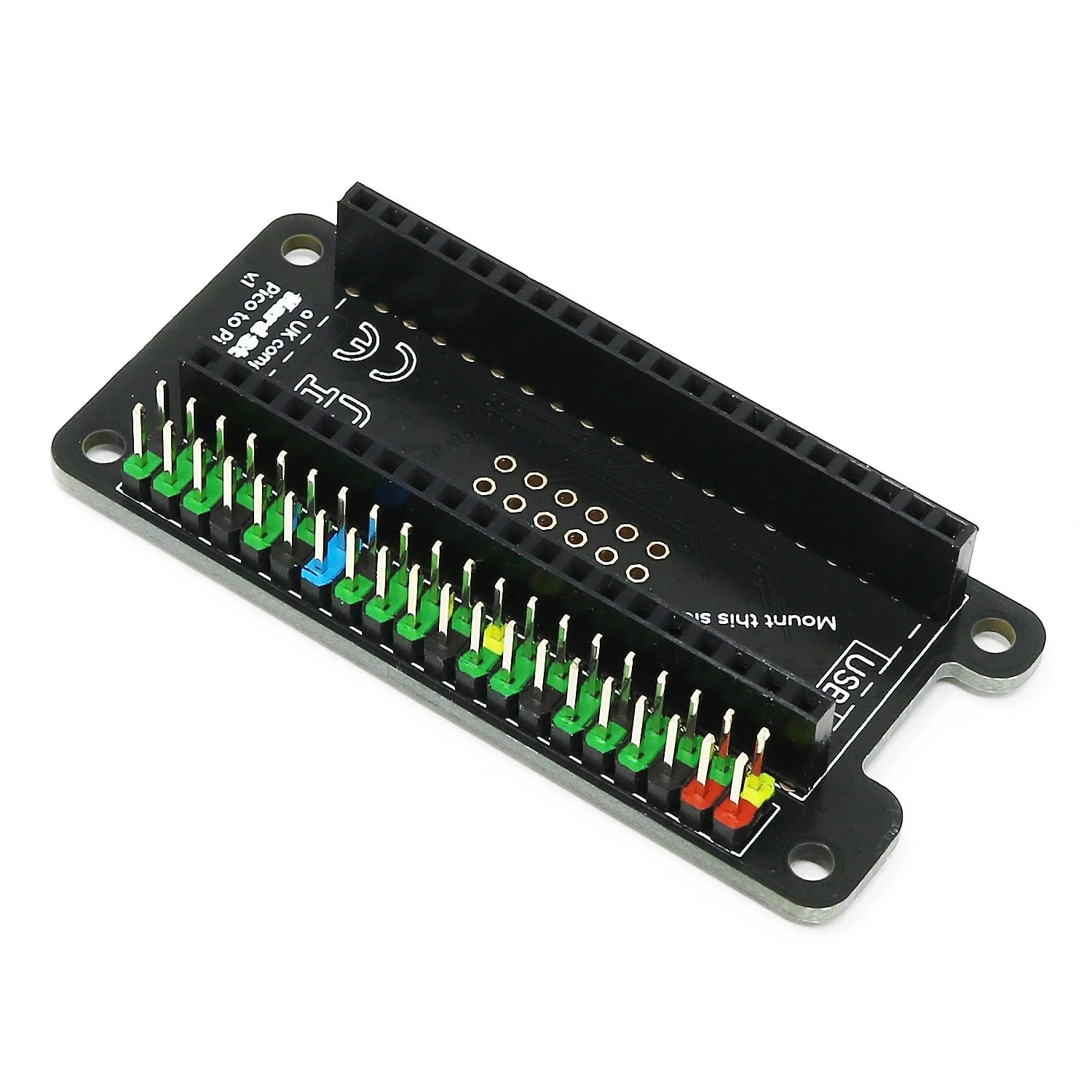

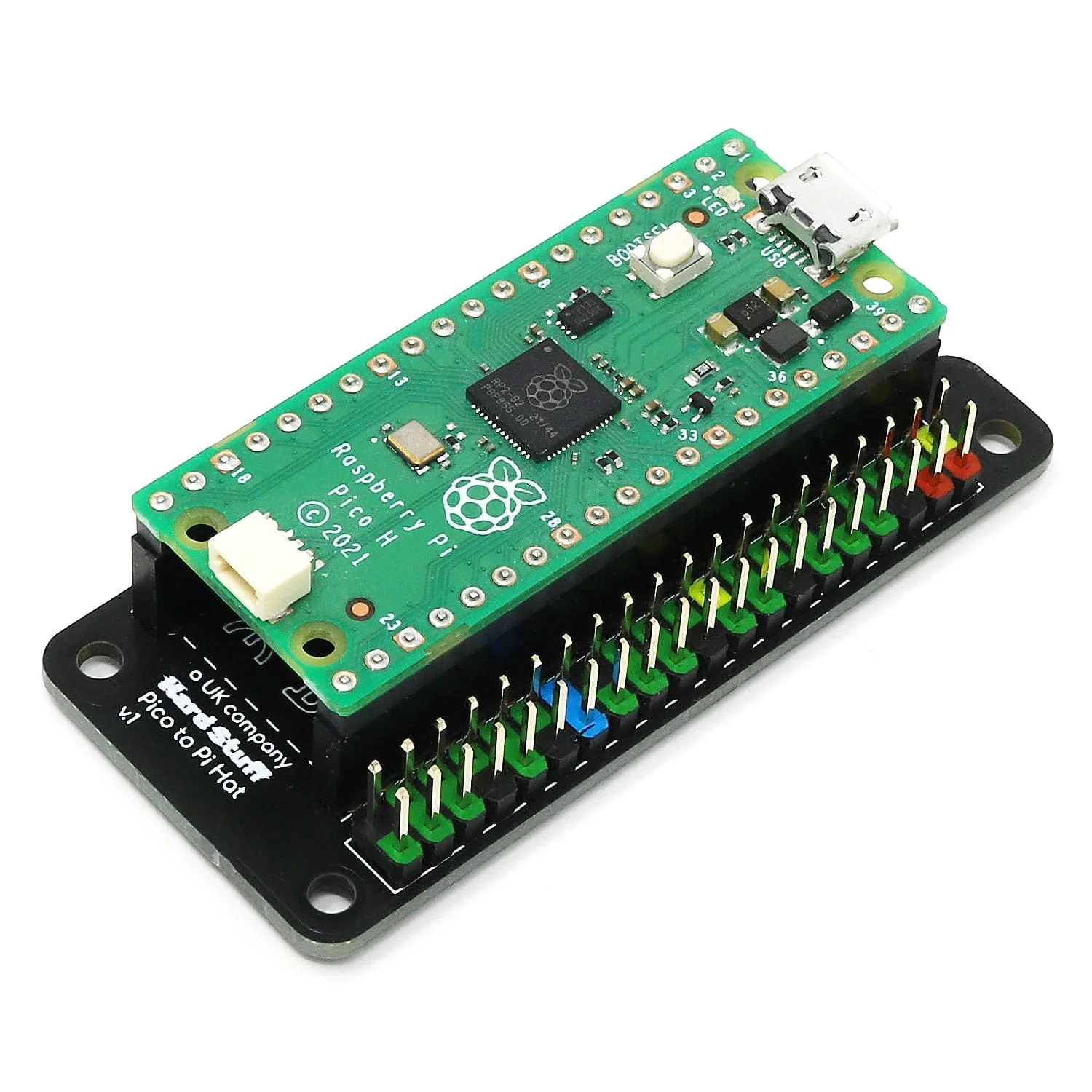

• Pico to Pi HAT H - Pre-soldered female headers for plug n' play with your Pico H. The included 40-pin spacer gives you more breathing room for those tight-fitting boards. No soldering required!

Note: Raspberry Pi Pico not included.

Resources

• Pinout map
• Header file for Arduino/C++

Package Contents

The package contents depends on the version you purchase:

• Pico to Pi HAT X
  • 1x Pico to Pi HAT board

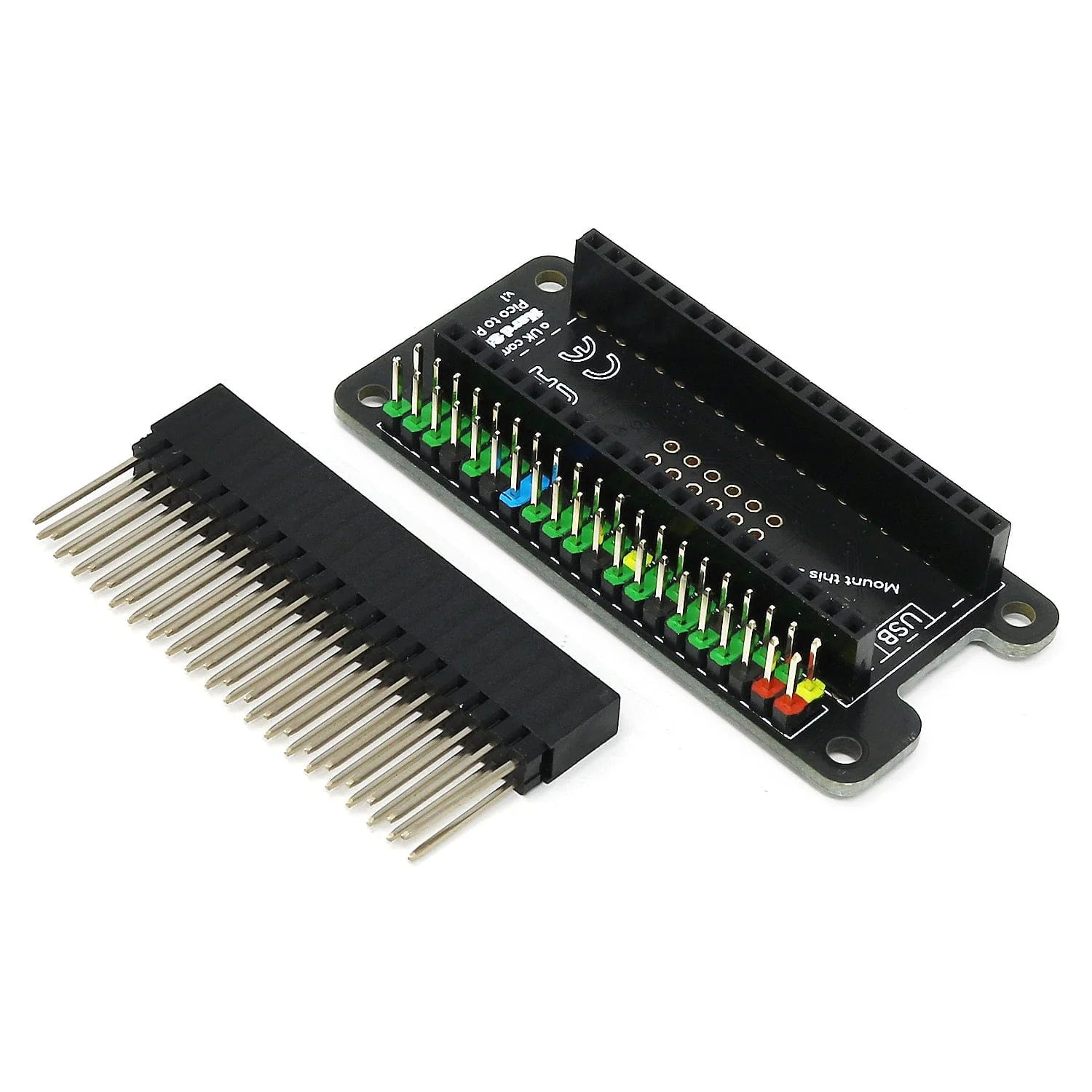

• Pico to Pi HAT H
  • 1x Pico to Pi HAT board (with pre-soldered female headers)
  • 1x 40-pin riser header
