$7.27The Story

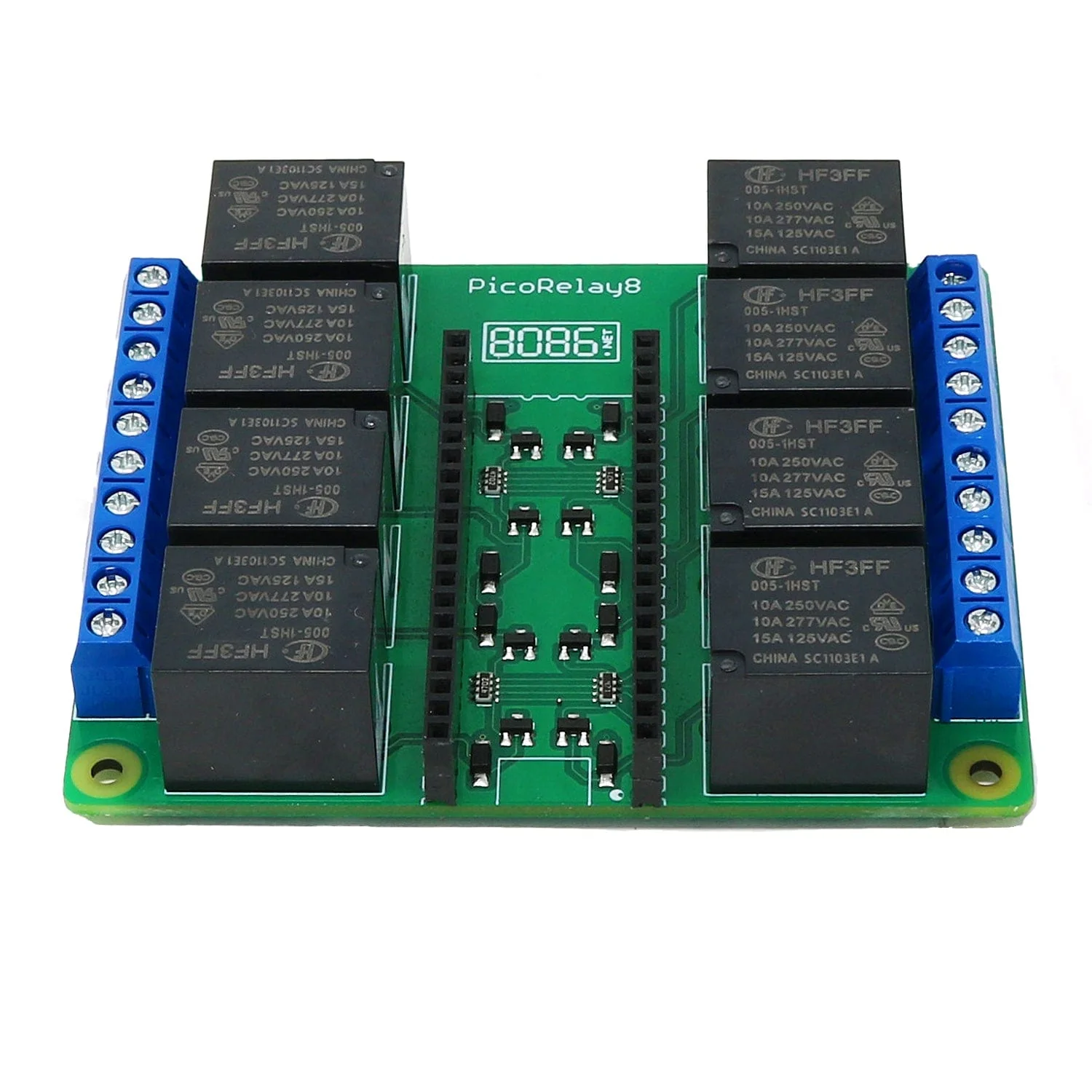

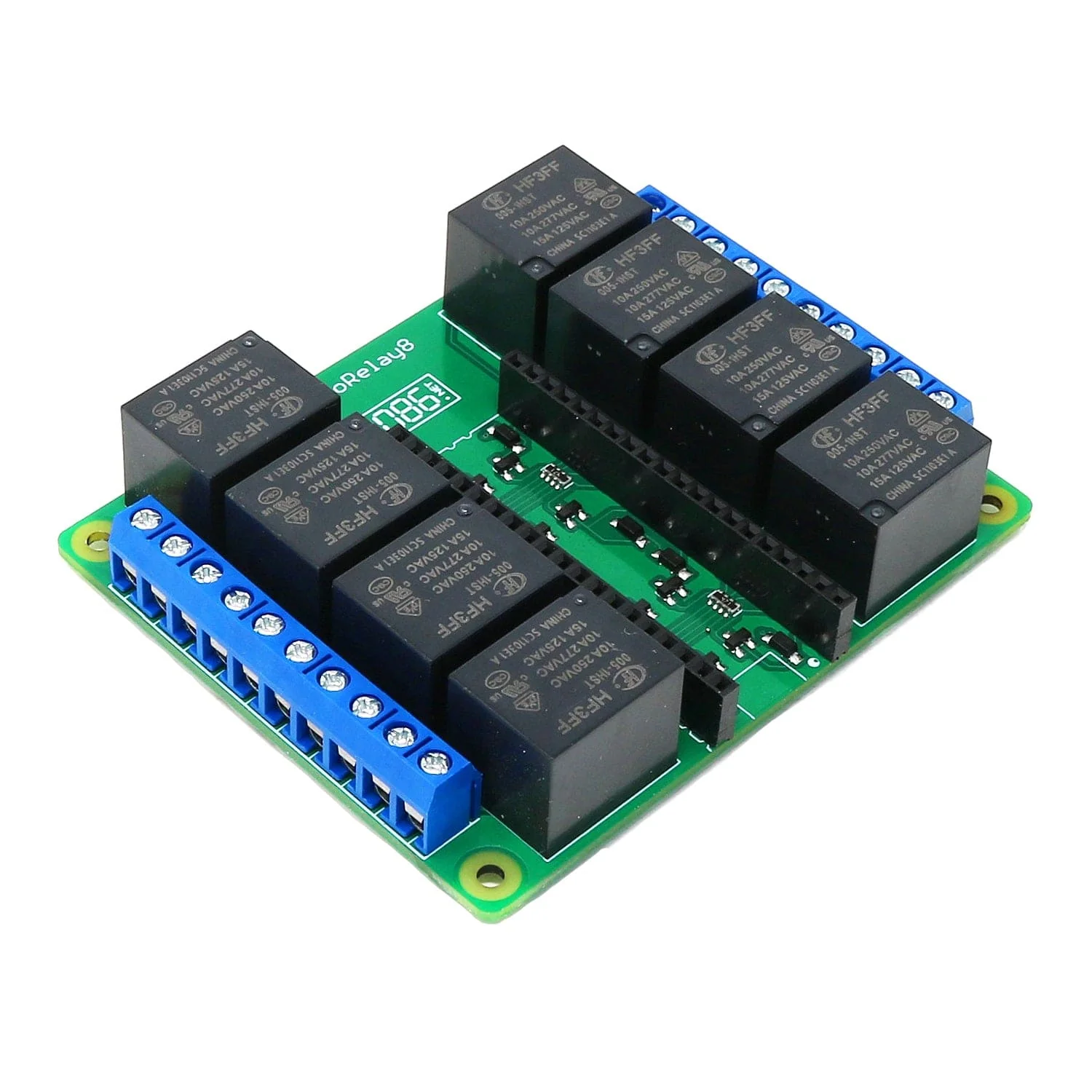

The PicoRelay8 allows eight 28V DC/10A Normally Open relays to be controlled using a Raspberry Pi Pico.
Each relay is controlled by a Pico GPIO pin - setting the pin high will close the relay's contacts allowing you to turn on the device and setting the GPIO pin low will open the contacts turning it off.
When all 8 relays are energised the PicoRelay8 will use just under 500mA so please ensure the power supply/computer is capable of supplying 500mA or ensure all relays are not energised together.
IMPORTANT: The PicoRelay8 MUST NOT be used to switch mains voltages
Package Contents
- 1x PicoRelay8 board
Raspberry Pi Pico not included
Resources
- Raspberry Pi Pico Pinout

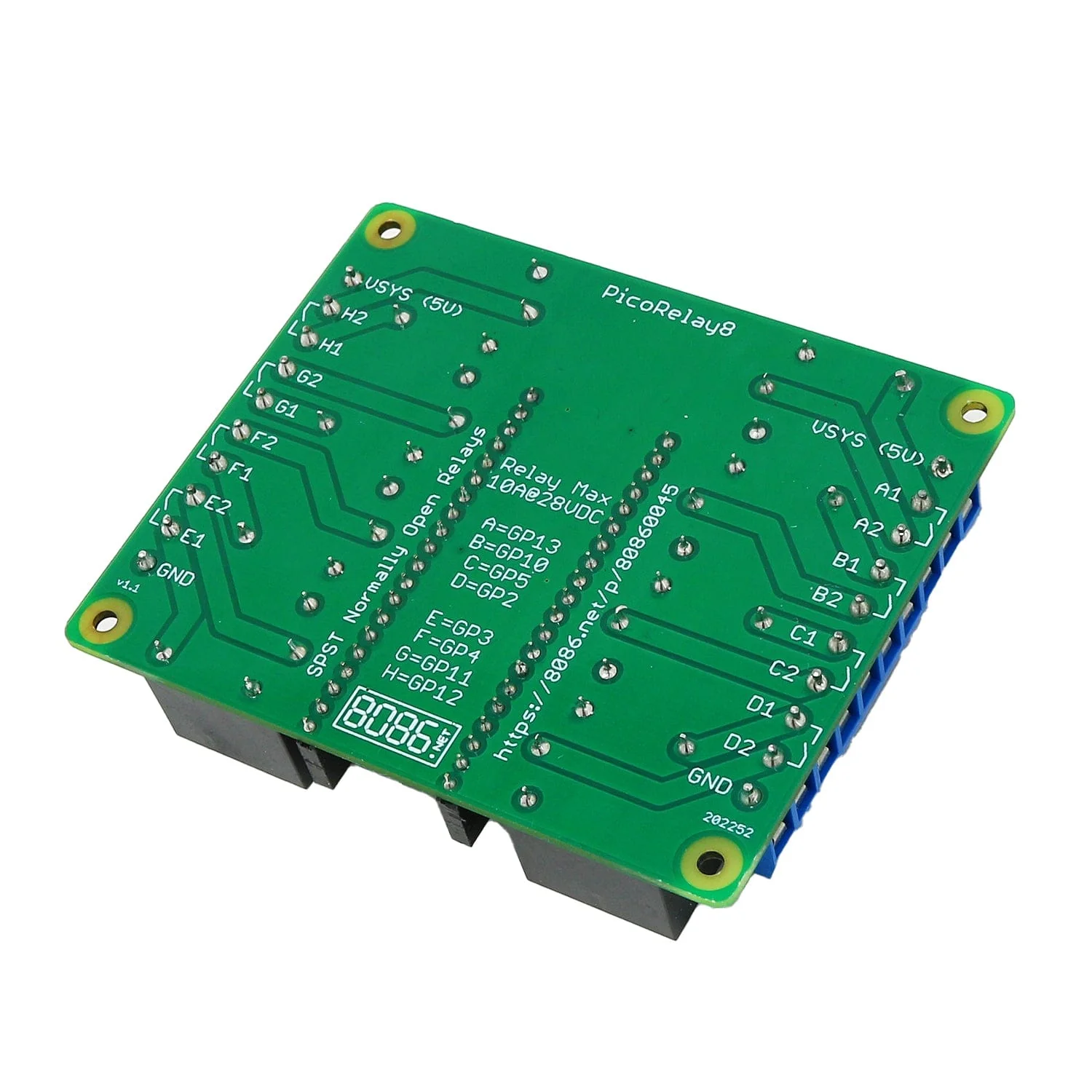

Pinout
| Relay | Pico GPIO |
| A | GP13 |
| B | GP10 |
| C | GP5 |
| D | GP2 |
| E | GP3 |
| F | GP4 |
| G | GP11 |
| H | GP12 |
