PiFace Motor Extra [Discontinued]
HomeStore

PiFace Motor Extra [Discontinued]

PiFace Motor Extra [Discontinued]

$25.19
PiFace Motor Extra [Discontinued]—
$25.19

The Story

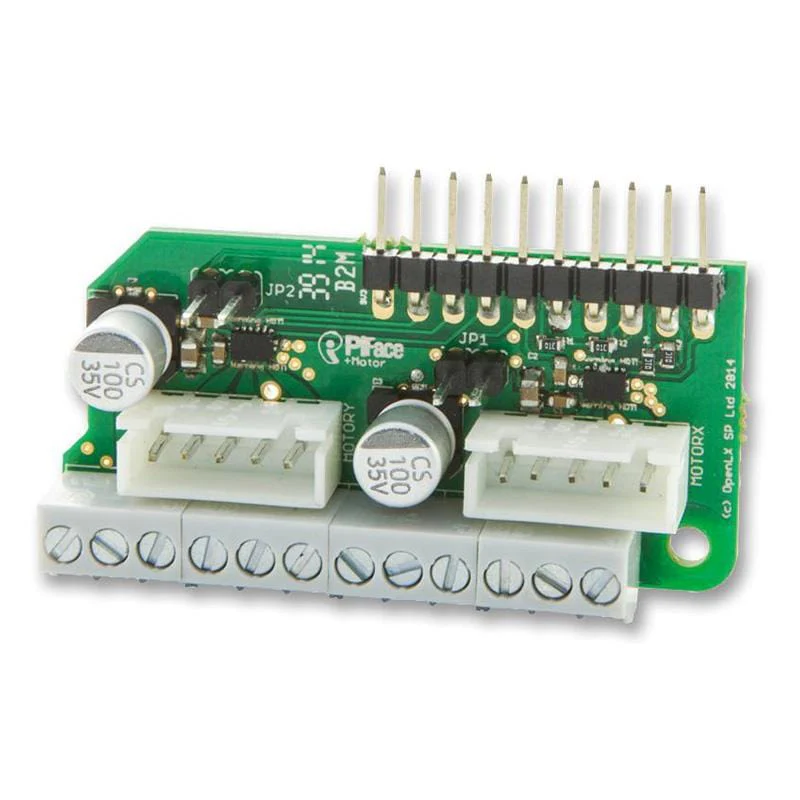

The PiFace Motor Extra is an expander board to the PiFace Relay+ board, adding two H-bridge motor controllers to the PiFace Relay+ to control DC and stepper motors in your programs.
Note: The PiFace Motor Extra requires a PiFace Relay+ board to work your Raspberry Pi.
Features
  • 2 Dual H-bridge motor drivers, allowing you to drive 4 DC motors
  • Raspberry Pi® HAT footprint when used with PiFace™ Relay
  • Easy connection with screw terminals
  • Can be used directly in breadboards, prototyping and custom designs
  • Motor power supply voltage 0V to 11V
  • Device power supply voltage 2V to 7V
  • 4 changeover relays, 20V 1A switching max
  • Operating Temp 40° to 70°
  • Standard 0.1” pin spacing (breadboard & veroboard compatible) PiFace

Instruction Manual

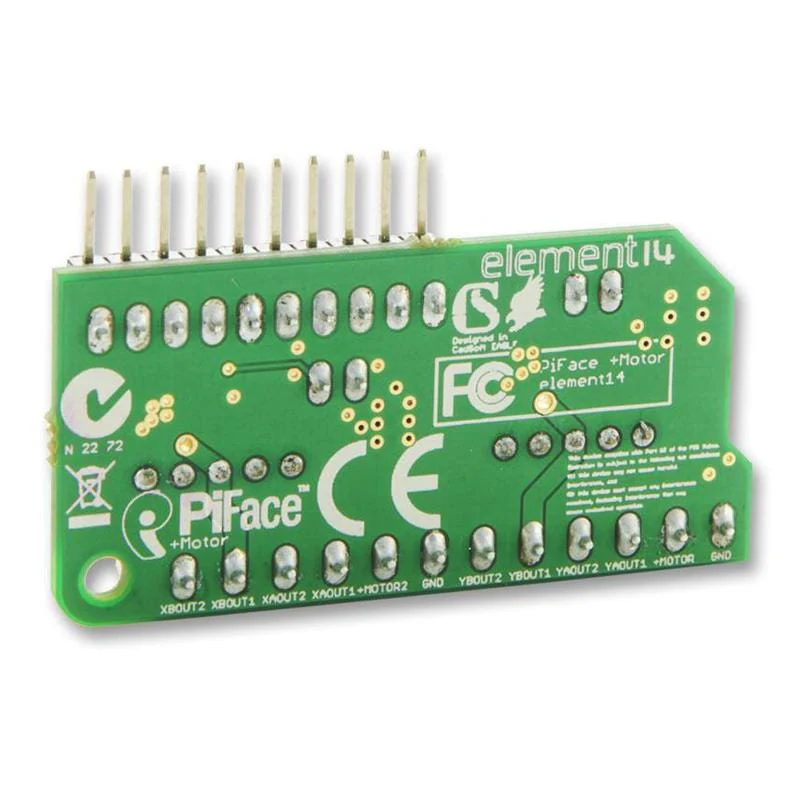

    PiFace Motor Extra [Discontinued] - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

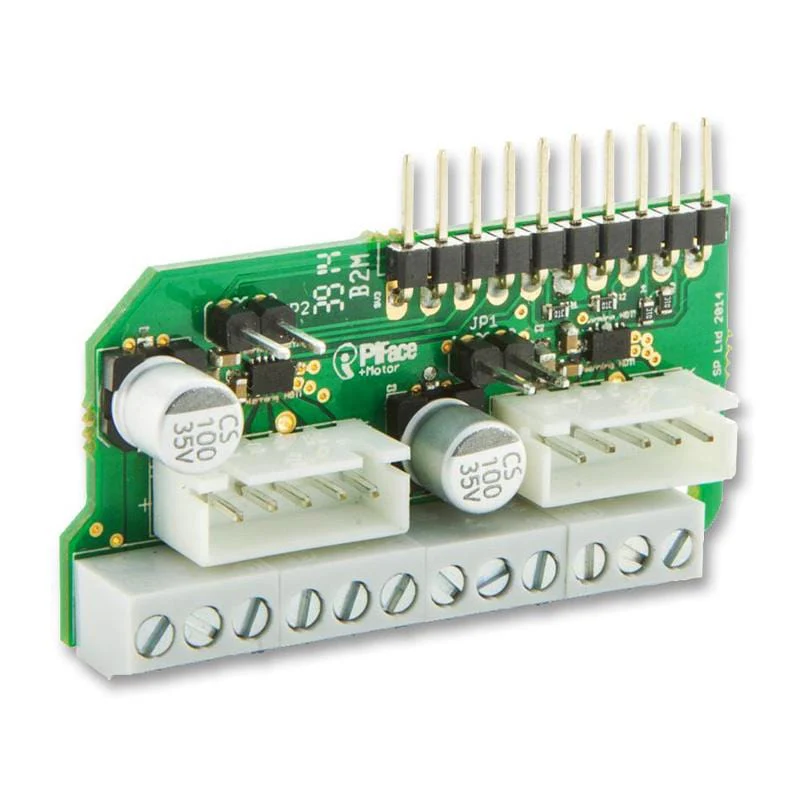

    PiFace Motor Extra [Discontinued] - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    The PiFace Motor Extra is an expander board to the PiFace Relay+ board, adding two H-bridge motor controllers to the PiFace Relay+ to control DC and stepper motors in your programs.
    Note: The PiFace Motor Extra requires a PiFace Relay+ board to work your Raspberry Pi.
    Features
    • 2 Dual H-bridge motor drivers, allowing you to drive 4 DC motors
    • Raspberry Pi® HAT footprint when used with PiFace™ Relay
    • Easy connection with screw terminals
    • Can be used directly in breadboards, prototyping and custom designs
    • Motor power supply voltage 0V to 11V
    • Device power supply voltage 2V to 7V
    • 4 changeover relays, 20V 1A switching max
    • Operating Temp 40° to 70°
    • Standard 0.1” pin spacing (breadboard & veroboard compatible) PiFace

    Instruction Manual
