PiRelay V2 - Relay Board for Raspberry Pi [Discontinued]

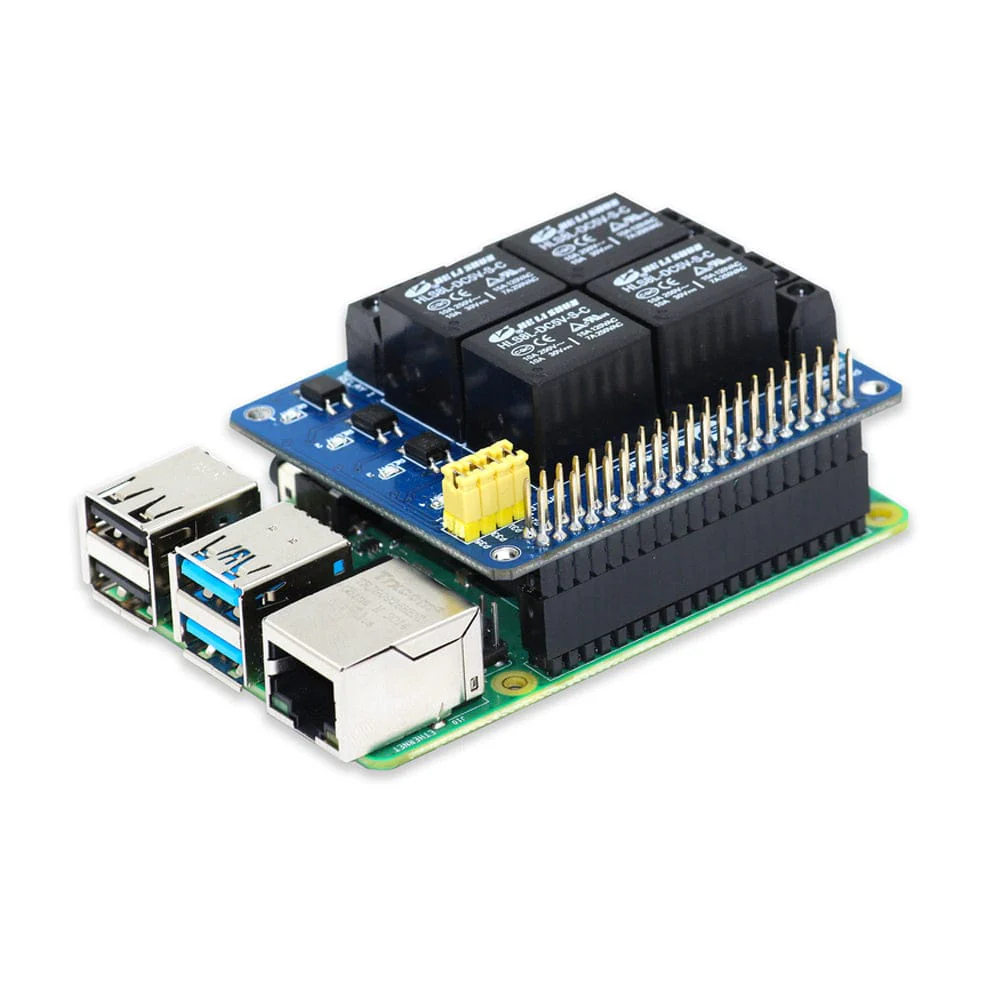

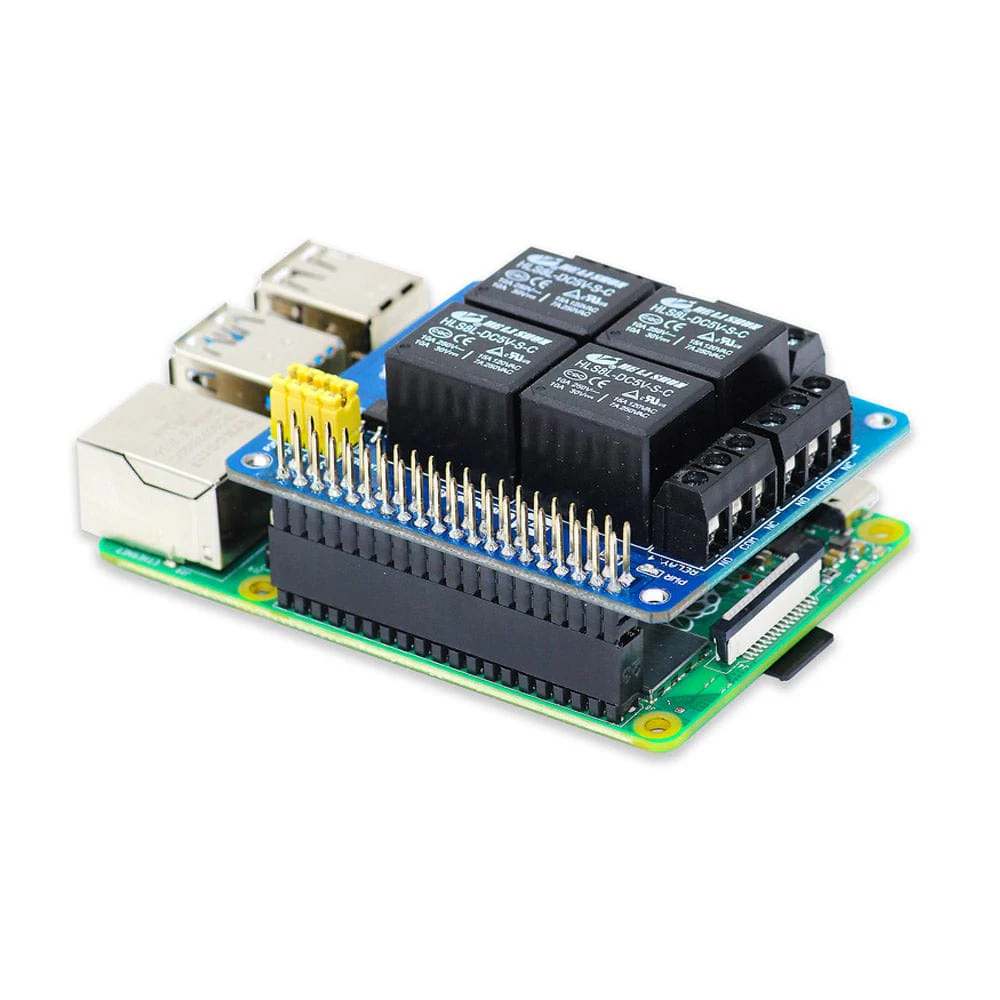

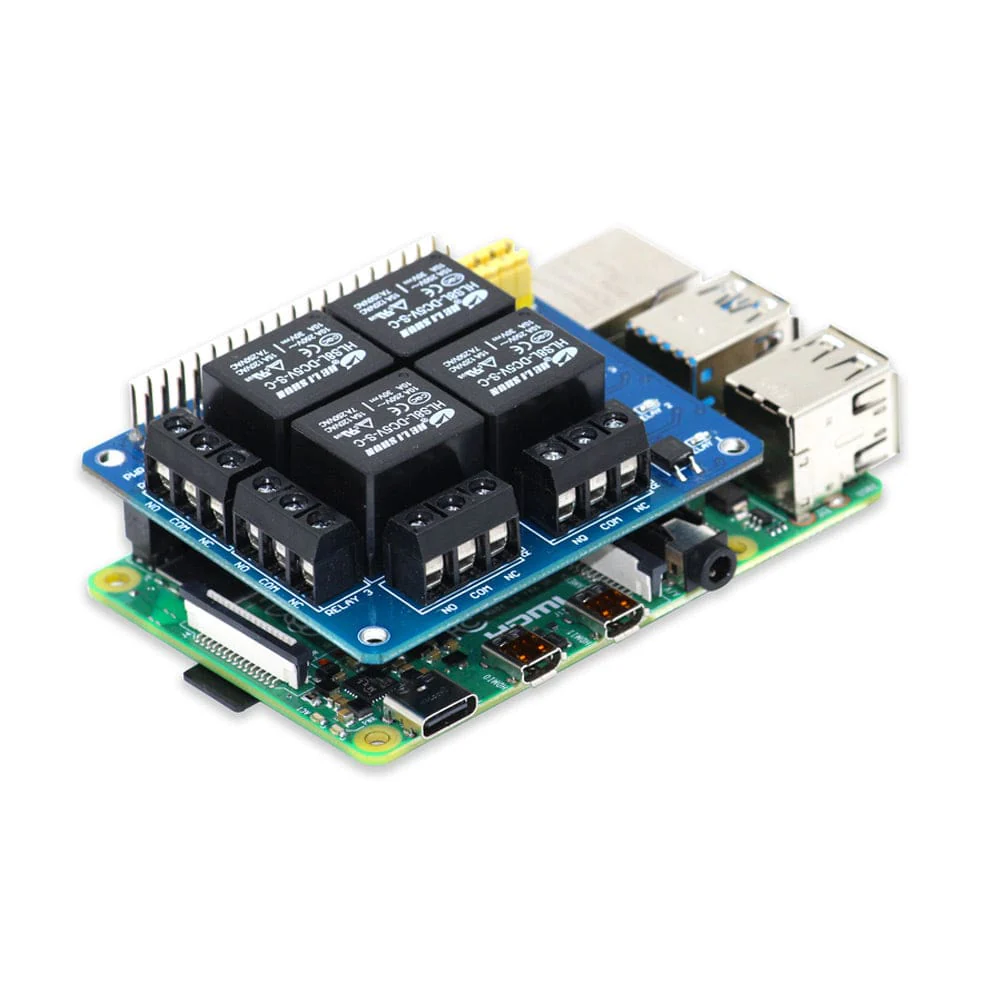

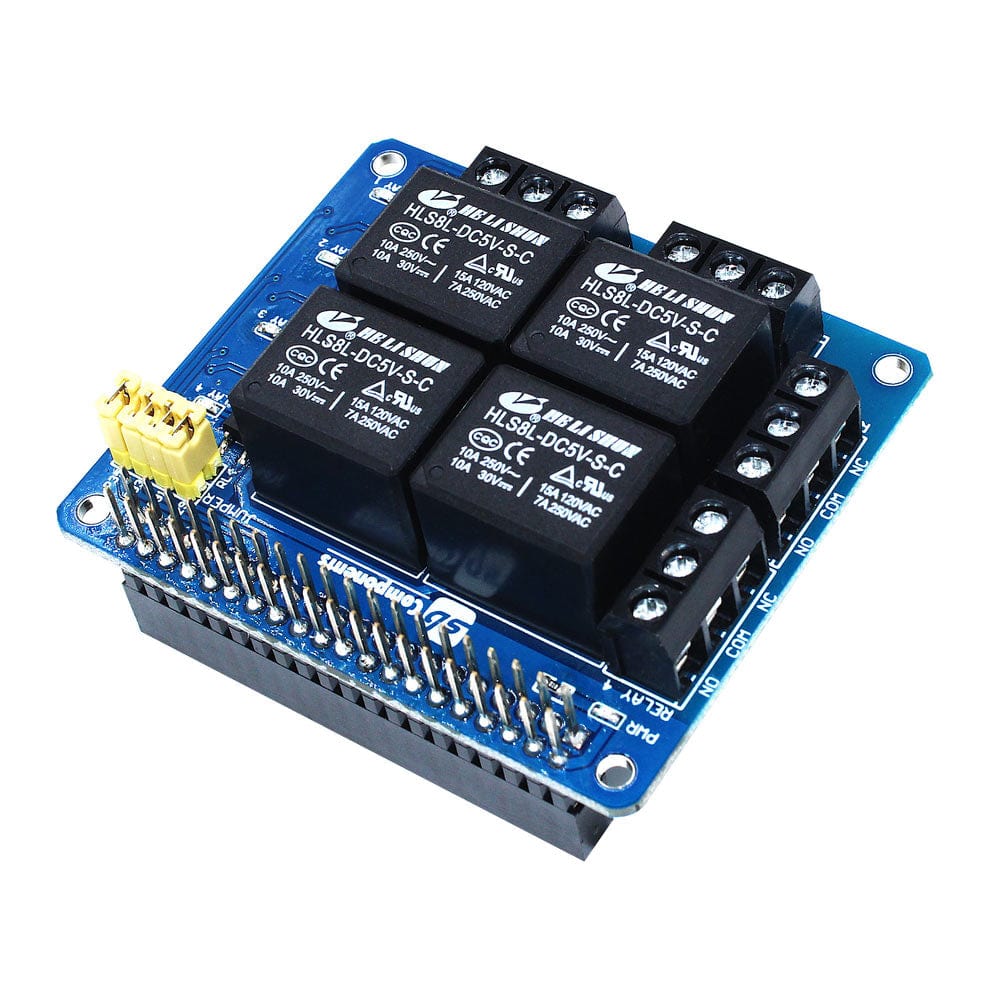

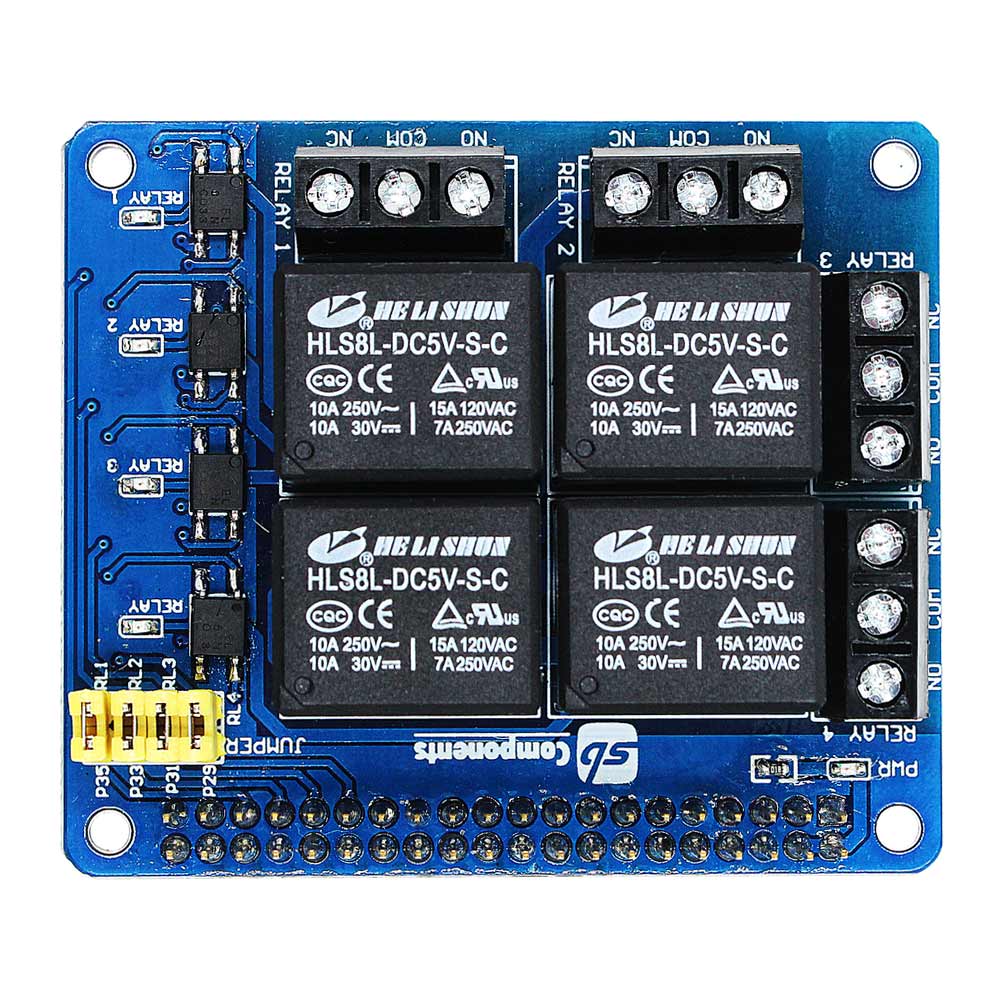

The PiRelay V2 is a Raspberry Pi relay add-on board that provides a solution for controlling high current/voltage devices and makes your home appliances intelligent.

It's a nice solution for controlling devices that can't be directly controlled by the Raspberry Pi's Digital I/Os (GPIO). The standardised HAT form factor enables a smooth connection with Raspberry Pi.

The board includes indicator LEDs for easy debugging and can switch loads of up to 240VAC/7A, 30VDC/10A.

Features

• Control 4 appliances
• Octocoupler

• Relay status indicators
• Compatible with Raspberry Pi 4, 3B+, 3, 2, Zero
• 40-pin stacking header
• Control PiRelay through PiRelay mobile app
• Make your home IoT enabled

Package contents

• 1 x PiRelay V2 HAT

Resources

• Example Code, Python Library, Instruction Manual and Schematic here

Specifications

• 4 High-quality relays - loads up to 240VAC/7A, 30VDC/10A
• Standardized HAT shape and design
• LED status indicators for each relay
• 40-pin stacking header for accessing GPIO
• Connectivity of the Relay with Raspberry Pi without GPIO
  • 5V
  • GND
  • BCM GPIO 5 -> Relay 4
  • BCM GPIO 6 -> Relay 3
  • BCM GPIO 13 -> Relay 2
  • BCM GPIO 19 -> Relay 1
• Comes with development resources, including examples in python

• Control through PiRelay app on Andriod
