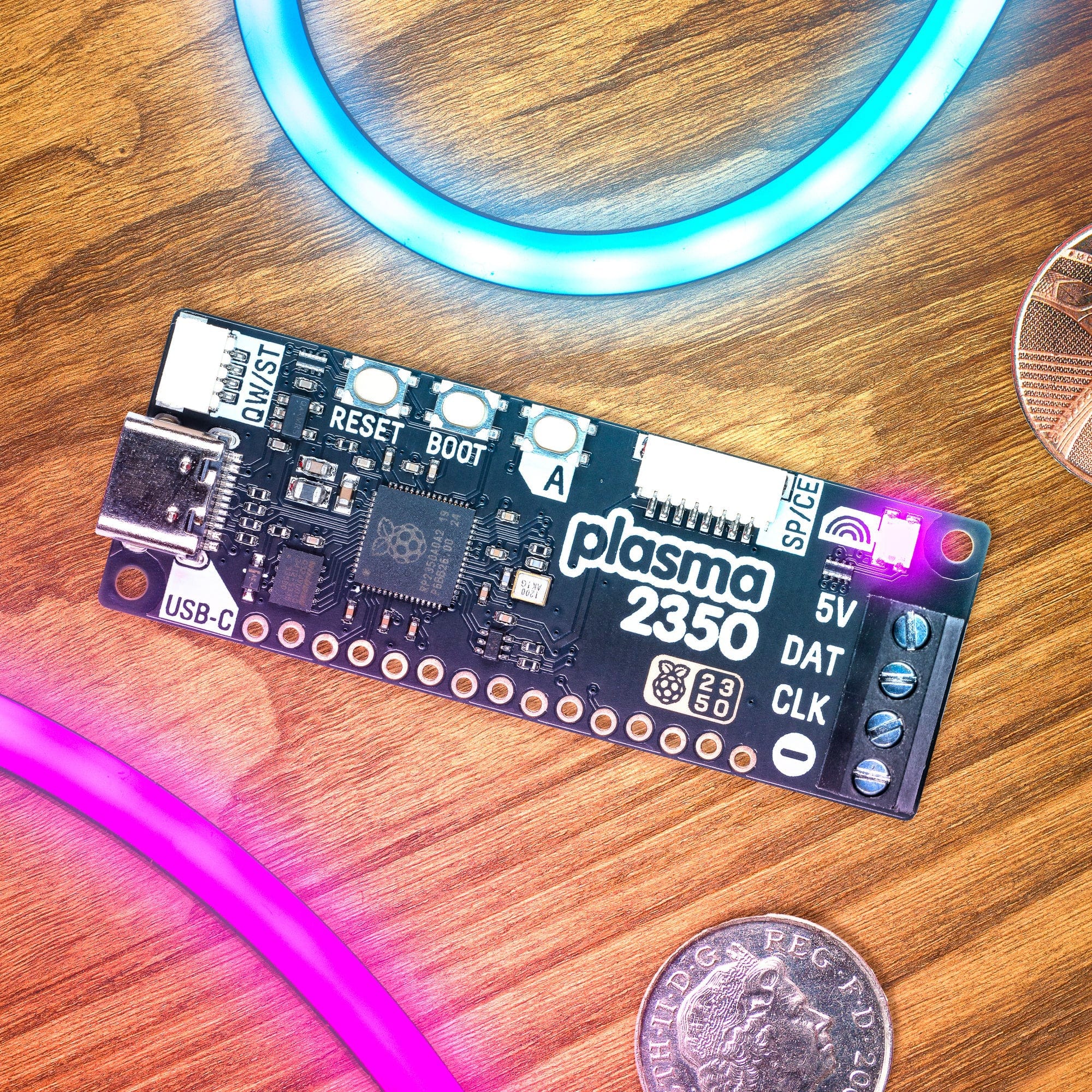

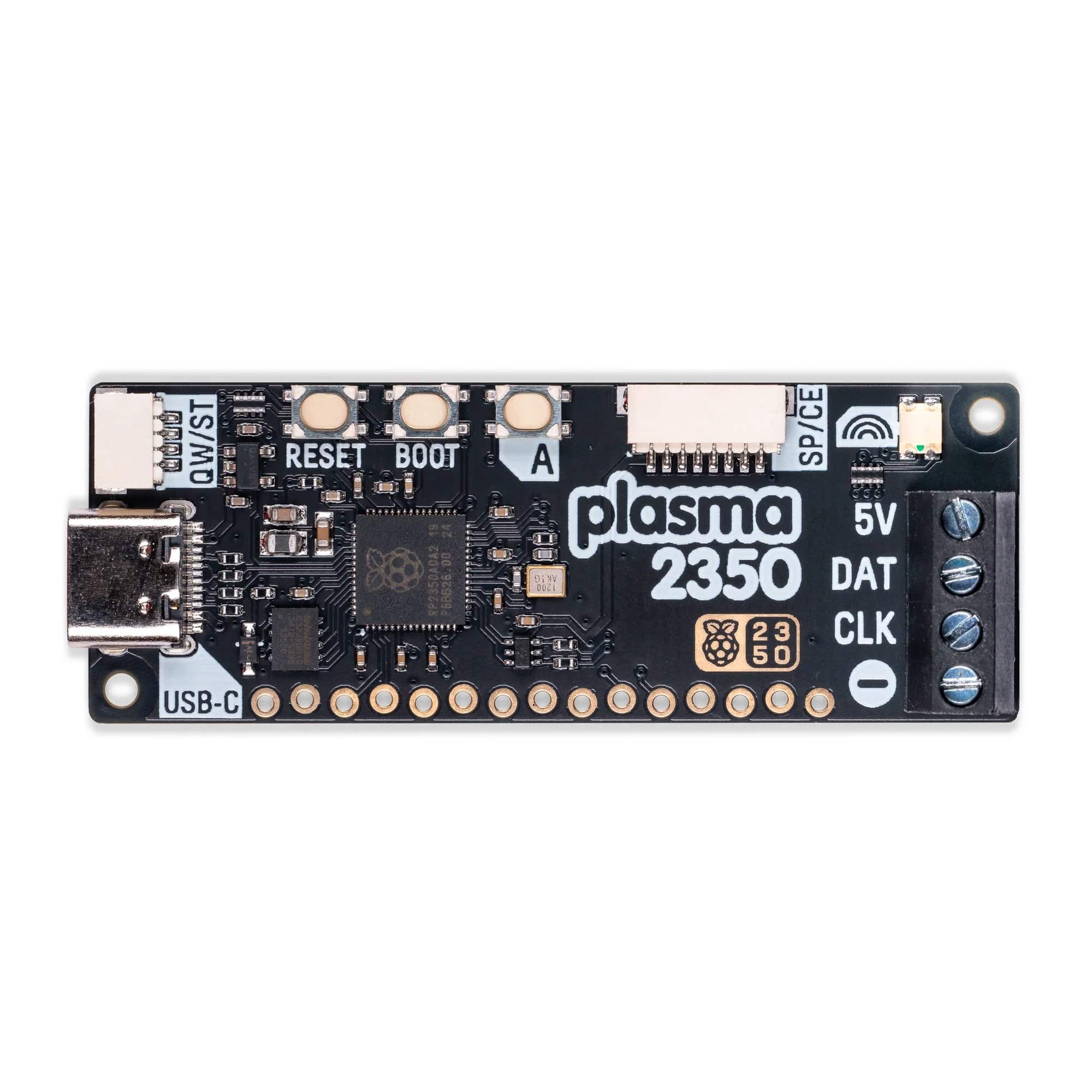

Plasma 2350

Plasma 2350 is powered and programmable by USB-C and, because USB-C is capable of drawing up to 3A of power, that's enough to power a healthy chunk of LEDs. There's a useful button that you could use to switch between effects, plus a reset button and an onboard RGB LED. We've also popped a QW/ST connector on there, to make it super easy to plug in Qwiic or STEMMA QT breakouts.

You can buy a Plasma 2350 on its own, or in a kit with a USB-C cable and some super-cool LED stars, so you can get started lighting stuff up right away.

Features

• Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 4MB of QSPI flash supporting XiP
• Compatible with 5V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs
• Screw terminals for attaching your LED strip.
• USB-C connector for power and programming (3A max)
• Qw/ST (Qwiic/STEMMA QT) connector
• Intriguing new SP/CE connector
• Reset, BOOT and a user button (the BOOT button can also be used as a user button)
• RGB LED
• Fully-assembled (no soldering required)
• Measurements: approx 61 x 22 x 12mm (L x W x H, including connectors)
• Programmable with C/C++ or MicroPython

Resources

• RP2350 MicroPython builds and examples
• Pinout PDF Version

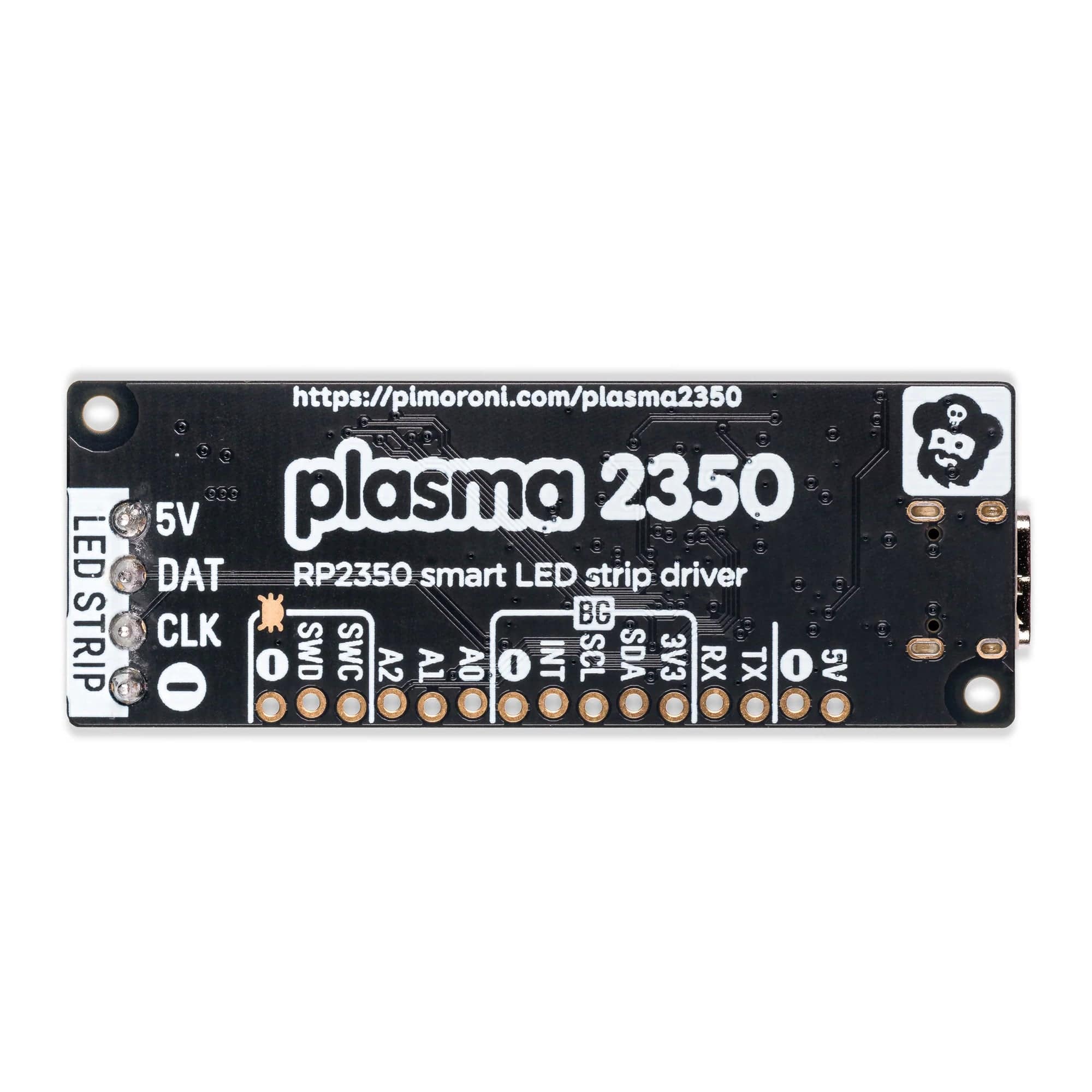

Pinout

Package Contents

Board Only

• 1x Plasma 2350

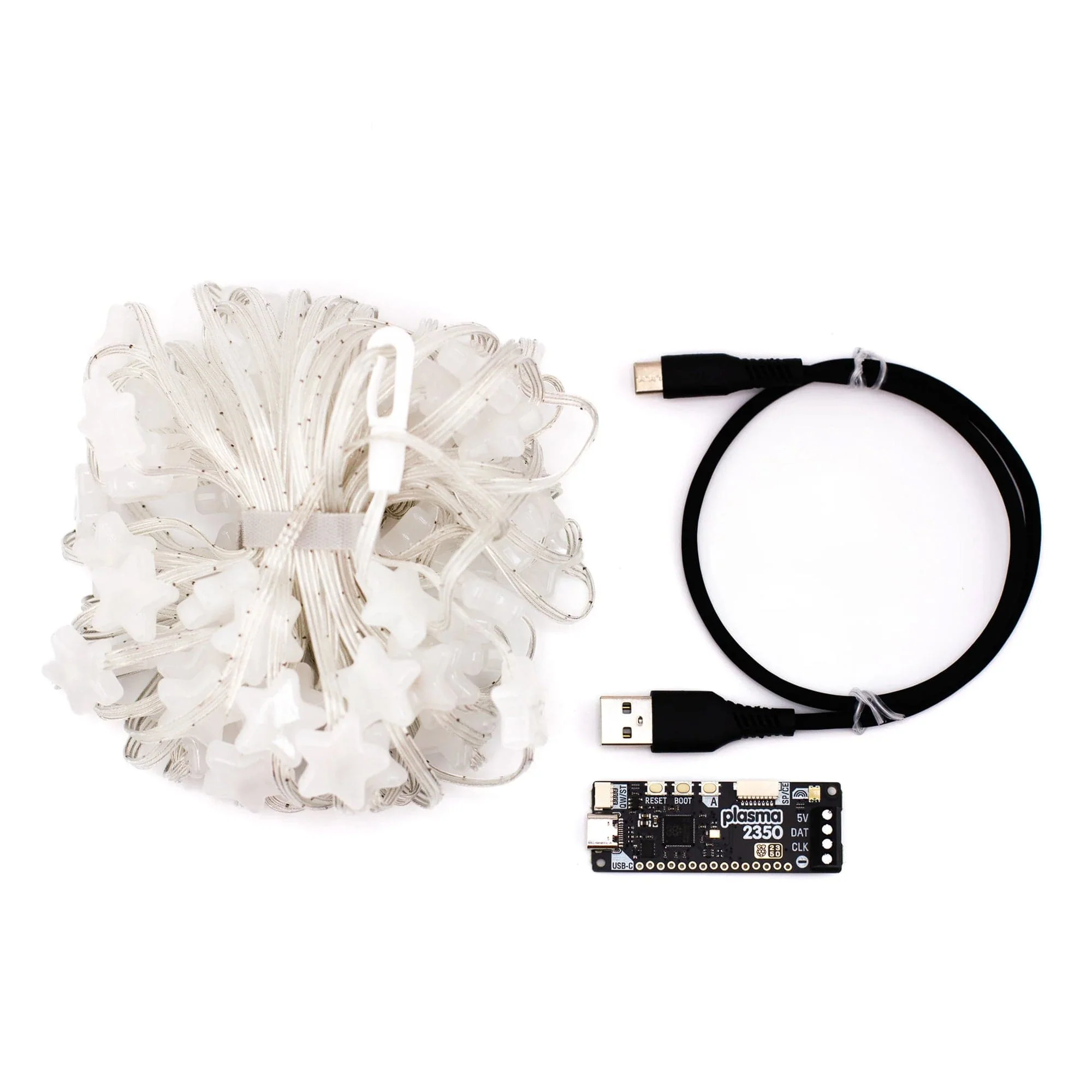

Starter Kit

• Plasma 2350
• USB-C cable for power and programming
• 10m RGB LED Star Wire
