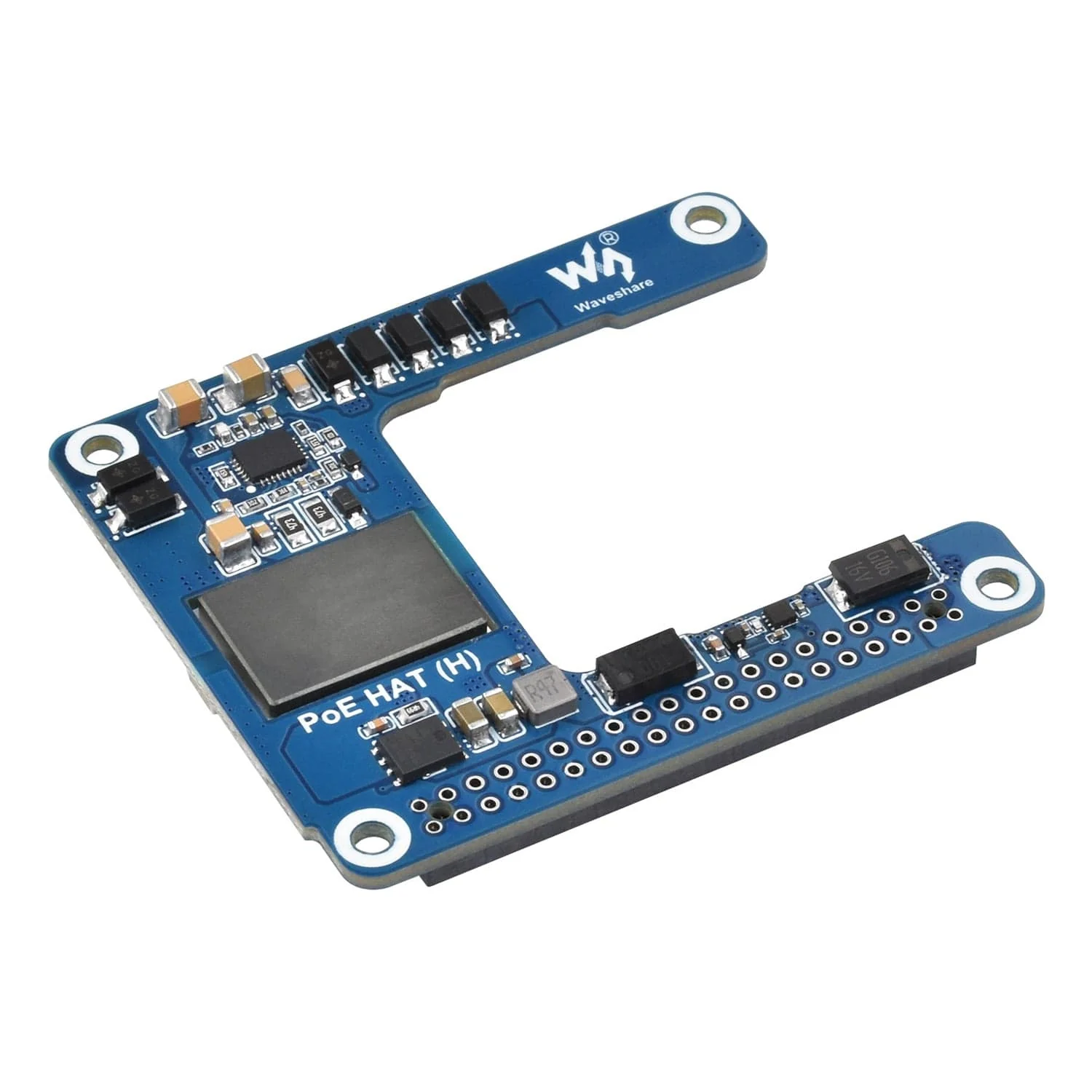

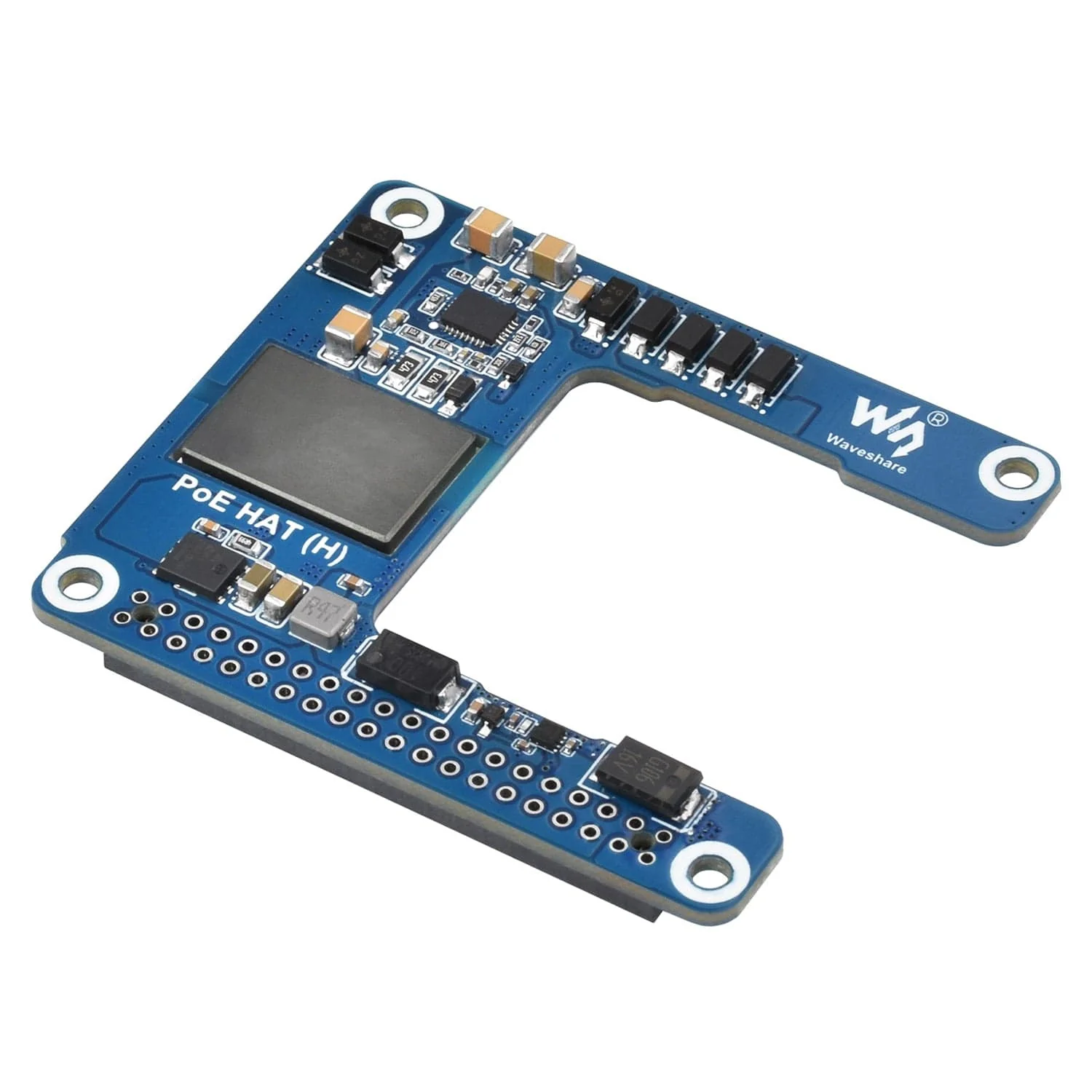

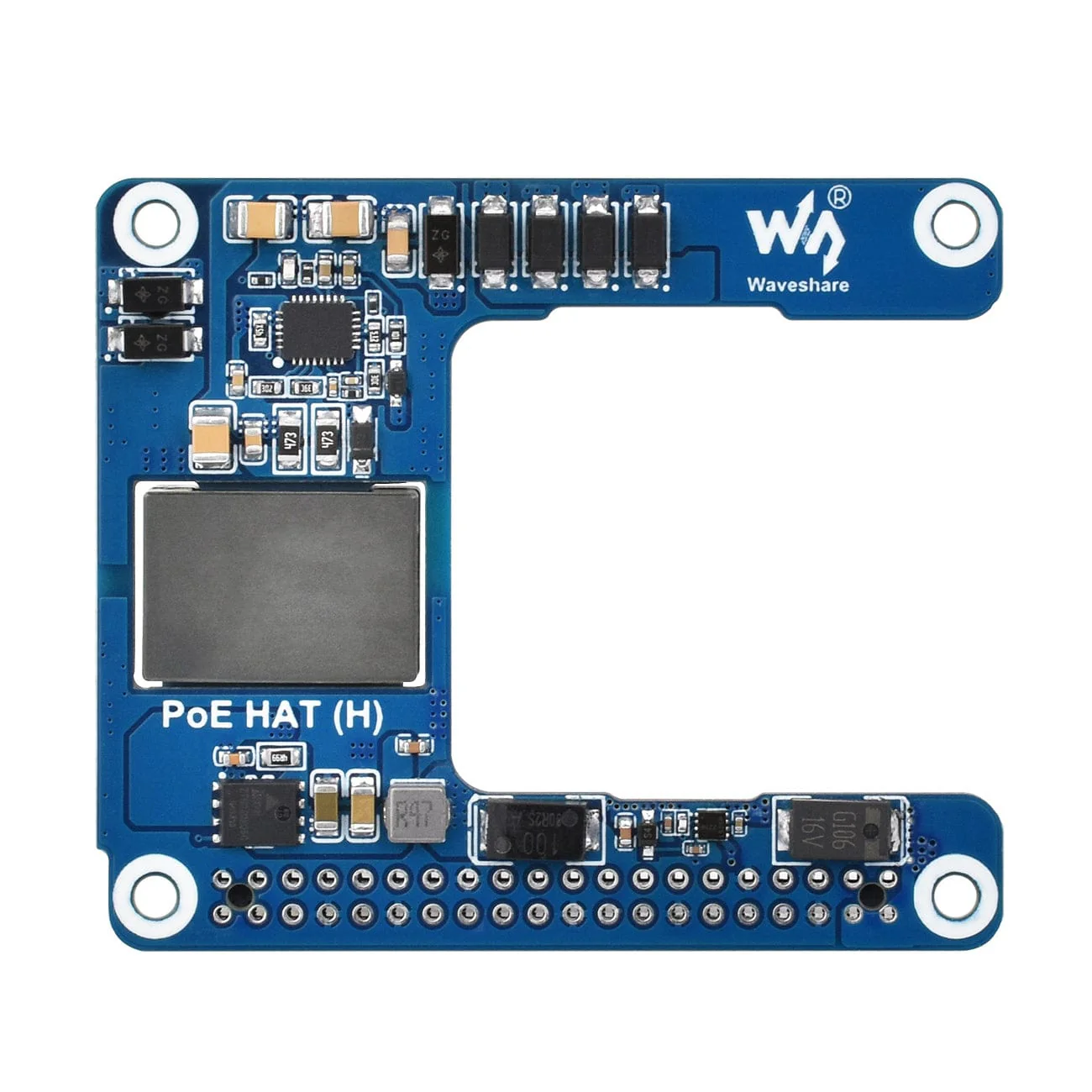

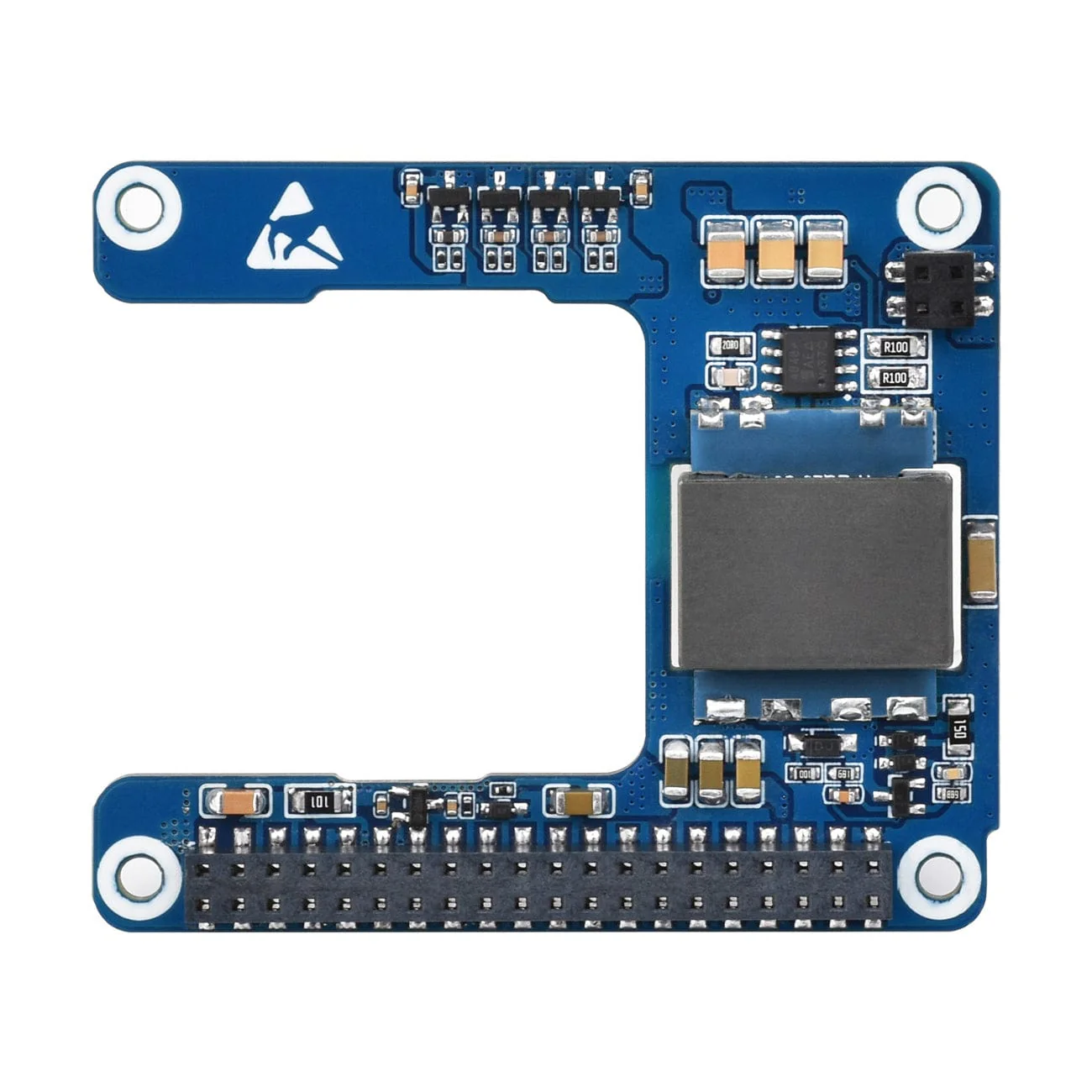

PoE HAT (H) for Raspberry Pi 5 and CM5

A Power over Ethernet (PoE) expansion board for Raspberry Pi 5 and Compute Module 5, providing network connectivity and power over a single Ethernet cable.

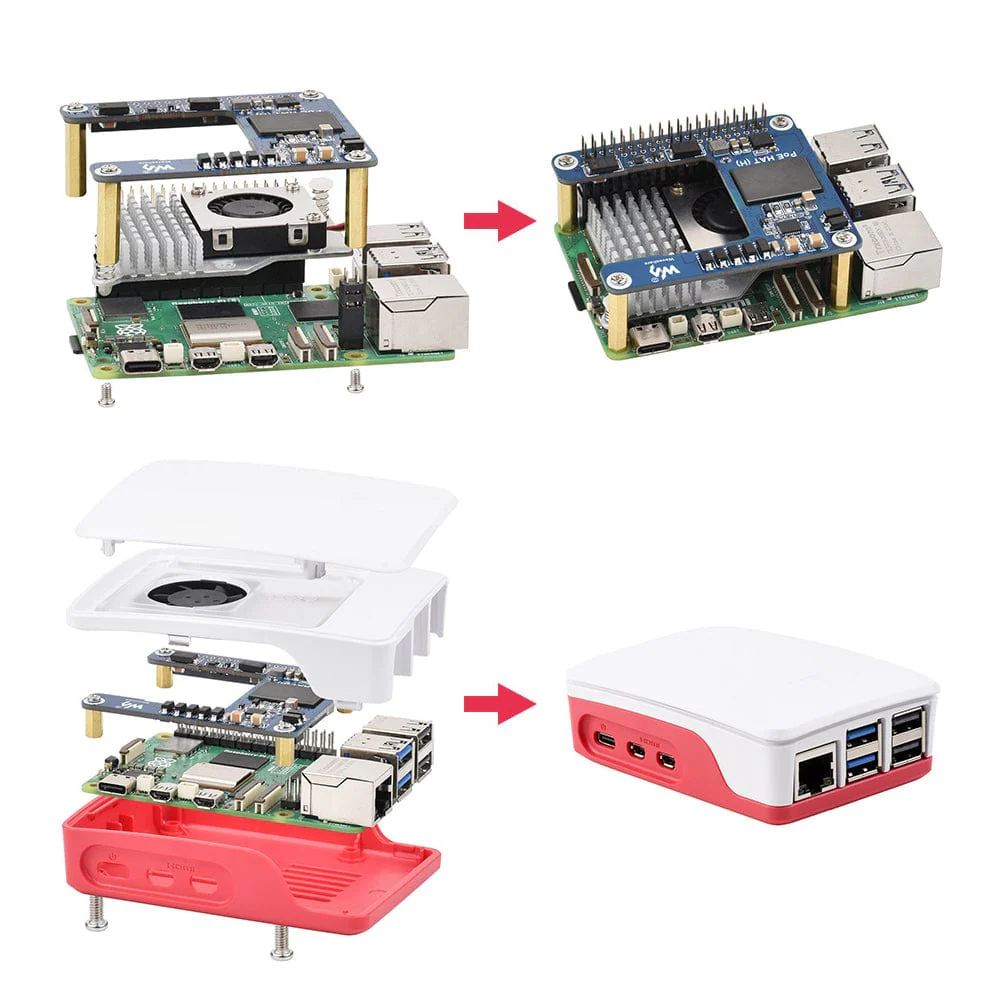

The Waveshare PoE HAT (H) eliminates the need for separate power adapters while maintaining a compact design that fits within the Raspberry Pi 5 Official Case and is also compatible with the Raspberry Pi Active Cooler.

Designed for IEEE 802.3af/at PoE standards, it works with PoE-enabled routers and switches to provide 5V at up to 5A. The onboard isolated switched-mode power supply (SMPS) minimises interference and improves efficiency.

Haven't got a PoE-ready switch? Grab a Raspberry Pi PoE+ Injector here!

Raspberry Pi 5, case and active cooler not included.

Features

• PoE Power Input: Accepts 38V – 57V DC via Ethernet
• 5V 5A Output: Provides stable power to the Raspberry Pi via GPIO header
• IEEE 802.3af/at Compliant: Works with PoE routers and switches supporting this standard
• Isolated Switched-Mode Power Supply (SMPS): Improves power efficiency and reduces interference
• Standard Raspberry Pi 40-PIN GPIO Header: Compatible with Raspberry Pi 5 and CM5

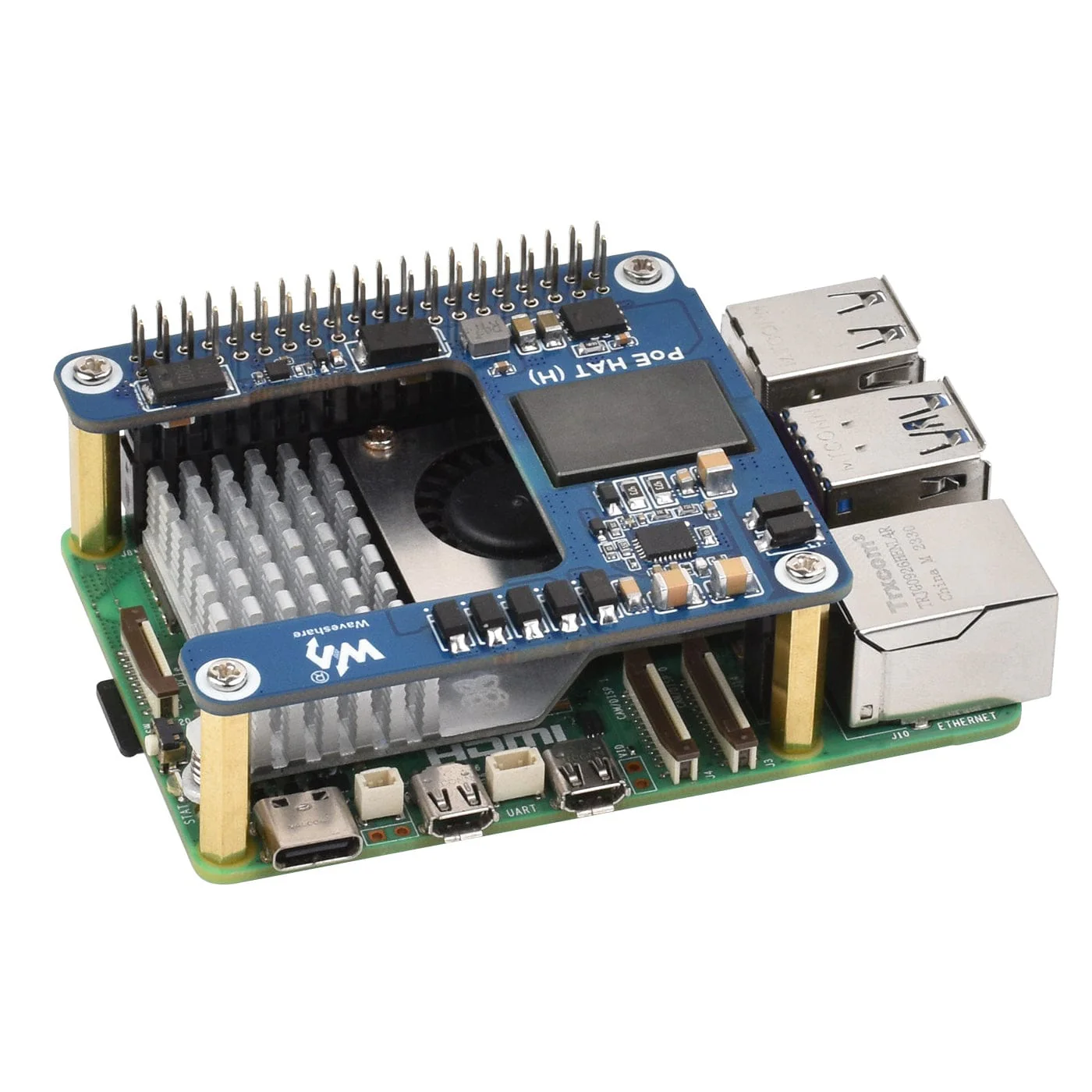

• Compact Design: Fits within the Raspberry Pi 5 Official Case and is compatible with the Raspberry Pi Active Cooler

Specifications

PoE Power Input	38V – 57V DC
Power Output	5V 5A (via GPIO header)
Network Standard	IEEE 802.3af/at

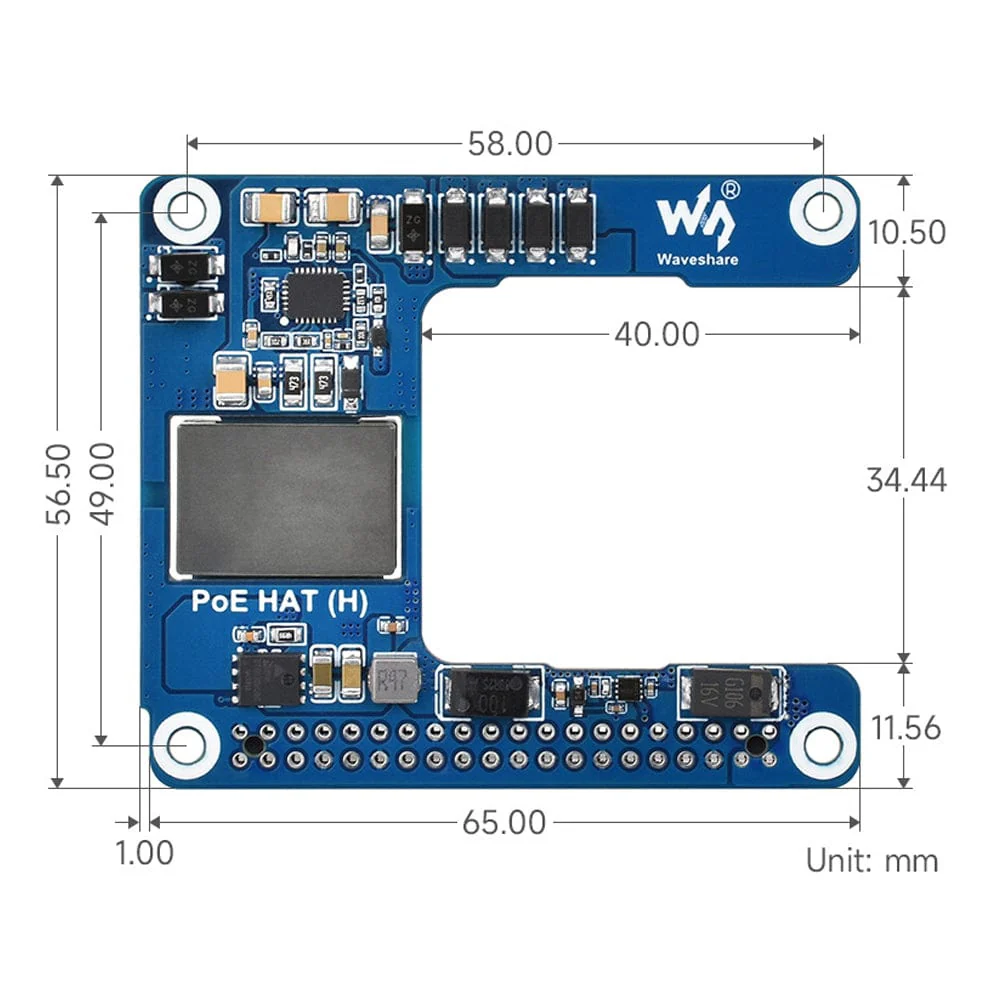

Dimensions	56.5 × 65.0 mm

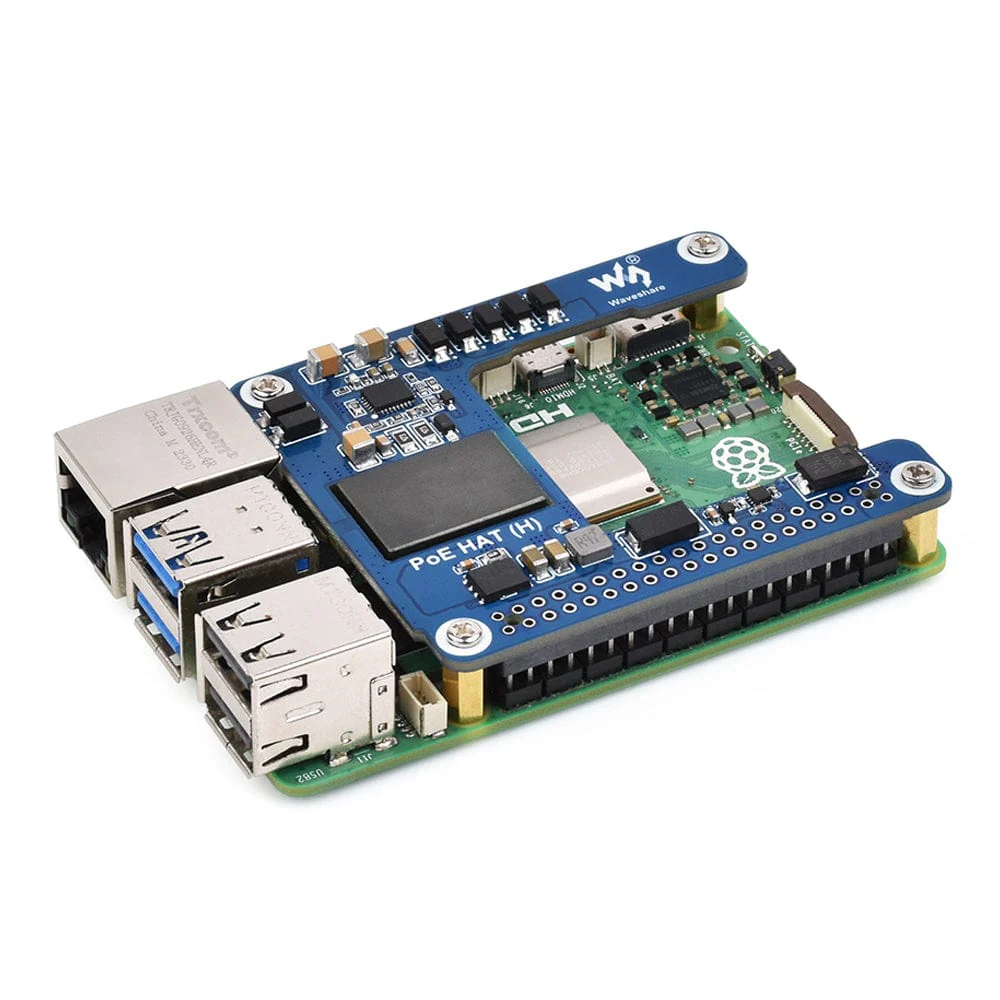

Compatibility	Raspberry Pi 5 / Compute Module 5
Manufacturer’s Product Number	30901

Resources

• Product Wiki
  • Features
  • Specifications
  • Installation
  • FAQ

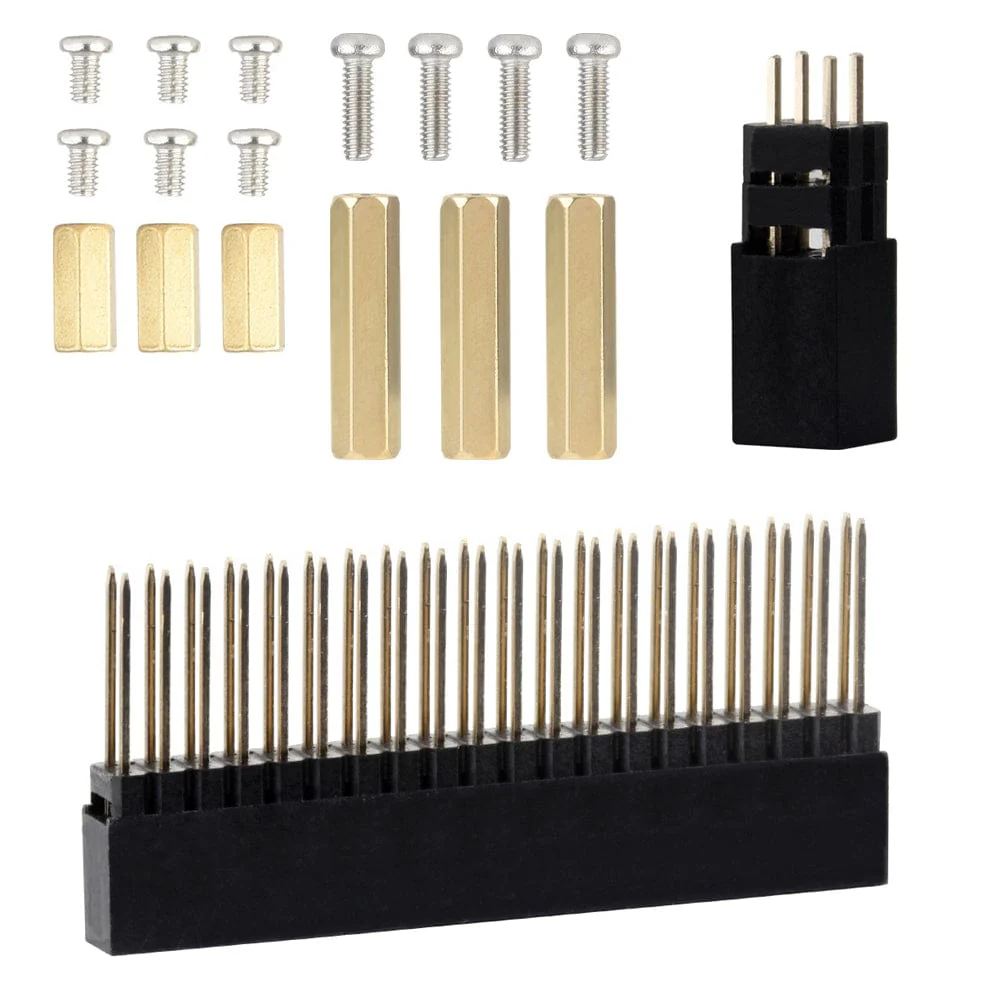

Package Contents

• 1x PoE HAT (H) for Raspberry Pi 5 and CM5
• 1x 2x2 header
• 1x 2x20 header
• 1x Standoffs pack

Raspberry Pi 5, Case and Active Cooler not included.
