Pololu Back-Entry JST SH-Style Connector Board for Micro Metal Gearmotors (2-Pack)

These Pololu adapter boards let you add JST-SH-style connectors to your single-shaft micro metal gearmotors (not compatible with motors with extended back shaft) with a back-entry JST-SH-style connector.

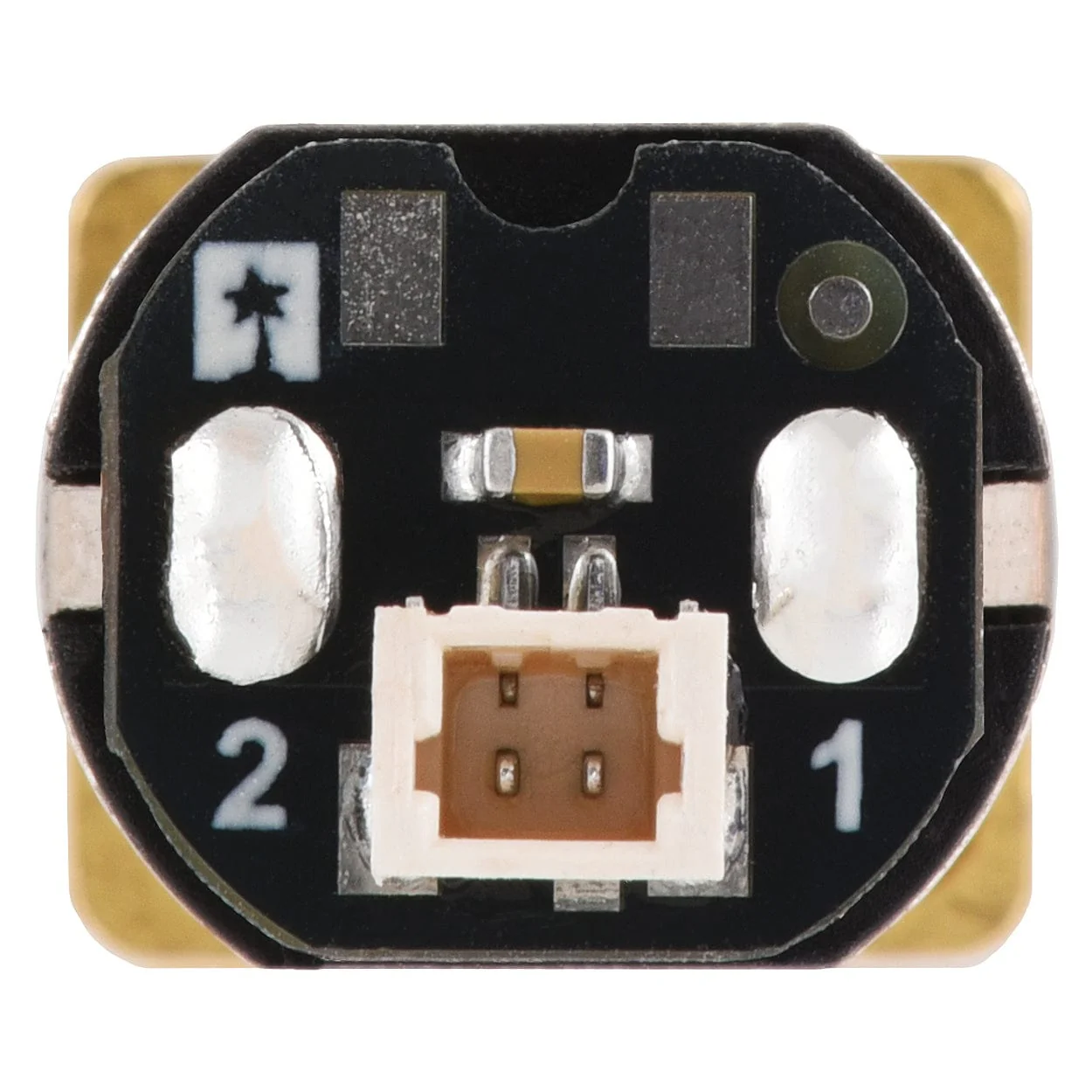

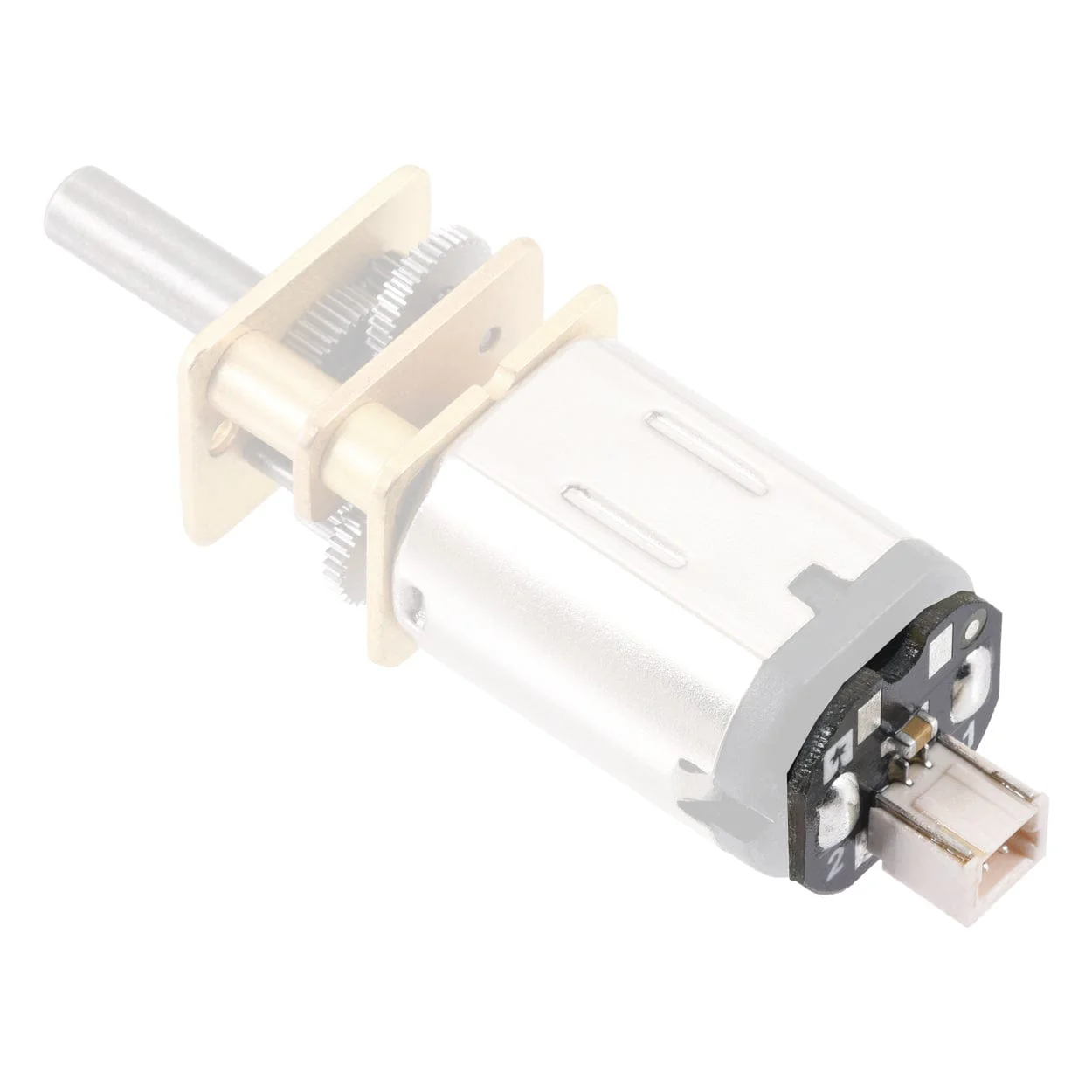

The board mounts to the micro metal motor by soldering the motor terminals to the board slots. When mounted, the board fits entirely within the cross-section of the motor.

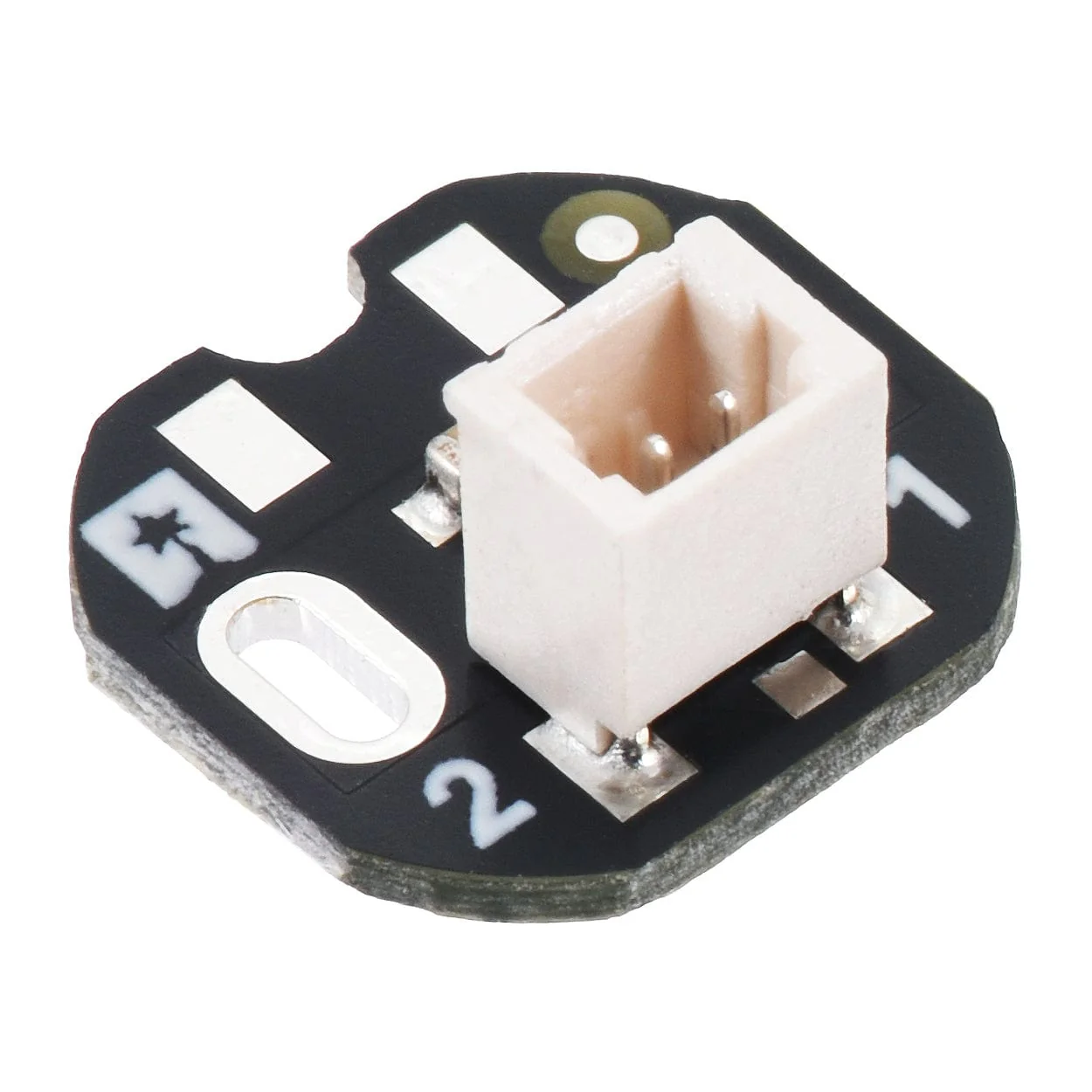

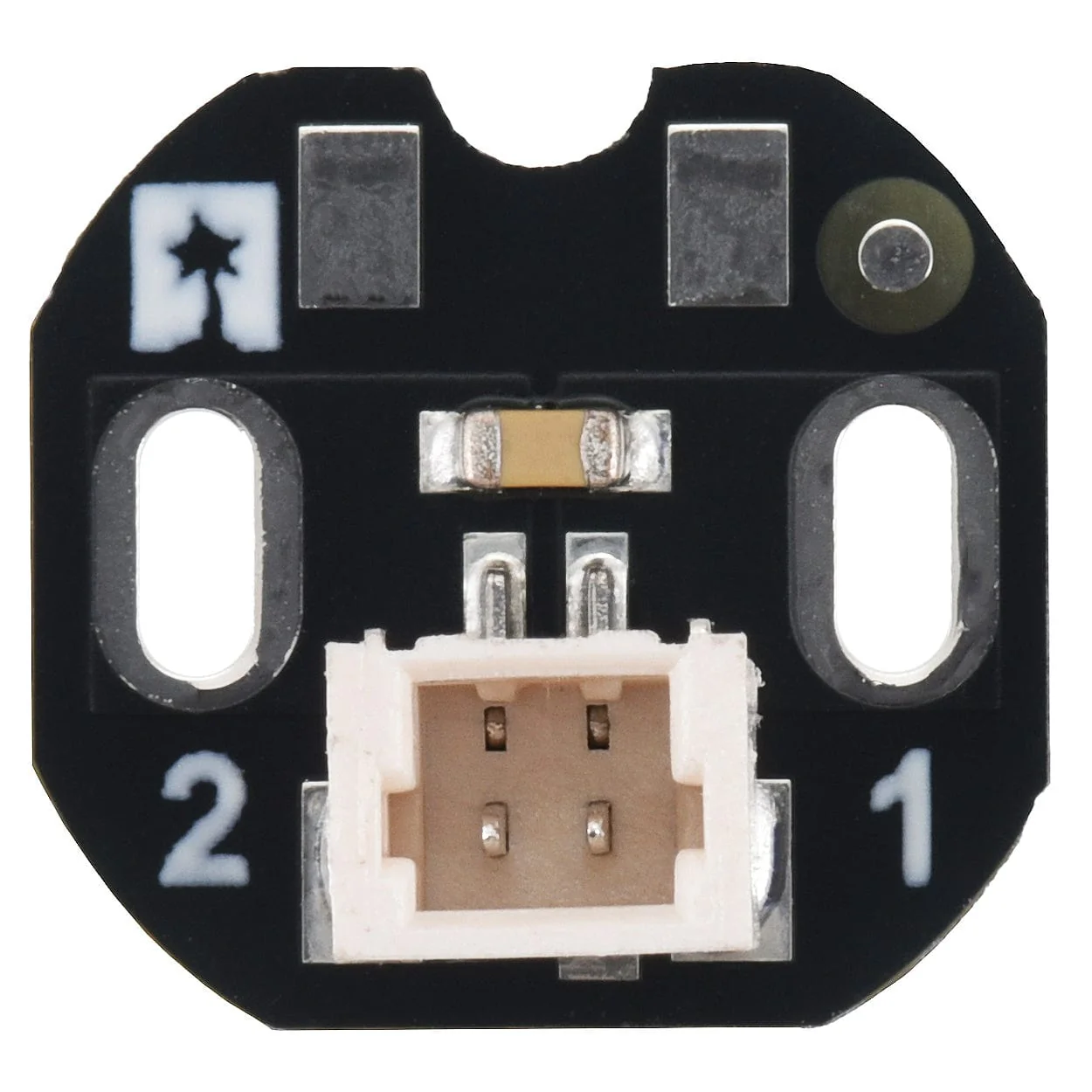

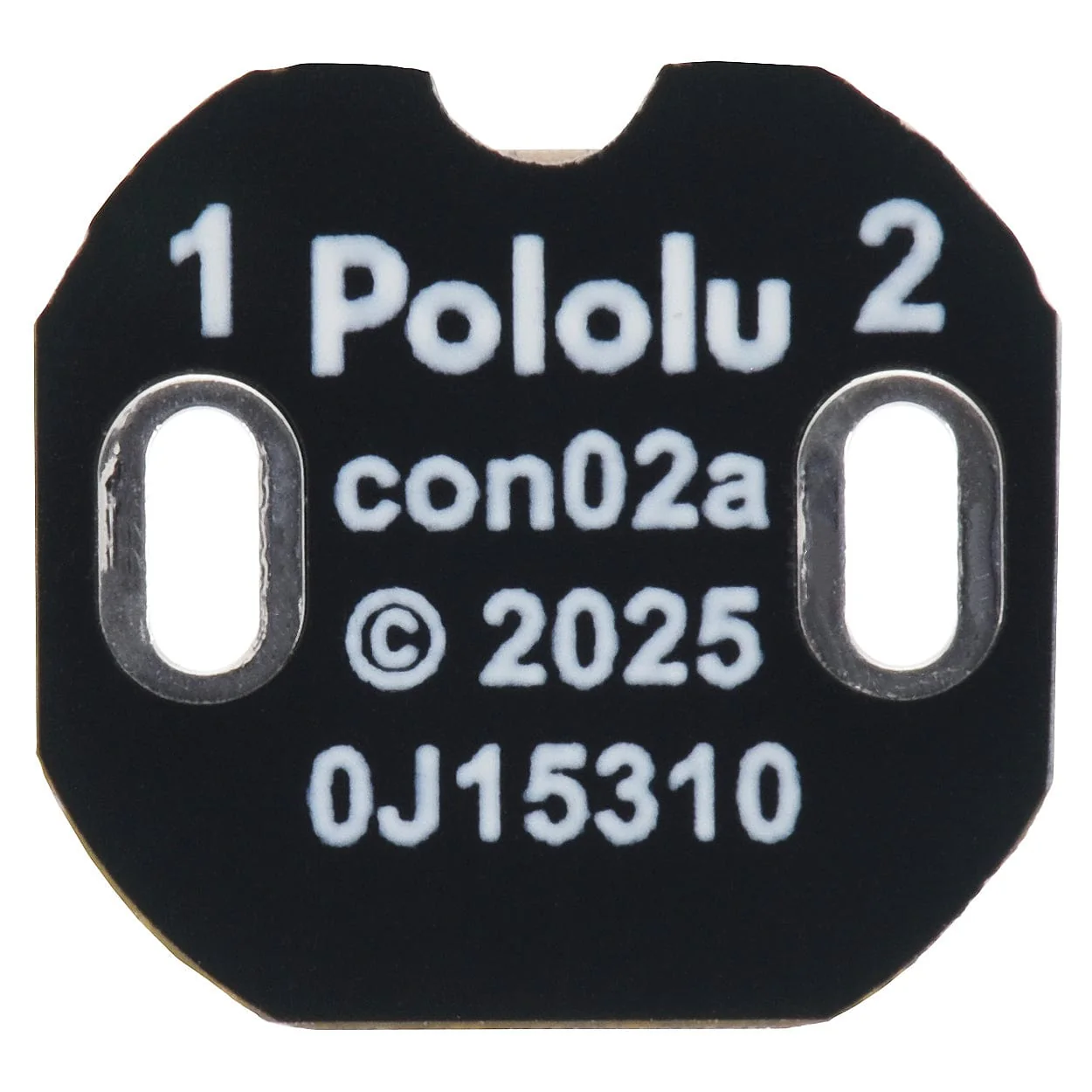

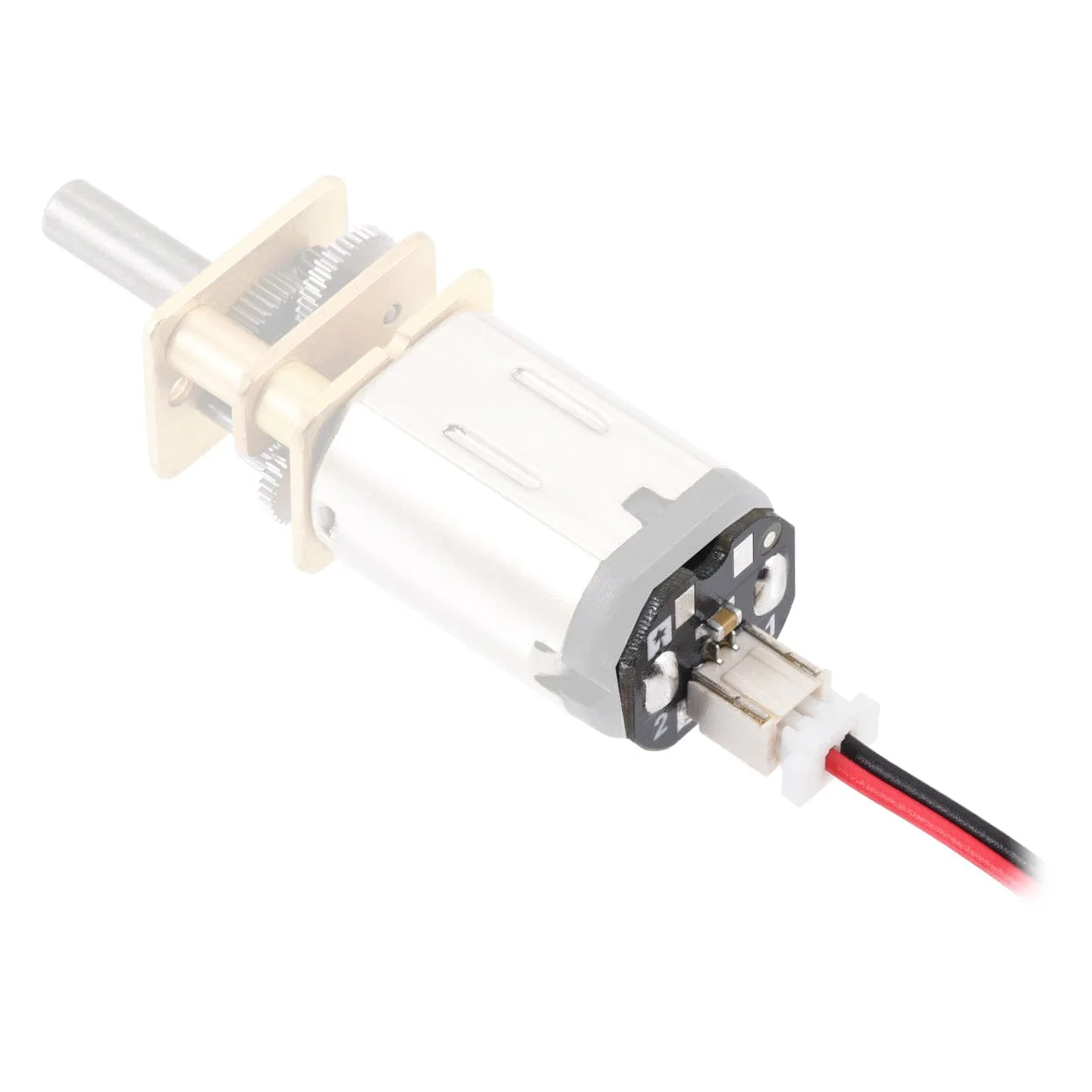

The connectors are 2-pin male JST SH-style and work with commonly available 2-pin female JST SH-style cables (available in the store soon). Connector pin 1 connects to the motor terminal slot marked 1.

We also stock a side-entry version!

Motors and JST wires not included

Features

• JST-SH-style adapter boards
• Allows JST-SH connections to motors
• Compatible with most micrometal gear motors
• Soldering required
• Back-Entry style

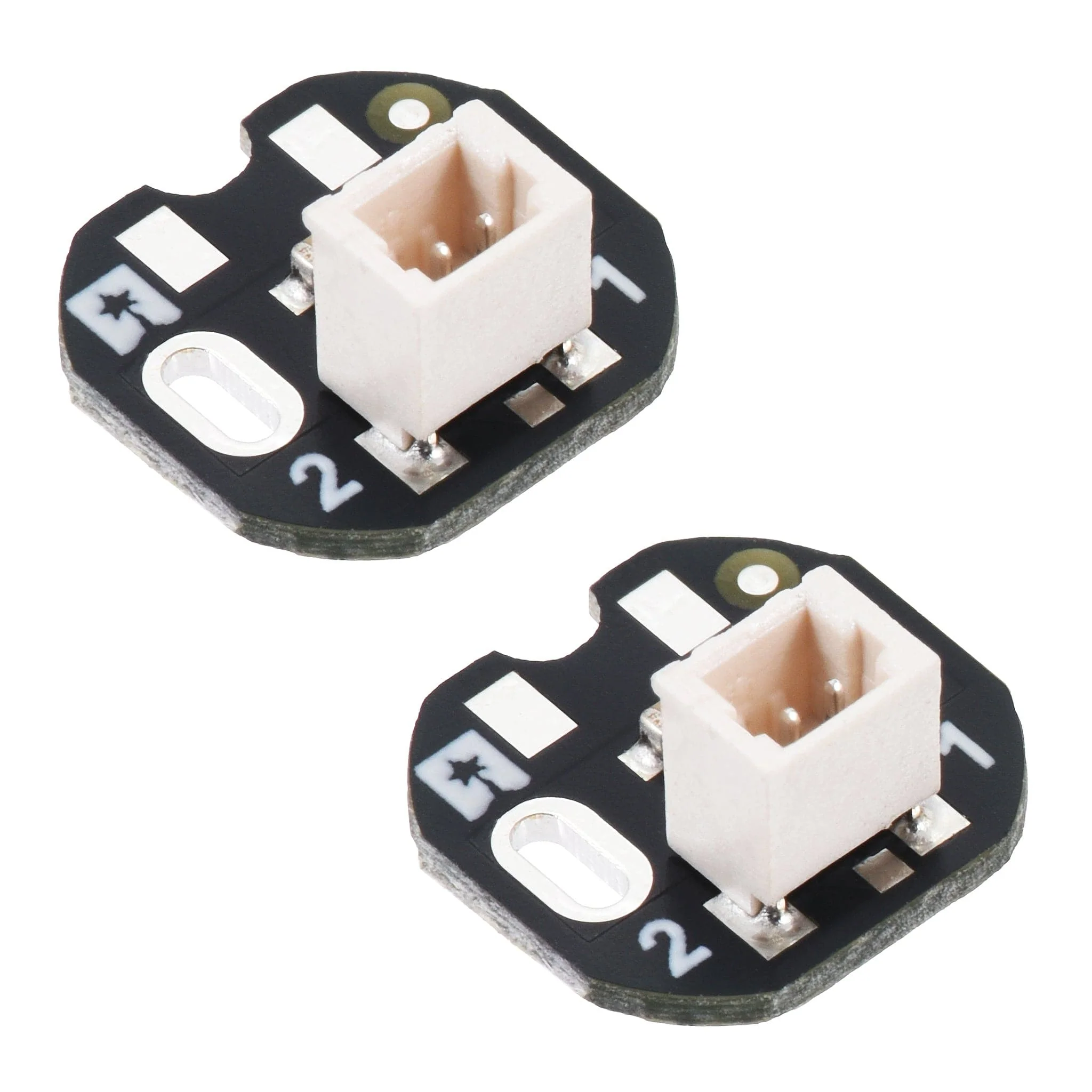

• Pack of 2
• Not compatible with motors with extended back shafts

Specifications

• Connector: back-entry, 2-pin male, JST SH-type
• Pack quantity: 2

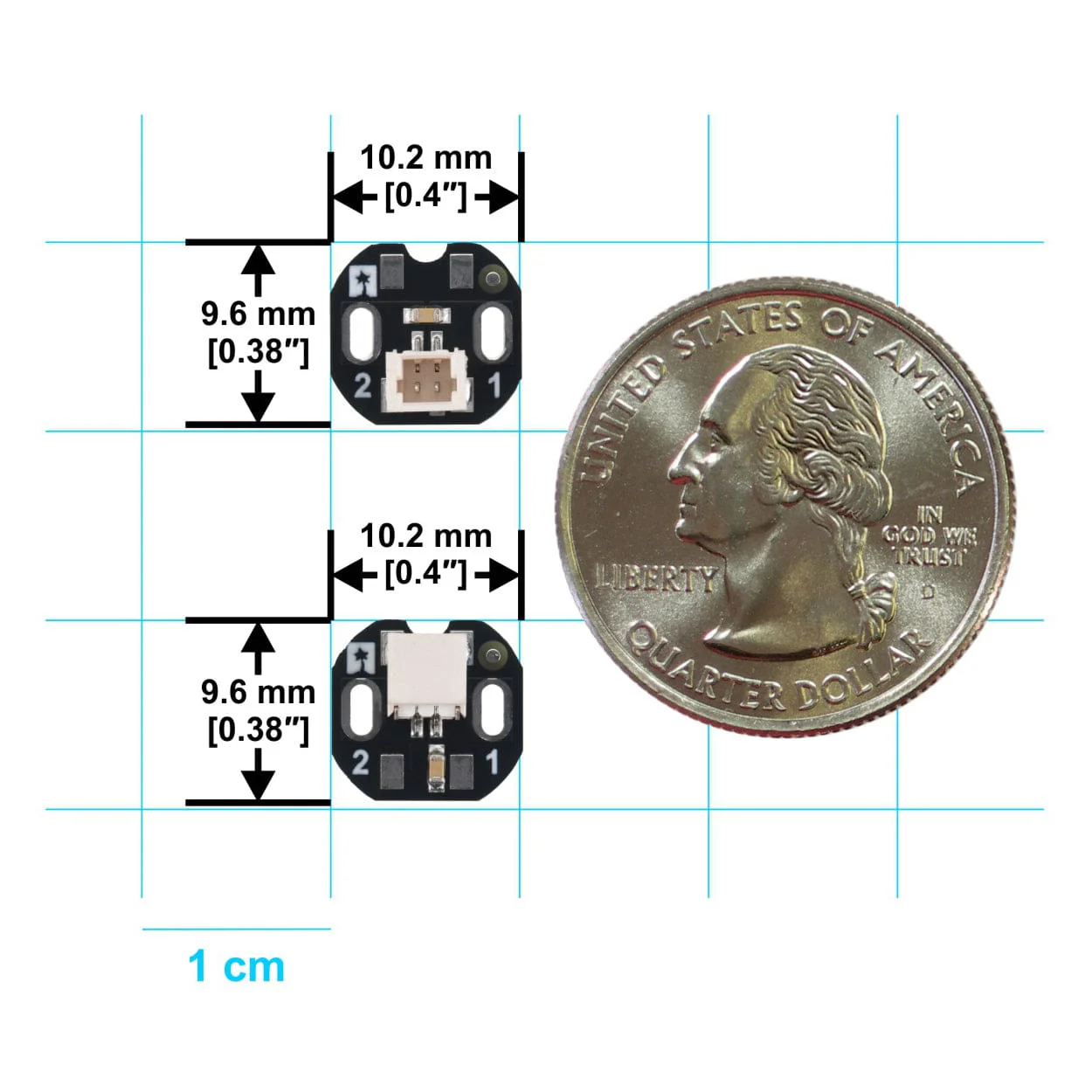

• Size: 10.2 × 9.6 × 5.2 mm
• Weight: 0.2g (per board)

Resources

• Dimensions
• Schematic
• 3D Model
• Drill guide

Package Contents

• 2x Back-Entry JST SH-Style Connector Boards for Micro Metal Gearmotors

Motors and JST wires not included
