Pololu Micro Metal Gearmotor Bracket Extended Pair

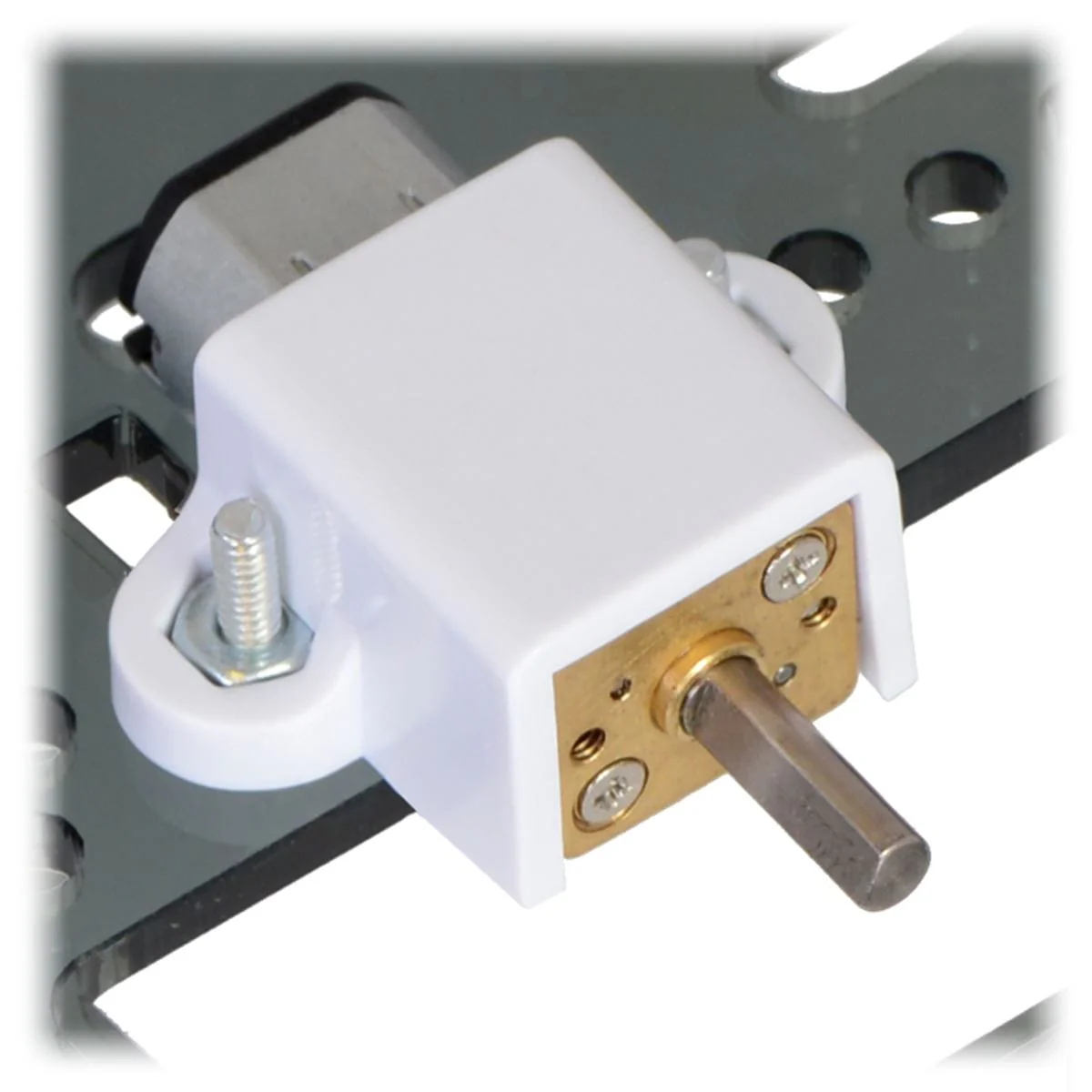

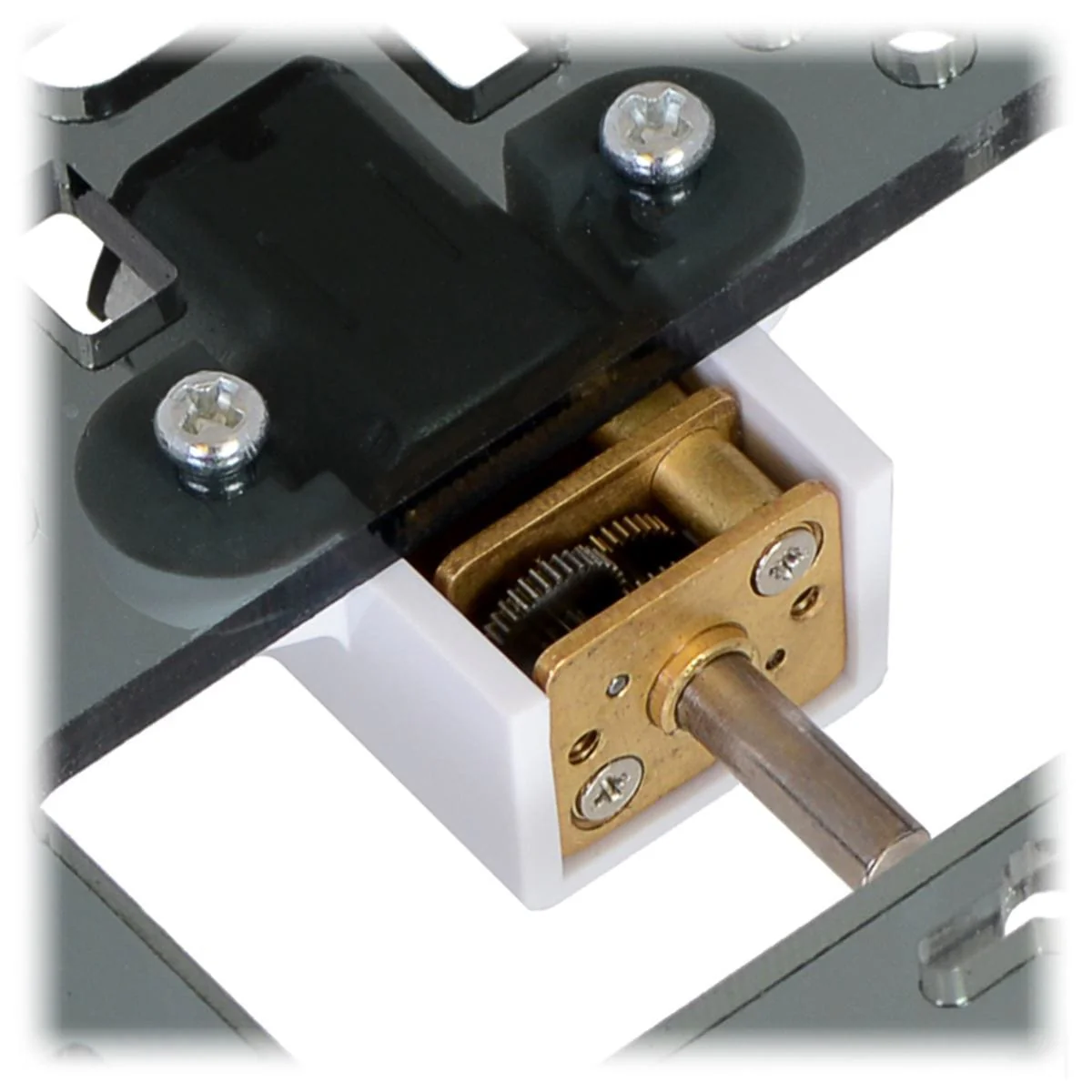

This compact pair of brackets from Pololu enables convenient mounting of popular, Sanyo-style micro metal gearmotors. The white plastic bracket encloses the otherwise exposed gears, and the mounting tabs capture the nuts for easy installation.

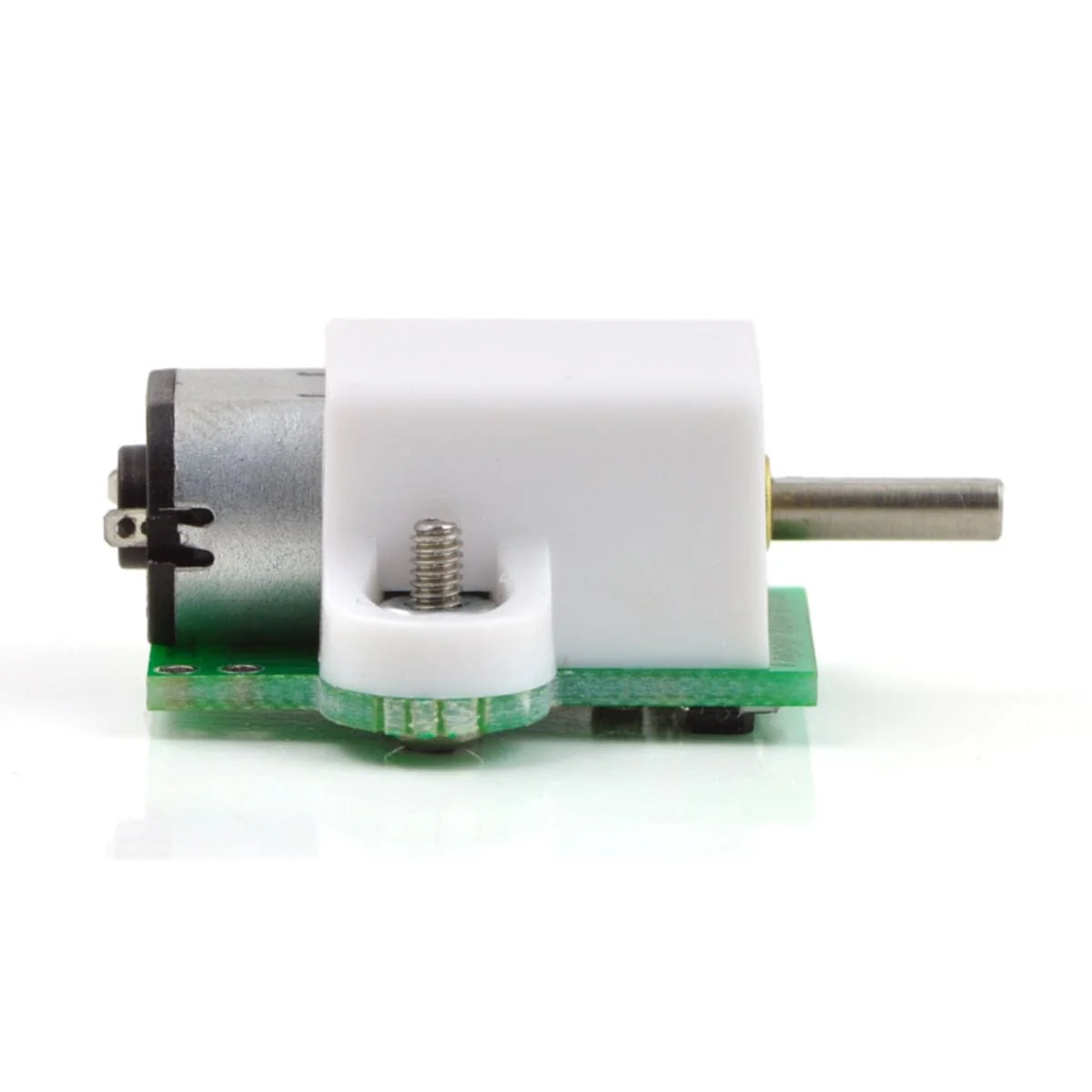

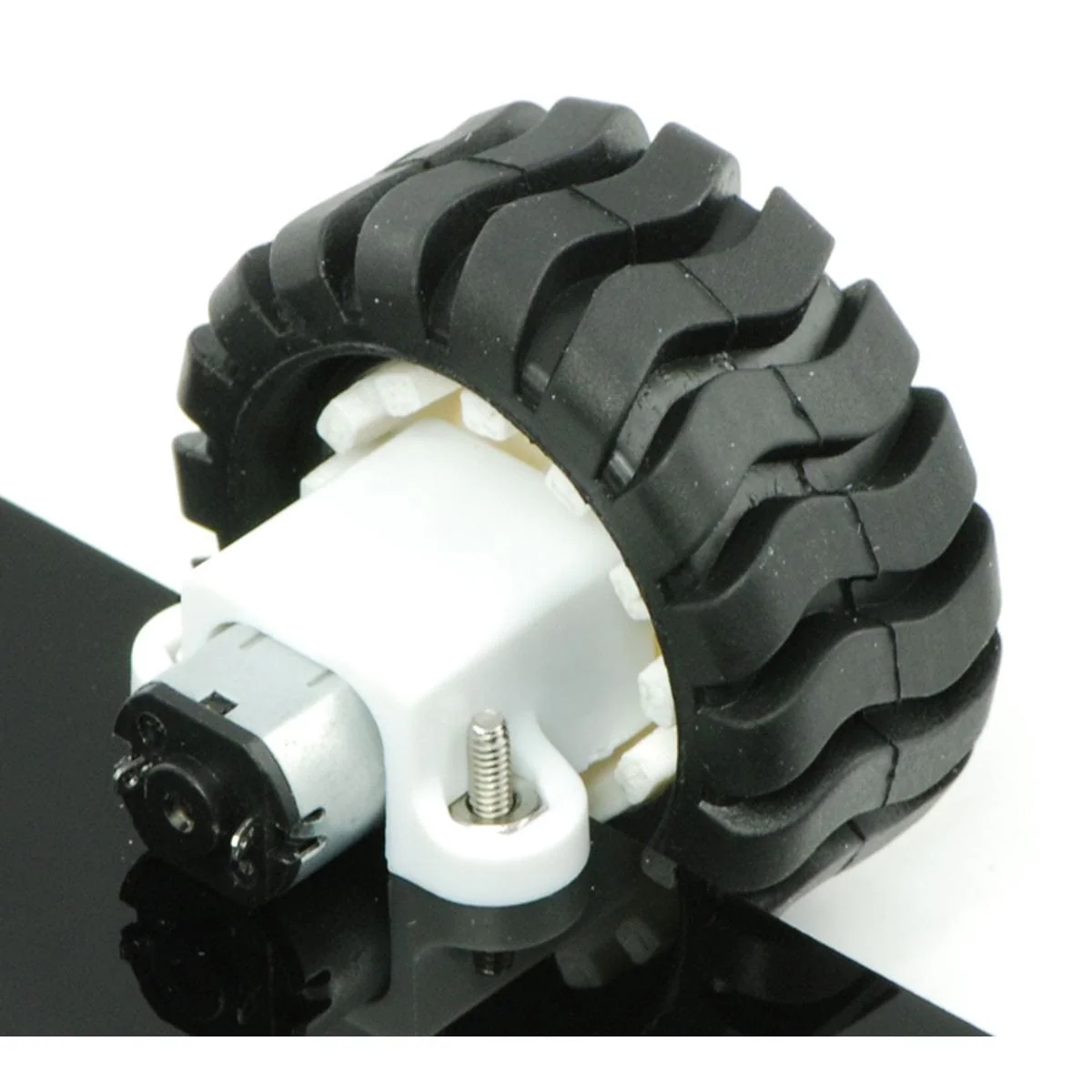

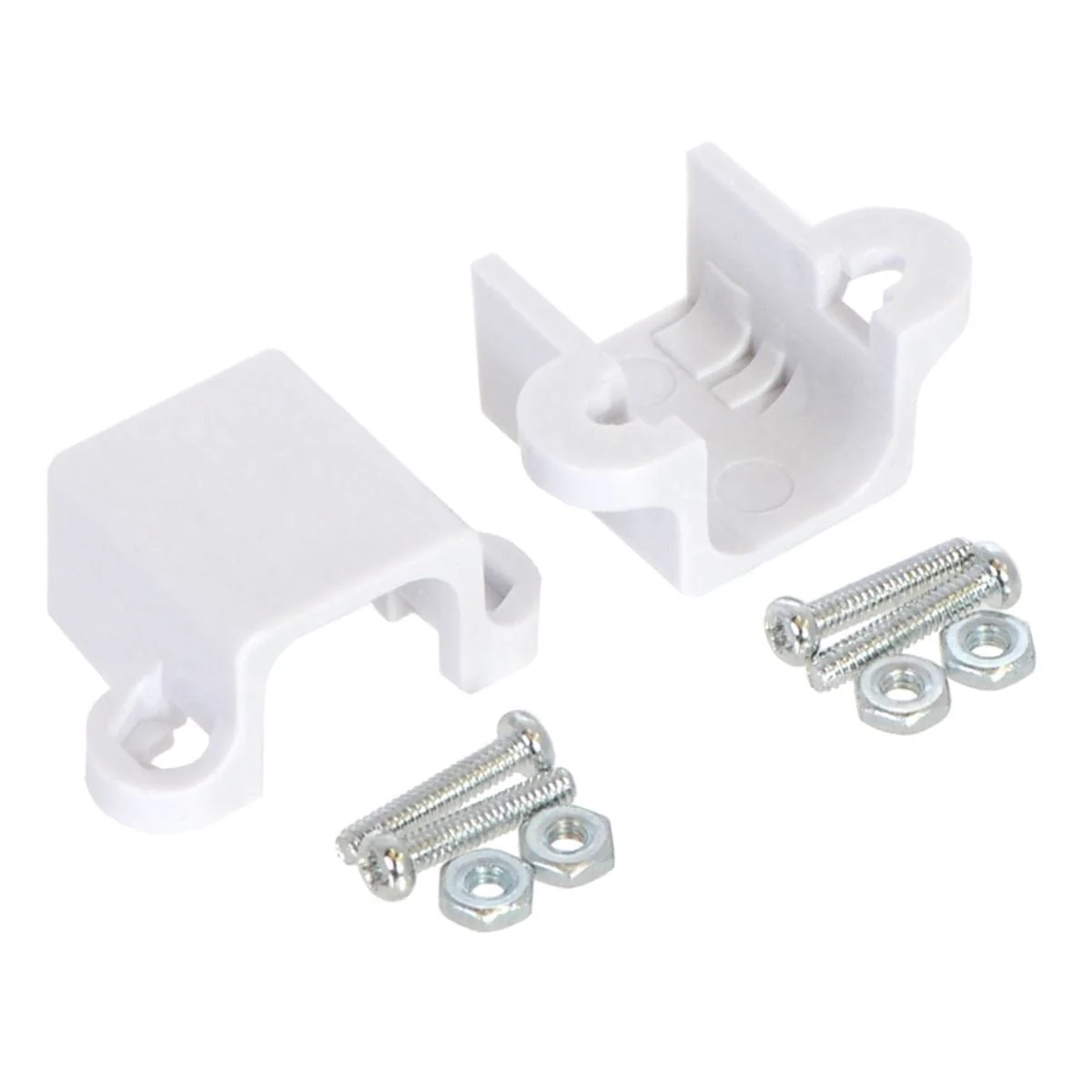

This extended version has mounting tabs that allow for use with the Pololu Wheel 42×19 mm and encoder. The brackets are sold in pairs, and each bracket comes with four #2-56×7/16" screws and four nuts.

These plastic mounting brackets allow you to easily and securely mount the ubiquitous 10 mm × 12 mm × 26 mm metal gearhead motors first popularized by Sanyo’s 12GN series (e.g. NA1S…NA3S).

We also offer shorter versions of these brackets in black and white.

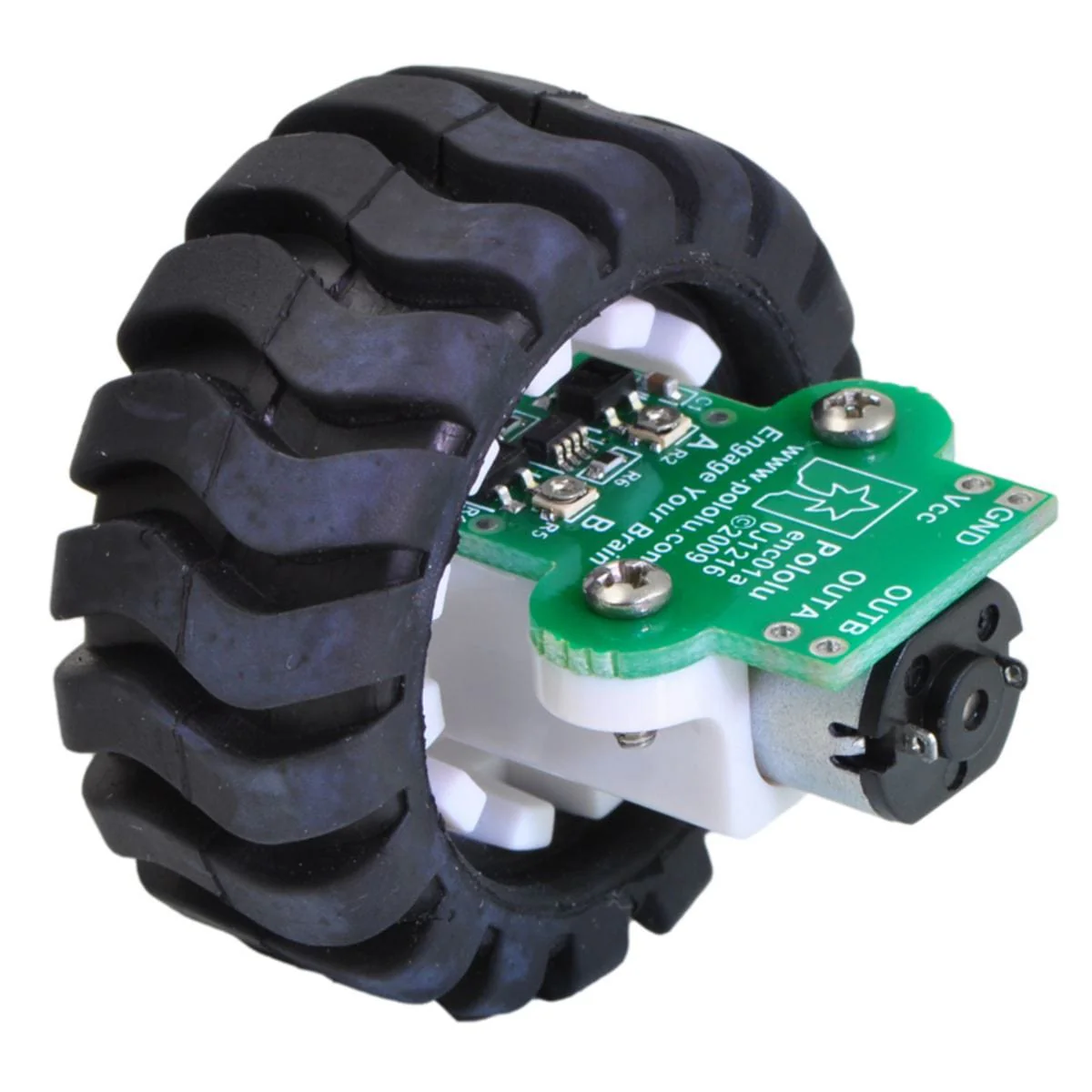

Encoder and wheels pictured but not included.

Resources

• 3D Model
