Power Shield for Arduino

Some Arduino projects may need more than two power supplies, to power both the Arduino and connected parts such as servos. When fed with 4.5-35V, this Arduino power shield is able to provide 1.25-12V with 3A peak current!

It's ideal for servo control and other non-standard components. With this Arduino power supply shield, your Arduino now has one power supply for everything!

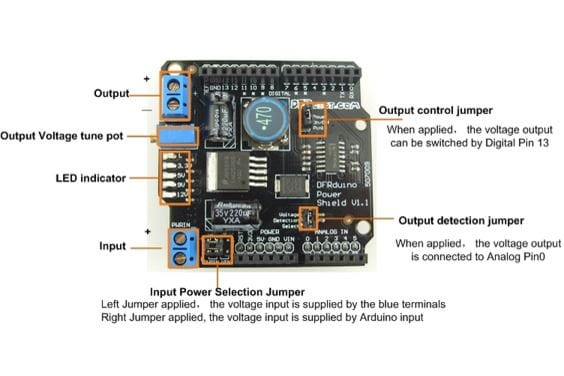

The board has a built-in voltage measuring function which maps the output voltage to Arduino analogue pin 0. It can also be controlled by the Arduino's digital Pin13 to switch on/off.

Specification

• Supply voltage: 4.5-35V
• Output voltage:1.25-12V
• Output current: 2A (3A peak)
• Max output power: 15W 3A@5V
• Efficiency: 90%

Documents

• Wiki (Arduino power supply shield)
• Schematic

Shipping List

• Power Shield x1
