The Story
Prototyping PCBs are really handy for making your circuit permanent, allowing you to solder components together using prototyping wire (or for short distances, bridging with solder!).

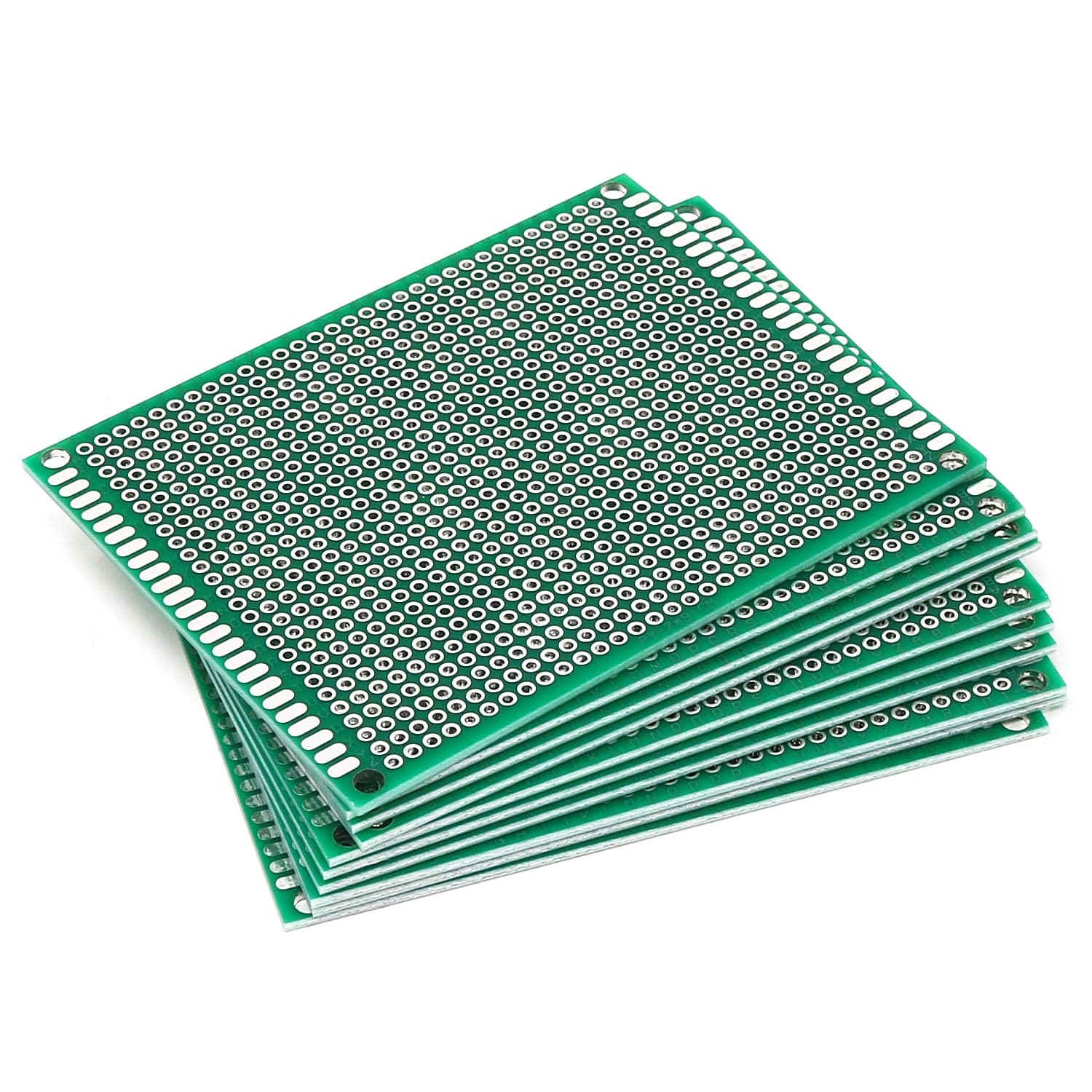

This is a 10-pack of 7x9cm double-sided Proto PCBs with a 2.54mm pitch (the space between the pads). 2.54mm is arguably the most common pitch, used on most popular development boards from the Raspberry Pi 5's GPIO header to the Raspberry Pi Pico pins to the XIAO and more!

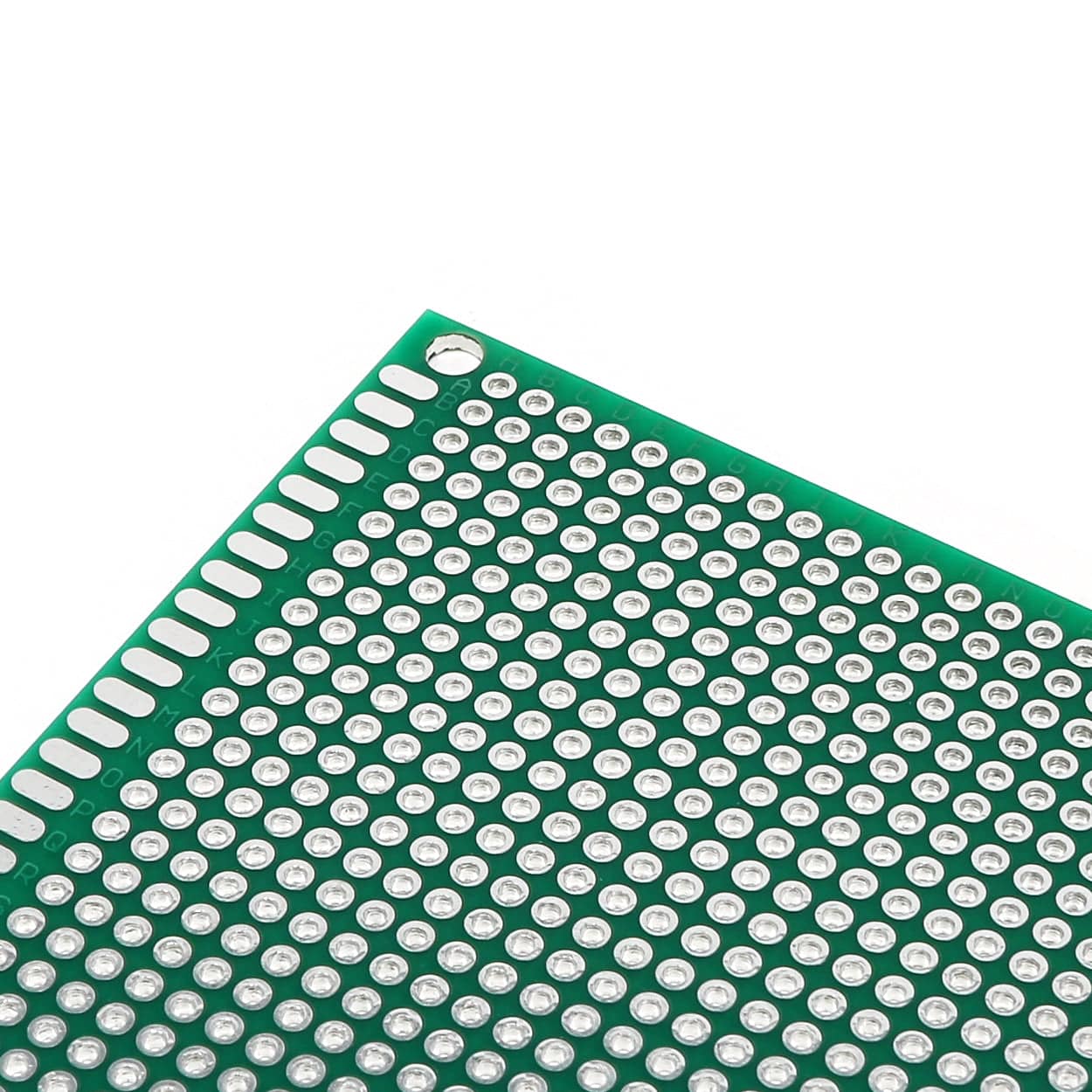

The PCBs are 1.6mm thick, green in colour, and feature corner M3Ā mounting holesĀ and side row/column labelling to help you find your way. The pads are not connected together.

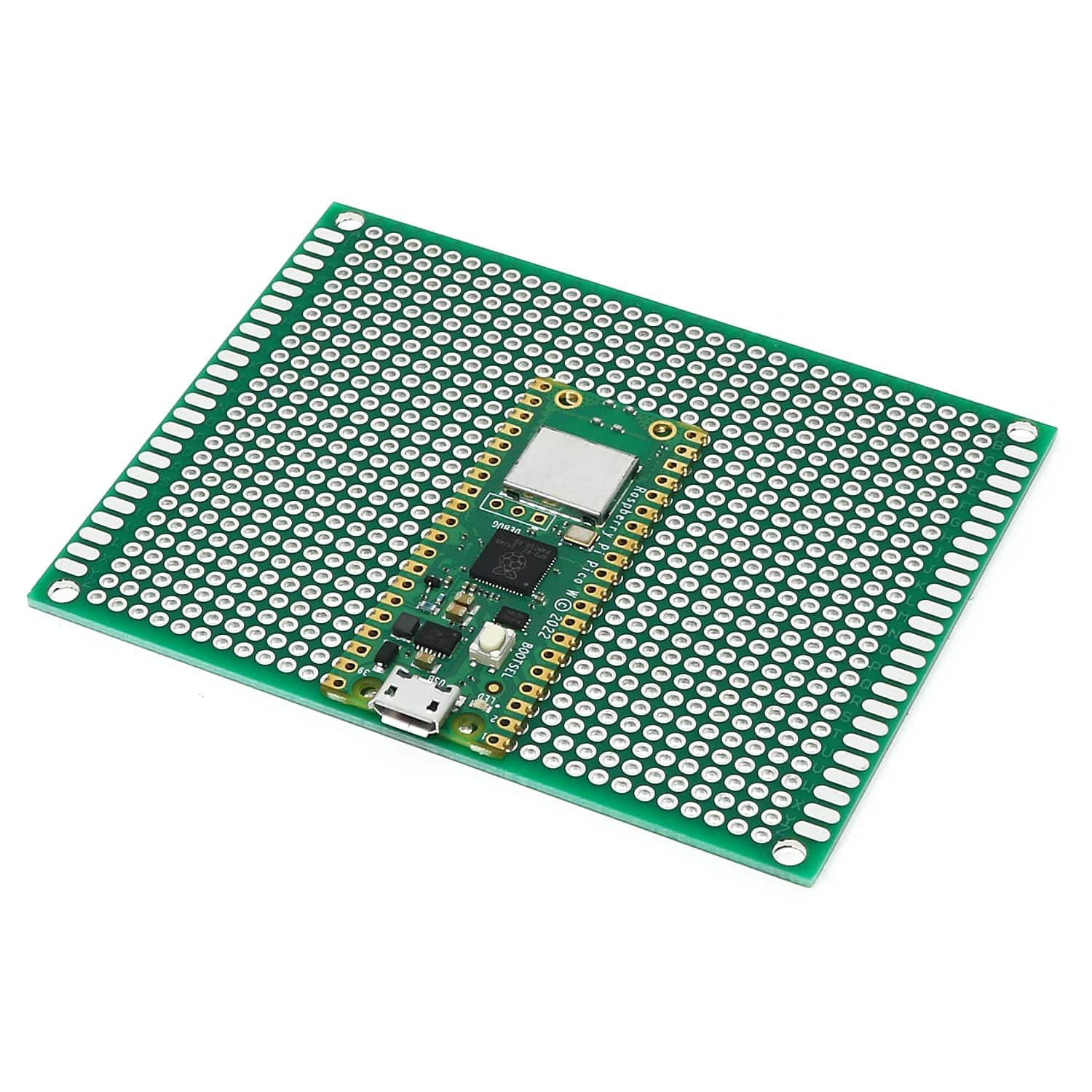

We're showing a Raspberry Pi Pico W in one of the product images (not included) to give you a real-life feel for the size of these.
We have lots of other Proto PCBs sizes available in the store!
Pico W board pictured for size reference but not included
Features
- 7x9cm Proto PCBs
- 10 PCBs in each pack!
- Each PCB holds a pad grid of 26x31 (806 pads)
- Pads are not connected in rows or columns
- Double-sided
- M3Ā Mounting holes
- Row/Column labelling
- Colour: Green
Package Contents
- 10x 7x9cm Proto PCBs
Pico W board pictured for size reference but not included
