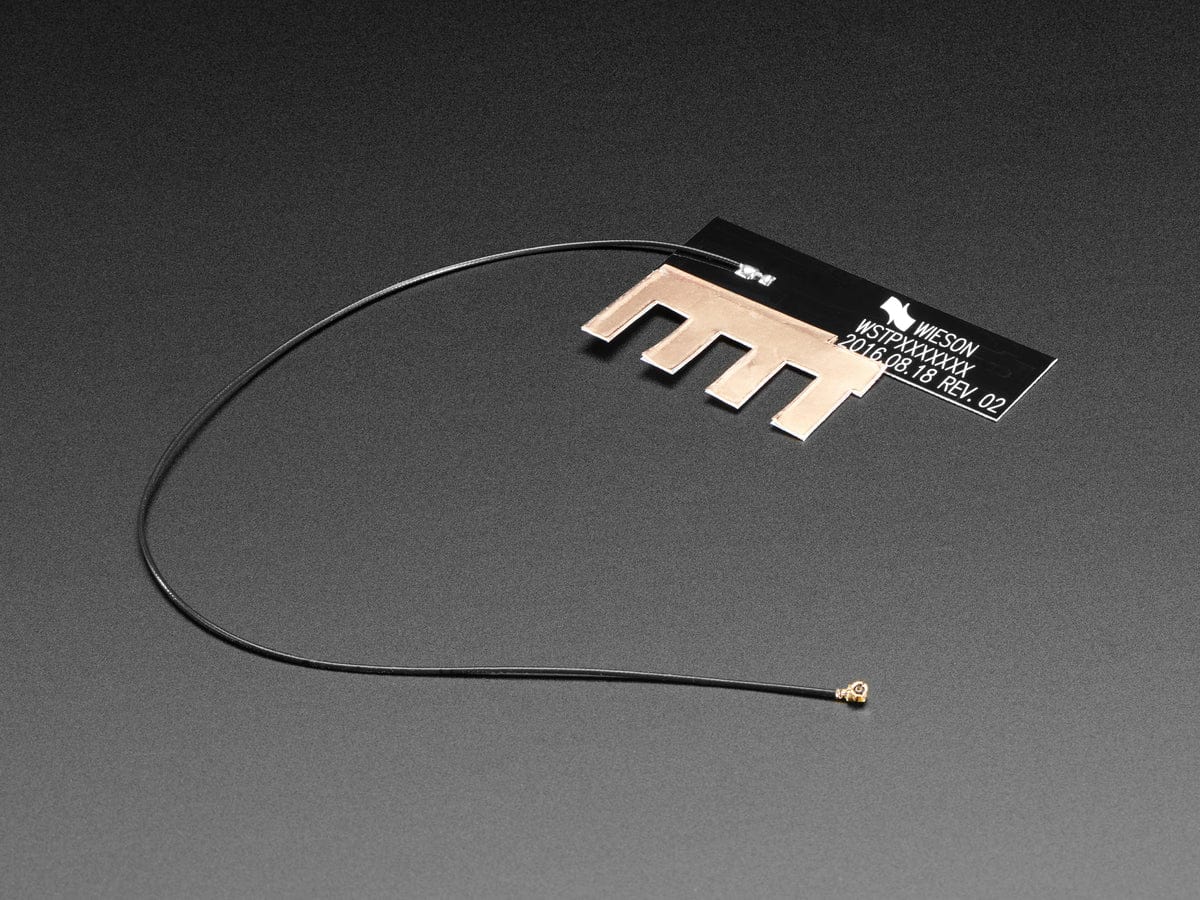

![Pycom LTE-M Cellular Antenna [Discontinued]](https://img.piphonic.shop/images/product/pycom-lte-m-cellular-antenna-1.jpg)
Original: $18.65
-70%$18.65
$5.59The Story
This antenna is a perfect addition to your cellular project with LTE connectivity. It's specifically intended for use with the Pycom LTE-powered kits but it's just a passive antenna so you can pair it with any dev board you like, as long as it has a uFL connector.
Comes with a flexible copper grounding sticker, you can use to provide a nice big ground plane!
Technical Details
Dimensions
- 7.5 x 2.1 cm
Weight
- .04 kg
Specifications
- LTE band 28/38*2
- Frequency: 703~803/2520~2620(MHz)
- Antenna size: 75 x 21 (mm)
- PCB 0.6 mm
Low bands
- (5, 8, 12, 13, 18, 19, 20, 28)
- Tx frequencies 699 to 915 MHz
- Rx frequencies 729 to 960 MHz
Mid bands
- (1, 2, 3, 4)
- Tx frequencies 1710 to 1980MHz
- Rx frequencies 1805 to 2170 MHz
For product support you can contact Pycom here.

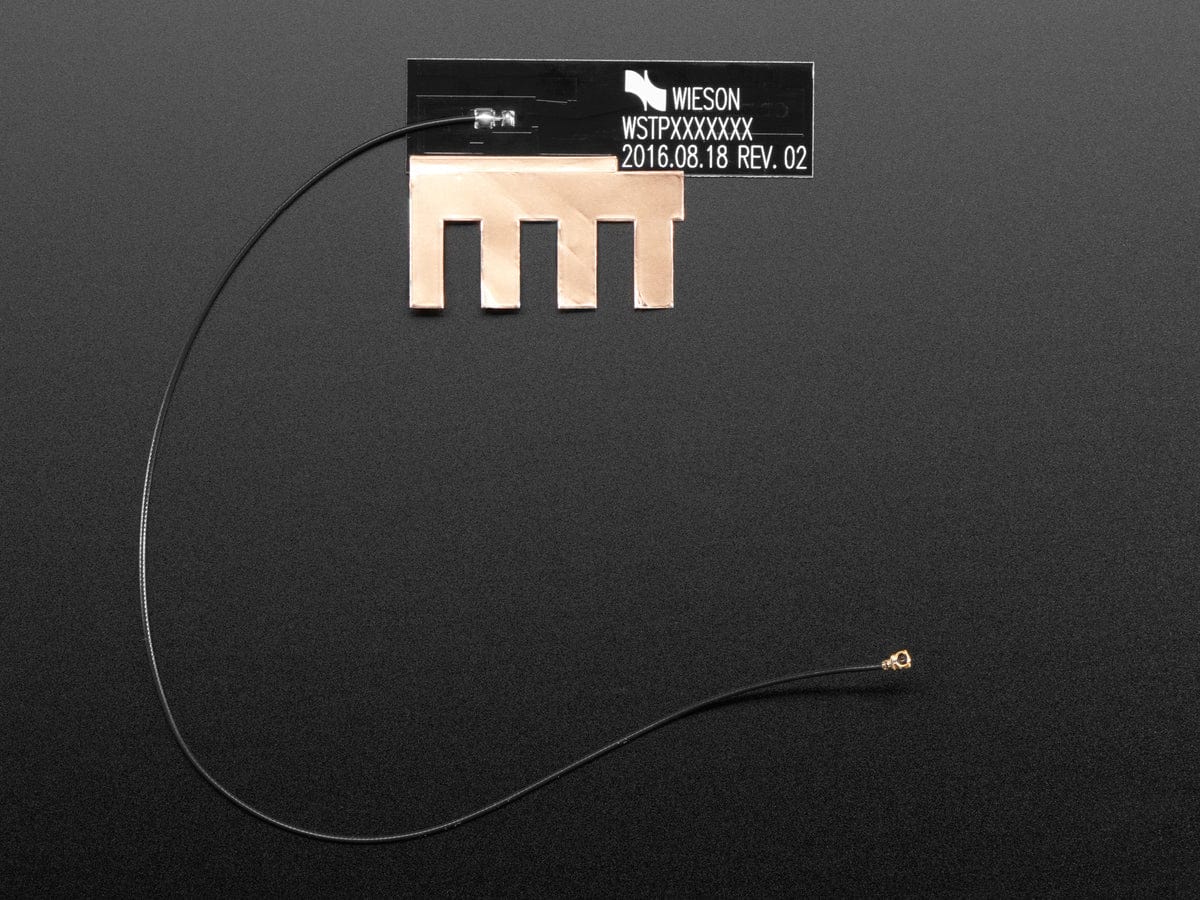

![Pycom LTE-M Cellular Antenna [Discontinued] - Image 2](https://img.piphonic.shop/images/product/pycom-lte-m-cellular-antenna-2.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

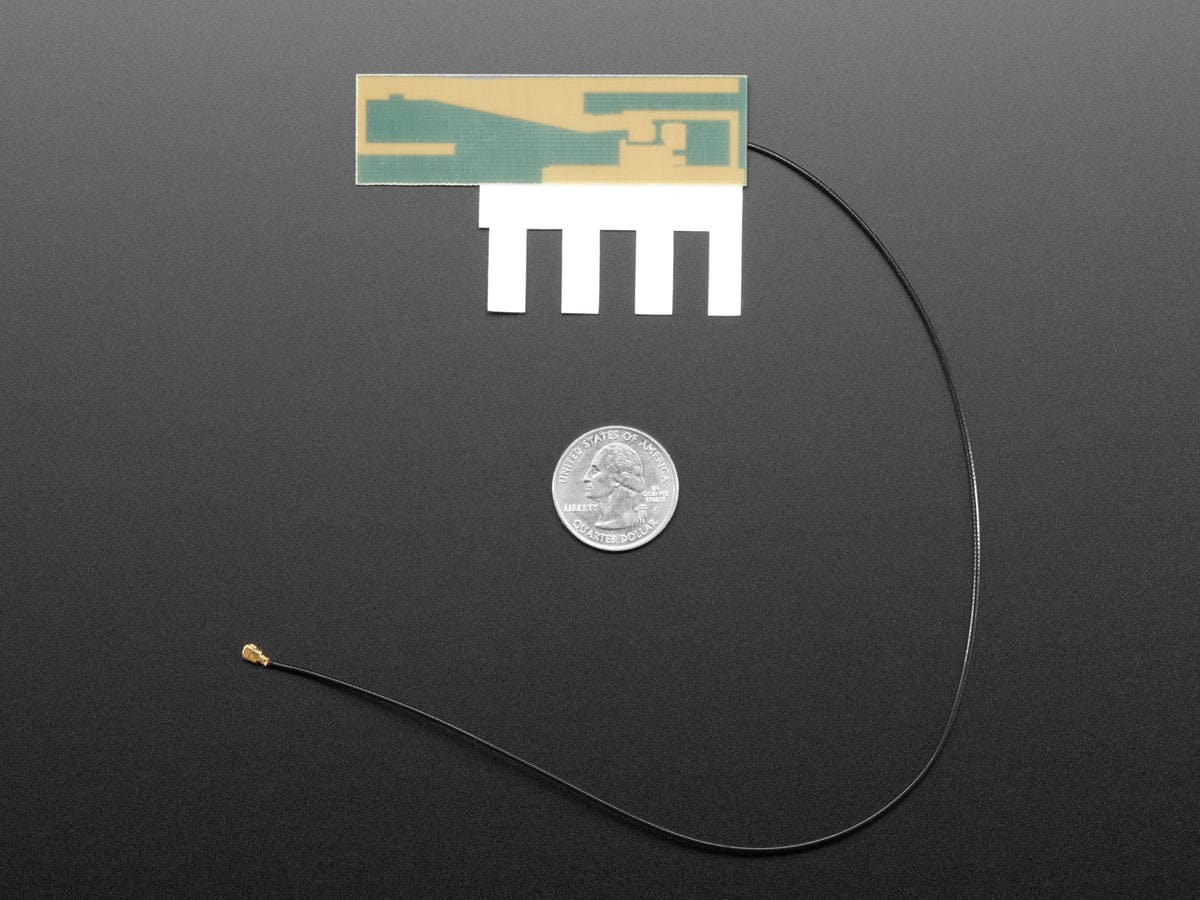

![Pycom LTE-M Cellular Antenna [Discontinued] - Image 3](https://img.piphonic.shop/images/product/pycom-lte-m-cellular-antenna-3.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

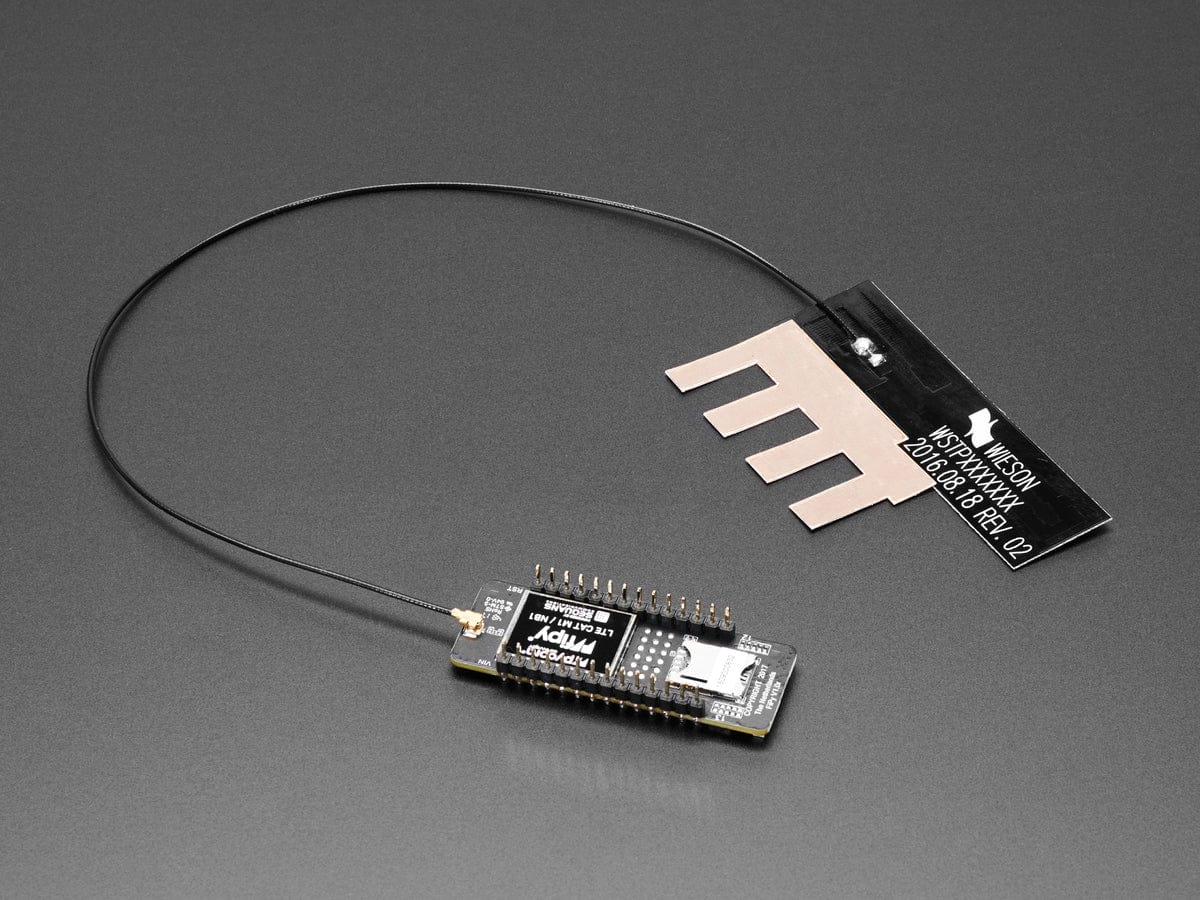

![Pycom LTE-M Cellular Antenna [Discontinued] - Image 4](https://img.piphonic.shop/images/product/pycom-lte-m-cellular-antenna-4.jpg)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This antenna is a perfect addition to your cellular project with LTE connectivity. It's specifically intended for use with the Pycom LTE-powered kits but it's just a passive antenna so you can pair it with any dev board you like, as long as it has a uFL connector.
Comes with a flexible copper grounding sticker, you can use to provide a nice big ground plane!
Technical Details
Dimensions
- 7.5 x 2.1 cm
Weight
- .04 kg
Specifications
- LTE band 28/38*2
- Frequency: 703~803/2520~2620(MHz)
- Antenna size: 75 x 21 (mm)
- PCB 0.6 mm
Low bands
- (5, 8, 12, 13, 18, 19, 20, 28)
- Tx frequencies 699 to 915 MHz
- Rx frequencies 729 to 960 MHz
Mid bands
- (1, 2, 3, 4)
- Tx frequencies 1710 to 1980MHz
- Rx frequencies 1805 to 2170 MHz
For product support you can contact Pycom here.
