SparkFun Qwiic Cable - Breadboard Jumper (4-pin) [Discontinued]

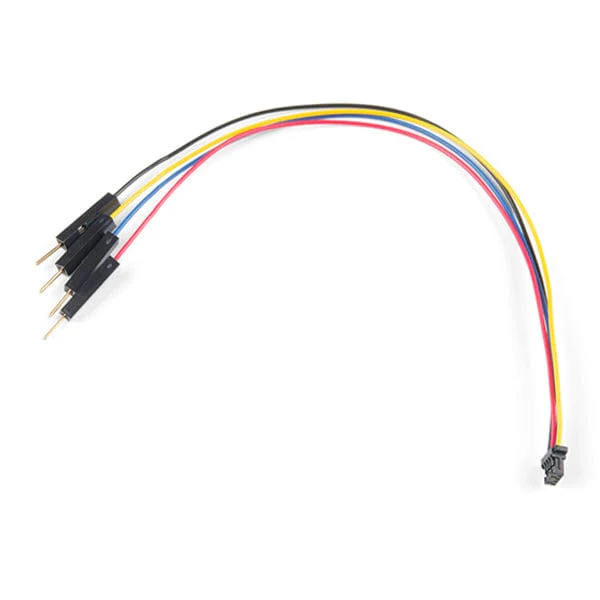

This is a jumper adapter cable that comes pre-terminated with a male Qwiic JST connector on one end and a breadboard hookup pigtail on the other. This cable makes it easy to connect components with a Qwiic connector to a breadboard or an Arduino-based device’s pins.

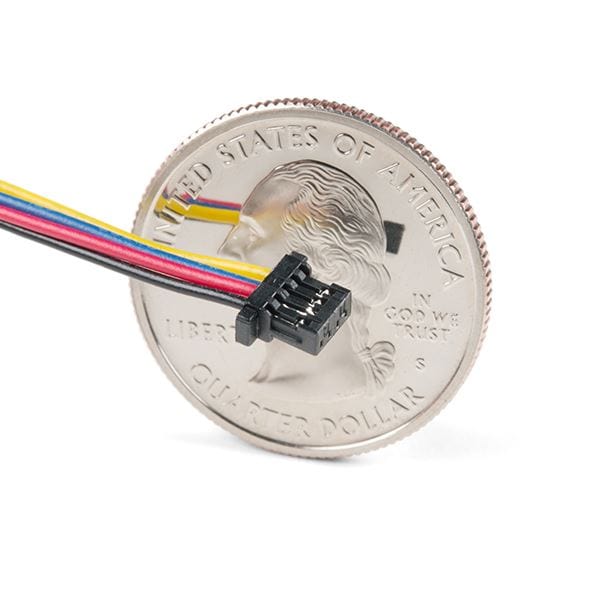

The 28AWG wire's length is 150mm (about 5.9 inches). The adapter’s wires have been colour-coded to red, black, blue and yellow. Additionally, the female Qwiic connector features a basic 1mm pitch, while the male hookup pins can easily insert into a standard 0.1" connector.

All Qwiic cables have the following colour scheme and arrangement:

• Black = GND
• Red = 3.3V
• Blue = SDA
• Yellow = SCL

Features

• Dimensions: 150mm (5.9") Length

Resources

• Dimensional Drawing
• Fritzing Part
