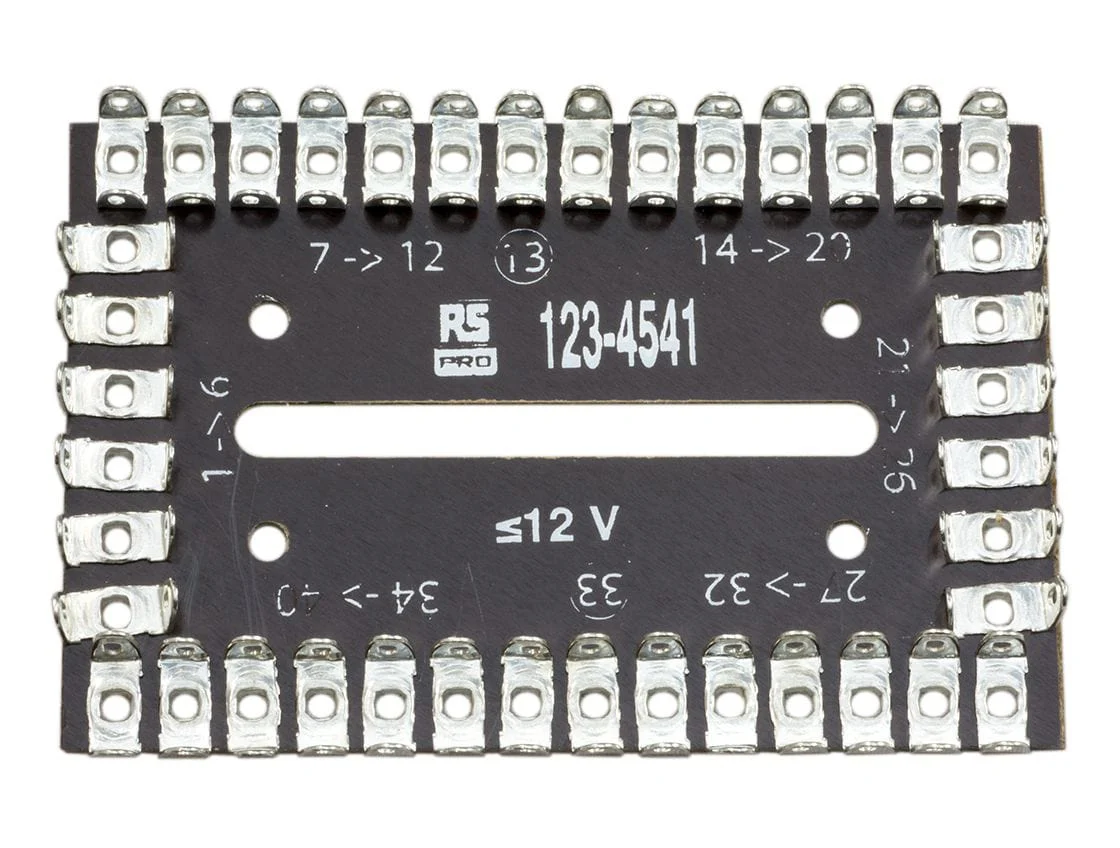

Raspberry Pi 40 Contact Solder Tag Board [Discontinued]

Unlock your Raspberry Pi's 40 Pin GPIO with the help of this 40 pin solder tag barrier board! Ideal for electronics engineers developing prototypes, with a total of 40 terminals it provides a simple means of soldering and de-soldering electronic components to the GPIO header when developing prototypes. This solder tag board is low cost and designed for easy make, easy break solder connections. It aids in unlocking the potential of the Pi 40 pin GPIO interface.

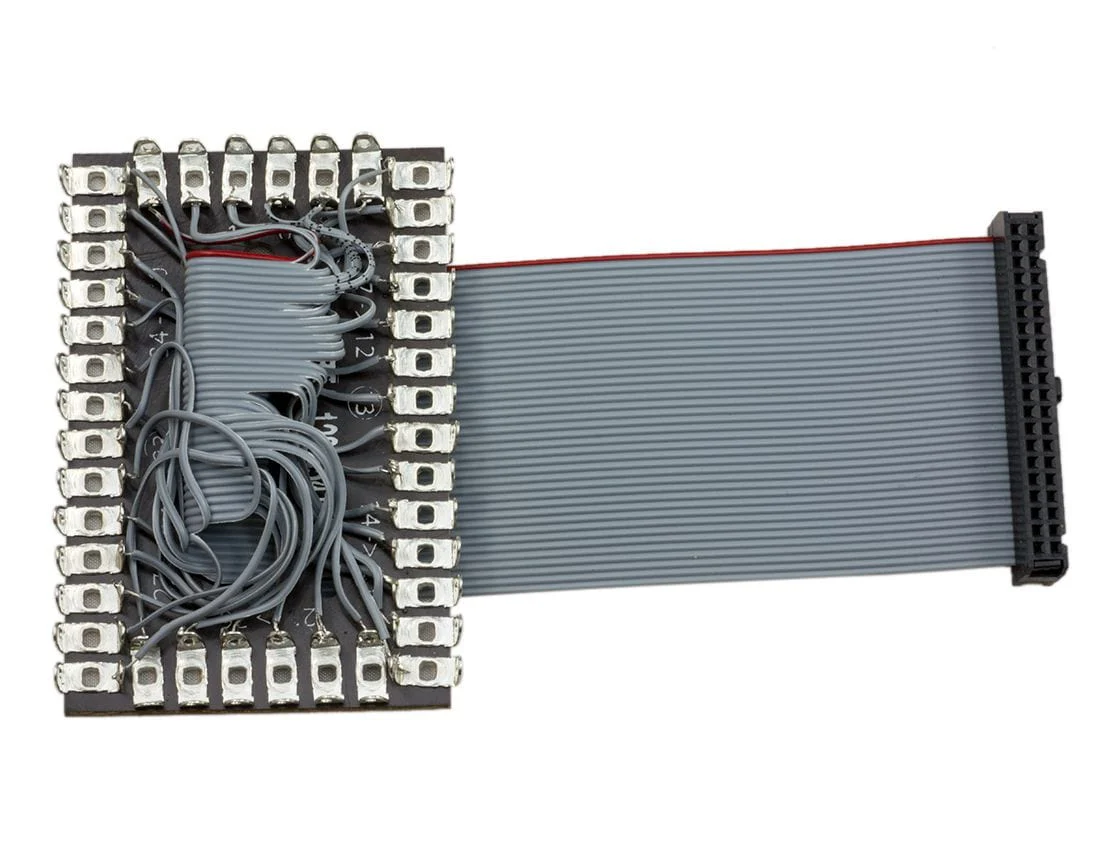

A central slot in the tag board allows a ribbon cable, to pass through, and the holes in the tag board align with the mounting holes in the Pi allowing the tag board to be mounted beneath or above the Pi using an additional mounting kit (not included).

Raspberry Pi 40 Contact Solder Tag Board Features:

• 40 Solder Tag Terminals Corresponding to the 40 pins on the Raspberry Pi
• Easy to Solder
• High Wuality SRBP Base
• Hot Tinned Tags
• Mounting Holes and Ribbon Cable Slot
• 6mm Pitch, 4 Row, 12V
