M5Stack RF UNIT 433MHz Transmitter (SYN115)

This RF Unit is a radio frequency (RF) transmitter, using SYN115 radio frequency transmitter IC, working frequency is 433.92MHz (using ASK modulation) which is commonly used by wireless controllers, a built-in PCB antenna, stable signal transmission distance up to 10M, and the output power reaches 10dBm. The compact housing design can be embedded in a variety of radio frequency remote control applications.

Features

• Working frequency: 433.92MHz
• Data transmission rate 10kbps (ASK modulation)
• Output power 10dBm
• PCB antenna

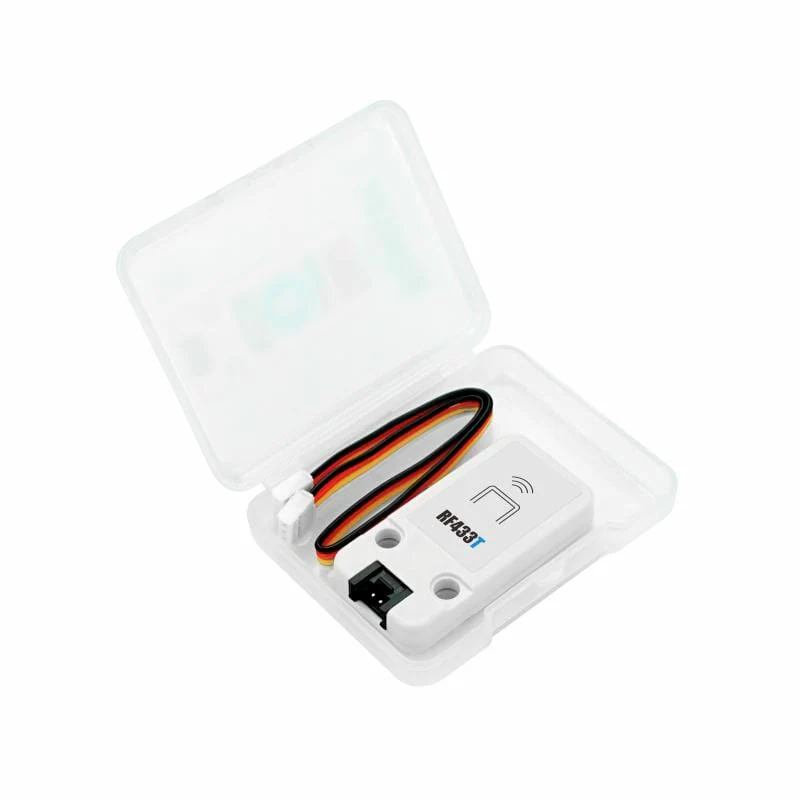

Package Contents

• 1x RF433T Unit
• 1x HY2.0-4P Cable

Specifications

Resources	Parameter
Transmitter IC	SYN115
Working current	12mA
Stable communication distance	10M
Output Power	10dBm
Antenna type	PCB antenna
Net weight	6g
Gross weight	21g
Product Size	48 x 24 x 8mm
Package Size	67 x 53 x 12mm
