The Story

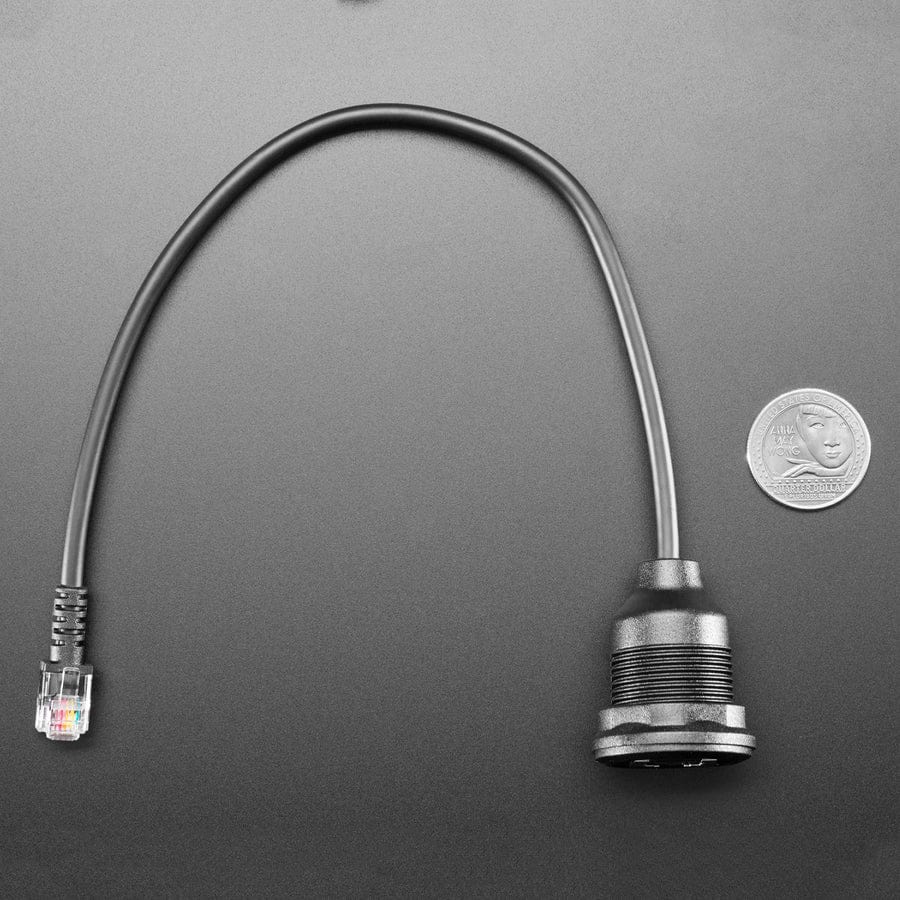

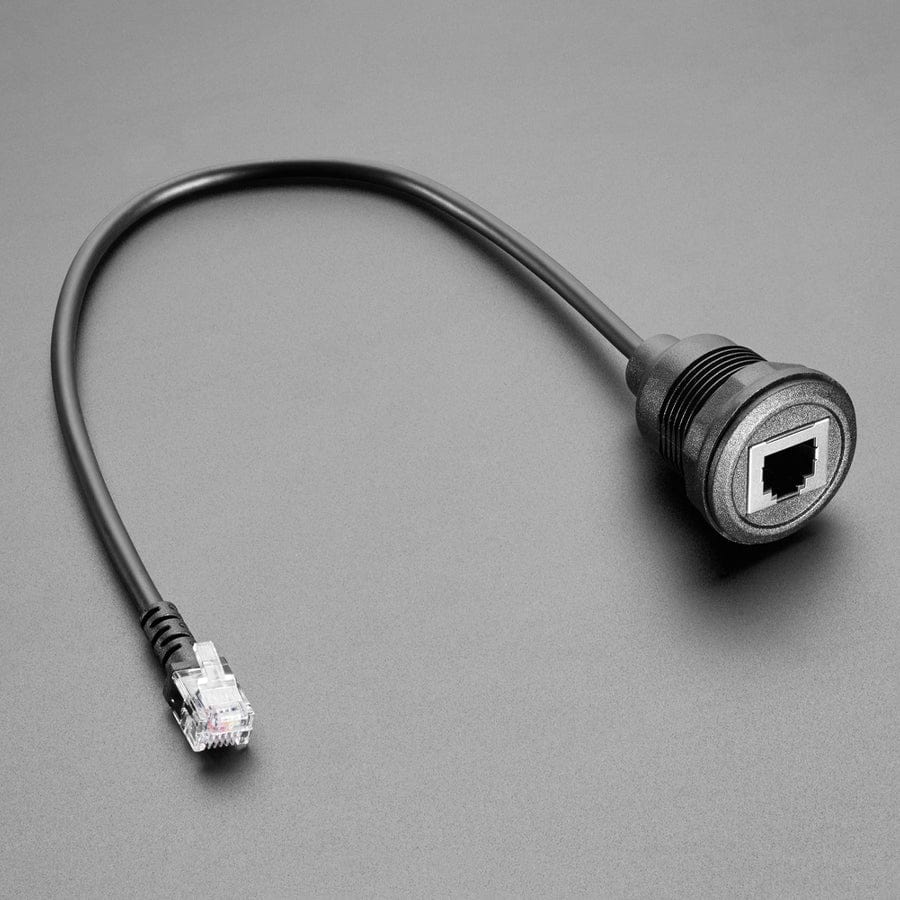

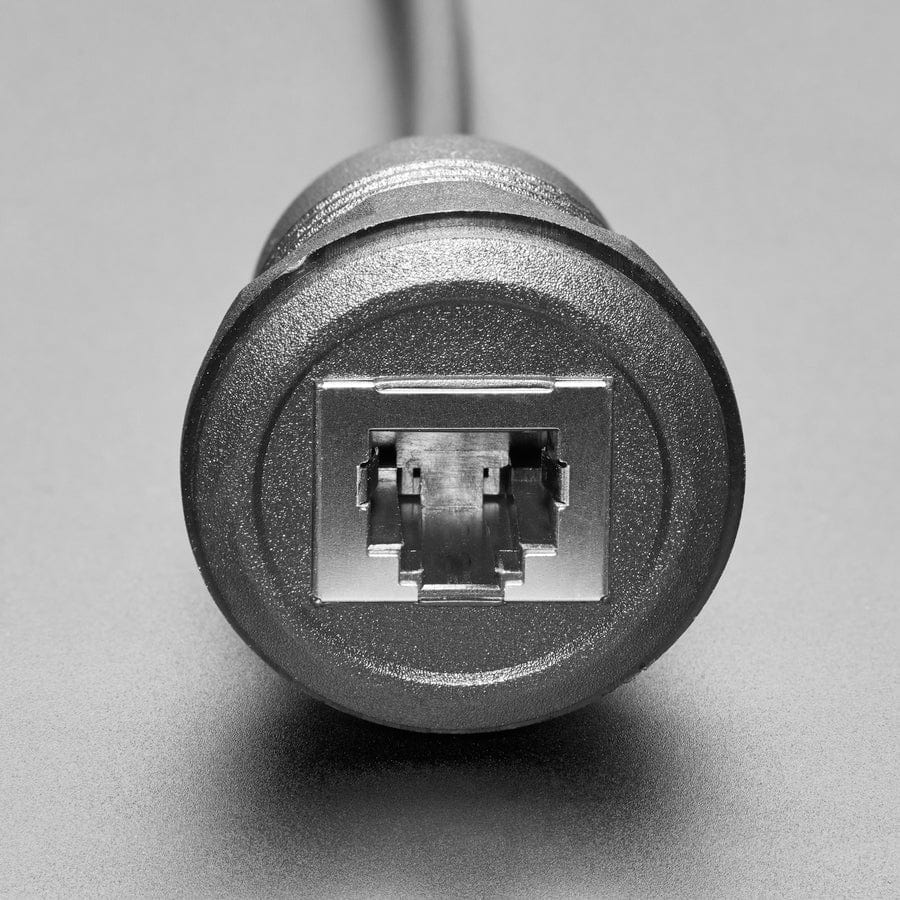

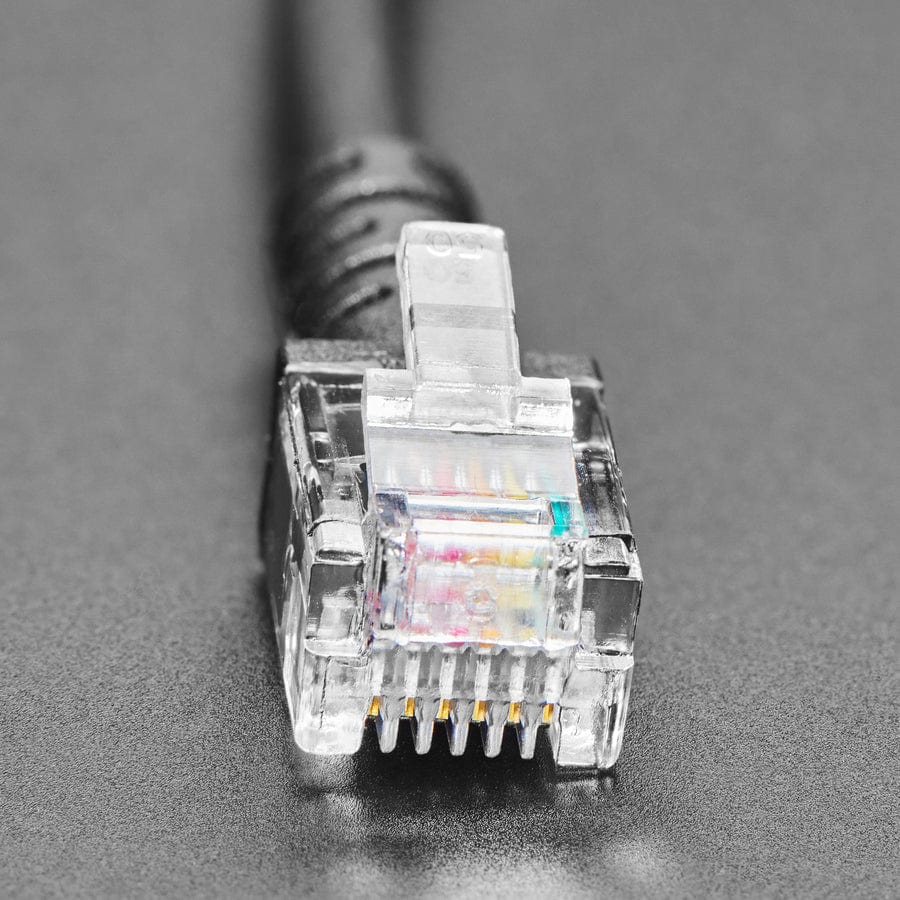

If you need to add a panel-mount connection for telephone-interfacing projects but don't have the time or ability to cut a custom oval or square hole, this RJ-12 or RJ-11 Telephone Round Panel Mount Extension Cable is the easiest and fastest way to panel-ify your existing phone kit. It's about 30mm in diameter, so you can drill a hole in your wood, plastic or metal with a common hole saw or bit, no special shapes or filing are required. Unscrew the plastic nut, insert the plug, and re-attach. Ta-da: Now you have an RJ-12 jack with an RJ-12 plug. The plug has the exact same wire order as the jack, so it's a full pass-through connection.
Note that RJ-11 and RJ-12 use the same connector! The difference is that RJ-11 has only 4 wires inserted, while RJ-12 has all 6. So you can use this adapter for either. Note that this is not compatible with RJ-45 Ethernet Jacks or plugs; those are bigger and have more contacts.
It's designed to easily attach to a panel up to 16mm thick (or 0.625") or as thin as a few mm. Perfect for adding a port to your project enclosure! We particularly like this adapter for its solid body and 'forgiving' plastic lip that hides the drill hole.
Resources
- Datasheet
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
If you need to add a panel-mount connection for telephone-interfacing projects but don't have the time or ability to cut a custom oval or square hole, this RJ-12 or RJ-11 Telephone Round Panel Mount Extension Cable is the easiest and fastest way to panel-ify your existing phone kit. It's about 30mm in diameter, so you can drill a hole in your wood, plastic or metal with a common hole saw or bit, no special shapes or filing are required. Unscrew the plastic nut, insert the plug, and re-attach. Ta-da: Now you have an RJ-12 jack with an RJ-12 plug. The plug has the exact same wire order as the jack, so it's a full pass-through connection.
Note that RJ-11 and RJ-12 use the same connector! The difference is that RJ-11 has only 4 wires inserted, while RJ-12 has all 6. So you can use this adapter for either. Note that this is not compatible with RJ-45 Ethernet Jacks or plugs; those are bigger and have more contacts.
It's designed to easily attach to a panel up to 16mm thick (or 0.625") or as thin as a few mm. Perfect for adding a port to your project enclosure! We particularly like this adapter for its solid body and 'forgiving' plastic lip that hides the drill hole.
Resources
- Datasheet
