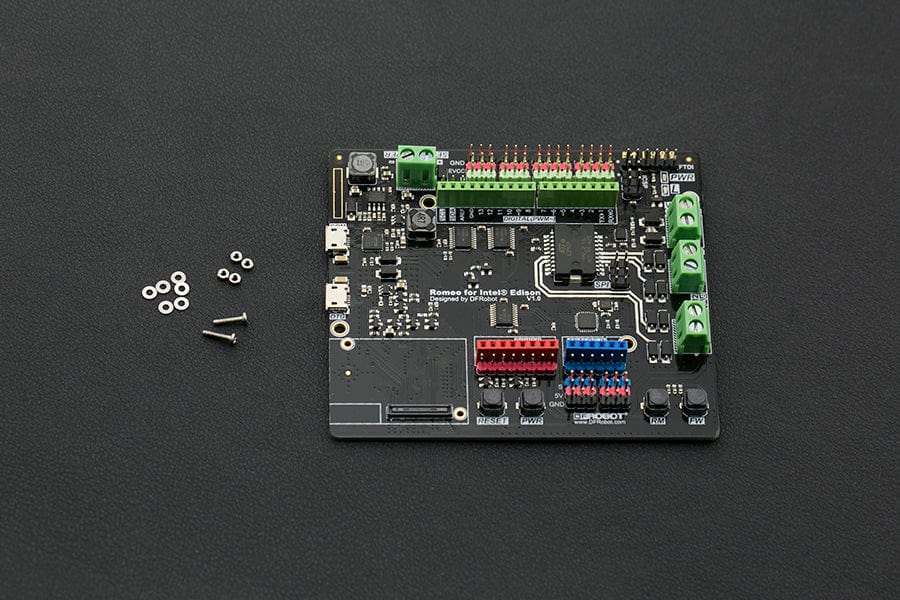

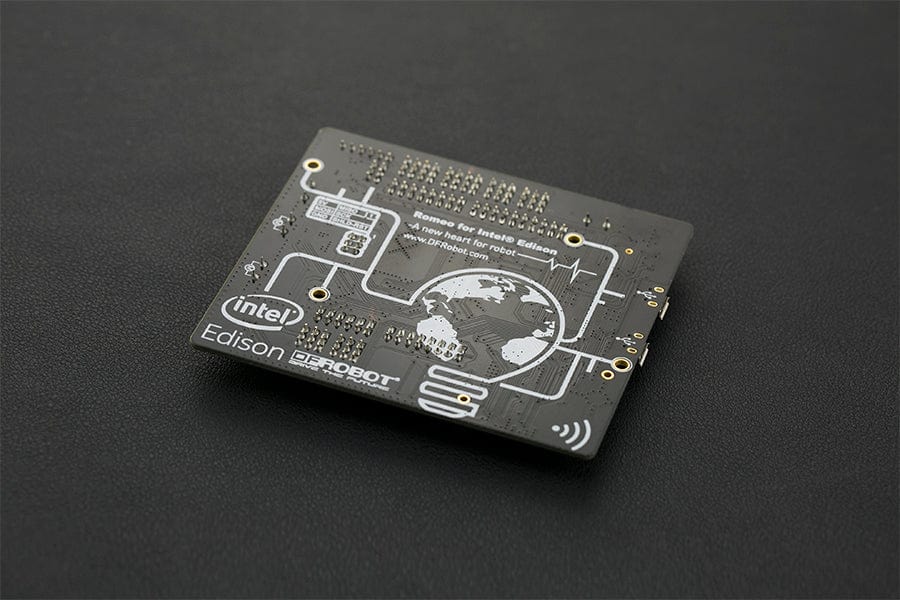

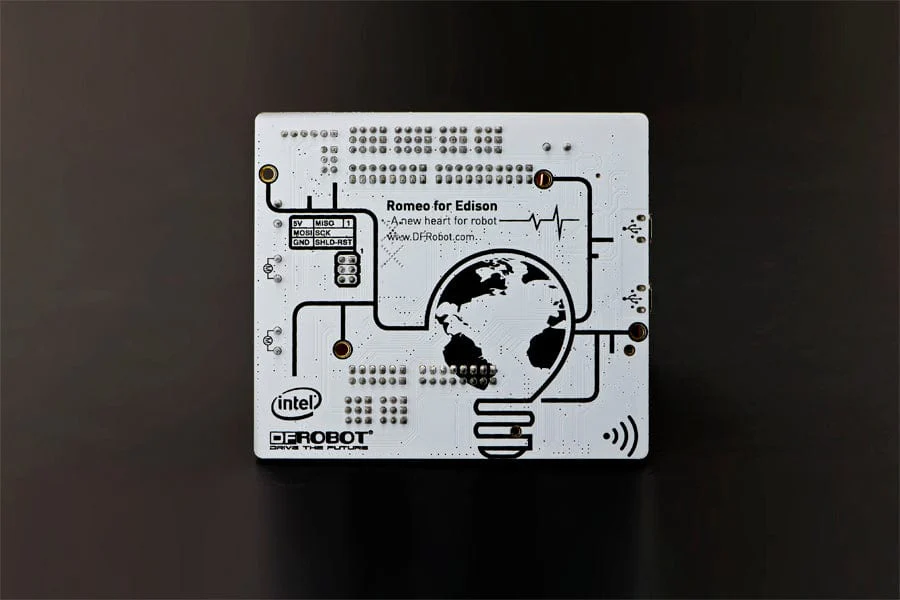

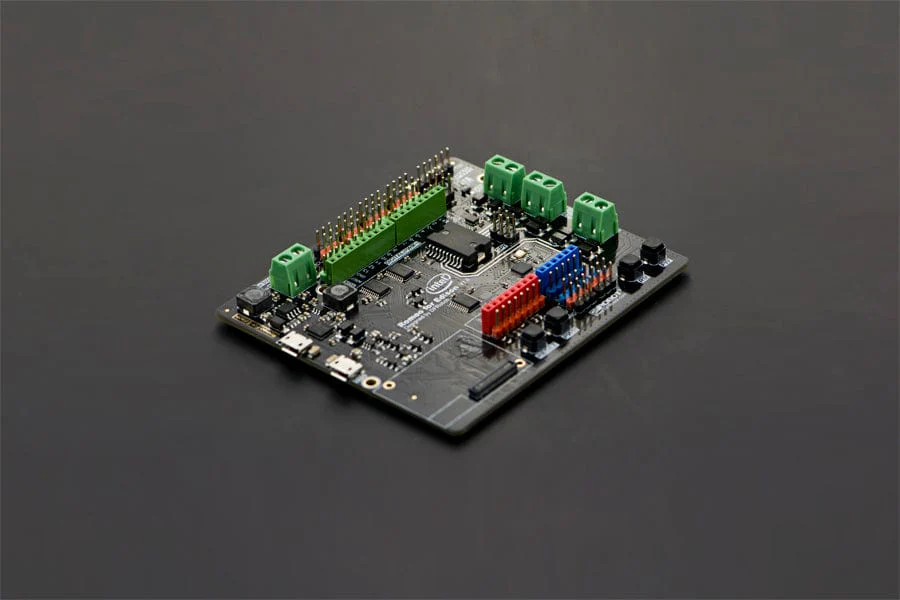

Romeo for Intel® Edison Controller (Without Intel® Edison) [discontinued]

Romeo for Intel® Edison controller is a multi-purpose, all-in-one development platform based on Intel Edison and Arduino SoC. It is especially designed to be useful for robotics applications. Romeo for Intel® Edison is compatible with Arduino open source platform and Linux, and supports Java and C development environment. Users are able to extend this platform with thousands of existing shields and modules such as switches, sensors, LEDs, servos, motors easily with Romeo for Intel Edison. It can also be used as a standalone communication platform for software like flash, processing, Max/MSP and VVVV. The integrated 2 way DC motor driver and wireless capability allows you to start your project immediately without the need of any additional motor driver or wireless shield. The Romeo for Intel® Edison inherits all functions of the Romeo all-in-one controller and integrates powerful functions the Intel Edison board possesses. You can describe it as a control board specially designed for robotics applications, carrying the powerful gene of Intel® Edison and being compatible with Arduino.

• Support USB power and external power supply switch
• Support SPI program port
• Support 1 x I2C interface

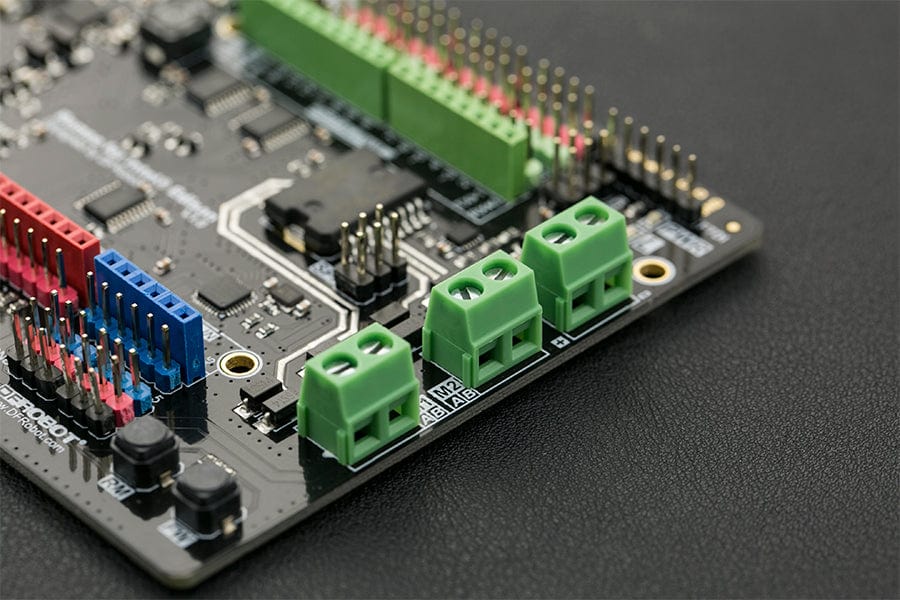

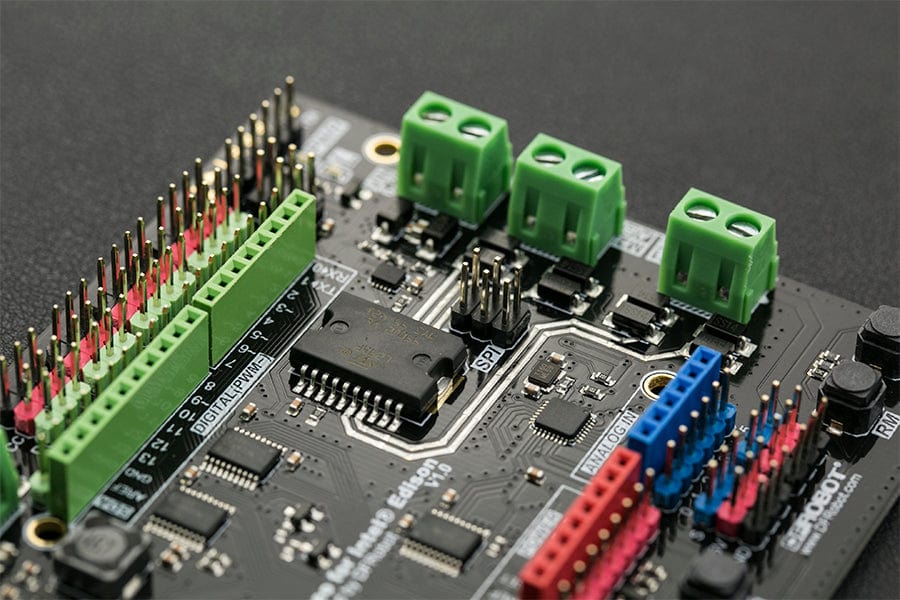

• Support 2 way motor drive (Peak Current: 2A)
• Support Broadcom 43340 802.11 a/b/g/n dual band (2.4G and 5GHz) Wi-Fi
• Support Bluetooth 4.0
• Support OTG
• 14 Digital I/O pins
• 6 Analog I/O pins
• 4 PWM Output interfaces

• Operating Voltage: 5V
• Output Voltage: 5V/3.3V
• Input Voltage(limits): 6-20V
• Digital I/O pins: 14
• Analog I/O pins: 6
• DC Current per I/O Pin: 10mA
• Motor Driver Constant Current: 2 x 2A

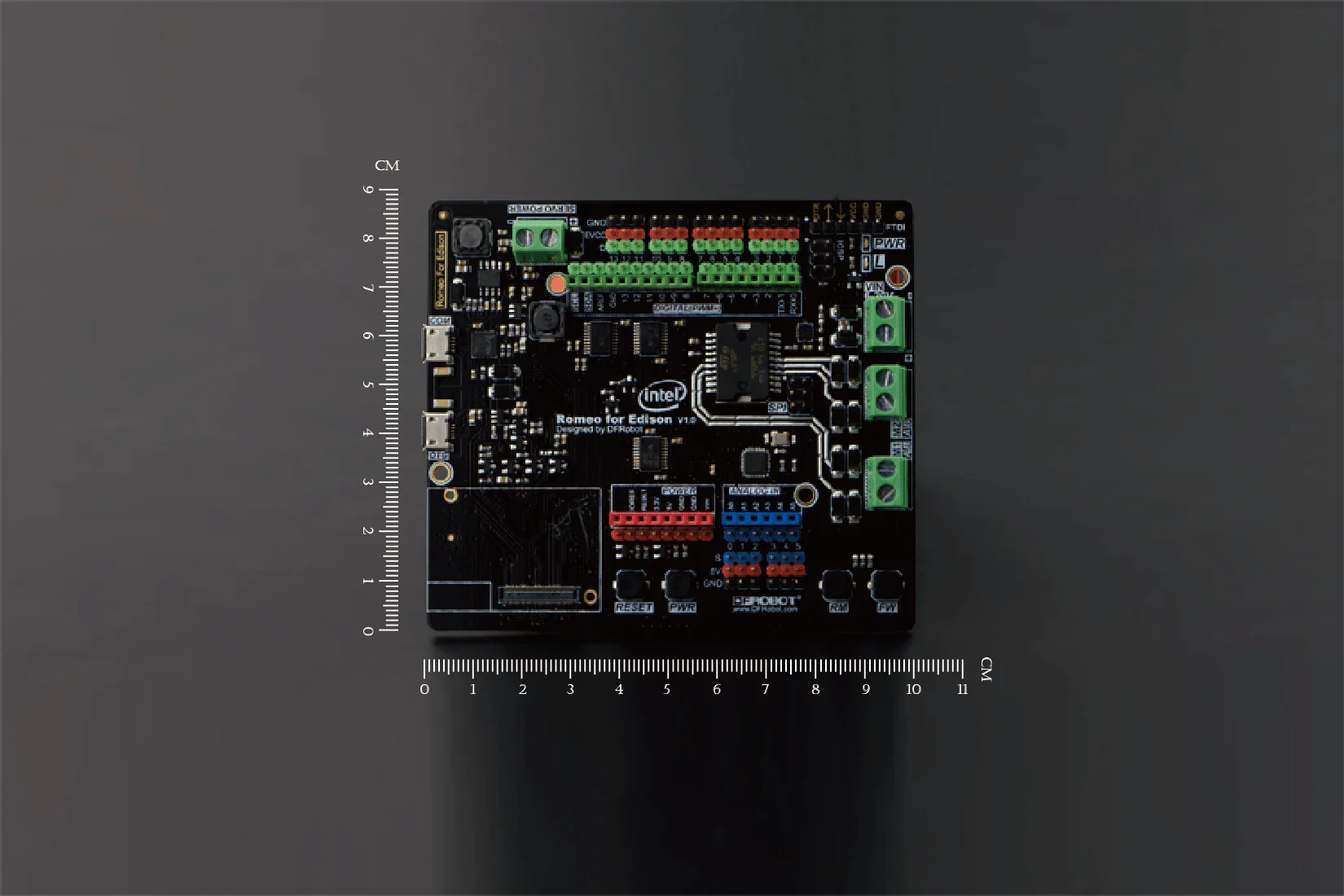

• Size: 100x88x15mm(3.94x3.46x0.59")
• Weight: 70g

• Wiki (Romeo for Edison Controller)
• Intel Edison Getting Started Tutorial
• Edison Related Software Download
• Edison Firmware Update Tutorial
• Build your Own Edison System Image Tutorial
• Intel Edison Introduction
• Edison Module Introduction Webpage
• Edison Development Forum

• Romeo for Edison Controller (without Edison) x1
